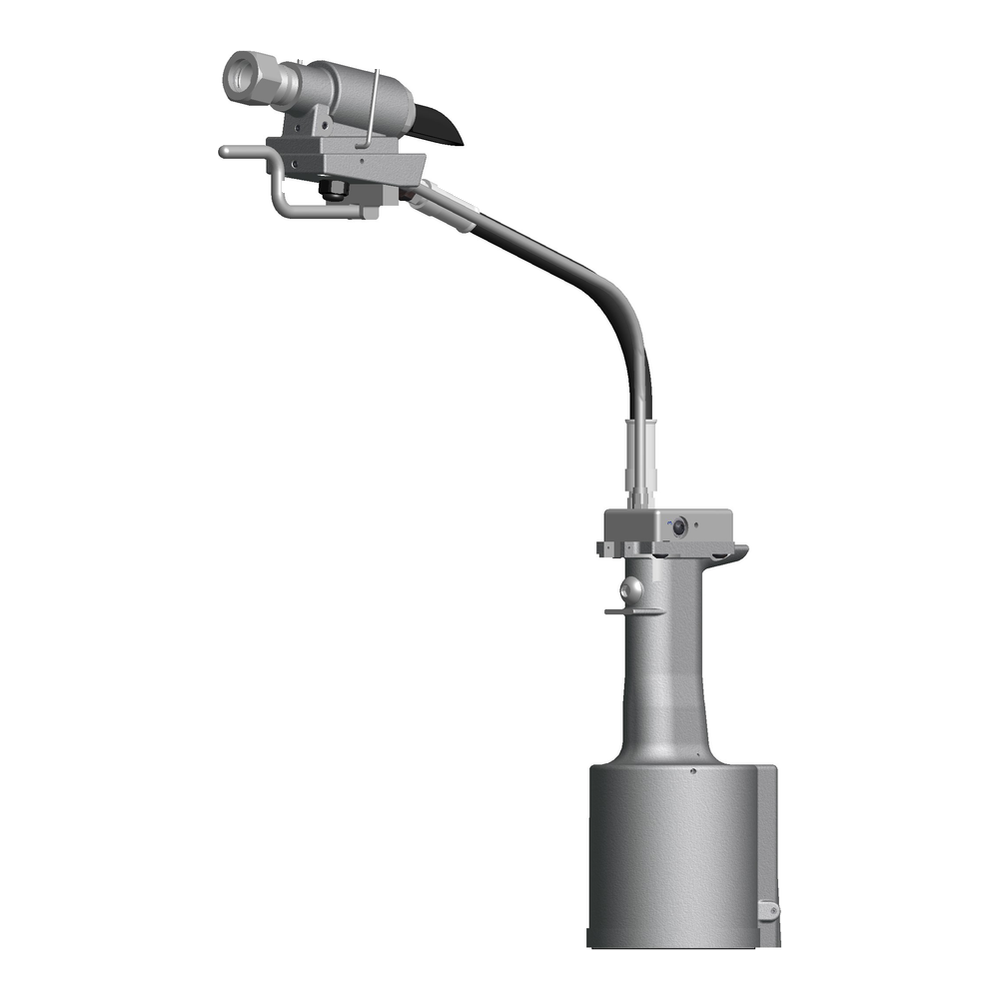

כלי סמרור למערכת מפוצלת Gage Bilt GB751SR במבט מוצר על רקע לבן - Gage Bilt GB751SR split-system rivet tool product view on a white background

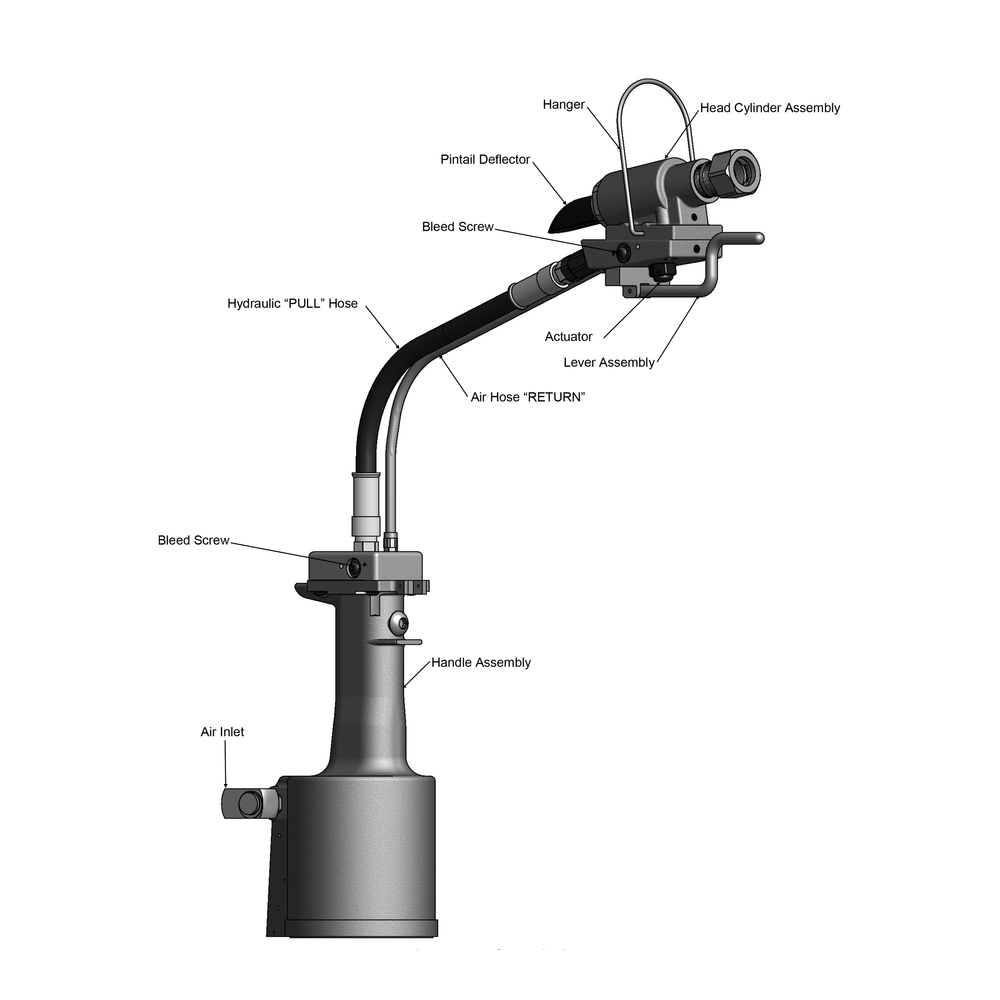

מבט נוסף על כלי סמרור למערכת מפוצלת Gage Bilt GB751SR - Additional view of the Gage Bilt GB751SR split-system rivet tool

בית » מוצרים » Gage Bilt Split-System Rivet Tool GB751SR

Gage Bilt Split-System Rivet Tool GB751SR

Name: Gage Bilt Split-System Rivet Tool GB751SR
Brand: Gage Bilt

The GB751SR is a pneumatic-hydraulic split handle installation tool designed specifically for the efficient installation of blind rivets.

Overview

The GB751SR is a pneumatic-hydraulic split handle installation tool designed specifically for the efficient installation of blind rivets.

Product information and applications

Description

The GB751SR is a pneumatic-hydraulic split handle installation tool designed specifically for the efficient installation of blind rivets. This tool’s unique "split" system provides the operator with a lightweight ergonomic tool. The head assembly when held in hand weighs 1.75 lbs. (0.79 kg). The entire split handle installation tool weighs 6.75 lbs. (3.06 kg). It has a 0.780” (19.81 mm) fastener setting stroke. The GB751SR split handle installation tool operates on 90 to 100 psi (6.2 – 6.9 bar) of air pressure, with 90 psi (6.2 bar) of air pressure providing maximum efficiency. At 90 psi (6.2 bar) of air pressure, the GB751SR does not exceed 81.5 dB(A) and consumes 0.30 SCF/ cycle (8.50 L/cycle).

Specifications and compatibility tables

GB751SR Info:

Total Weight	6.75 lbs. (3.06 kg)
Hand Weight	1.75 lbs. (0.79 kg)
Rated Pull Load	2,200 lbs. (9.8 kN
Stroke	0.780” (19.8 mm)
Noise Level	81.5 dB(A)
Warranty	1 year

MS90353S & U / MS90354S & U MS21140S & U / MS21141S & U MAXIBOLT, BACB30YY, YU, & YT CR7000 SERIES BLIND BOLT (SINGLE ACTION) WITH OR W/OUT DRIVE WASHER

DIA.	STRAIGHT	RIGHT ANGLE 1	OFFSET
1/8	SB04-752C-20 SB04-752C-45 SB04-752C-80	SB04-751C-54RA	SB04-752B-43OS
5/32	SB05-752C-20 SB05-752C-45 SB05-752C-80	SB05-751C-54RA	SB05-752A-43OS

MS90353S & U / MS90354S & U MS21140S & U / MS21141S & U MAXIBOLT, BACB30YY, YU, & YT CR7000 SERIES BLIND BOLT (SINGLE ACTION) WITH DRIVE WASHER

DIA.	STRAIGHT	RIGHT ANGLE 1	OFFSET
1/8	UBB04-752C-20 UBB04-752C-80 UBB04-752C-45	UBB04-751C-54RA	UBB04-752B-43OS
5/32	UBB05-752C-20 UBB05-752C-45 UBB05-752C-80	UBB05-751C-54RA	UBB05-752B-43OS

EN6122 & UAB130-EU EN6127 & UAB6127-EU EN6128 & UAB100-EU EN6129 & UABP-EU MAXIBOLT PLUS

DIA.	STRAIGHT	RIGHT ANGLE 1	OFFSET
5/32	UAB05-752C-20 UAB505-752C-45	UAB05-751C-54RA	UAB05-752B-43OS

NAS1900 S & U SERIES UNIMATIC BLIND RIVET (SINGLE ACTION) WITH OR W/OUT DRIVE WASHER

DIA.	STRAIGHT	RIGHT ANGLE 1	OFFSET
1/8	SMLS04-752C-20 SMLS04-752C-45	SMLS04-751C-54RA	SMLS04-752B-43OS
5/32	SMLS05-752C-20 SMLS05-752C-45	SMLS05-751C-54RA	SMLS05-752B-43OS
3/16	SMLS06-752B-20 SMLS06-752B-45	SMLS06-751C-54RA	SMLS06-752B-43OS
1/4 3	SMLS08-713-20 SMLS08-713-45	SMLS08-713B-58RA 5	SMLS08-752B-43OS 3

NAS1900 S & U SERIES UNIMATIC BLIND RIVET (SINGLE ACTION) WITH DRIVE WASHER

DIA.	STRAIGHT	RIGHT ANGLE 1	OFFSET
1/8	456UBR-751A-21 2 456UBR-751A-61 2	456UBR-751D-54RA 2	456MAX-731-43OS 2
5/32	456UBR-751A-21 2 456UBR-751A-61 2	456UBR-751D-54RA 2	456MAX-731-43OS 2
3/16	456UBR-751A-21 2 456UBR-751A-61 2	456UBR-751D-54RA 2	456MAX-731-43OS 2
1/4 3	UBR08-713-20 UBR08-713-45	UBR08-713B-58RA 5	UBR08-27OSSG 6 UBR08-37OSSG 6

"A" CODE NAS1398A, NAS1399A NAS1738A, NAS1739A

DIA.	STRAIGHT	RIGHT ANGLE 1	OFFSET
3/32	3A-352B-25	3A-751C-54RA	3A-752B-43OS
1/8	4A-752C-20 4A-752C-45	4A-751C-54RA	4A-752B-43OS
5/32	5A-752C-20 5A-752C-45	5A-751C-54RA	5A-752B-43OS
3/16	6A-752B-20 6A-752B-45	6A-751C-54RA	6A-752B-43OS

NUT PLATE RIVETS MS20600 SERIES CCR244/264/274 MS/9SP/PT BACR15CC/CF/DA/DR

DIA.	STRAIGHT	RIGHT ANGLE 1	OFFSET
3/32	3NP-751-23 3NP-352-61	3NP-751B-54RA	3NP-751A-43OS
1/8	5N-751-23 5N-352-61	45N-751B-54RA	5N-751A-43OS

CHERRYMAX, CHERRYMAX 'AB', MBC LOCK CREATOR BACR15FR/FP, BACR15GF/GK

DIA.	STRAIGHT	RIGHT ANGLE 1	OFFSET
1/8	456MAX-751-23 2 456MAX-751A-61 2	456MAX-751D-54RA 2	456MAX-731-43OS 2
5/32	456MAX-751-23 2 456MAX-751A-61 2	456MAX-751D-54RA 2	456MAX-731-43OS 2
3/16	456MAX-751-23 2 456MAX-751A-61 2	456MAX-751D-54RA 2	456MAX-731-43OS 2

ASP ASP 2, ASP PF, ASP 2 F, ASP 2 LC, ASP 4 FF, ASP FF, ASP F, ASP-LC and MAF

DIA.	STRAIGHT	RIGHT ANGLE 1	OFFSET
13/64	ASP06-752C-20 ASP06-752C-45	ASP06-751B-54RA	ASP06-752B-43OS

STANDARD MBC NAS1719, NAS1720 NAS1721

DIA.	STRAIGHT	RIGHT ANGLE 1	OFFSET
1/8	MBC04-752C-20 MBC04-752C-45	MBC04-751C-54RA	MBC04-752C-43OS
5/32	MBC05-752C-20 MBC05-752C-45	MBC05-751C-54RA	MBC05-752C-43OS
3/16	MBC06-752B-20 MBC06-752B-45	MBC06-751C-54RA	MBC06-752C-43OS

MBC LOCKCREATOR NAS1719X(L), NAS1720X(L) NAS1721X(L)

DIA.	STRAIGHT	RIGHT ANGLE 1	OFFSET
1/8	456MAX-751-23 2 456MAX-751A-61 2	456MAX-751D-54RA 2	456MAX-731-43OS 2
5/32	456MAX-751-23 2 456MAX-751A-61 2	456MAX-751D-54RA 2	456MAX-731-43OS 2
3/16	456MAX-751-23 2 456MAX-751A-61 2	456MAX-751D-54RA 2	456MAX-731-43OS 2

GROUND STUD, M83454 & BACS53B 4

DIA.	STRAIGHT	RIGHT ANGLE 1	OFFSET
8/32	GS8-752C-20 GS8-752C-45	GS8-751C-54RA	GS8-752B-43OS
10/32	GS10-752B-20 GS10-752B-45	GS10-752A-54RA	GS10-752C-43OS

POP OPEN END NAIL RIVET

DIA.	STRAIGHT	RIGHT ANGLE 1	OFFSET
3/32	3N-751-23 3N-352-61	3N-751B-54RA	3N-751A-43OS
1/8	4N-751-23 4N-352-61	45N-751B-54RA	4N-751A-43OS
5/32	5N-751-23 5N-352-61	45N-751B-54RA	5N-751A-43OS
3/16	6N-751-23 6N-352-61	6N-751C-54RA	6N-751A-43OS

POP CLOSED END NAIL RIVET (ALUMINUM MANDREL)

DIA.	STRAIGHT	RIGHT ANGLE 1	OFFSET
3/32	3N-751-23 3N-352-61	3N-751B-54RA	3N-751A-43OS
1/8	4CEA-751-23 4CEA-352-61	4CEA-751B-54RA	4CEA-751-43OS
5/32	5CEA-751-23 5CEA-352-61	5CEA-751B-54RA	5CEA-751-43OS
3/16	6CEA-751-23 6CEA-352-61	6CEA-751C-54RA	6CEA-751-43OS

POP CLOSED END NAIL RIVET (STEEL MANDREL)

DIA.	STRAIGHT	RIGHT ANGLE 1	OFFSET
3/32	3N-751-23 3N-352-61	3N-751B-54RA S	3N-751A-43O
1/8	4CES-751-23 4CES-352-61	4CES-751B-54RA	4CES-751-43OS
5/32	5CES-751-23 5CES-352-61	5CES-751B-54RA	5CES-751-43OS
3/16	6CES-751-23 6CES-352-61	6CES-751C-54RA	6CES-751-43OS

FASTACK AF5022 AF5055 S149A020

DIA.	STRAIGHT	RIGHT ANGLE 1	OFFSET
1/8	4C-752C-20 4C-752C-45	4C-751C-54RA	4C-751A-43OS
5/32	5C-752C-20 5C-752C-45	5C-751C-54RA	5C-751A-43OS
3/16	6C-752B-20 6C-752B-45	6C-751C-54RA	6C-751A-43OS

SUPERTACK AF5075 AF5076

DIA.	STRAIGHT	RIGHT ANGLE 1	OFFSET
1/8	3A-352B-25	3A-751C-54RA	3A-752B-43OS
5/32	4A-752C-20 4A-752C-45	4A-751C-54RA	4A-752B-43OS
3/16	5A-752C-20 5A-752C-45	5A-751C-54RA	5A-752B-43OS
1/4	6A-752B-20 6A-752B-45	6A-751C-54RA	6A-752B-43OS

FOOTNOTES

GB751 installs the listed fasteners
1) RIGHT ANGLE NOSE ASSEMBLIES MAY REQUIRE MORE THAN ONE PULL.
2) INSTALLS 1/8", 5/32" & 3/16" DIAMETERS.
3) ALUMINUM ONLY.
4) INSTALLS 5/32", 3/16" & 1/4" DIAMETERS.
5) BACS53B -10 ONLY
6) THESE NOSES FOR LIGHT DUTY / REPAIR ONLY. Contact HADI Technologies FOR HIGH PRODUCTION APPLICATIONS.
7) ALL "OSSG" NOSE ASSEMBLIES REQUIRE THE 713206 ADAPTER. (NO STROKE LIMTER REQUIRED). OPTIONAL 751206-1 ADAPTER (NO STROKE LIMITER REQUIRED).
NOTE: THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE EXTENDS FROM THE TOOL I.E. -20 = 2.0 INCHES
