Overview

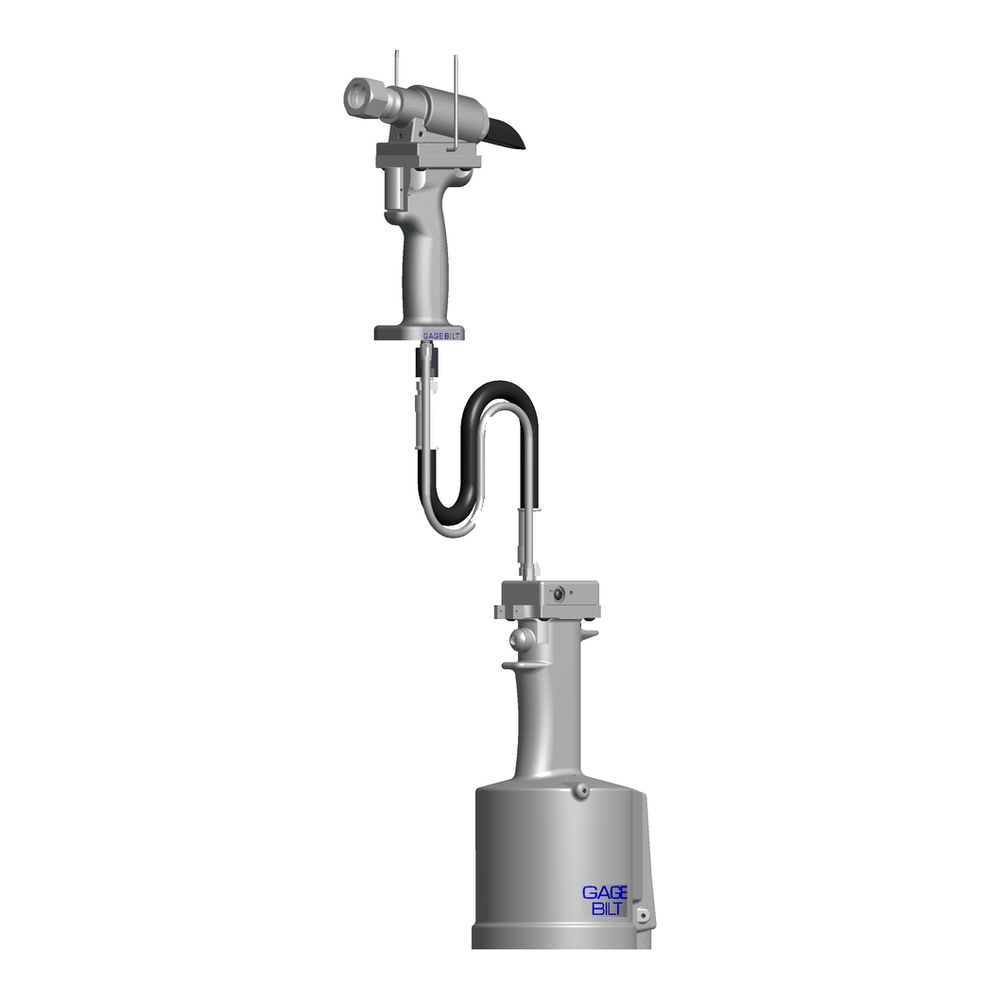

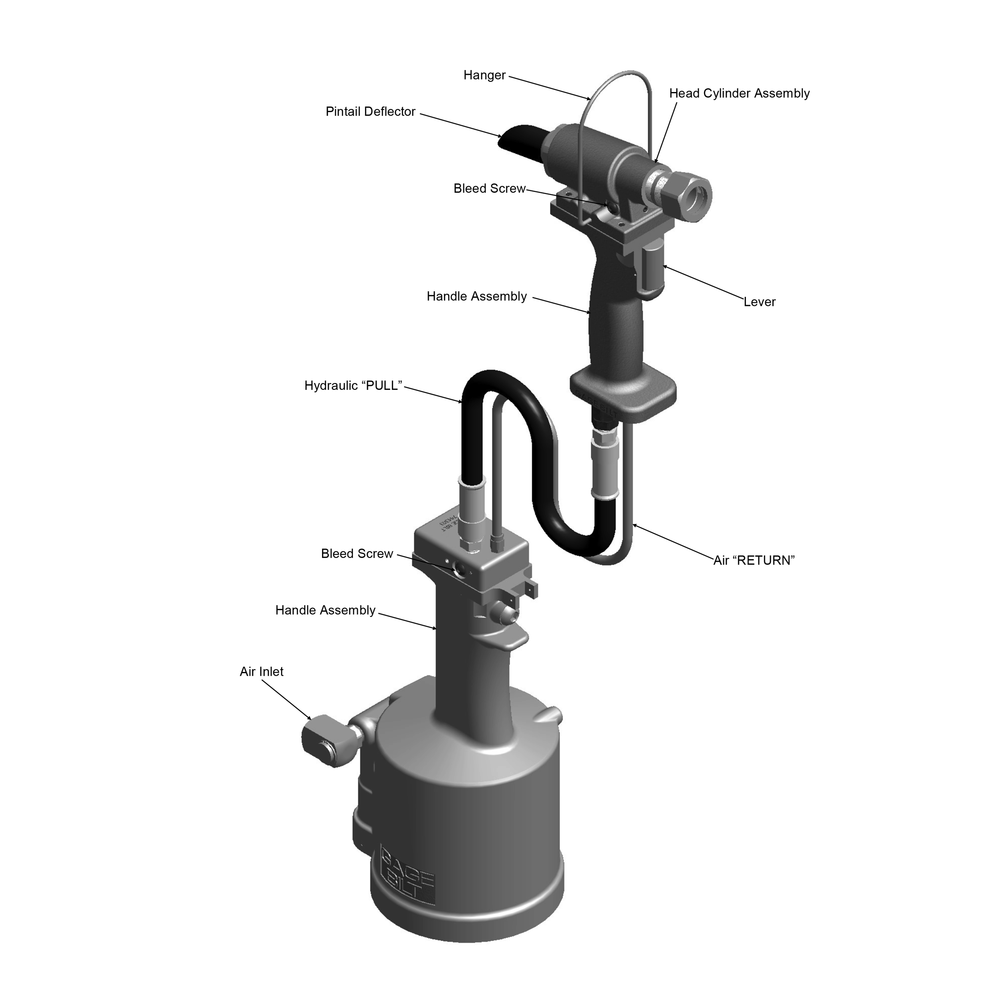

The GB751SH is a pneumatic-hydraulic split-handle installation tool for blind rivets. Its split configuration reduces the weight held by the operator. The handle and head assembly weighs 2.50 lb (1.13 kg), the complete tool weighs 7.50 lb (3.40 kg), and the fastener-setting stroke is 0.780" (19.8 mm). Rated pull load is 2,200 lb (9.79 kN).
Specifications and compatibility tables
MS90353S & U / MS90354S & U MS21140S & U / MS21141S & U MAXIBOLT, BACB30YY, YU, & YT CR7000 SERIES BLIND BOLT (SINGLE ACTION) WITH OR W/OUT DRIVE WASHER
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|
| 1/8 | SB04-752C-20 SB04-752C-45 SB04-752C-80 | SB04-751C-54RA | SB04-752B-43OS |
| 5/32 | SB05-752C-20 SB05-752C-45 SB05-752C-80 | SB05-751C-54RA | SB05-752A-43OS |
MS90353S & U / MS90354S & U MS21140S & U / MS21141S & U MAXIBOLT, BACB30YY, YU, & YT CR7000 SERIES BLIND BOLT (SINGLE ACTION) WITH DRIVE WASHER
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|
| 1/8 | UBB04-752C-20 UBB04-752C-80 UBB04-752C-45 | UBB04-751C-54RA | UBB04-752B-43OS |
| 5/32 | UBB05-752C-20 UBB05-752C-45 UBB05-752C-80 | UBB05-751C-54RA | UBB05-752B-43OS |
EN6122 & UAB130-EU EN6127 & UAB6127-EU EN6128 & UAB100-EU EN6129 & UABP-EU MAXIBOLT PLUS
| DIA. | STRAIGHT |
|---|
| 5/32 | UAB568-713-21 4 UAB568-713-61 4 |
| 3/16 | UAB568-713-21 4 UAB568-713-61 4 |
| 1/4 3 | UAB568-713-21 4 UAB568-713-61 4 |
NAS1900 S & U SERIES UNIMATIC BLIND RIVET (SINGLE ACTION) WITH OR W/OUT DRIVE WASHER
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|
| 1/8 | SMLS04-752C-20 SMLS04-752C-45 | SMLS04-751C-54RA | SMLS04-752B-43OS |
| 5/32 | SMLS05-752C-20 SMLS05-752C-45 | SMLS05-751C-54RA | SMLS05-752B-43OS |
| 3/16 | SMLS06-752B-20 SMLS06-752B-45 | SMLS06-751C-54RA | SMLS06-752B-43OS |
| 1/4 3 | SMLS08-713-20 SMLS08-713-45 | SMLS08-713B-58RA 5 | SMLS08-752B-43OS 3 |
NAS1900 S & U SERIES UNIMATIC BLIND RIVET (SINGLE ACTION) WITH DRIVE WASHER
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|
| 1/8 | 456UBR-751A-21 2 456UBR-751A-61 2 | 456UBR-751D-54RA 2 | 456MAX-731-43OS 2 |
| 5/32 | 456UBR-751A-21 2 456UBR-751A-61 2 | 456UBR-751D-54RA 2 | 456MAX-731-43OS 2 |
| 3/16 | 456UBR-751A-21 2 456UBR-751A-61 2 | 456UBR-751D-54RA 2 | 456MAX-731-43OS 2 |
| 1/4 3 | UBR08-713-20 UBR08-713-45 | UBR08-713B-58RA 5 | UBR08-27OSSG 6 UBR08-37OSSG 6 |
"A" CODE NAS1398A, NAS1399A NAS1738A, NAS1739A
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|
| 3/32 | 3A-352B-25 | 3A-751C-54RA | 3A-752B-43OS |
| 1/8 | 4A-752C-20 4A-752C-45 | 4A-751C-54RA | 4A-752B-43OS |
| 5/32 | 5A-752C-20 5A-752C-45 | 5A-751C-54RA | 5A-752B-43OS |
| 3/16 | 6A-752B-20 6A-752B-45 | 6A-751C-54RA | 6A-752B-43OS |
NUT PLATE RIVETS MS20600 SERIES CCR244/264/274 MS/9SP/PT BACR15CC/CF/DA/DR
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|
| 3/32 | 3NP-751-23 3NP-352-61 | 3NP-751B-54RA | 3NP-751A-43OS |
| 1/8 | 5N-751-23 5N-352-61 | 45N-751B-54RA | 5N-751A-43OS |
CHERRYMAX, CHERRYMAX 'AB', MBC LOCK CREATOR BACR15FR/FP, BACR15GF/GK
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|
| 1/8 | 456MAX-751-23 2 456MAX-751A-61 2 | 456MAX-751D-54RA 2 | 456MAX-731-43OS 2 |
| 5/32 | 456MAX-751-23 2 456MAX-751A-61 2 | 456MAX-751D-54RA 2 | 456MAX-731-43OS 2 |
| 3/16 | 456MAX-751-23 2 456MAX-751A-61 2 | 456MAX-751D-54RA 2 | 456MAX-731-43OS 2 |
ASP ASP 2, ASP PF, ASP 2 F, ASP 2 LC, ASP 4 FF, ASP FF, ASP F, ASP-LC and MAF
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|
| 13/64 | ASP06-752C-20 ASP06-752C-45 | ASP06-751B-54RA | ASP06-752B-43OS |
STANDARD MBC NAS1719, NAS1720 NAS1721
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|
| 1/8 | MBC04-752C-20 MBC04-752C-45 | MBC04-751C-54RA | MBC04-752C-43OS |
| 5/32 | MBC05-752C-20 MBC05-752C-45 | MBC05-751C-54RA | MBC05-752C-43OS |
| 3/16 | MBC06-752B-20 MBC06-752B-45 | MBC06-751C-54RA | MBC06-752C-43OS |
MBC LOCKCREATOR NAS1719X(L), NAS1720X(L) NAS1721X(L)
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|
| 1/8 | 456MAX-751-23 2 456MAX-751A-61 2 | 456MAX-751D-54RA 2 | 456MAX-731-43OS 2 |
| 5/32 | 456MAX-751-23 2 456MAX-751A-61 2 | 456MAX-751D-54RA 2 | 456MAX-731-43OS 2 |
| 3/16 | 456MAX-751-23 2 456MAX-751A-61 2 | 456MAX-751D-54RA 2 | 456MAX-731-43OS 2 |
GROUND STUD, M83454 & BACS53B 4
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|
| 8/32 | GS8-752C-20 GS8-752C-45 | GS8-751C-54RA | GS8-752B-43OS |
| 10/32 | GS10-752B-20 GS10-752B-45 | GS10-752A-54RA | GS10-752C-43OS |
POP OPEN END NAIL RIVET
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|
| 3/32 | 3N-751-23 3N-352-61 | 3N-751B-54RA | 3N-751A-43OS |
| 1/8 | 4N-751-23 4N-352-61 | 45N-751B-54RA | 4N-751A-43OS |
| 5/32 | 5N-751-23 5N-352-61 | 45N-751B-54RA | 5N-751A-43OS |
| 3/16 | 6N-751-23 6N-352-61 | 6N-751C-54RA | 6N-751A-43OS |
POP CLOSED END NAIL RIVET (ALUMINUM MANDREL)
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|
| 3/32 | 3N-751-23 3N-352-61 | 3N-751B-54RA | 3N-751A-43OS |
| 1/8 | 4CEA-751-23 4CEA-352-61 | 4CEA-751B-54RA | 4CEA-751-43OS |
| 5/32 | 5CEA-751-23 5CEA-352-61 | 5CEA-751B-54RA | 5CEA-751-43OS |
| 3/16 | 6CEA-751-23 6CEA-352-61 | 6CEA-751C-54RA | 6CEA-751-43OS |
POP CLOSED END NAIL RIVET (STEEL MANDREL)
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|
| 3/32 | 3N-751-23 3N-352-61 | 3N-751B-54RA S | 3N-751A-43O |
| 1/8 | 4CES-751-23 4CES-352-61 | 4CES-751B-54RA | 4CES-751-43OS |
| 5/32 | 5CES-751-23 5CES-352-61 | 5CES-751B-54RA | 5CES-751-43OS |
| 3/16 | 6CES-751-23 6CES-352-61 | 6CES-751C-54RA | 6CES-751-43OS |
FASTACK AF5022 AF5055 S149A020
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|
| 1/8 | 4C-752C-20 4C-752C-45 | 4C-751C-54RA | 4C-751A-43OS |
| 5/32 | 5C-752C-20 5C-752C-45 | 5C-751C-54RA | 5C-751A-43OS |
| 3/16 | 6C-752B-20 6C-752B-45 | 6C-751C-54RA | 6C-751A-43OS |
SUPERTACK AF5075 AF5076
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|
| 1/8 | 3A-352B-25 | 3A-751C-54RA | 3A-752B-43OS |
| 5/32 | 4A-752C-20 4A-752C-45 | 4A-751C-54RA | 4A-752B-43OS |
| 3/16 | 5A-752C-20 5A-752C-45 | 5A-751C-54RA | 5A-752B-43OS |
| 1/4 | 6A-752B-20 6A-752B-45 | 6A-751C-54RA | 6A-752B-43OS |
FOOTNOTES
| GB751 installs the listed fasteners |
|---|
| 1) RIGHT ANGLE NOSE ASSEMBLIES MAY REQUIRE MORE THAN ONE PULL. |
|---|
| 2) INSTALLS 1/8", 5/32" & 3/16" DIAMETERS. |
|---|
| 3) ALUMINUM ONLY. |
|---|
| 4) BACS53B -10 ONLY |
|---|
| 5) THESE NOSES FOR LIGHT DUTY / REPAIR ONLY. Contact HADI Technologies FOR HIGH PRODUCTION APPLICATIONS. |
|---|
| 6) ALL "OSSG" NOSE ASSEMBLIES REQUIRE THE 713206 ADAPTER. (NO STROKE LIMTER REQUIRED). OPTIONAL 751206-1 ADAPTER (NO STROKE LIMITER REQUIRED). |
|---|
| NOTE: THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE EXTENDS FROM THE TOOL I.E. -20 = 2.0 INCHES |
|---|
