The GB745-206-500 Split Handle Pneumatic-Hydraulic Installation Tool is designed specifically for the efficient installation of blind rivets and lockbolt fasteners.
The GB745-206-500 Split Handle Pneumatic-Hydraulic Installation Tool is designed specifically for the efficient installation of blind rivets and lockbolt fasteners.

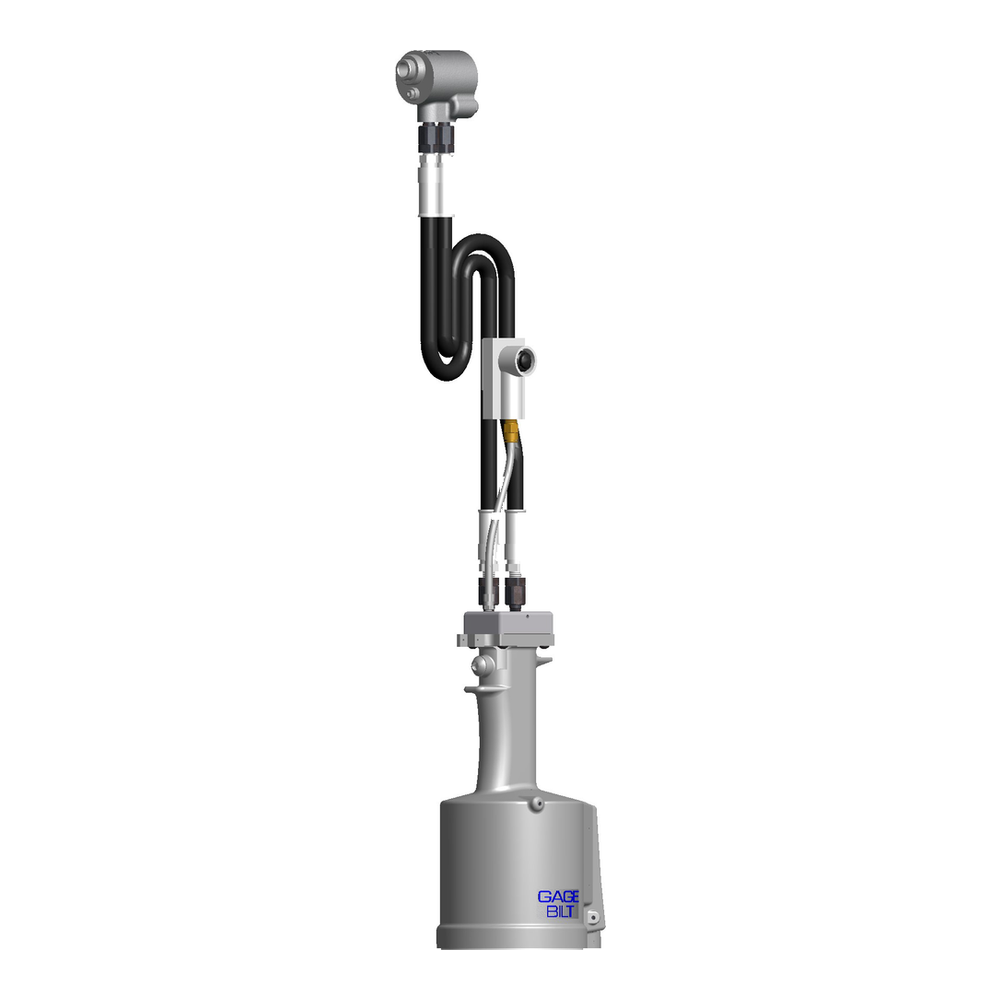

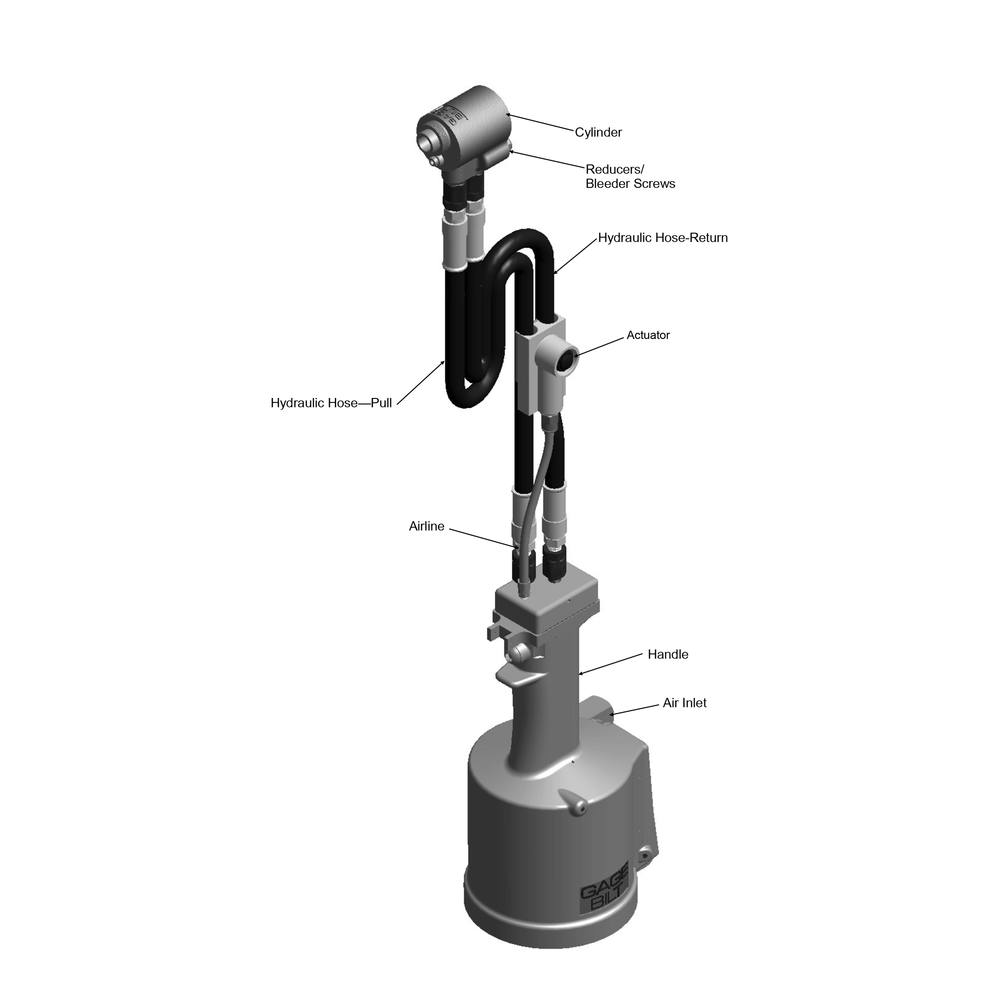

The GB745-206-500 Split Handle Pneumatic-Hydraulic Installation Tool is designed specifically for the efficient installation of blind rivets and lockbolt fasteners. This tool’s unique "split" system provides the operator with a lightweight ergonomic tool for a fraction of the cost of other cumbersome power rigs. It has a 0.500" (12.7 mm) fastener setting stroke with a rated pull load of 5,600 lbs. (24.9 kN) at 90 psi (6.2 bar) air pressure at the air inlet. The GB745-206-500 comes with 8 ft. (2.44 m) of hose and a remote actuator. The GB745-206-500 cylinder when held in your hand, weighs 2.0 lbs. (0.91 kg). The complete split installation tool weighs 12 lbs. (5.44 kg).
| Total Weight | 12 lbs. (5.44 kg) |
|---|---|
| Hand Weight | 2.0 lbs. (0.91 kg) |
| Rated Pull Load | 5,600 lbs. (24.9 kN) |
| Stroke | 0.500" (12.7 mm) |
| Noise Level | Less than 81.5 dB(A) |
| Warranty | 1 year |
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 5/32" | NAST05-25OSSG NASS05-25OSSG | NAST05-30OSSG NASS05-30OSSG | NAST05-34OSSG NASS05-34OSSG |
| 3/16" | NAS06-25OSSG | NAS06-30OSSG | NAS06-34OSSG |
| 1/4" | NAS08-25OSSG | NAS08-30OSSG | NAS08-34OSSG |
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 4 mm | MGP4-25OSSG | MGP4-30OSSG | MGP4-34OSSG |
| 5 mm | MGP5-25OSSG | MGP5-30OSSG | MGP5-34OSSG |
| 6 mm | MGP6-25OSSG | MGP6-30OSSG | MGP6-34OSSG |
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 5/32" | LGP05-25OSSG | LGP05-30OSSG | LGP05-34OSSG |
| 3/16" | LGP06-25OSSG | LGP06-30OSSG | LGP06-34OSSG |
| 7/32" | LGP07-25OSSG | LGP07-30OSSG | LGP07-34OSSG |
| 1/4" | LGP08-25OSSG | LGP08-30OSSG | LGP08-34OSSG |
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 4 mm | MLGP4-25OSSG | MLGP4-30OSSG | MLGP4-34OSSG |
| 5 mm | MLGP5-25OSSG | MLGP5-30OSSG | MLGP5-34OSSG |
| 6 mm | MLGP6-25OSSG | MLGP6-30OSSG | MLGP6-34OSSG |
| DIA. | STANDARD | LONG |
|---|---|---|
| 1/8" | SMLS04-27OSSG | SMLS04-37OSSG |
| 5/32" | SMLS05-27OSSG | SMLS05-37OSSG |
| 3/16" | SMLS06-27OSSG | SMLS06-37OSSG |
| 1/4" | SMLS08-27OSSG | SMLS08-37OSSG |
| DIA. | STANDARD | LONG |
|---|---|---|
| 5/32" | SB05-27OSSG | SB05-37OSSG |
| 3/16" | SB06-27OSSG | SB06-37OSSG |
| 1/4" | SB08-27OSSG | SB08-37OSSG |
| DIA. | STANDARD | LONG |
|---|---|---|
| 3/16" | UAB06-27OSSG | UAB06-37OSSG |
| 1/4" | UAB08-27OSSG | UAB08-37OSSG |
| DIA. | STANDARD | LONG |
|---|---|---|
| 1/4" | 08MAX-27OSSG | 08MAX-37OSSG |
| DIA. | STANDARD | LONG |
|---|---|---|
| 1/8" | 4A-27OSSG | 4A-37OSSG |
| 5/32" | 5A-27OSSG | 5A-37OSSG |
| 3/16" | 6A-27OSSG | 6A-37OSSG |
| 1/4" | SMLS08-27OSSG | SMLS08-37OSSG |
| DIA. | STANDARD | LONG |
|---|---|---|
| 13/64" | ASP06-27OSSG | ASP06-37OSSG |
| 17/64" | ASP08-27OSSG | ASP08-37OSSG |
| 21/64" | ASP10-27OSSG | ASP10-37OSSG |
| DIA. | STANDARD | LONG |
|---|---|---|
| 1/8" | MBC04-27OSSG | MBC04-37OSSG |
| 5/32" | MBC05-27OSSG | MBC05-37OSSG |
| 3/16" | MBC06-27OSSG | MBC06-37OSSG |
| DIA. | STANDARD | LONG |
|---|---|---|
| 13/64" | GS8-32OSSG | GS8-42OSSG |
| 17/64" | GS10-32OSSG | SMLS08-37OSSG |
| 1) -30 STRADDLE NOSES ARE DESIGNED TO REACH OVER THE COLLAR. | |
|---|---|
| 2) BACS53B -10 ONLY | |
| NOTE : THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE EXTENDS FROM THE TOOL I.E. -20 = 2.0 INCHES |
