Overview

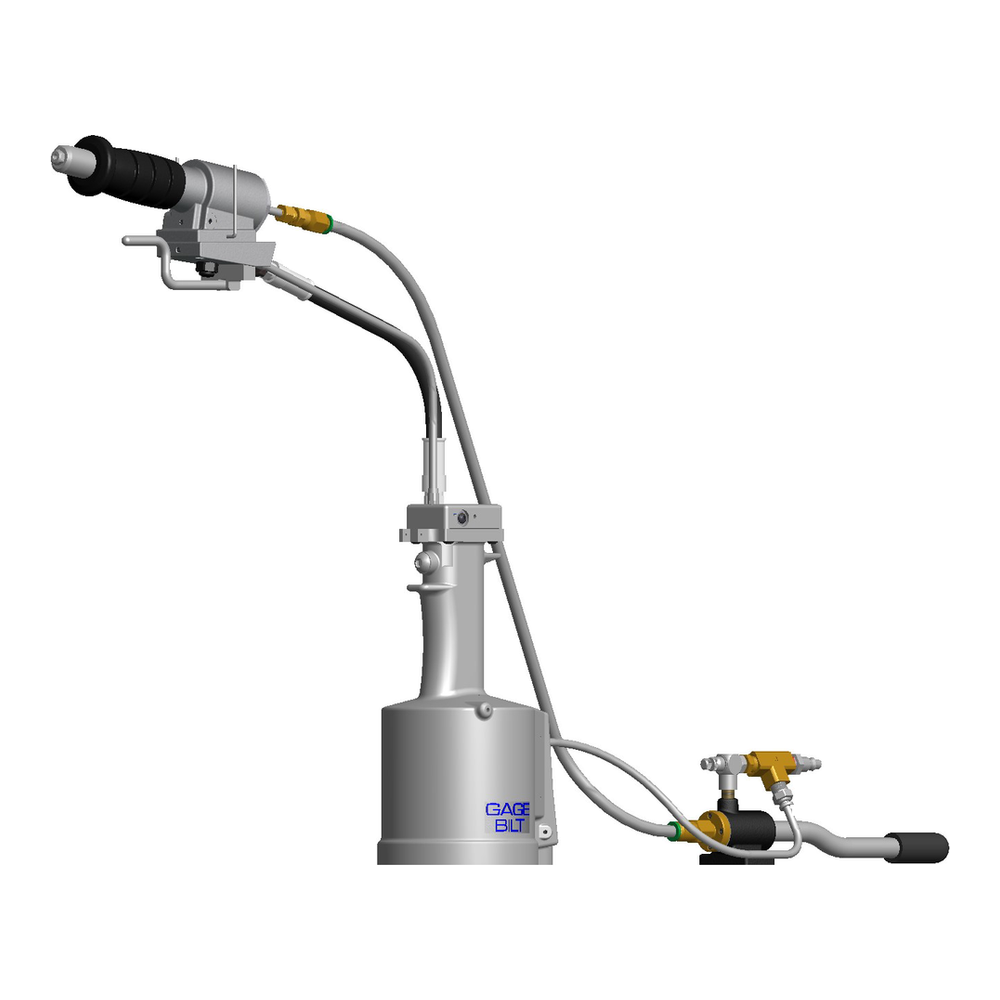

The GB743SRVT is a pneumatic-hydraulic split-riveter installation tool for blind fasteners. Its split configuration reduces the weight held by the operator. The handle and head assembly weighs 2.75 lb (1.25 kg), the complete tool weighs 7.25 lb (3.29 kg), and the fastener-setting stroke is 0.900" (22.86 mm). Rated pull load is 4,000 lb (17.79 kN).
Specifications and compatibility tables
AVEX (1624 PROTRUDING HEAD)
| ITEM # |
|---|
| DIAMETER | RIVET SPECIFIC DESIGNATION | NOSE ASSEMBLY | (1) NOSE TIP | (2) FOLLOWER | (3) EVACUATION TUBE | (4) FITTING-REGULATOR | (5) FITTING-TUBE |
|---|
| 3/16 | AV6 | AV6-743-24SRV 3 | 10248-7 | 703433 | 703589 | 703626 | A-217 |
AVEX (1624 COUNTERSUNKHEAD)
| ITEM # |
|---|
| DIAMETER | RIVET SPECIFIC DESIGNATION | NOSE ASSEMBLY | (1) NOSE TIP | (2) FOLLOWER | (3) EVACUATION TUBE | (4) FITTING-REGULATOR | (5) FITTING-TUBE |
|---|
| 3/16 | 6C | 6C-743-24SRV 3 | 10248-8 | 703433 | 703589 | 703626 | A-217 |
BULB-TITE (STRUCTURAL) RIVET
| ITEM # |
|---|
| DIAMETER | RIVET SPECIFIC DESIGNATION | NOSE ASSEMBLY | (1) NOSE TIP | (2) FOLLOWER | (3) EVACUATION TUBE | (4) FITTING-REGULATOR | (5) FITTING-TUBE |
|---|
| 1/4 | BT08 | BT08-743-24SRV 3 | 10391 | 703433 | 703632 | A-1559 | A-500 |
KLAMP-TITE (STRUCTURAL) RIVET
| ITEM # |
|---|
| DIAMETER | RIVET SPECIFIC DESIGNATION | NOSE ASSEMBLY | (1) NOSE TIP | (2) FOLLOWER | (3) EVACUATION TUBE | (4) FITTING-REGULATOR | (5) FITTING-TUBE |
|---|
| 3/16 | 6KT | 6KT-743-24SRV 3 | 10263 | 703433 | 703589 | 703626 | A-217 |
| 1/4 | 8KT | 8KT-743-24SRV 3 | 10262 | 703433 | 703632 | A-1559 | A-500 |
MACHINE SCREW RIVET
| ITEM # |
|---|
| DIAMETER | RIVET SPECIFIC DESIGNATION | NOSE ASSEMBLY | (1) NOSE TIP | (2) FOLLOWER | (3) EVACUATION TUBE | (4) FITTING-REGULATOR | (5) FITTING-TUBE |
|---|
| 5 MM | MS5M | MS5M-743-24SRV 3 | 10332 | 703433 | 703596 | 703626 | A-217 |
MBC NAS1719, NAS1720, NAS1721
| ITEM # |
|---|
| DIAMETER | RIVET SPECIFIC DESIGNATION | NOSE ASSEMBLY | (1) NOSE TIP | (2) FOLLOWER | (3) EVACUATION TUBE | (4) FITTING-REGULATOR | (5) FITTING-TUBE |
|---|
| 1/8 | MBC04 | MBC04-703-18SRV | 10251 | 703431 | 703595 | 703626 | A-217 |
| 5/32 | MBC05 | MBC05-703-18SRV | 10252 | 703425 | 703589 | 703626 | A-217 |
| 3/16 | MBC06 | MBC06-703-18SRV | 10253 | 703425 | 703589 | 703626 | A-217 |
SFC KOENIG SEAL PLUG
| ITEM # |
|---|
| DIAMETER | RIVET SPECIFIC DESIGNATION | NOSE ASSEMBLY | (1) NOSE TIP | (2) FOLLOWER | (3) EVACUATION TUBE | (4) FITTING-REGULATOR | (5) FITTING-TUBE |
|---|
| 4 MM | KSP4 | KSP4-743-24SRV | 10203 | 703433 | 703596 | 703626 | A-217 |
| 5 MM | KSP5 | KSP5-743-24SRV | 10204 | 703433 | 703596 | 703626 | A-217 |
| 6 MM | KSP6 | KSP6-743-24SRV | 13469 | 703433 | 703632 | A-1559 | A-500 |
| 7 MM | KSP78 | KSP78-743-24SRV | 12340-1 | 703433-2 | 703632 | A-1559 | A-500 |
| 8 MM | KSP78 | KSP78-743-24SRV | 12340-1 | 703433-2 | 703632 | A-1559 | A-500 |
MONOBOLT RIVET
| ITEM # |
|---|
| DIAMETER | RIVET SPECIFIC DESIGNATION | NOSE ASSEMBLY | (1) NOSE TIP | (2) FOLLOWER | (3) EVACUATION TUBE | (4) FITTING-REGULATOR | (5) FITTING-TUBE |
|---|
| 3/16 | MB06 | MB06-734A-20SRV 1,4 | 10210 | 703442 | 703589 | 703626 | A-217 |
| 1/4 2 | MB08 | MB08-734A-20SRV 1,4 | 10213 | 703442 | 703632 | A-1559 | A-500 |
OPEN END RIVET NON-STRUCTURAL AVEX, MAGNA-LOK, MAGNA-BULB, HEMLOK,KLAMP-TITE, BULB-TITE & POP ULTRA-GRIP COMMERCIAL RIVETS
| ITEM # |
|---|
| DIAMETER | RIVET SPECIFIC DESIGNATION | NOSE ASSEMBLY | (1) NOSE TIP | (2) FOLLOWER | (3) EVACUATION TUBE | (4) FITTING-REGULATOR | (5) FITTING-TUBE |
|---|
| 3/32 | 3N | 3N-703-18SRV 4 | 10201 | 703431 | 703595 | 703626 | A-217 |
| 1/8 | 4N | 4N-703-18SRV 4 | 10202 | 703431 | 703595 | 703626 | A-217 |
| 5/32 | 5N | 5N-743-24SRV 4 | 10203 | 703433 | 703596 | 703626 | A-217 |
| 3/16 | 6N | 6N-743-24SRV 3 | 10204 | 703433 | 703589 | 703626 | A-217 |
| 1/4 | 8N | 8N-743-24SRV 3 | 10211 | 703433 | 703632 | A-1559 | A-500 |
POP CLOSED END NAIL RIVET (ALUMINUM MANDREL)
| ITEM # |
|---|
| DIAMETER | RIVET SPECIFIC DESIGNATION | NOSE ASSEMBLY | (1) NOSE TIP | (2) FOLLOWER | (3) EVACUATION TUBE | (4) FITTING-REGULATOR | (5) FITTING-TUBE |
|---|
| 3/32 | 3N | 3N-703-18SRV 4 | 13470 | 703431 | 703595 | 703626 | A-217 |
| 1/8 | 4CEA | 4CEA-703-18SRV 4 | 13471 | 703431 | 703595 | 703626 | A-217 |
| 5/32 | 5CEA | 5CEA-743-24SRV 4 | 13472 | 703433 | 703596 | 703626 | A-217 |
| 3/16 | 6CEA | 6CEA-743-24SRV 3 | 13473 | 703433 | 703589 | 703626 | A-217 |
POP CLOSED END NAIL RIVET (STEEL MANDREL)
| ITEM # |
|---|
| DIAMETER | RIVET SPECIFIC DESIGNATION | NOSE ASSEMBLY | (1) NOSE TIP | (2) FOLLOWER | (3) EVACUATION TUBE | (4) FITTING-REGULATOR | (5) FITTING-TUBE |
|---|
| 3/32 | 3N | 3N-703-18SRV 4 | 13474 | 703431 | 703595 | 703626 | A-217 |
| 1/8 | 4CES | 4CES-703-18SRV 4 | 13475 | 703431 | 703595 | 703626 | A-217 |
| 5/32 | 5CES | 5CES-743-24SRV 4 | 13476 | 703433 | 703596 | 703626 | A-217 |
| 3/16 | 6CES | 6CES-743-24SRV 3 | 13477 | 703433 | 703589 | 703626 | A-217 |
| 1/4 | 8CES | 8CES-743-24SRV 3 | 13469 | 703433 | 703632 | A-1559 | A-500 |
PLASTIC SPLIT RIVET
| ITEM # |
|---|
| DIAMETER | RIVET SPECIFIC DESIGNATION | NOSE ASSEMBLY | (1) NOSE TIP | (2) FOLLOWER | (3) EVACUATION TUBE | (4) FITTING-REGULATOR | (5) FITTING-TUBE |
|---|
| 3/32 | 3P | 3P-703-18SRV | 10247-1 | 703431 | 703595 | 703626 | A-217 |
| 1/8 | 4P | 4P-703-18SRV | 10202-4 | 703431 | 703595 | 703626 | A-217 |
| 5/32 | 5P | 5P-743-24SRV 3 | 10203-2 | 703433 | 703596 | 703626 | A-217 |
| 3/16 | 6P | 6P-743-24SRV 3 | 10167 | 703433 | 703589 | 703626 | A-217 |
| 1/4 | 8P | 8P-743-24SRV 3 | 10166 | 703433 | 703632 | A-1559 | A-500 |
T RIVET
| ITEM # |
|---|
| DIAMETER | RIVET SPECIFIC DESIGNATION | NOSE ASSEMBLY | (1) NOSE TIP | (2) FOLLOWER | (3) EVACUATION TUBE | (4) FITTING-REGULATOR | (5) FITTING-TUBE |
|---|
| 3/16 | 6T | 6T-743-24SRV 3 | 10209 | 703433 | 703589 | 703626 | A-217 |
| 1/4 | 8T | 8T-743-24SRV 3 | 10286 | 703433 | 703632 | A-1559 | A-500 |
TLR RIVET
| ITEM # |
|---|
| DIAMETER | RIVET SPECIFIC DESIGNATION | NOSE ASSEMBLY | (1) NOSE TIP | (2) FOLLOWER | (3) EVACUATION TUBE | (4) FITTING-REGULATOR | (5) FITTING-TUBE |
|---|
| 1/4 | 8TLR | 8TLR-743-24SRV 3 | 10246 | 703433 | 703632 | A-1559 | A-500 |
COUNTERSUNK HEAD SERRATED STEM STRUCTURAL RIVET (SEE FOOTNOTE 1)
| ITEM # |
|---|
| DIAMETER | RIVET SPECIFIC DESIGNATION | NOSE ASSEMBLY | (1) NOSE TIP | (2) FOLLOWER | (3) EVACUATION TUBE | (4) FITTING-REGULATOR | (5) FITTING-TUBE |
|---|
| 3/16 | C6 | C6-734A-20SRV 1,4 | 10425 | 703442 | 703589 | 703626 | A-217 |
| 1/4 2 | C8 | C8-734A-20SRV 1,4 | 10211 | 703442 | 703632 | A-1559 | A-500 |
PROTRUDING HEAD SERRATED STEM STRUCTURAL RIVET (SEE FOOTNOTE 1)
| ITEM # |
|---|
| DIAMETER | RIVET SPECIFIC DESIGNATION | NOSE ASSEMBLY | (1) NOSE TIP | (2) FOLLOWER | (3) EVACUATION TUBE | (4) FITTING-REGULATOR | (5) FITTING-TUBE |
|---|
| 3/16 | PH6 | PH6-734A-20SRV 1,4 | 10248 | 703442 | 703589 | 703626 | A-217 |
| 1/4 2 | PH8 | PH8-734A-20SRV 1,4 | 10205 | 703442 | 703632 | A-1559 | A-500 |
NOTES
| ALL 'VT' TOOLS ARE SOLD RIVET SPECIFIC TO ENSURE CONSISTENT PINTAIL EVACUATION. WHEN USING TOOL TO INSTALL FASTENERS OTHER THAN WHAT THE TOOL WAS SPECIFIED FOR, ADDITIONAL ITEMS MAY BE NECESSARY AND ARE PURCHASED SEPARATELY. DETERMINE THE NOSE ASSEMBLY THAT IS ON THE TOOL AND REFER TO TABLE 1 TO DETERMINE WHAT MAY BE NEEDED. EXAMPLE (A): IF THE NOSE ASSEMBLY ON THE TOOL IS 6N-703-18SRV, AND YOU WISH TO INSTALL A 1/8” ‘N’ RIVET. THE NOSE ASSEMBLY STYLE (703-18SRV) IS THE SAME, YOU NEED ONLY TO PURCHASE 10202 NOSE TIP, 703595 EVACUATION TUBE, A-217 FITTING-TUBE AND 703626 FITTING-REGULATOR. EXAMPLE (B): IF THE NOSE ASSEMBLY ON THE TOOL IS 6N-703-18SRV AND YOU WISH TO INSTALL A 1/4” ‘N’ RIVET. THE STYLE OF NOSE ASSEMBLY IS NOT THE SAME (703-18SRV vs 743-24SRV) YOU WILL NEED TO PURCHASE THE ENTIRE 8N-743-24SRV NOSE ASSEMBLY, 703632 EVACUATION TUBE, A-500 FITTING-TUBE AND A-1599 FITTING-REGULATOR. A-521 FITTING IS NOT RE-USABLE. NEW FITTING MUST BE ORDERED FOR NEW APPLICATIONS. |
|---|
FOOTNOTES
| 1) NOSE ASSEMBLIES PH6-734A-20SRV AND PH8-734A-20SRV, ARE FOR SERRATED STEM RIVETS ONLY. IF YOU ARE PULlING BOTH SMOOTH AND SERRATED STEM RIVETS YOU MUST ORDER: (3/16") MGL06-743-24SRV OR (1/4") MGL08-743-24SRV |
|---|
| 2) REQUIRES 100 PSI AIR PRESSURE |
|---|
| 3)YOU CAN CHANGE THE 743-24SRV NOSE ASSEMBLY (INCLUDED WITH TOOL) TO INSTALL OTHER FASTENERS BY PURCHASING NOSE TIP SHOWN AND USING APPROPRIATE FOLLOWER SHOWN. |
|---|
| 4) NOSE ASSEMBLIES WITH A 703-18SRV AND 734A-20SRV DESIGNATION, I.E. 5N-703-18SRV, MUST BE ORDERED AS A COMPLETE NOSE ASSEMBLY. |
|---|
| NOTE : THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE EXTENDS FROM THE TOOL I.E. -20 = 2.0 INCHES |
|---|
