Overview

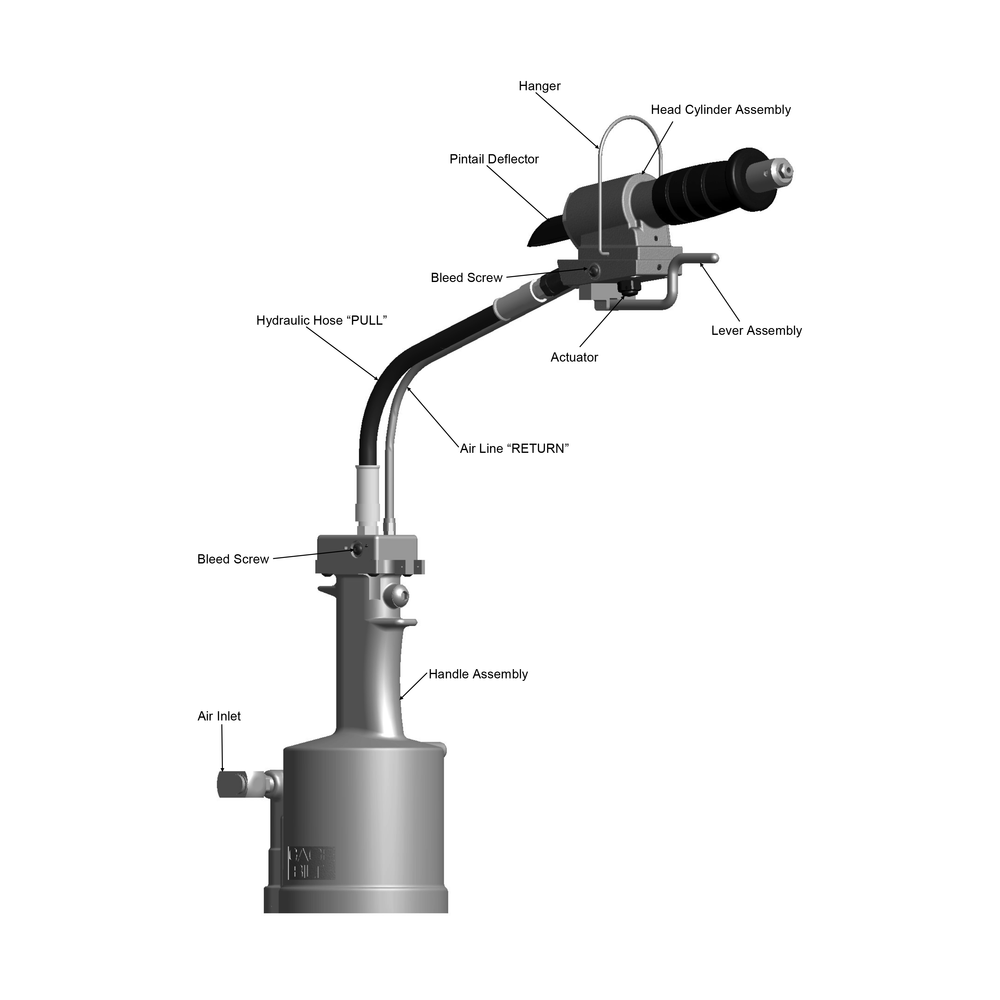

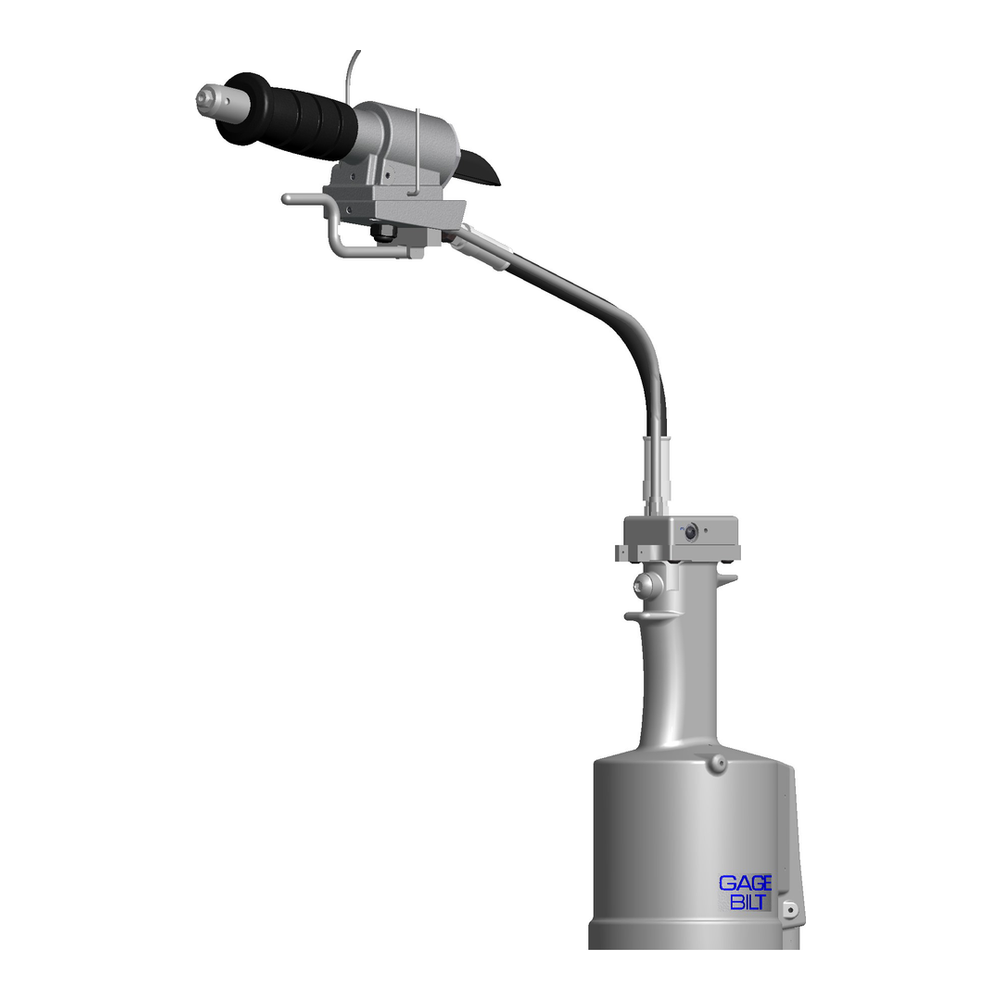

The GB743SR is a pneumatic-hydraulic split-riveter installation tool for blind rivets. Its split configuration reduces the weight held by the operator. The handle and head-cylinder assembly weighs 1.75 lb (0.79 kg), the complete tool weighs 7.25 lb (3.29 kg), and the fastener-setting stroke is 0.900" (22.86 mm). Rated pull load is 4,000 lb (17.79 kN).
Specifications and compatibility tables
AVEX (1624 PROTRUDING HEAD)
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/16 | AV6-743-24 1 | 10248-7 | 30824 | 48808 | AV6 |
AVEX (1624 COUNTERSUNKHEAD)
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/16 | 6C-743-24 1 | 10248-8 | 30824 | 48808 | 6C |
BULB-TITE (STRUCTURAL) RIVET
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/16 | BT06-743-24 1 | 12282-1 | 30824 | 48808 | BT06 |
| 1/4 | BT08-743-24 1 | 10391 | 30824 | 48808 | BT08 |
| 9/32 | BT09-743-24 1 | 10289 | 30824 | 40901 | BT09 |
KLAMP-TITE (STRUCTURAL) RIVET
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/16 | 6KT-743-24 1 | 10263 | 30824 | 48808 | 6KT |
| 1/4 | 8KT-743-24 1 | 10262 | 30824 | 48808 | 8KT |
MAGNA-TITE RIVET (LOW PROFILE & SHAVEABLE HEAD)
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/16 | 6MTL-743-24 1 | 12384 | 30824 | 48808 | 6MTL |
| 1/4 | 8MTL-743-24 1 | 12385 | 30824 | 48808 | 8MTL |
MAGNA-TITE RIVET (PROTRUDING & OVAL HEAD)
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/16 | 6MTP-743-24 1 | 12382 | 30824 | 48808 | 6MTP |
| 1/4 | 8MTP-743-24 1 | 12383 | 30824 | 48808 | 8MTP |
SFC KOENIG SEAL PLUG
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|
| 4 MM | KSP4-743-24 1 | 10203 | 30824 | 48808 | KSP4 |
| 5 MM | KSP5-743-24 1 | 10204 | 30824 | 48808 | KSP5 |
| 6 MM | KSP6-743-24 1 | 13469 | 30824 | 48808 | KSP6 |
| 7 MM | KSP78-743-24 1 | 12340-1 | 30824 | 48808-2 | KSP78 |
| 8 MM | KSP78-743-24 1 | 12340-1 | 30824 | 48808-2 | KSP78 |
| 9 MM | KSP910-743-24 1 | 12340-2 | 30824 | 48808-2 | KSP910 |
| 10 MM | KSP910-743-24 1 | 12340-2 | 30824 | 48808-2 | KSP910 |
MONOBOLT
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/16 | MB06-734A-20 2 | – | – | – | MB06 |
| 1/4 | MB08-734A-20 2,4 | – | – | – | MB08 |
POP OPEN END NAIL RIVET
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/32 | 3N-703-18 2 | – | – | – | 3N |
| 1/8 | 4N-703-18 2 | – | – | – | 4N |
| 5/32 | 5N-743-24 1 | 10203 | 30824 | 48808 | 5N |
| 3/16 | 6N-743-24 1 | 10204 | 30824 | 48808 | 6N |
| 1/4 | 8N-743-24 1 | 10211 | 30824 | 48808 | 8N |
POP CLOSED END NAIL RIVET (ALUMINUM MANDREL)
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/32 | 3N-703-18 2 | – | – | – | 3N |
| 1/8 | 4CEA-703-18 2 | – | – | – | 4CEA |
| 5/32 | 5CEA-743-24 1 | 13472 | 30824 | 48808 | 5CEA |
| 3/16 | 6CEA-743-24 1 | 13473 | 30824 | 48808 | 6CEA |
POP CLOSED END NAIL RIVET (STEEL MANDREL)
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/32 | 3N-703-18 2 | – | – | – | 3N |
| 1/8 | 4CES-703-18 2 | – | – | – | 4CES |
| 5/32 | 5CES-743-24 1 | 13476 | 30824 | 48808 | 5CES |
| 3/16 | 6CES-743-24 1 | 13477 | 30824 | 48808 | 6CES |
| 1/4 | 8CES-743-24 1 | 13469 | 30824 | 48808 | 8CES |
PLASTIC SPLIT RIVET
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/32 | 3P-703-18 2,3 | – | – | – | 3P |
| 1/8 | 4P-703-18 2,3 | – | – | – | 4P |
| 5/32 | 5P-743-24 1,3 | 10203-2 | 30824 | 48808 | 5P |
| 3/16 | 6P-743-24 1,3 | 10167 | 30824 | 48808 | 6P |
| 1/4 | 8P-743-24 1,3 | 10166 | 30824 | 48808 | 8P |
T RIVET
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/16 | 6T-743-24 1 | 10209 | 30824 | 48808 | 6T |
| 1/4 | 8T-743-24 1 | 10286 | 30824 | 48808 | 8T |
TLR RIVET
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|
| 1/4 | 8TLR-743-24 1 | 10246 | 30824 | 48808 | 8TLR |
COUNTERSUNK HEAD MAGNA-LOK, MAGNA-BULB & HEMLOK & SERRATED STEM STRUCTURAL RIVETS
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/16 | C6-734A-20 2 | – | – | – | C6 |
| 1/4 | C8-734A-20 2,4 | – | – | – | C8 |
PROTRUDING HEAD MAGNA-LOK, MAGNA-BULB & HEMLOK & SERRATED STEM STRUCTURAL RIVETS
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/16 | PH6-734A-20 2,4 | – | – | – | PH6 |
| 1/4 | PH8-734A-20 2,4 | – | – | – | PH8 |
FOOTNOTES
| 1) YOU CAN CHANGE THE 743-24 NOSE ASSEMBLY (INCLUDED WITH TOOL) TO INSTALL OTHER FASTENERS BY PURCHASING NOSE TIP SHOWN AND USING APPROPRIATE FOLLOWER SHOWN. |
|---|
| 2) NOSE ASSEMBLIES WITH A 703-18 AND 734A-20 DESIGNATION, I.E. 5P-703-18, MUST BE ORDERED AS COMPLETE NOSE ASSEMBLY. |
|---|
| 3) MAY REQUIRE MORE THAN (1) PULL. Gage Bilt RECOMMENDS GB734 TOOL. |
|---|
| 4) REQUIRES 100 PSI AIR PRESSURE |
|---|
| NOTE : THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE EXTENDS FROM THE TOOL I.E. -20 = 2.0 INCHES |
|---|
