Overview

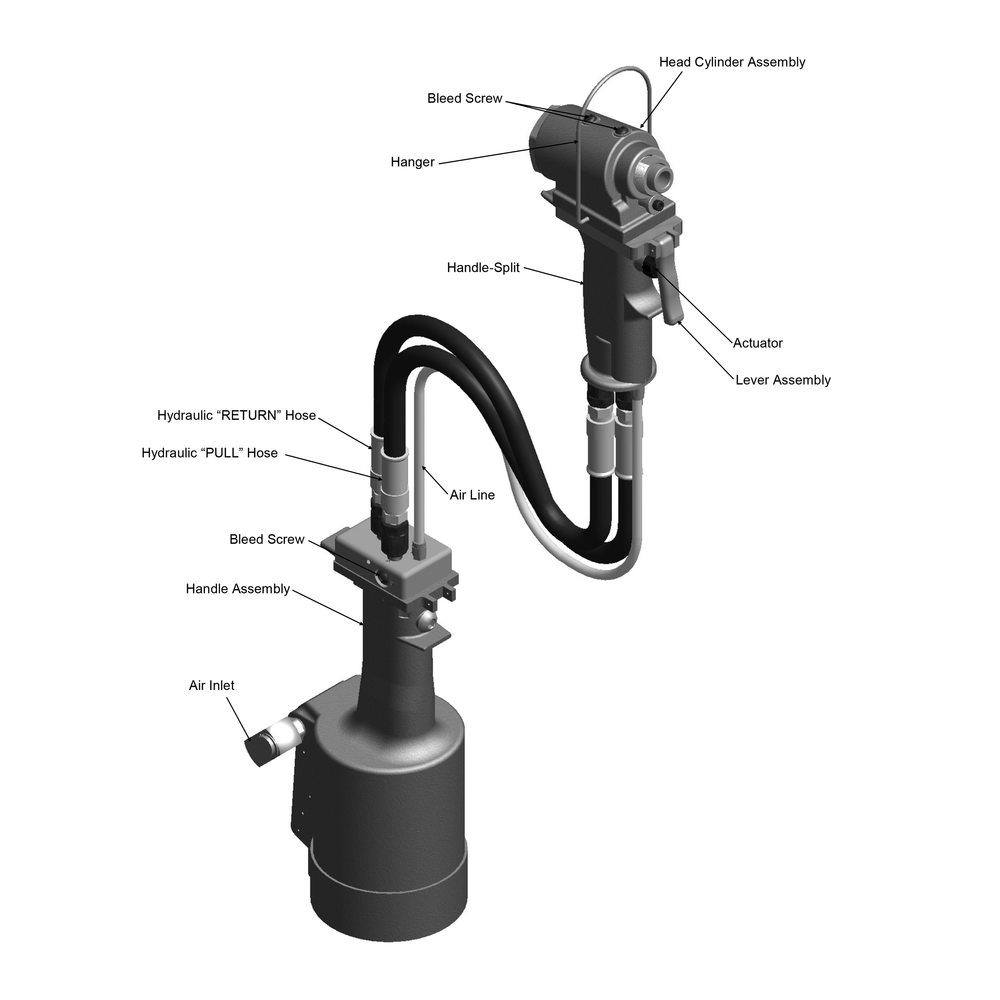

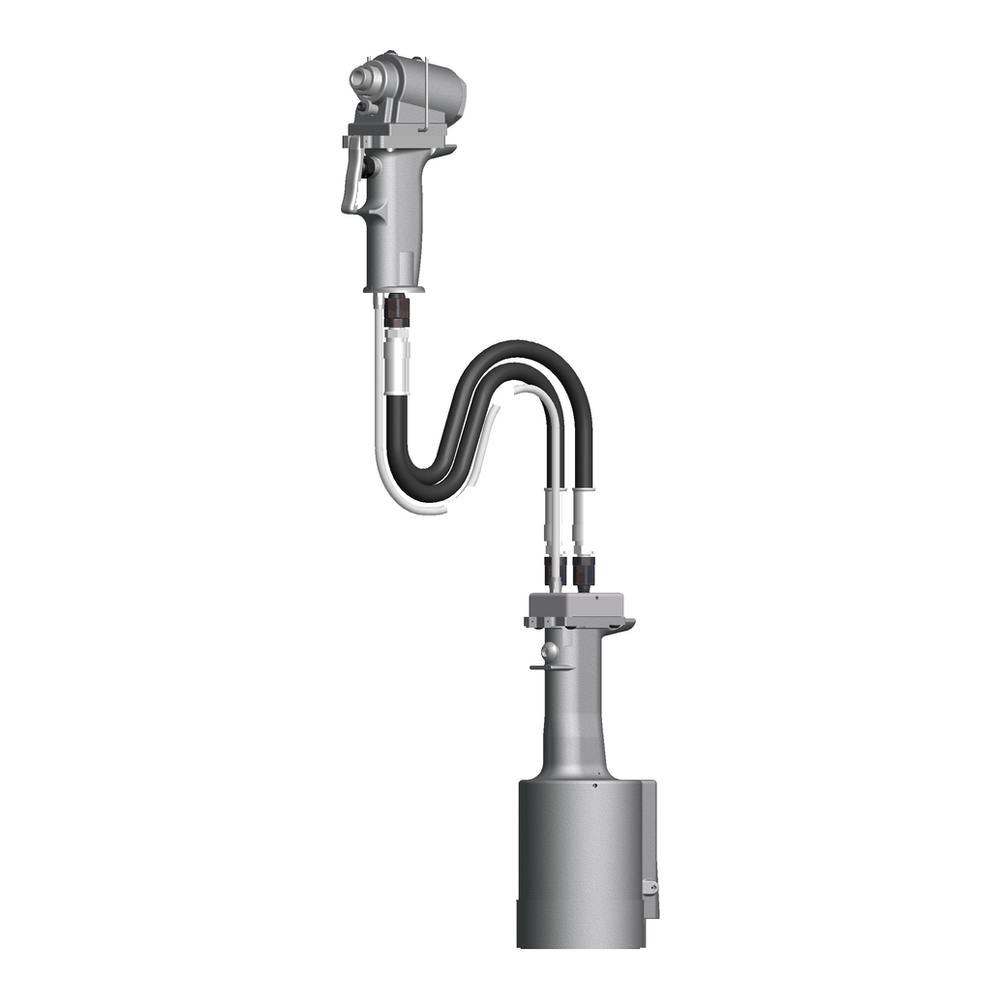

The GB731OSSH is a pneumatic-hydraulic split-handle installation tool for blind rivets and lockbolts. Its split configuration gives the operator a lightweight, ergonomic handheld assembly. The head assembly weighs 2.25 lb (1.02 kg), the complete tool weighs 10.5 lb (4.76 kg), and the fastener-setting stroke is 0.600" (15.24 mm). Rated pull load is 4,700 lb (20.91 kN).
Specifications and compatibility tables
LOCKBOLT, NAS SHEAR PULL TYPE, NAS TENSION PULL TYPE, NASS = SHEAR & GP NAST = TENSION
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|
| 5/32" | NAST05-204C-25O NASS05-204C-25O | NAST05-204C-30O NASS05-204C-30O | NAST05-204C-34OS NASS05-204C-34OS |
| 3/16" | NAS06-204C-25OS | NAS06-204D-30OS | NAS06-204C-34OS |
| 1/4" | NAS08-204C-25OS | NAS08-204D-30OS | NAS08-204C-34OS |
MGP
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|
| 4 mm | MGP4-204C-25OS | MGP4-204C-30OS | MGP4-204C-34OS |
| 5 mm | MGP5-204C-25OS | MGP5-204D-30OS | MGP5-204C-34OS |
LGP Lightweight Groove Proportion LOCKBOLT
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|
| 5/32" | LGP05-204C-25OS | LGP05-204C-30OS | LGP05-204C-34OS |
| 3/16" | LGP06-204C-25OS | LGP06-204D-30OS | LGP06-204C-34OS |
| 7/32" | LGP07-204C-25OS | LGP07-204D-30OS | LGP07-204C-34OS |
| 1/4" | LGP08-204C-25OS | LGP08-204D-30OS | LGP08-204C-34OS |
MLGP
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|
| 4 mm | MLGP4-204C-25OS | MLGP4-204C-30OS | MLGP4-204C-34OS |
| 5 mm | MLGP5-204C-25OS | MLGP5-204D-30OS | MLGP5-204C-34OS |
BLIND RIVET (SINGLE ACTION) WITH OR W/OUT DRIVE WASHER NAS1900 S & U SERIES
| DIA. | STANDARD | LONG |
|---|
| 1/8" | SMLS04-204D-27OS | SMLS04-204D-37OS |
| 5/32" | SMLS05-204D-27OS | SMLS05-204D-37OS |
| 3/16" | SMLS06-204D-27OS | SMLS06-204D-37OS |
| 1/4" | SMLS08-204D-27OS | SMLS08-204D-37OS |
BLIND BOLT (SINGLE ACTION) WITH OR W/OUT DRIVE WASHER MS90353S & U / MS90354S & U MS21140S & U / MS21141S & U CR7000 SERIES, BACB30YY, YU, & YT
| DIA. | STANDARD | LONG |
|---|
| 5/32" | SB05-204D-27OS | SB05-204D-37OS |
| 3/16" | SB06-204D-27OS | SB06-204D-37OS |
| 1/4" | SB08-204D-27OS | SB08-204D-37OS |
EN6122 & UAB130-EU EN6127 & UAB6127-EU EN6128 & UAB100-EU EN6129 & UABP-EU
| DIA. | STANDARD | LONG |
|---|
| 3/16" | UBB06-204D-27OS | UBB06-204D-37OS |
| 1/4" | UAB08-204D-27OS | UAB08-204D-37OS |
BACR15FR/FP, BACR15GF/GK, NAS1900 S & U SERIES BLIND RIVET WITH DRIVE WASHER NAS9301-9312
| DIA. | STANDARD | LONG |
|---|
| 1/4" | 08MAX-204D-27OS | 08MAX-204D-37OS |
'A' CODE NAS1398A & NAS1399A
| DIA. | STANDARD | LONG |
|---|
| 1/8" | 4A-204D-27OS | 4A-204D-37OS |
| 5/32" | 5A-204D-27OS | 5A-204D-37OS |
| 3/16" | 6A-204D-27OS | 6A-204D-37OS |
| 1/4" | SMLS08-204D-27OS | SMLS08-204D-37OS |
ASP 2, ASP PF, ASP 4 FF, ASP 2 F, ASP 2 LC
| DIA. | STANDARD | LONG |
|---|
| 13/64" | ASP06-204D-27OS | ASP06-204D-37OS |
| 17/64" | ASP08-204D-27OS | ASP08-204D-37OS |
| 21/64" | ASP10-204D-27OS | ASP10-204D-37OS |
NAS1719, NAS1720, NAS1721 & MBC
| DIA. | STANDARD | LONG |
|---|
| 1/8" | MBC04-204D-27OS | MBC04-204D-37OS |
| 5/32" | MBC05-204D-27OS | MBC05-204D-37OS |
| 3/16" | MBC06-204D-27OS | MBC06-204D-37OS |
GROUND STUD, BACS53B 2
| DIA. | STANDARD | LONG |
|---|
| 13/64" | GS8-204D-32OS | GS8-204D-42OS |
| 17/64" | GS10-204D-32OS | GS10-204D-42OS |
FOOTNOTES
| GB731OS installs the listed fasteners |
|---|
| 1) -30 STRADDLE NOSES ARE DEISIGNED TO REACH OVER THE COLLAR. |
|---|
| 2) BACS53B -10 ONLY |
|---|
| NOTE : NOTE: THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE ASSEMBLY EXTENDS FROM THE TOOL. (I.e. -27 = 2.7 inches) |
|---|
