The GB704SR is a pneumatic-hydraulic split-riveter installation tool for blind fasteners.

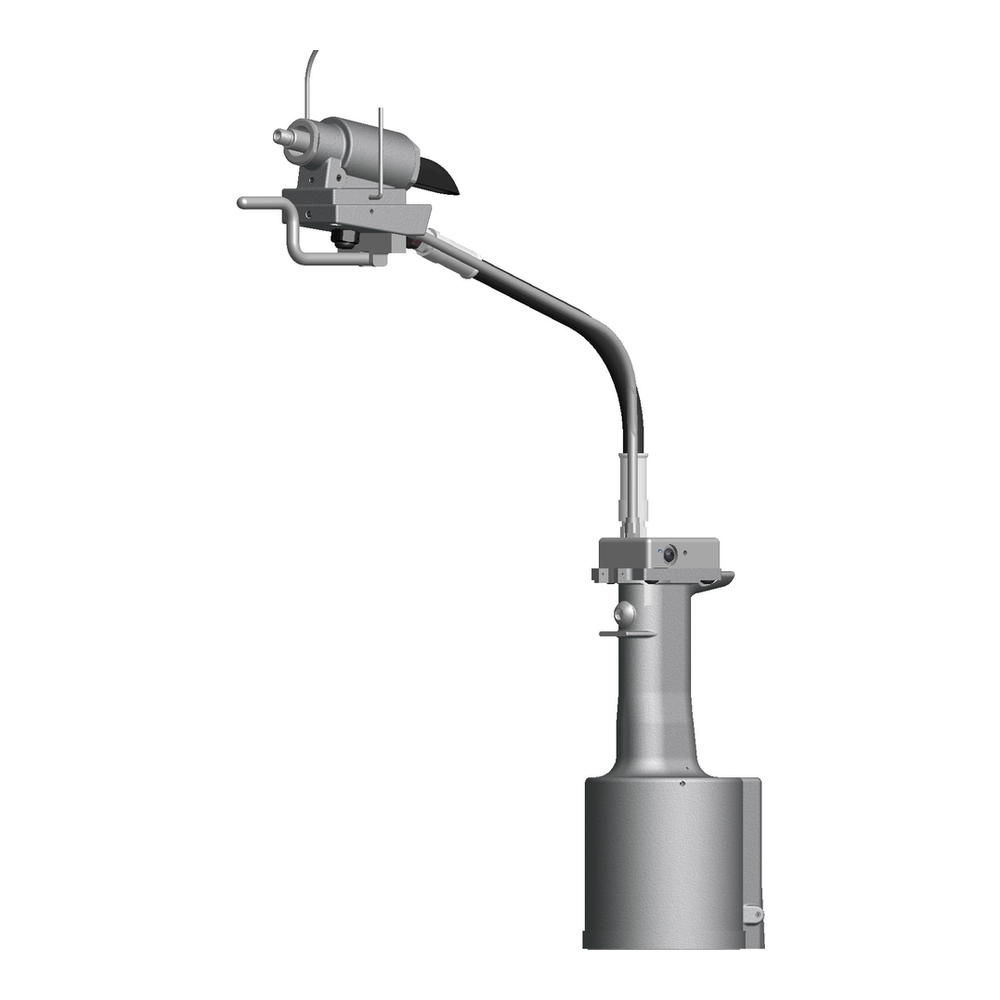

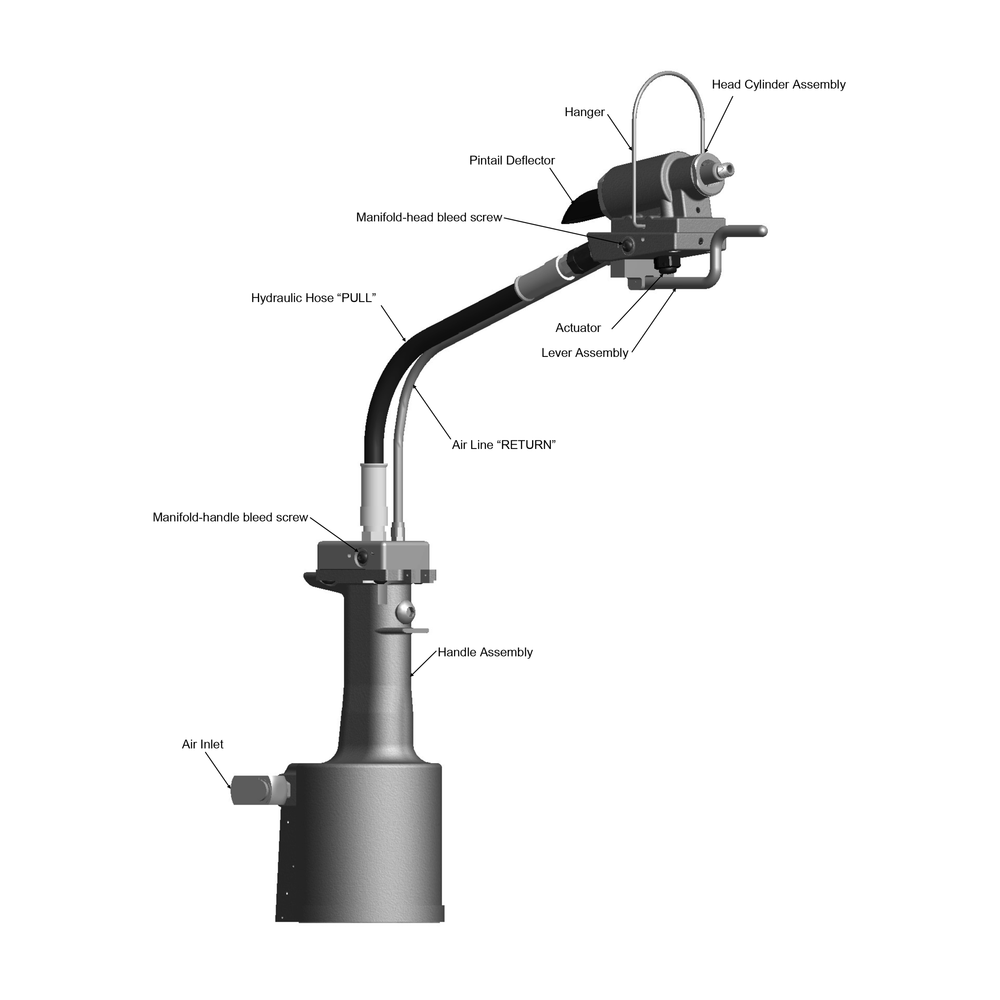

The GB704SR is a pneumatic-hydraulic split-riveter installation tool for blind fasteners. Its split configuration reduces the weight held by the operator. The handle and head-cylinder assembly weighs 1.5 lb (0.68 kg), the complete tool weighs 6.5 lb (2.95 kg), and the fastener-setting stroke is 0.540" (13.72 mm). Rated pull load is 3,300 lb (14.68 kN).
| FASTENER | DIAMETER | STRAIGHT STANDARD LONG | RIGHT ANGLE 2 | OFFSET | |
|---|---|---|---|---|---|
| STANDARD | LONG | ||||
| CHERRYMAX CHERRYMAX 'AB' MBC LOCK CREATOR BACR15FR/FP BACR15GF/GK | 1/8 5/32 3/16 | 456MAX-701-17 1 ABOVE NOSE ASSY. INSTALLS 1/8", 5/32" & 3/16" DIAMETERS | 456MAX-704-35 1 456MAX-749-35 1,3 ABOVE NOSE ASSY. INSTALLS 1/8", 5/32" & 3/16" DIAMETERS | 456MAX-704-54RA 1 | 456MAX-704-43OS 1 |
| NUT PLATE RIVETS MS20600 SERIES CCR244/264/274 MS/9SP/PT BACR15CC/CF/DA/DR | 3/32 1/8 5/32 3/16 | 3C-704A-16 4C-704A-16 5C-704A-16 6C-704A-16 | 3C-704-54RA 4C-704-54RA 5C-704-54RA 6C-704-54RA | 3C-704A-40OS 4C-704A-40OS 5C-704A-40OS 6C-704A-40OS | |
| NAS1900 S & U SERIES UNIMATIC BLIND RIVET (SINGLE ACTION) WITH OR W/OUT DRIVE WASHER | 1/8 5/32 3/16 | SMLS04-704A-16 SMLS05-704A-16 SMLS06-704A-16 | SMLS04-704-54RA SMLS05-704-54RA SMLS06-704-54RA | SMLS04-704A-40OS SMLS05-704A-40OS SMLS06-704A-40OS | |
| NAS1900 S & U SERIES UNIMATIC BLIND RIVET (SINGLE ACTION) WITH DRIVE WASHER | 1/8 5/32 3/16 | UBR04-704A-16 UBR05-704A-16 UBR06-704A-16 | 456UBR-704-54RA 1 | 456MAX-704B-40OS 1 | |
| "A" CODE NAS1398A, NAS1399A NAS1738A, NAS1739A | 3/32 1/8 5/32 3/16 | 3A-704A-16 4A-704A-16 5A-704A-16 6A-704A-16 | 3A-704-54RA 4A-704-54RA 5A-704-54RA 6A-704-54RA | 3A-704A-40OS 4A-704A-40OS 4A-704A-40OS 6A-704A-40OS | |
| GROUND STUD, M83454 & BACS53B | 8/32 10/32 | GS8-704-16 GS10-704A-19 | GS8-704A-54RA GS10-704-54RA | GS8-704-40OS GS10-704A-40OS | |
| STANDARD | LONG |
|---|
| GB704 installs the listed fasteners | |
|---|---|
| 1) INSTALLS 1/8", 5/32", AND 3/16" DIAMETERS | |
| 2) RIGHT ANGLE NOSE ASSEMBLIES MAY REQUIRE MORE THAN ONE PULL | |
| 3) FRONT END EJECTING NOSE ASSEMBLY | |
| NOTE : THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE EXTENDS FROM THE TOOL I.E. -20 = 2.0 INCHES |
