The GB2630 and GB2630A are hydraulic installation tools intended exclusively for 7/8" lockbolts.
The GB2630 and GB2630A are hydraulic installation tools intended exclusively for 7/8" lockbolts.

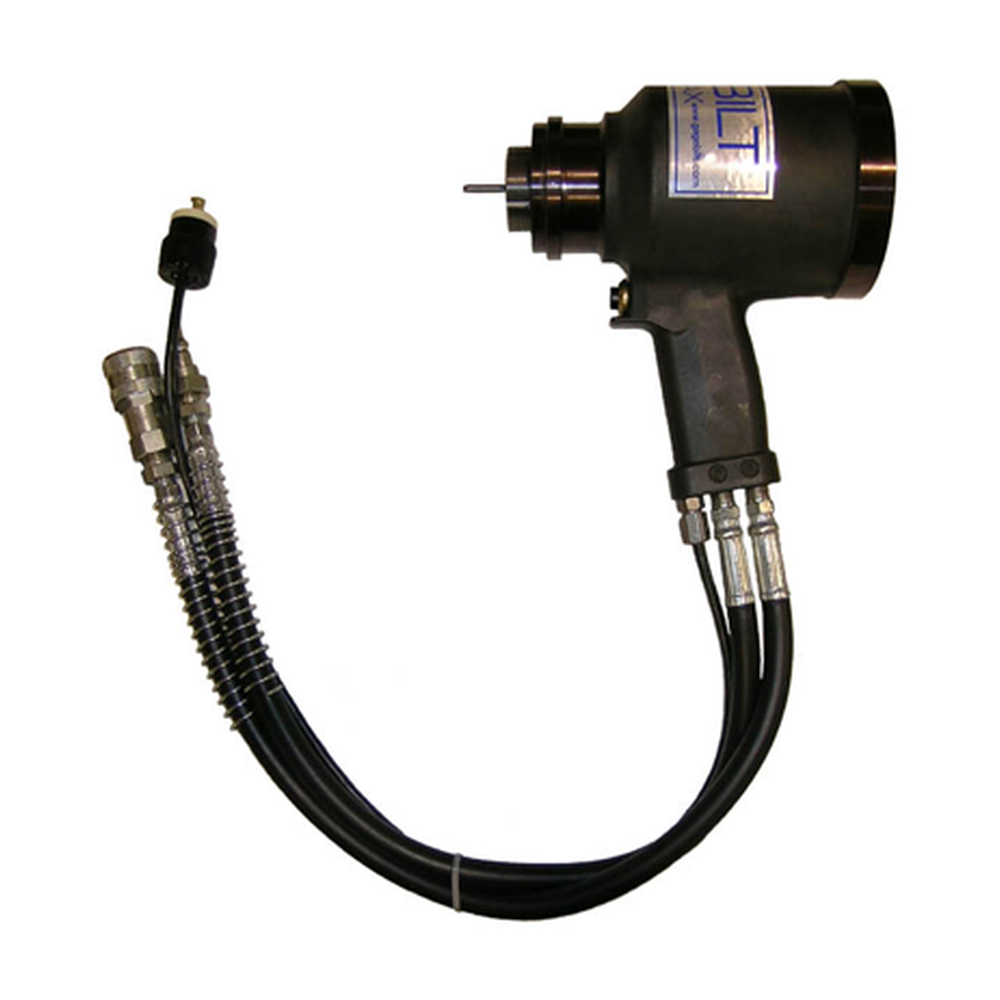

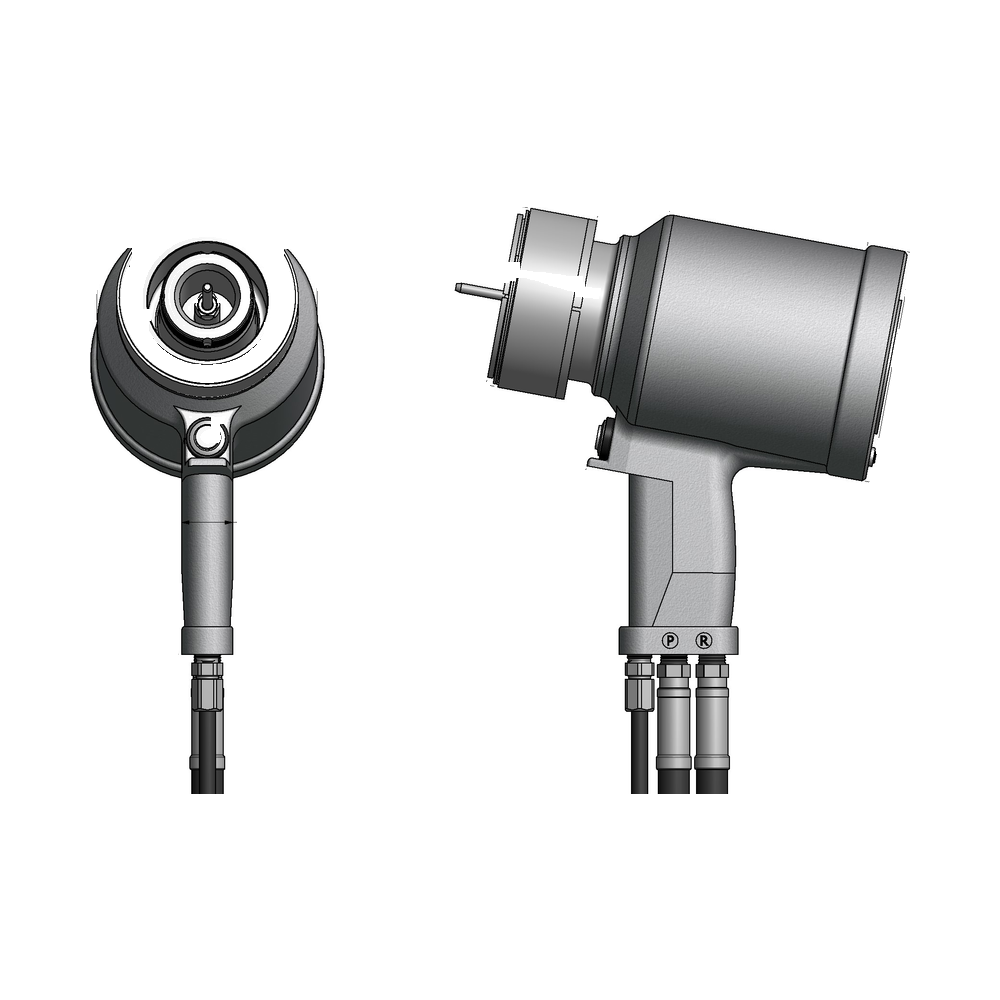

The GB2630 and the GB2630A are hydraulic installation tools designed specifically for the efficient installation of 7/8” diameter lockbolts only. It weighs just over 22.4 lbs. (10.2 kg). and can be operated in any position. It has a 1.906” (48.4 mm) fastener stroke and a rated pull load of 55,940 lbs. (248.8 kN) @ 7,400 psi (510.2 bar)
The GB2630 operates from a GB940 power unit set to a maximum pull pressure of 7,400 psi (510.2 bar) and a maximum return pressure of 3,200 psi (220.6 bar). It is supplied with 2 ft hydraulic hoses and couplings, an electric switch, and a control cord.
| Weight | 22.4 lbs. (10.2 kg) |
|---|---|
| Rated Pull Load | 55,940 lbs. (248.8 kN) @ 7,400 psi. |
| Stroke | 1.906” (48.4 mm) |
| Noise Level | No noise hazards identified. |
| Warranty | 1 year |
| DIA. | NOSE ASSEMBLY |
|---|---|
| 7/8" (22.2 mm) | 28-2630-28 |
| GB2630 installs the listed fasteners | |
|---|---|
| See nose assembly information (data sheets) | |
| NOTE : THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE ASSEMBLY EXTENDS FROM THE TOOL. (I.e. -28 = 2.8 inches) |
| Image | Model | Compatibility | |
|---|---|---|---|
 | 28-2630-28 | Recommended | |
 | 28-2630-70 | Recommended |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Gage Bilt Hydraulic Rivet Tool GB2630/GB2630A.
