Overview

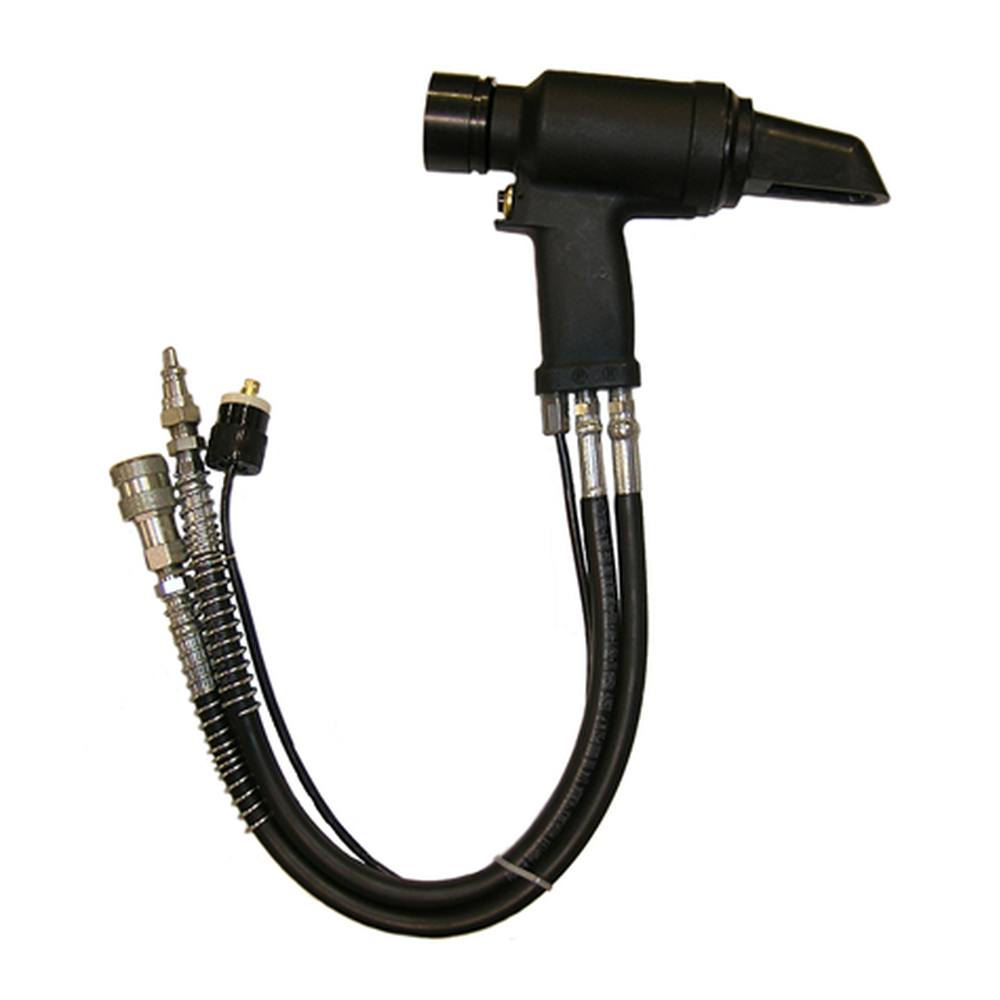

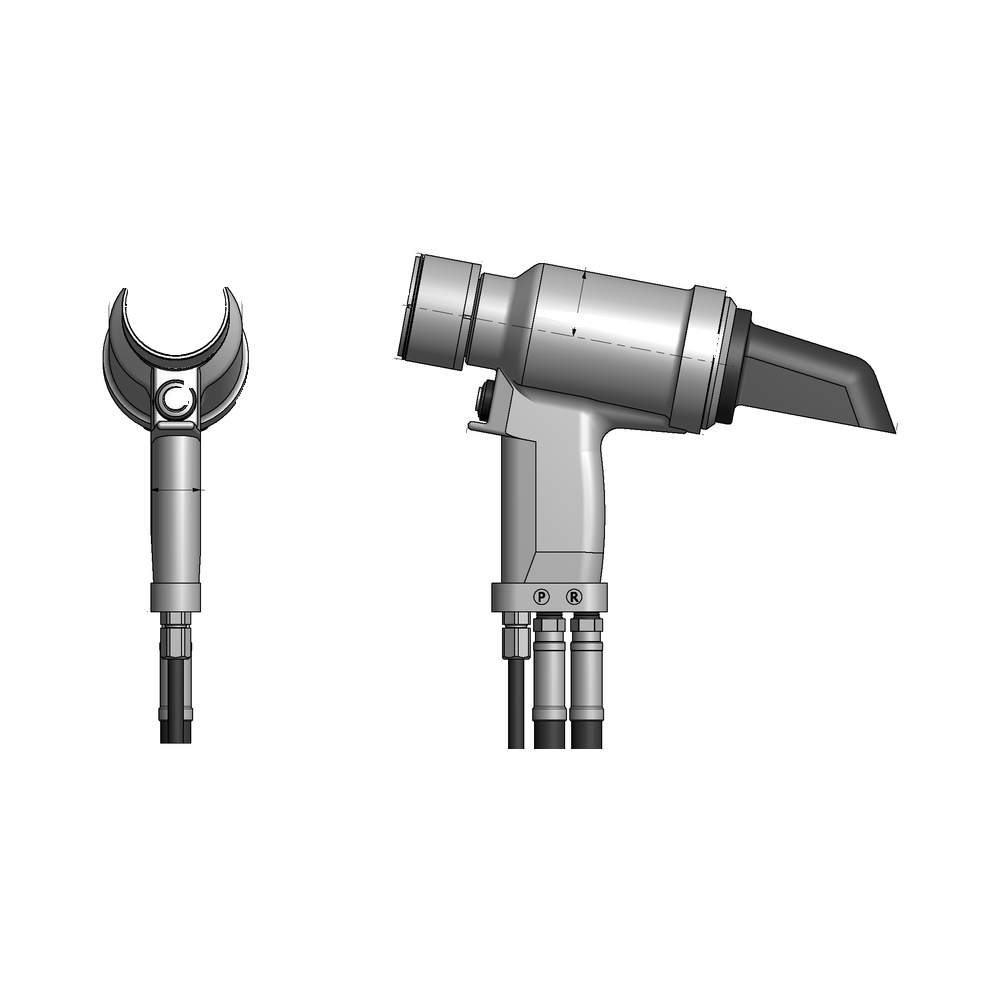

The GB2620PT and GB2620PTA are hydraulic installation tools intended exclusively for 1/2" lockbolts. Each tool weighs 9 lb 14 oz (4.5 kg), provides a 1.437" (36.5 mm) fastener-setting stroke, and has a rated pull load of 17,745 lb (78.9 kN) at 6,500 psi (448.2 bar). The electrically actuated GB2620PT operates from a GB940 power unit set to a maximum pull pressure of 7,400 psi (510.2 bar) and a maximum return pressure of 3,200 psi (220.6 bar), allowing the listed fasteners to be installed without pressure readjustment.
Specifications and compatibility tables
LOCKBOLT HIGH TENSILE PULL TYPE C50L LD AVDELOK
| DIA. | NOSE ASSEMBLY |
|---|
| 1/2" | 16-2620PT-41 |
|---|
BOM
| DIA. | NOSE ASSEMBLY |
|---|
| 3/8" | BOM12-2620PT-31 1 |
|---|
| 1/2" | BOM16-2620PT-41 |
|---|
HP8
| DIA. | NOSE ASSEMBLY |
|---|
| 1/2" | Contact HADI Technologies FOR YOUR REQUIREMENTS |
|---|
HP10.9
| DIA. | NOSE ASSEMBLY |
|---|
| 12 mm | Contact HADI Technologies FOR YOUR REQUIREMENTS |
|---|
FOOTNOTES
| GB2620PT installs the listed fasteners |
|---|
| 1) 504124 SPLIT RING GROUP REQUIRED TO ATTACH TO TOOL (SOLD SEPARAETLY) |
|---|
| NOTE : THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE ASSEMBLY EXTENDS FROM THE TOOL. (I.e. -41 = 4.1 inches) |
|---|
Compatible nose assemblies
