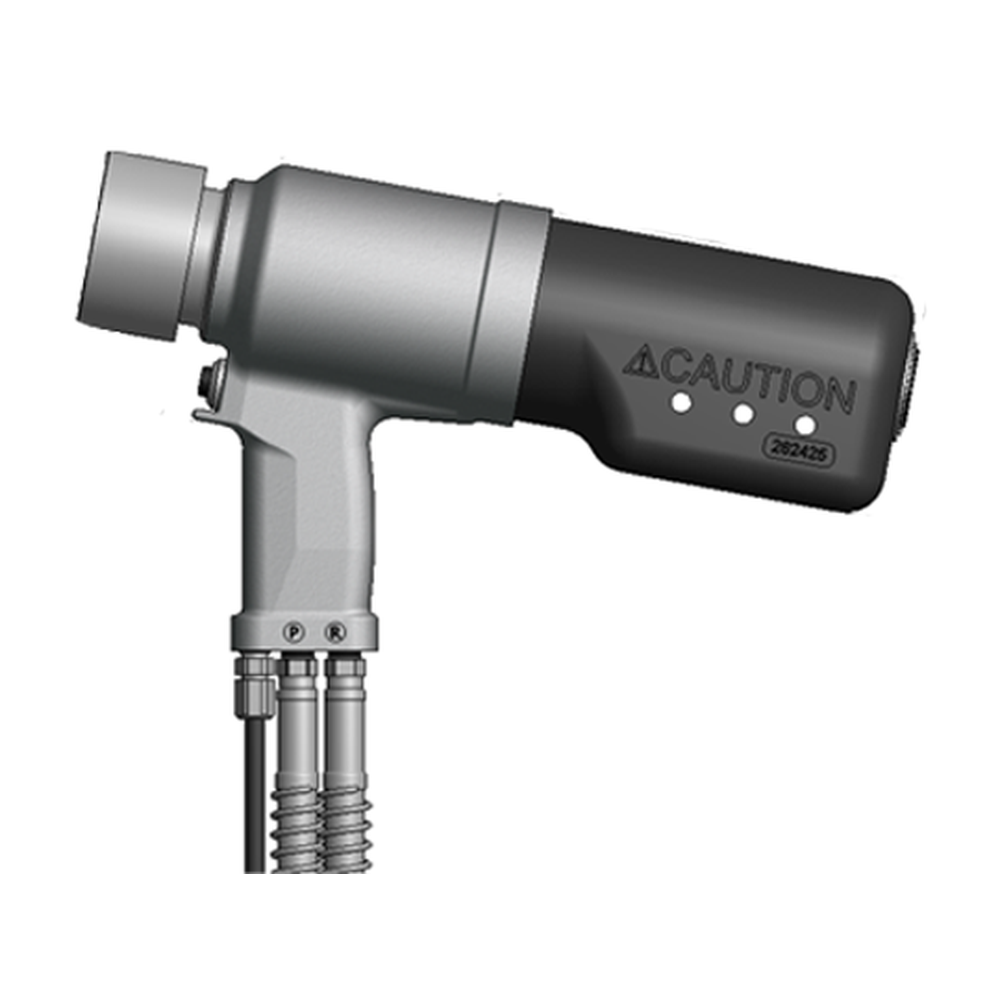

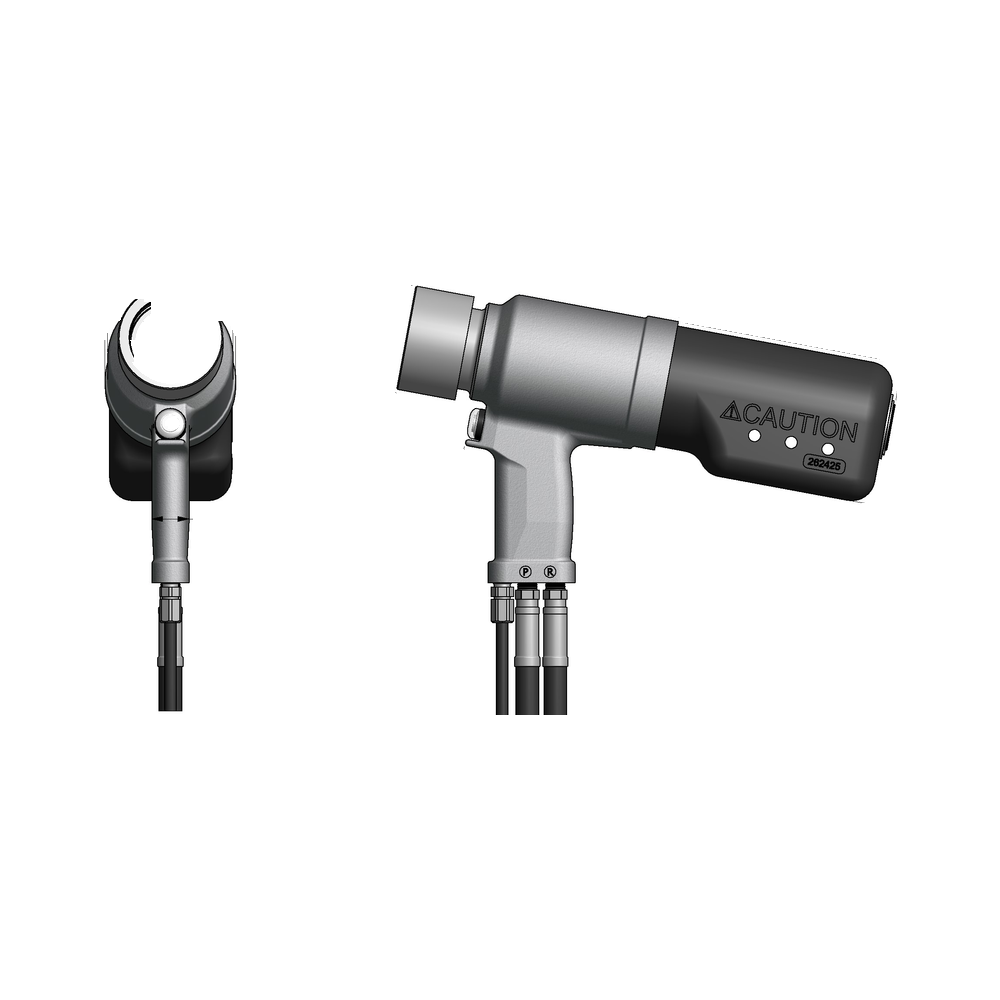

The GB2624PTD is a hydraulic installation tool for 1/2" BOM fasteners.
The GB2624PTD is a hydraulic installation tool for 1/2" BOM fasteners. It weighs approximately 15 lb (6.80 kg), can be operated in any position, provides a 1.687" (42.8 mm) fastener-setting stroke, and has a maximum rated pull load of 30,356 lb (135.03 kN) at 6,500 psi (448 bar). The electrically actuated tool operates from a GB940 power unit with maximum pull pressure set to 7,400 psi (510 bar) and maximum return pressure set to 3,200 psi (221 bar).
| DIA. | NOSE ASSEMBLY |
|---|---|
| 1/2" | BOM16-2624-37 |
| GB2624PTD installs the listed fasteners | |
|---|---|
| NOTE : THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE ASSEMBLY EXTENDS FROM THE TOOL. (I.e. -37 = 3.7 inches) |
| Image | Model | Compatibility | |
|---|---|---|---|
 | BOM16-2624-37 | Alternate | |
 | BOM16-2624PTA-40 | Alternate |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Gage Bilt Hydraulic Rivet Tool GB2624PTD.
