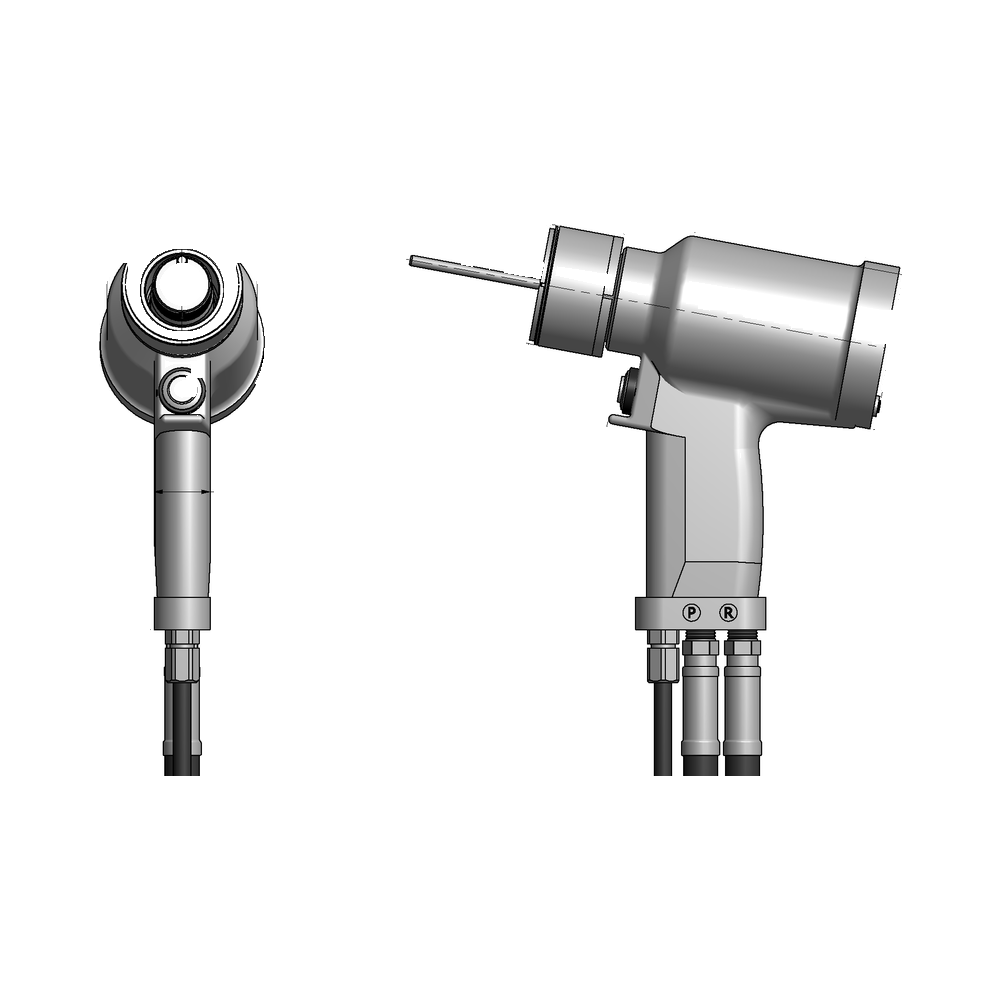

The GB2620 and the GB2620A are hydraulic installation tools designed specifically for the efficient installation of 1/2” diameter lockbolts only. It weighs 9 lbs. 14 oz. (4.5 kg). It has a 1.437" (36.5 mm) rivet setting stroke and a rated pull load of 17,745 lbs. (78.9 kN) @ 6,500 psi (448.2 bar).

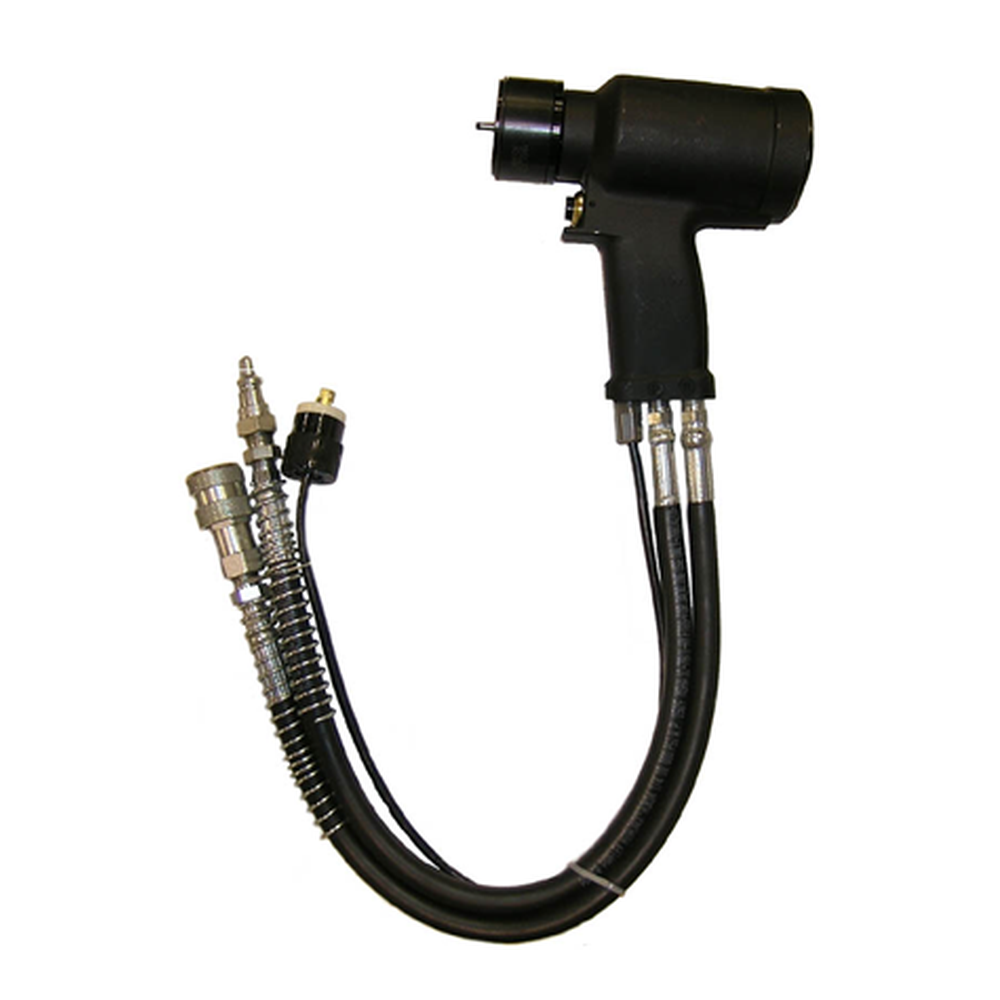

The electrically actuated GB2620 operates from a GB940 power unit set to a maximum pull pressure of 7,400 psi (510.2 bar) and a maximum return pressure of 3,200 psi (220.6 bar). It is supplied with 2 ft (0.61 m) hydraulic hoses and couplings, an electric switch, and a control cord.
| Weight | 9 lbs. 14 oz. (4.5 kg) |
|---|---|
| Rated Pull Load | 17,745 lbs. (78.9 kN) @ 6,500 psi |
| Stroke | 1.437" (36.5 mm) |
| Noise Level | No noise hazards identified. (20 max dB(A) |
| Warranty | 1 year |
| DIA. | NOSE ASSEMBLY |
|---|---|
| 1/2" | 16-2620-41 |
| DIA. | NOSE ASSEMBLY |
|---|---|
| 1/2" | BOM16-2620B-41 |
| DIA. | NOSE ASSEMBLY |
|---|---|
| 1/2" | Contact HADI Technologies for application requirements |
| DIA. | NOSE ASSEMBLY |
|---|---|
| 12 mm | Contact HADI Technologies for application requirements |
| GB2620 installs the listed fasteners | |
|---|---|
| NOTE : THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE ASSEMBLY EXTENDS FROM THE TOOL. (I.e. -41 = 4.1 inches) |
| Image | Model | Compatibility | |
|---|---|---|---|
 | 16-2620-41 | Recommended | |
 | BOM16-2620-41 | Recommended | |
 | BOM16-2620B-41 | Recommended | |
 | HP16-2620-41 | Recommended | |
 | BOM16-2620A-41 | Recommended | |

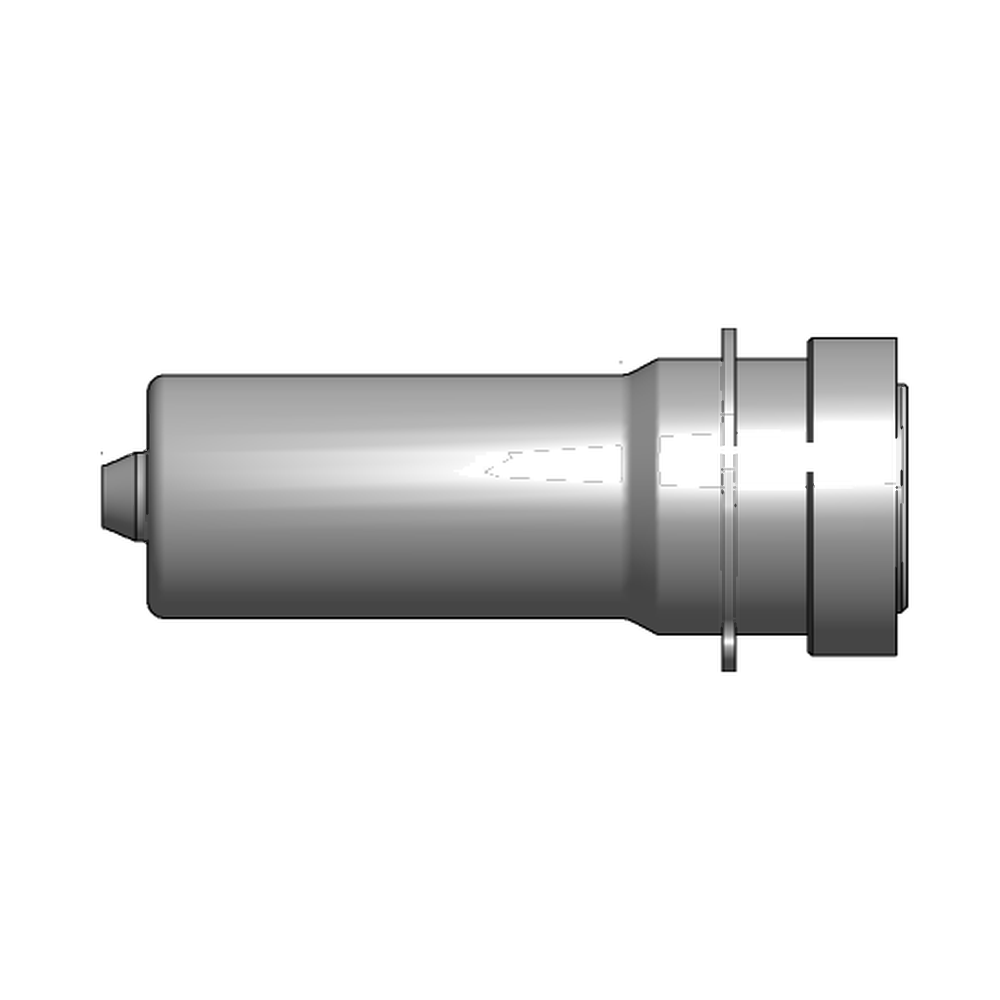

 | SB12-2620PT-32 | Alternate |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Gage Bilt Hydraulic Rivet Tool GB2620/GB2620A.
