A pneumatic angle sander for surface finishing, polishing and smoothing tasks.
Atlas Copco LSV19 is a pneumatic angle sander for surface sanding, polishing, and finishing tasks in production environments.
It is built for professional operators who need an efficient angled tool for daily industrial use on assembly and finishing stations.
How do I choose the right LSV19 model for my application?
Step 1: Define the main task in your station – sanding, polishing, or finishing.
Step 2: Consider the working posture and access needed for the parts you handle.
Step 3: Compare the three models in the family against your daily workflow.
Step 4: Match the tool to the air setup and accessories you want to use.
Is the LSV19 suitable for precision finishing work?
Yes.
It is a pneumatic angle sander designed for Surface Sanding and Polishing, so it fits industrial finishing jobs well.
What accessories are available with the series?

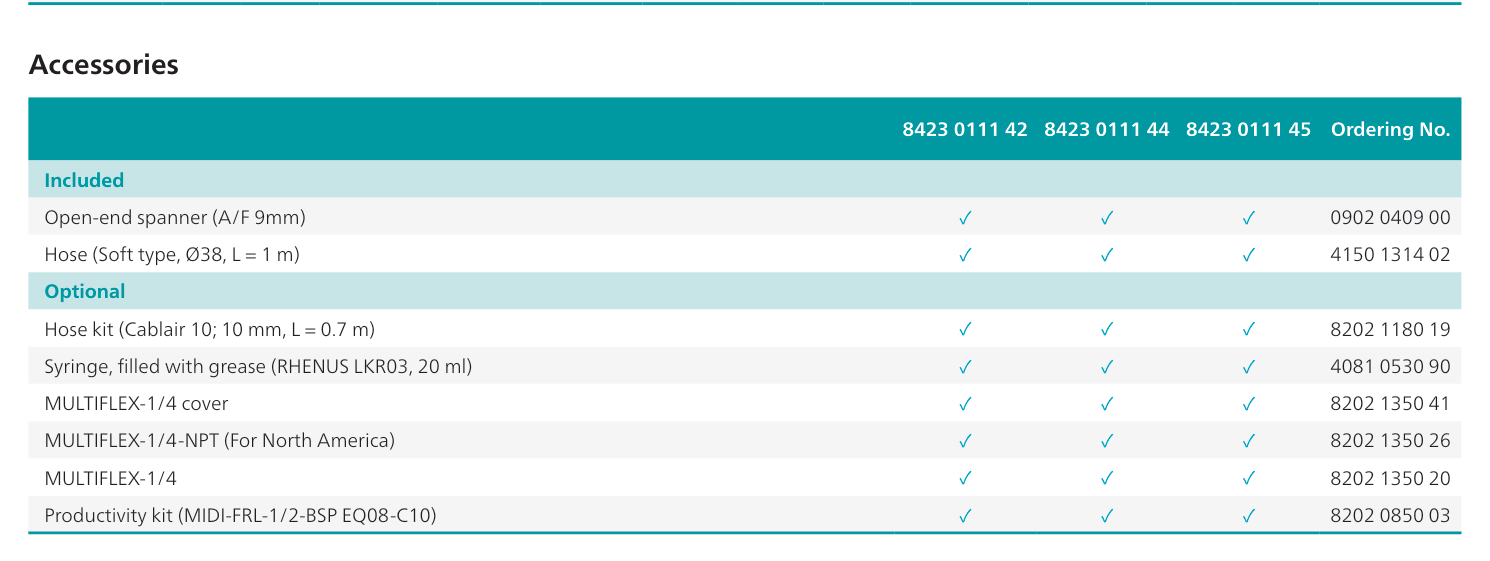

The family offers accessories such as an open-end spanner, soft type hose, hose kit, grease syringe, MULTIFLEX-1/4 cover, and a Productivity kit.
How can I keep the tool performing well over time?
Use regular maintenance, apply the correct grease and service materials, and check the hose and connections before each shift.
Is this series suitable for industrial production environments?
Yes.
It is a pneumatic tool made for professional use, so it suits production lines, assembly work, and finishing stations.
Can I build the LSV19 into a more complete working setup?
Yes.
You can combine it with MULTIFLEX accessories, hose kits, or a Productivity kit for a more organized and efficient setup.
| Model | Max free speed (r/min) | Max pad dia (mm) | Spindle thread | Spindle length (mm) | Height over spindle (mm) | Max output (kW) | Length (mm) | Weight (kg) | Air con- sumption at max output (l/s) | Air con- sumption at free speed (l/s) | Rec hose size (mm) | Air inlet thread (in) BSP (in) | Ordering No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LSV19 S200 | 20000 | 50 | 1/4”-20 UNC | 8 | 59 | 0.46 | 186 | 0.6 | 11.3 | 7.5 | 10 | 1/4 | 8423011142 |
| LSV19 S120 | 12000 | 75 | 1/4”-20 UNC | 8 | 59 | 0.46 | 186 | 0.6 | 11.3 | 7.5 | 10 | 1/4 | 8423011144 |
| LSV19 S080 | 8000 | 75 | 1/4”-20 UNC | 8 | 59 | 0.37 | 186 | 0.6 | 11.3 | 6.5 | 10 | 1/4 | 8423011145 |
The complete accessories tables, exactly as they appear in the Atlas Copco catalog – every ordering number, dimension and drawing. The PDF attached to this page is also available for download.
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Atlas Copco LSV19 Pneumatic Angle Sander.
