The APS-438 LRC is a highly compact air-powered saw designed for applications with tight space restrictions. Works exclusively with EscoWrap Tracks and requires only 8″ of clearance around tube, pipe, tank, panel, or pillar cutting applications.
The APS-438 Low Radial Clearance (LRC) MILLHOG is a highly compact air-powered saw, designed for applications with tight space restrictions. This saw works exclusively with EscoWrap Tracks and requires only 8 inches of clearance around tube, pipe, tank, panel, or pillar cutting applications.

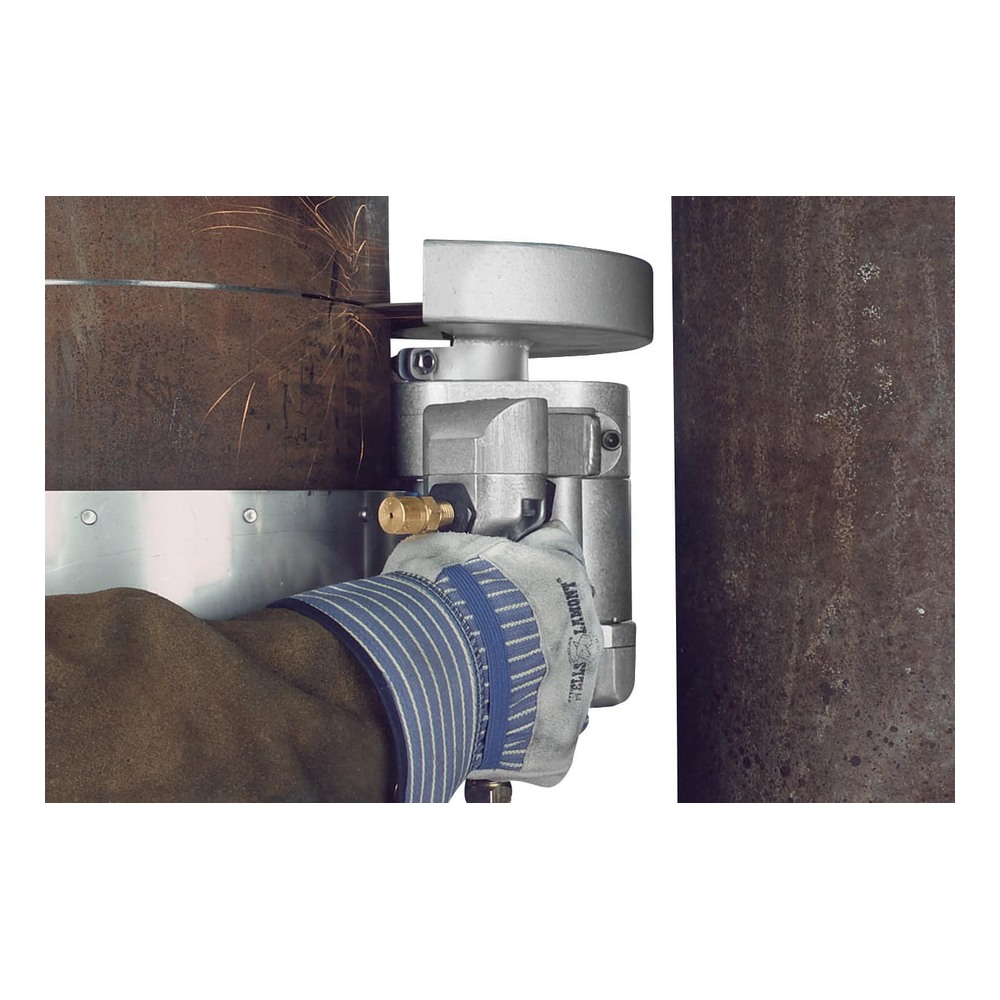

Like the Standard and Low Profile air-powered MILLHOG saws, the APS-438 LRC performs perfectly square cuts and leaves no heat-affected-zone. EscoWrap tracks securely clamp to the pipe O.D. and the trolley is attached to it for mounting the saw. This ultra-stable platform permits the operator to easily move the saw around the circumference to produce a clean, perfectly square cut.
| Specification | Imperial | Metric |
|---|---|---|
| Working Range | 6.0″ O.D. – 60.0″ O.D. | 152.4 mm O.D. – 1524.0 mm O.D. |
| Blade Series | APS | APS |
| Radial Clearance | 6″ with blade fully plunged | 152.4 mm with blade fully plunged |
| Cut Depth | 2.375″ | 60.3 mm |
| Motor | Pneumatic | Pneumatic |
| Power | 3 hp | 2237 W |
| Air Pressure | 90 psi | 6.2 bar |
| Air Flow | 80 cfm | 2265 L/min |
| Blade Speed | 5050 rpm | 5050 rpm |
| Working Weight | 30 lbs | 13.6 kg |
| Shipping Weight | 70 lbs | 31.8 kg |
| Shipping Dimensions | 27″ × 15″ × 11″ | 686 mm × 381 mm × 254 mm |
| Accessory | Details |
|---|---|
| APS Guards – See size chart | Depending on the application, different sized guards can be necessary for safe operation of the APS saws. These guards come with mounting hardware and are installed in minutes. APS guards fit all models of APS saws and can be changed based on the cutting blade or space restrictions. |
| EscoWrap Track – See size chart | Wrap tracks are used with the APS-438 LRC or the Universal Pipe Trolley with the APS-438 and APS-438 LP on cylindrical structures such as tube, pipe, and tanks from 6.0″ (1.8m) – 60.0″ (18.3m). Track is easy to set up and can be adjusted/tightened for pipe with varying dimensions. |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Esco Tool APS-438 LRC Compact Air-Powered Pipe Cutting Saw.
