The most heavy-duty hydraulic torque wrench pump in the industry

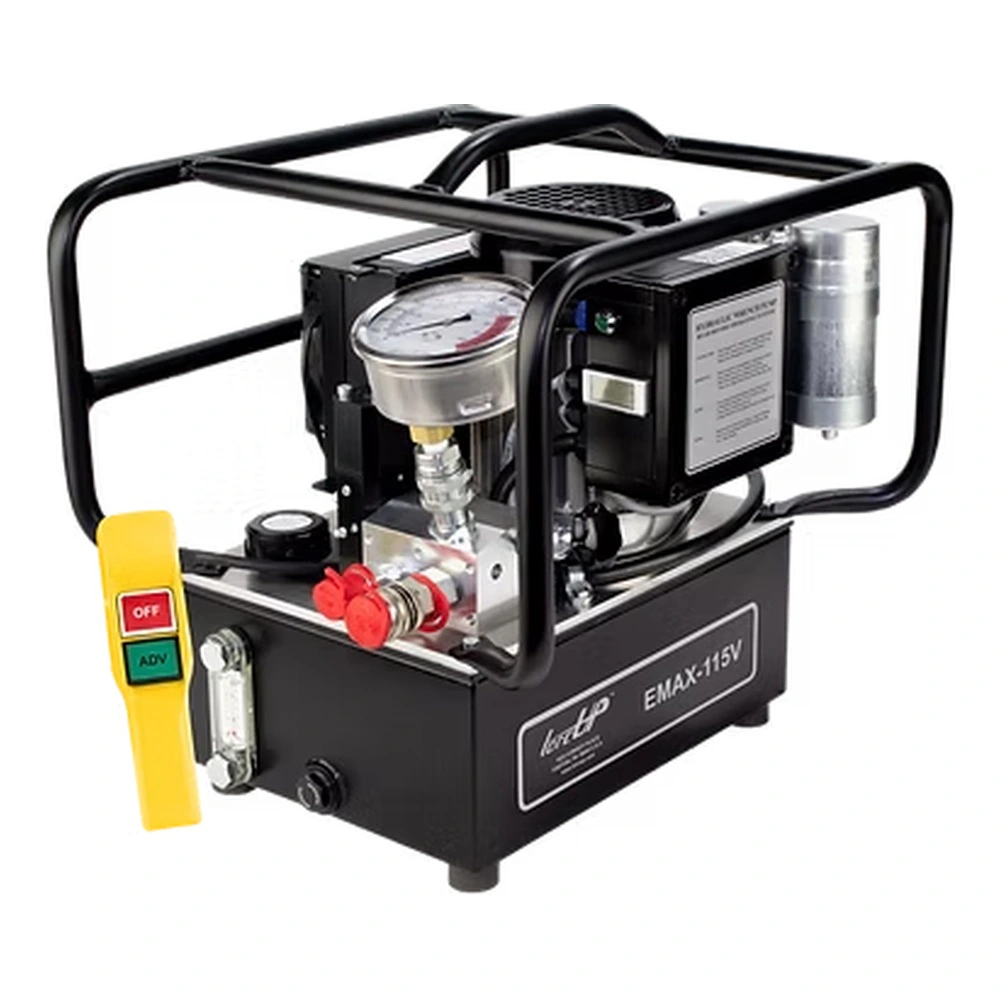

The TorcUP EMAX Series is an electric hydraulic torque wrench pump designed with on-site continuous-duty cycling reliability in mind. Full-range adjustability up to 10,000 psi / 700 bar lets you set the pressure and achieve accurate torque output, every single cycle.
Manufactured to withstand harsh environments and heavy-duty applications, its three-stage performance delivers high oil flow at low pressure for fast run-down and high pressure to close the torque. Whether running one tool or four, the EMAX series is the power that guarantees the job gets done. All EMAX pumps ship with an oil cooler and a 15′ pendant. Part of a 30-year heritage (1996–2026) of accuracy, durability and trust.
| Technical Data | EMAX-230 V |
|---|---|
| Reservoir Capacity (gal/litre) | 2.2 / 8.4 |
| Valve Style | Auto Retract |
| Motor Specification | 2.2 hp / 1.6 kW |
| Weight (lbs/kg) | 62 / 28 |
| Stage | Max Flow (cu.in/min) | Max Flow (l/min) |
|---|---|---|
| Stage 1 (1,000 psi / 70 bar) | 610 | 10.0 |
| Stage 2 (3,900 psi / 270 bar) | 145 | 2.4 |
| Stage 3 (10,000 psi / 700 bar) | 65 | 1.1 |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about TorcUP EMAX Electric Hydraulic Torque Wrench Pump.
The right solution starts with a clear brief
The HADI product development and engineering team can adapt a tool, product or system to your application.
