High accuracy, square drive electric torque wrench capable of tackling your most demanding jobs.
The TONE STC-50 AE electric torque wrench is a high-accuracy tool built for demanding tightening applications. It offers repeated accuracy of ±5%, a torque control dial, LED indicator lights, and operation in both clockwise and counterclockwise directions. The tool uses a square drive and is designed for use with square drive sockets.
The specifications below cover the Israel-compatible STC-50TE configuration at 220 V.
The supplied kit includes reaction bars, a tool manual, two screwdrivers, a metal carrying case, and a calibration certificate. The tables also list compatibility for fully tensioned structural bolts: A325 and A490 in 1-1/4″, 1-3/8″, and 1-1/2″ sizes, plus A325M and A490M in M30, M33, and M36, with an adjustable torque range of 1,500–3,700 ft-lb. (2,000–5,000 N-m).
| Fully Tensioned Structural Bolts: A325 – 1-1/4″, 1-3/8″, 1-1/2″ A325M – M30, M33, M36 A490 – 1-1/4″, 1-3/8″, 1-1/2″ A490M – M30, M33, M36 | Adjustable Torque Range: 1,500–3,700 ft-lb. (2,000–5,000 N-m) |
| Model | TONE STC-50TE |
|---|---|
| Voltage | 220 V |
| Maximum Current | 6.0 A |
| Maximum Consumption | 1,350 W |
| Frequency | 50-60 Hz |
| Adjustable Torque Range | 2,000–5,000 N-m |
| No-load Speed | 2 rpm |
| Square Drive Size | 1-1/2″ |
| Tool Weight | 12.5 kg |

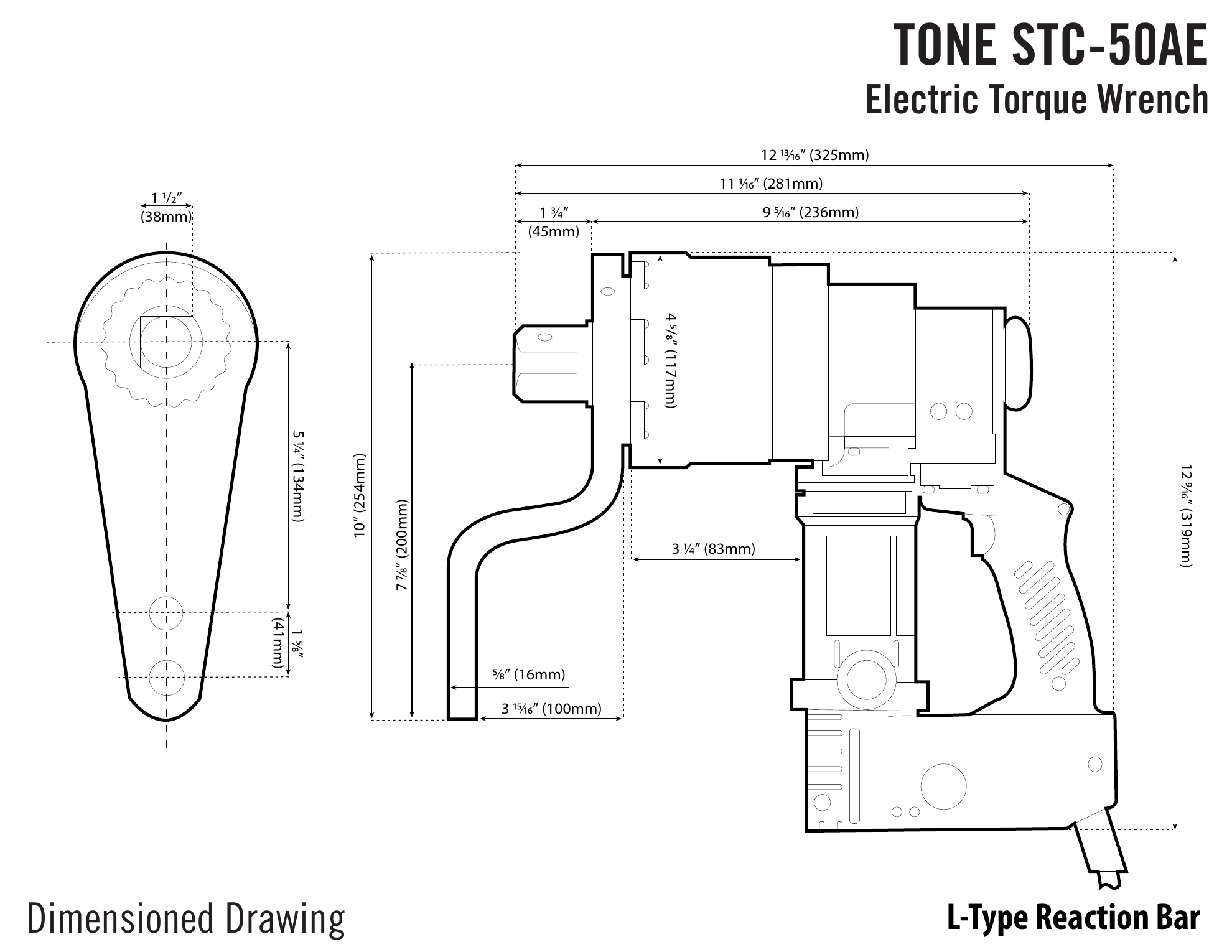

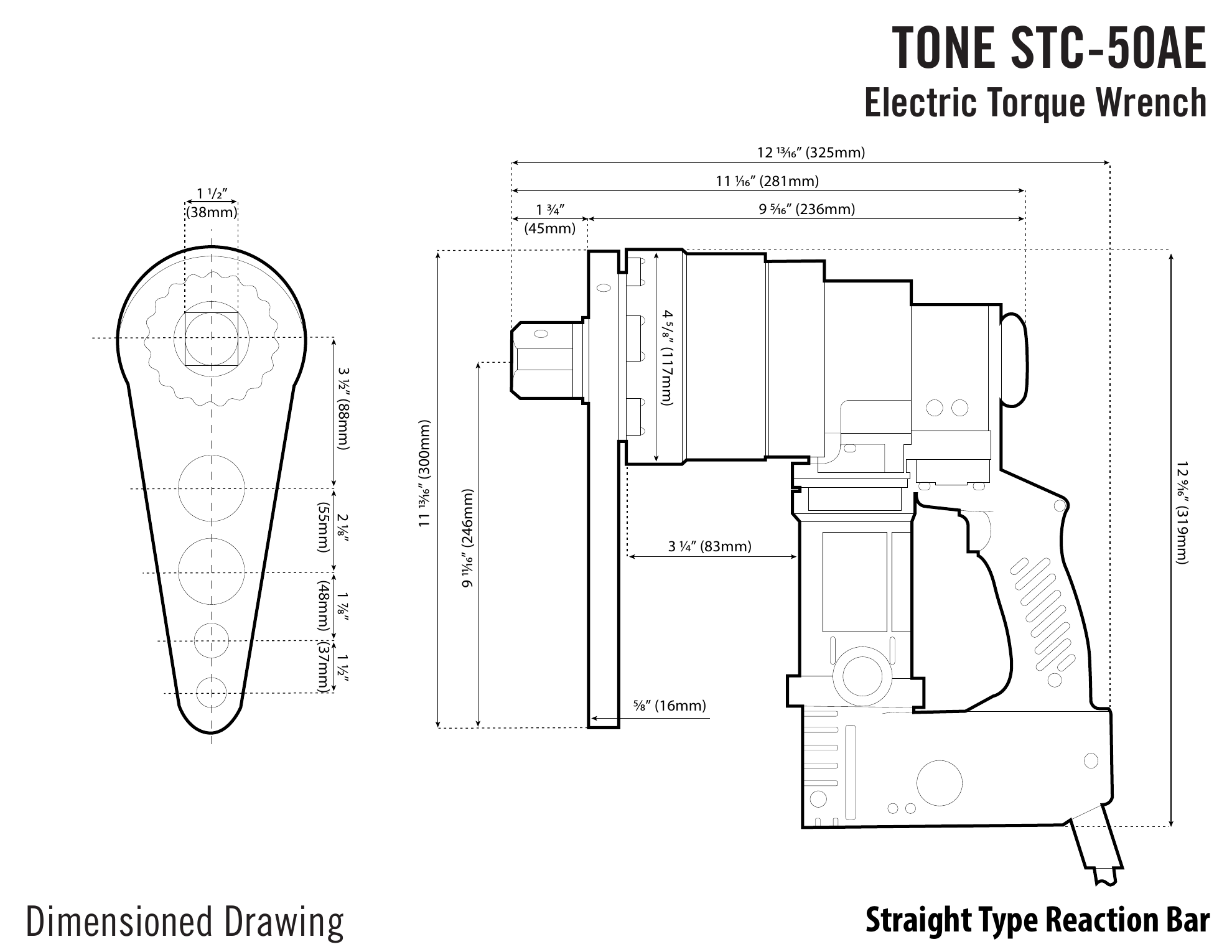

The complete drawings below retain the original technical content after removal of the source distributor branding.
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about TONE STC-50 AE Electric Torque Wrench.
