The P600 A is the largest TONE torque multiplier with a magnification ratio of 23.5x and a maximum torque output of 4,425 ft-lb.

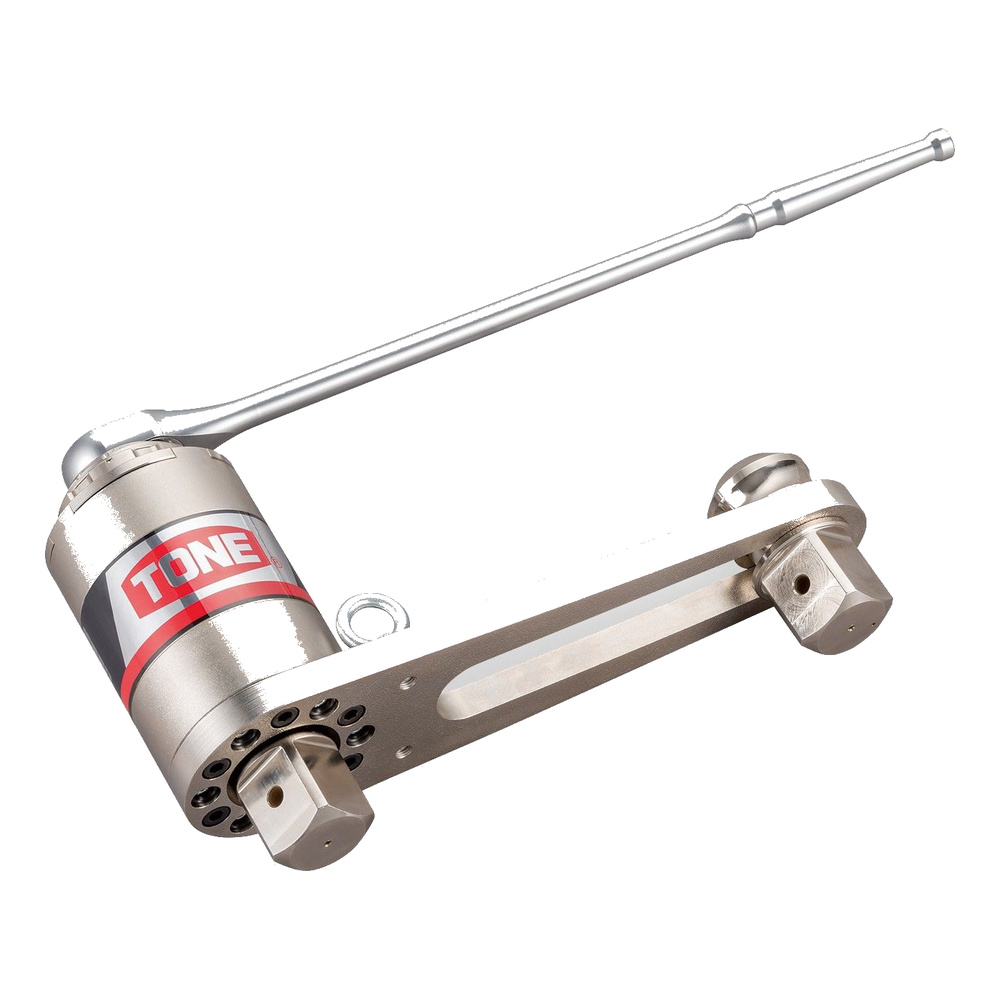

The TONE P600 A Manual Torque Multiplier is a hand-operated tool designed to deliver high torque output with minimal effort, including in confined spaces. It supports clockwise and counterclockwise operation and uses a square drive configuration for controlled fastening.
Its published specifications list an output torque range of 885–4,425 ft-lb. (1,200–6,000 N-m) and an input torque range of 35–190 ft-lb. (51–255 N-m). The unit is specified with a 1-1/2″ (38.1 mm) output square drive, a 1/2″ (12.7 mm) input square drive, a magnification of 23.5, a gear ratio of 25.5, and a weight of 25.8 lb. (11.7 kg).
The included kit contains a Reaction Bar, Ratchet Wrench, Instruction Manual, Flathead Screwdriver, Metal Carrying Case, and Calibration Certificate. The specification tables also show a compatible torque wrench pairing for P600 A as T4MF250, with output torque listed as 1,040–4,425 ft-lb. and input torque as 45–190 ft-lb., and another listed pairing of T4MN300 with 1,410–6,000 N-m output torque and 60–255 N-m input torque.
| Model | TONE P600 A (with included ratchet wrench) |
|---|---|
| Output Torque Range | 885-4,425 ft-lb. (1,200-6,000 N-m) |
| Input Torque Range | 35-190 ft-lb. (51-255 N-m) |
| Output Square Drive | 1-1/2″ (38.1 mm) |
| Input Square Drive | 1/2″ (12.7 mm) |
| Magnification* | 23.5 |
| Gear Ratio | 25.5 |
| Weight** | 25.8 lb. (11.7 kg) |
| Model | Torque Wrench | Output Torque | Input Torque | Weight** |
|---|---|---|---|---|
| P600 A | T4MF250 | 1,040-4,425 ft-lb. | 45-190 ft-lb. | 27.6 lb. (12.5 kg) |
| T4MN300 | 1,410-6,000 N-m | 60-255 N-m |
*Actual magnification may vary depending on condition
**Total weight of the torque multiplier, side-type reaction arm, and ratchet wrench

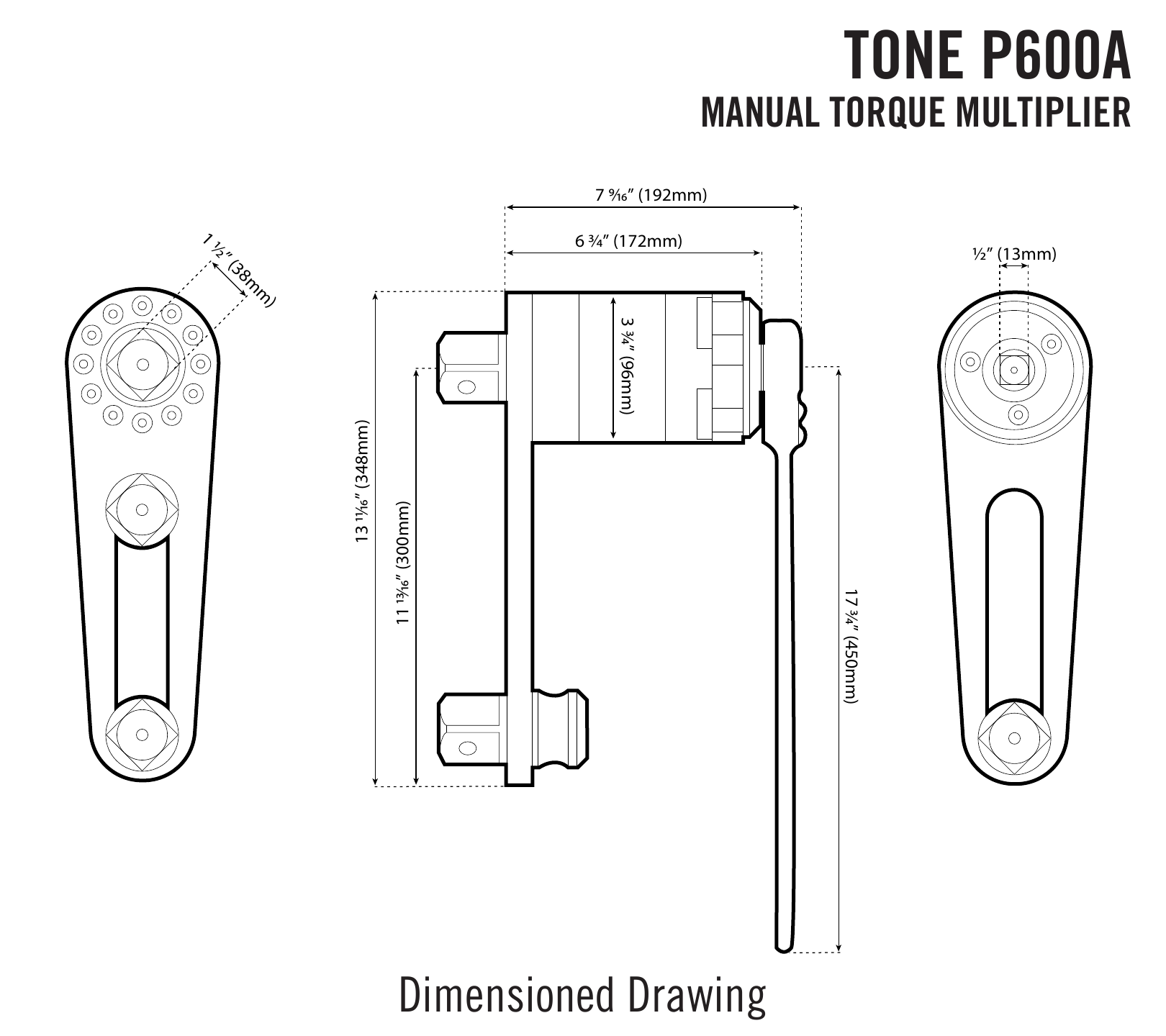

The complete drawings below retain the original technical content after removal of the source distributor branding.
