Used on Turn-of-Nut & Torque Wrenches for the installation of high-strength hex-head bolts. Featuring a reaction bar to absorb the installation torque.
TONE Bar Sockets are used with Turn-of-Nut and torque wrenches for installing high-strength hex-head bolts. The bar socket design includes a reaction bar to absorb installation torque during tightening.
The product is listed for fully tensioned structural bolts, including A325 and A490 in imperial sizes from 5/8″ to 1-1/2″, and A325M and A490M in metric sizes from M16 to M36. Compatibility is shown separately for Turn-of-Nut wrenches and torque wrenches.
Specification tables map nut dimension across flats, heavy-hex bolt diameter, wrench compatibility, and bar socket weight. Footnotes note that bar socket appearance and size vary by wrench model, and socket weight also varies by wrench model.
| Fully Tensioned Structural Bolts |
|---|
| A325 & A490 – 5/8″, 3/4″, 7/8″, 1″, 1-1/8″, 1-1/4″, 1-3/8″, 1-1/2″ A325M & A490M – M16, M20, M22, M24, M27, M30, M33, M36 |
| Nut Dimension Across Flats | Heavy-Hex Bolt Diameter | Turn-of-Nut Wrench Compatibility | Bar Socket Weight* |
|---|---|---|---|
| 1-1/16″ | 5/8″ | TN-20EZ, TN-22EZ | 3 lb. |
| 1-1/4″ | 3/4″ | TN-20EZ, TN-22EZ, TN-24EZA, TNC-24EZA | 3 lb. |
| 1-7/16″ | 7/8″ | TN-22EZ, TN-24EZA, TN-30EZ, TNC-24EZA | 3 – 4 lb. |
| 1-5/8″ | 1″ | TN-30EZ, TN-33EZ | 3 – 5 lb. |
| 1-13/16″ | 1-1/8″ | TN-30EZ, TN-33EZ | 5 lb. |
| 2″ | 1-1/4″ | TN-33EZ, TN-39EZ | 6 – 8 lb. |
| 2-3/16″ | 1-3/8″ | TN-39EZ | 7 lb. |
| 2-3/8″ | 1-1/2″ | TN-39EZ | 15 lb. |
| Nut Dimension Across Flats | Heavy-Hex Bolt Diameter | Torque Wrench Compatibility | Bar Socket Weight* |
|---|---|---|---|

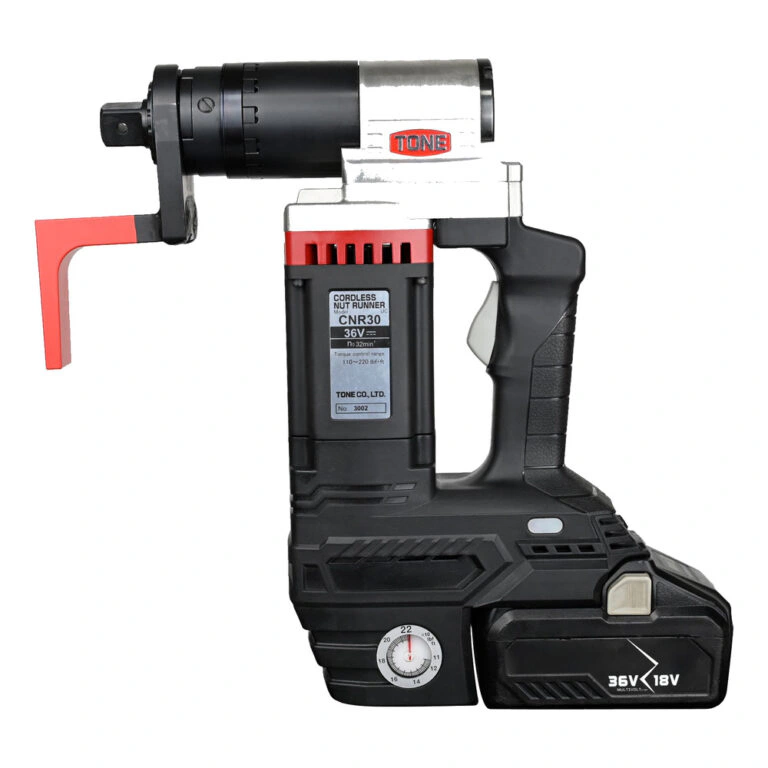

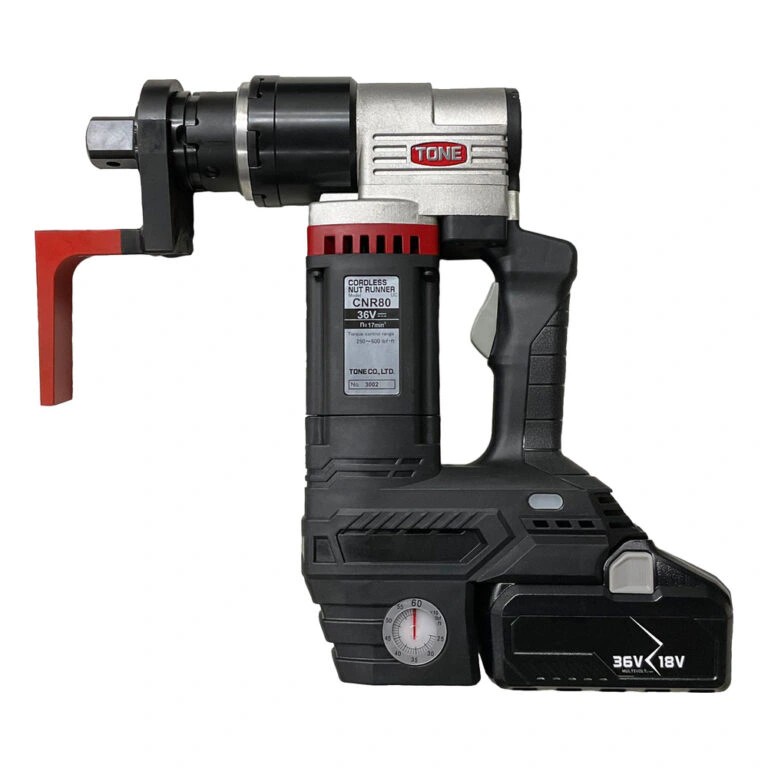

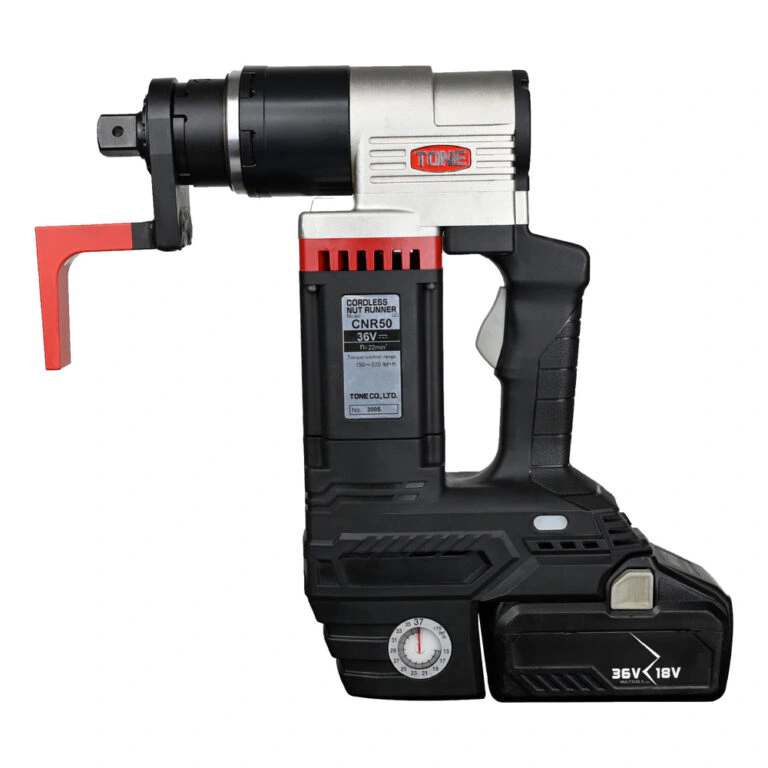

| 1-1/16″ | 5/8″ | GNR-31E, GNR-51E, GNR-81E, CNR30, CNR50, CNR80, GNBC-81E | 2 – 3 lb. |
| 1-1/4″ | 3/4″ | GNR-51E, GNR-81E, GNR-121E, CNR50, CNR80, CNR120, GNBC-81E, GNBC-121E | 2 – 3 lb. |
| 1-7/16″ | 7/8″ | GNR-81E, GNR-121E, GNR-211E, CNR80, CNR120, CNR210, GNBC-81E, GNBC-121E, GNBC-211E | 2 – 4 lb. |
| 1-5/8″ | 1″ | GNR-121E, GNR-211E, CNR120, CNR210, GNBC-121E, GNBC-211E | 3 – 5 lb. |
| 1-13/16″ | 1-1/8″ | GNR-211E, CNR210, GNBC-211E | 4 – 5 lb. |
*Bar sockets vary in appearance and size based on model of wrench
*Socket weight varies based on wrench model
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about TONE Bar Sockets.
