Mechanical valve removal and flange spreading kit that grips the flange bolt holes, with no access gap required between the flange faces. Includes two tools, a torque wrench and imperial grip pins, delivering a combined spreading force of 60 kN.
The RenQuip RAPTOR-6MI kit opens flange joints for the replacement of valves, spades, spacers, blinds, seal rings and gaskets. The tools grip the bolt holes in both flanges and pull them apart, so no initial access gap is needed between the flange faces.

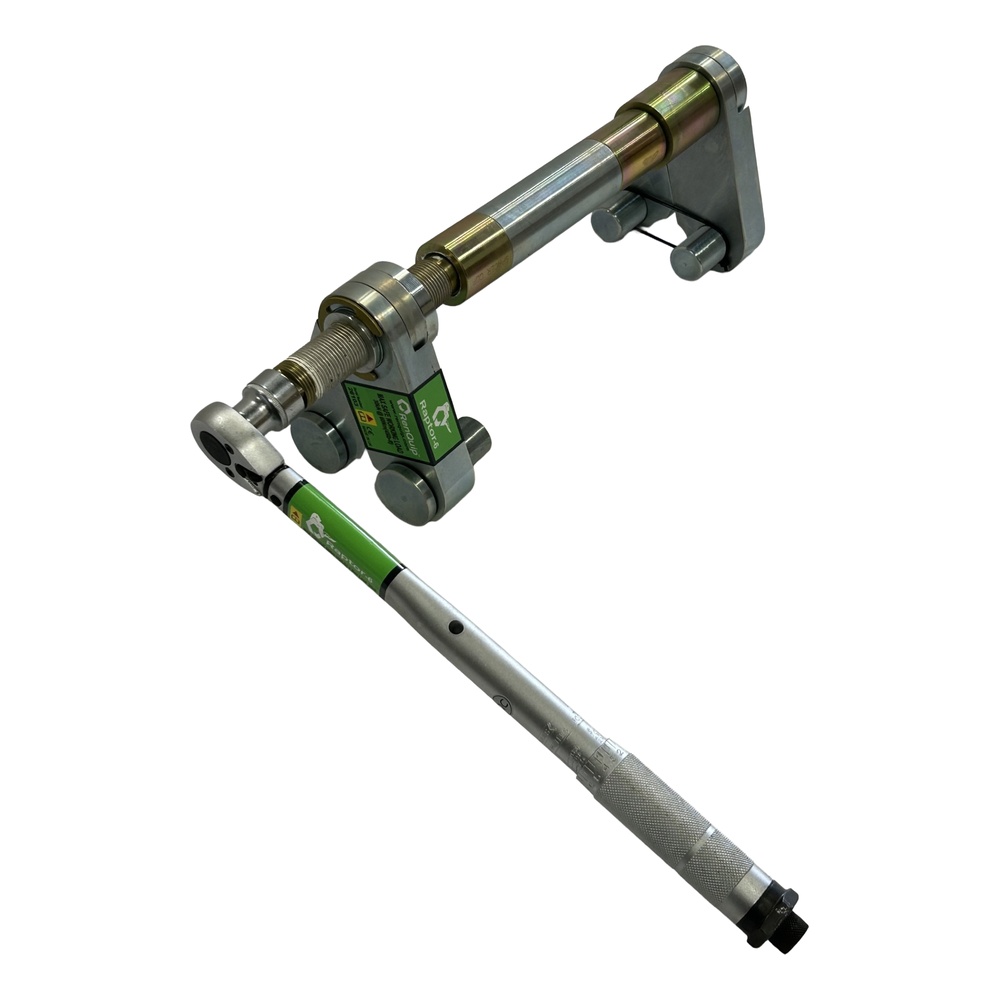

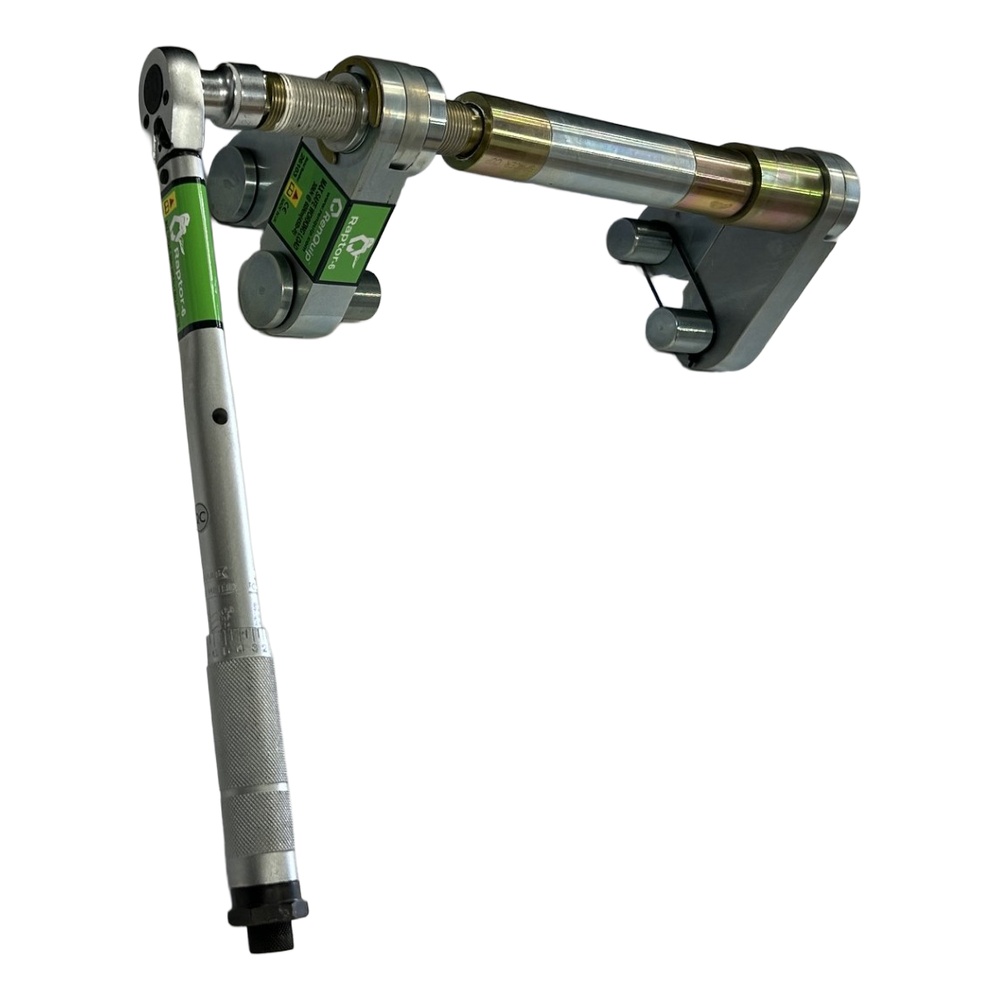

Mechanical actuation uses the torque wrench supplied with the kit. The two tools deliver a combined spreading force of 60 kN, with 30 kN per tool, at a maximum applied torque of 60 N·m. Working on opposite sides of the joint helps maintain parallel flange separation.

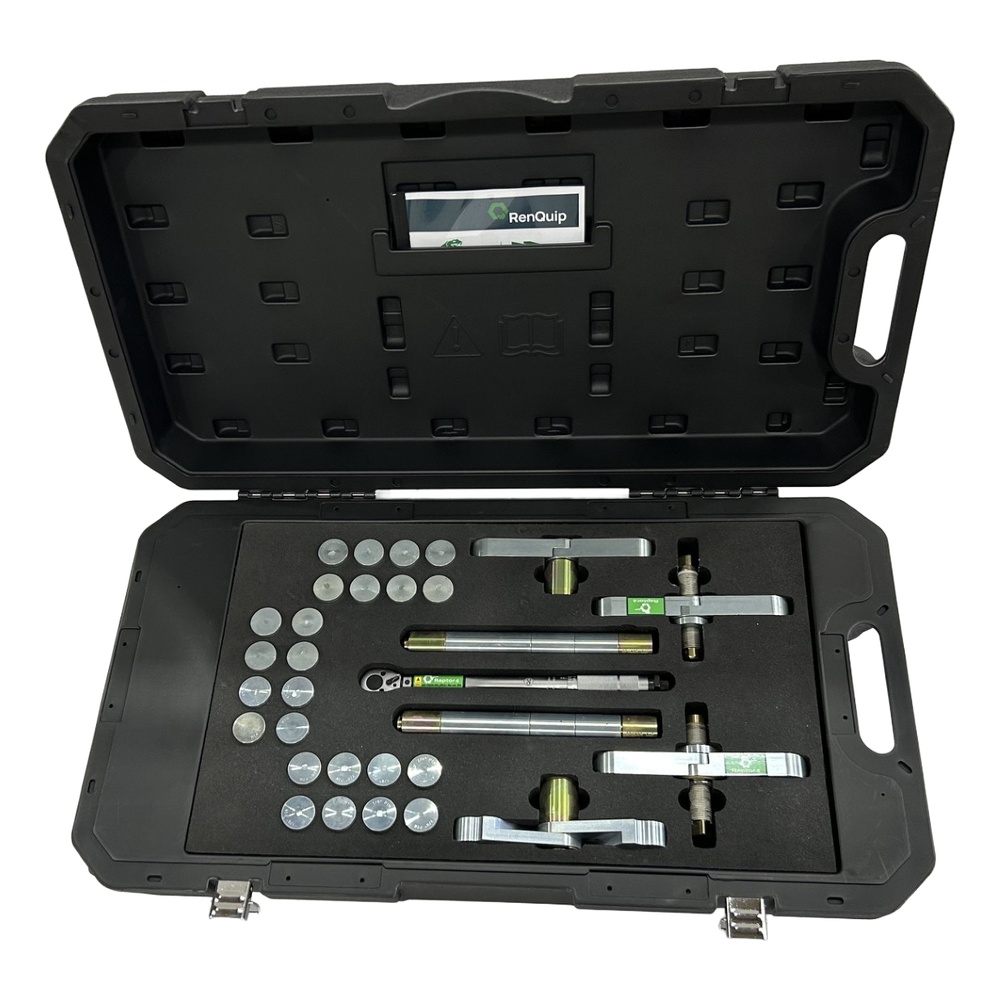

A robust moulded carry case holds the actuator and reaction assemblies, spacer bar assemblies and imperial grip pins. The portable design and 8 kg tool weight support transport to maintenance work in remote locations.
| Specification | Value |
|---|---|
| Ordering code | RAPTOR-6MI |
| Actuation | Mechanical |
| Grip-pin measurement system | Imperial |
| Maximum applied torque | 60 N·m |
| Maximum combined spreading force | 60 kN |
| Spreading force per tool | 30 kN |
| Minimum flange joint width | 70 mm |
| Maximum flange joint width | 375.5 mm |
| Tool weight | 8 kg |
| Kit weight | 27 kg |
| Kit dimensions | 920 × 510 × 210 mm |

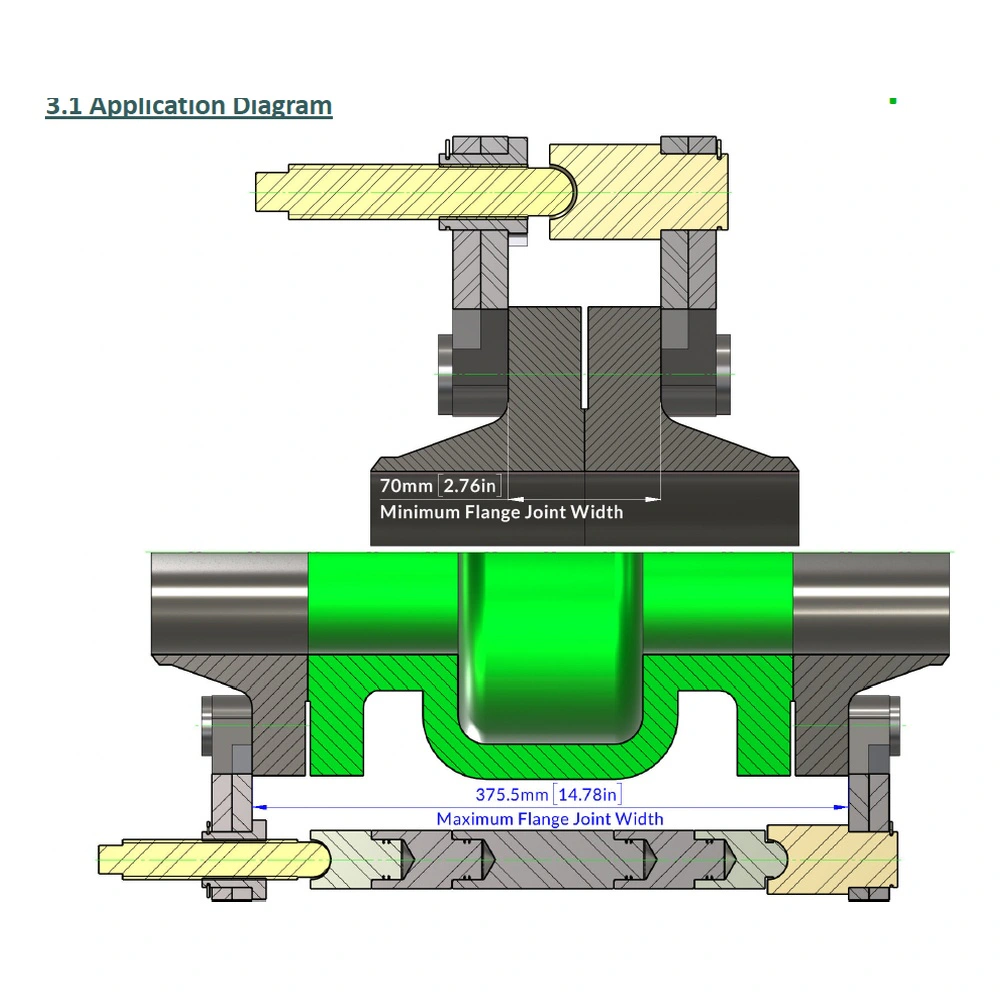

The flange joint width ranges from 70 to 375.5 mm, depending on the assembly configuration. The diagram shows tool positioning across a flange joint and around a valve.
For ASME / ANSI B16.5 weld neck flanges. Each cell gives the grip-pin size in inches; column headings identify the flange class.
| NPS | Class | ||||||
|---|---|---|---|---|---|---|---|
| 150 | 300 | 400 | 600 | 900 | 1500 | 2500 | |
| 1/2" | – | – | – | – | 7/8" | 7/8" | 7/8" |
| 3/4" | – | 3/4" | 3/4" | 3/4" | 7/8" | 7/8" | 7/8" |
| 1" | – | 3/4" | 3/4" | 3/4" | 1" | 1" | 1" |
| 1 1/4" | – | 3/4" | 3/4" | 3/4" | 1" | 1" | – |
| 1 1/2" | – | 7/8" | 7/8" | 7/8" | – | – | – |
| 2" | 3/4" | 3/4" | 3/4" | 3/4" | 1" | 1" | – |
| 2 1/2" | 3/4" | 7/8" | 7/8" | 7/8" | – | – | – |
| 3" | 3/4" | 7/8" | 1" | 1" | 1" | – | – |
| 3 1/2" | 3/4" | 7/8" | 1" | 1" | – | – | – |
| 4" | 3/4" | 7/8" | 1" | – | – | – | – |
| 5" | 7/8" | 7/8" | 1" | – | – | – | – |
| 6" | 7/8" | 7/8" | 1" | – | – | – | – |
| 8" | 7/8" | 1" | – | – | – | – | – |
| 10" | 1" | – | – | – | – | – | – |
| 12" | 1" | – | – | – | – | – | – |
A dash indicates that no grip-pin size is specified for that combination. Confirm the flange dimensions and application requirements before selecting the tool.

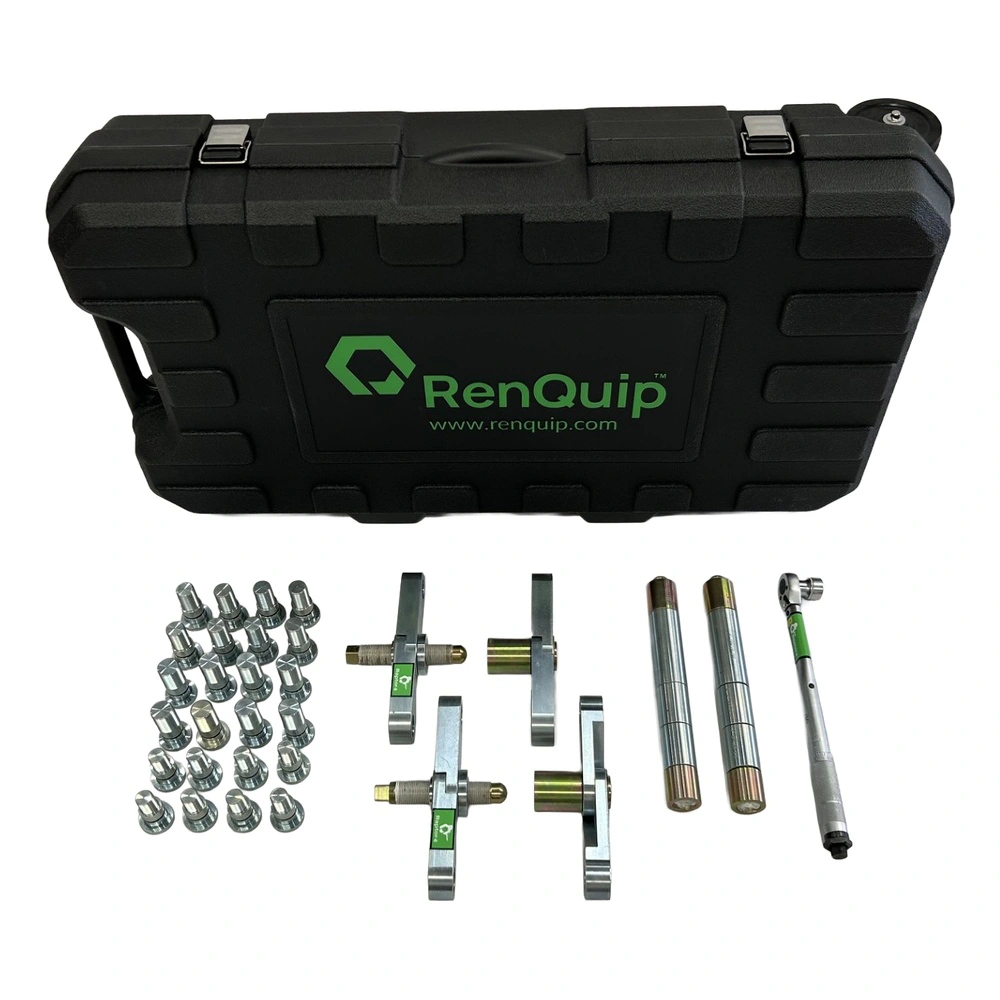

| Quantity | Item |
|---|---|
| 2 | Actuator assemblies |
| 2 | Reaction assemblies |
| 2 | Spacer bar assemblies |
| 1 | Torque wrench assembly |
| 4 | 3/4" grip pins |
| 4 | 7/8" grip pins |
| 4 | 1" grip pins |
| 1 | Robust moulded carry case |
| 1 | Instruction manual |
Use two or more tools together and load and unload them gradually and evenly, in accordance with the operation manual. Use the supplied torque wrench and do not exceed the maximum applied torque. Operation is intended for personnel competent in flange spreading equipment.
