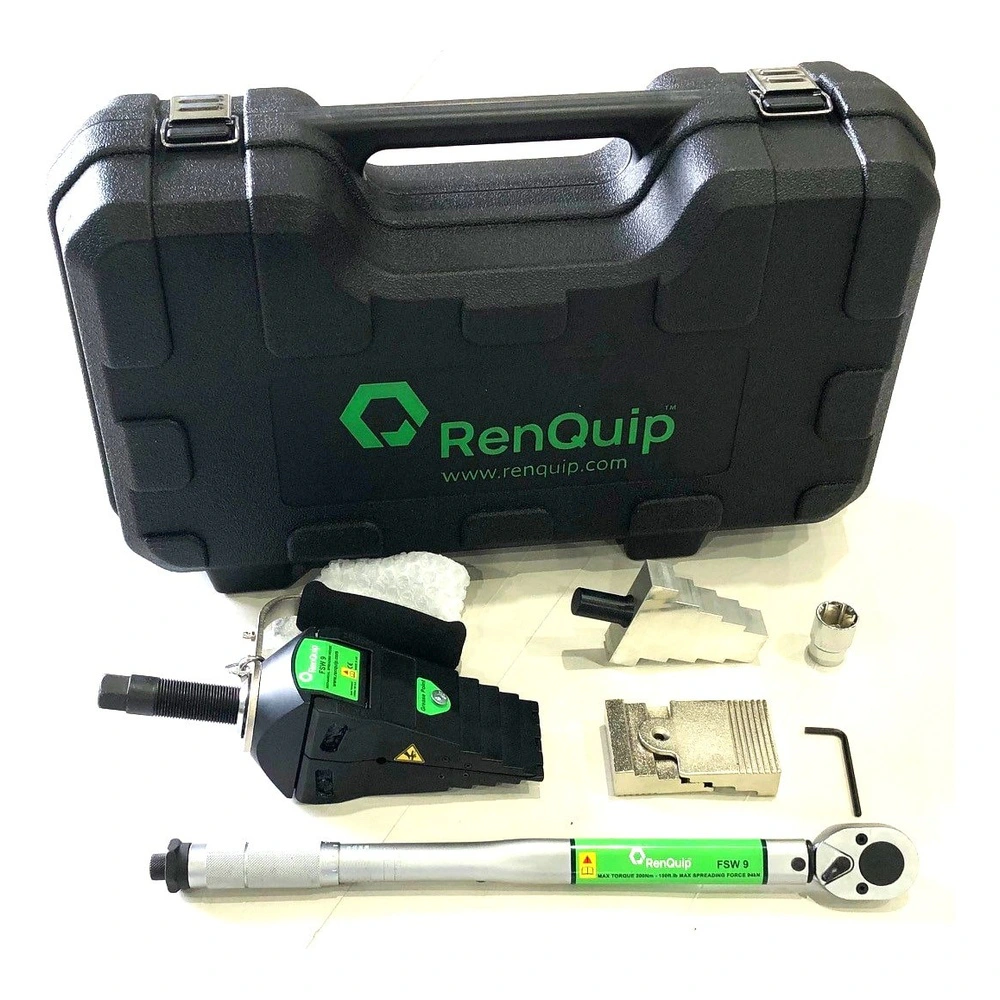

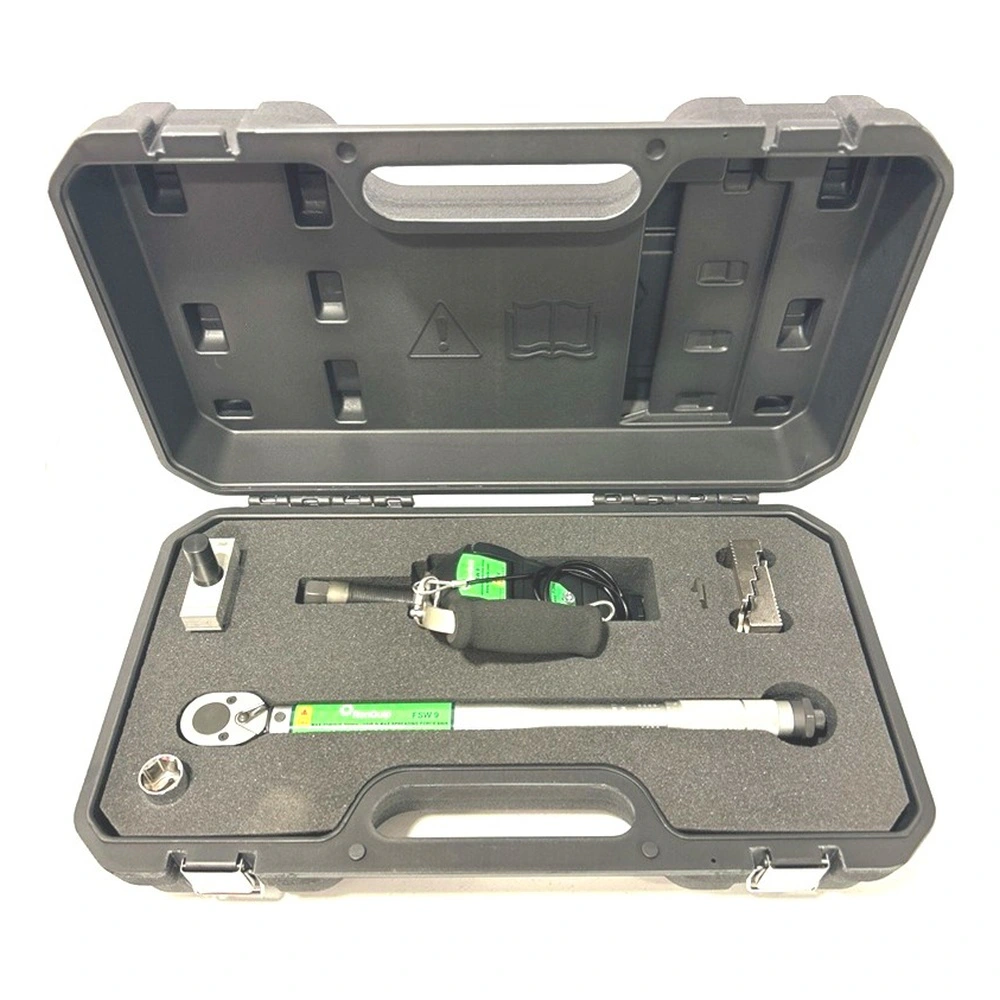

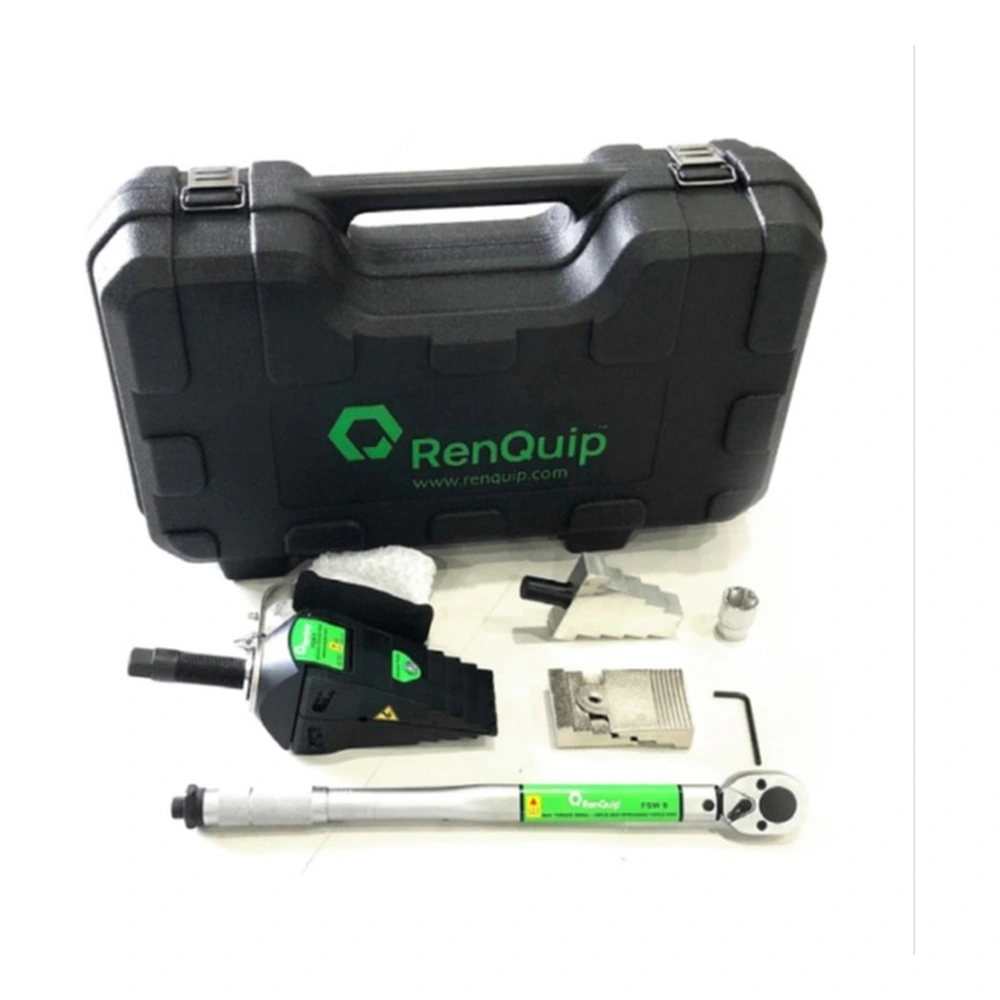

The FSW9K is a mechanical flange spreading tool kit used to separate flange joints for maintenance, Installation, testing and decommissioning. The kit contains an FSW9 spreading wedge and all items required to operate the tool safely, it is packaged in a robust carry case for easy transport and storage.
The FSW9:

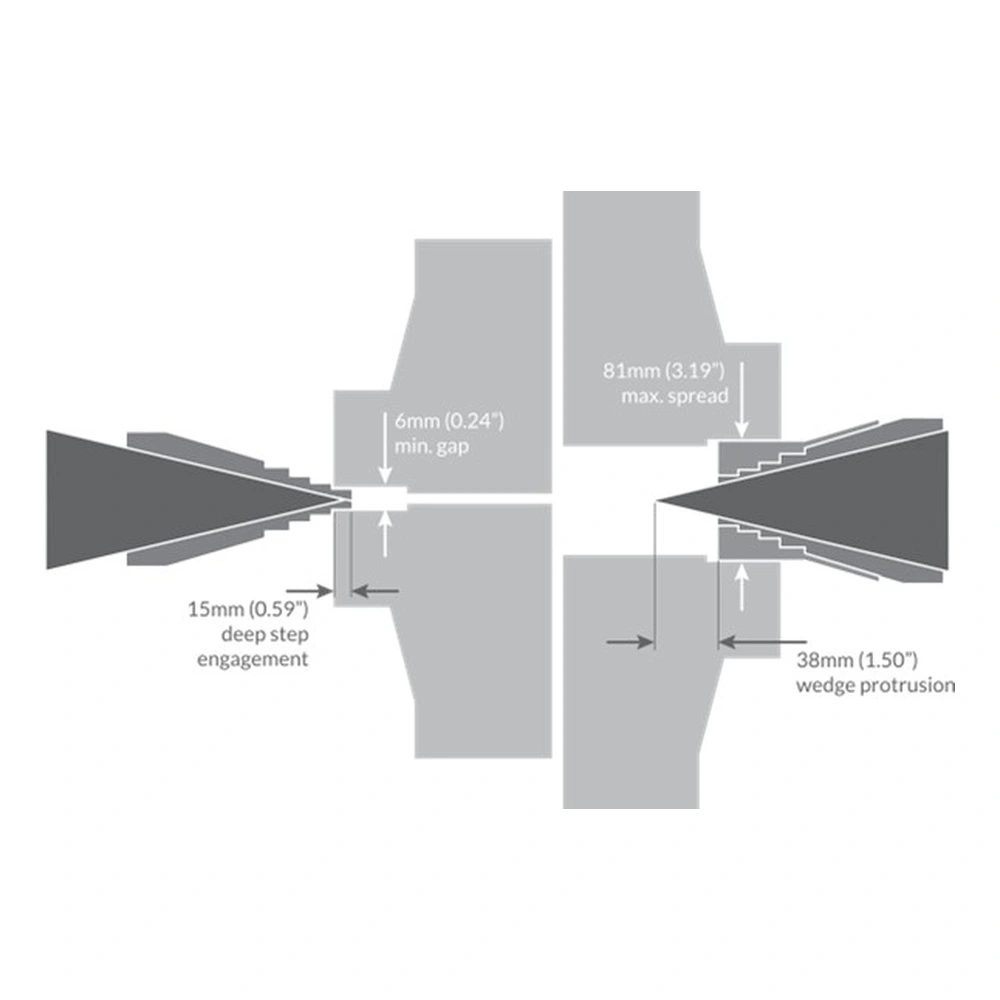

Requires a minimum flange gap of 6 mm (0.24”)

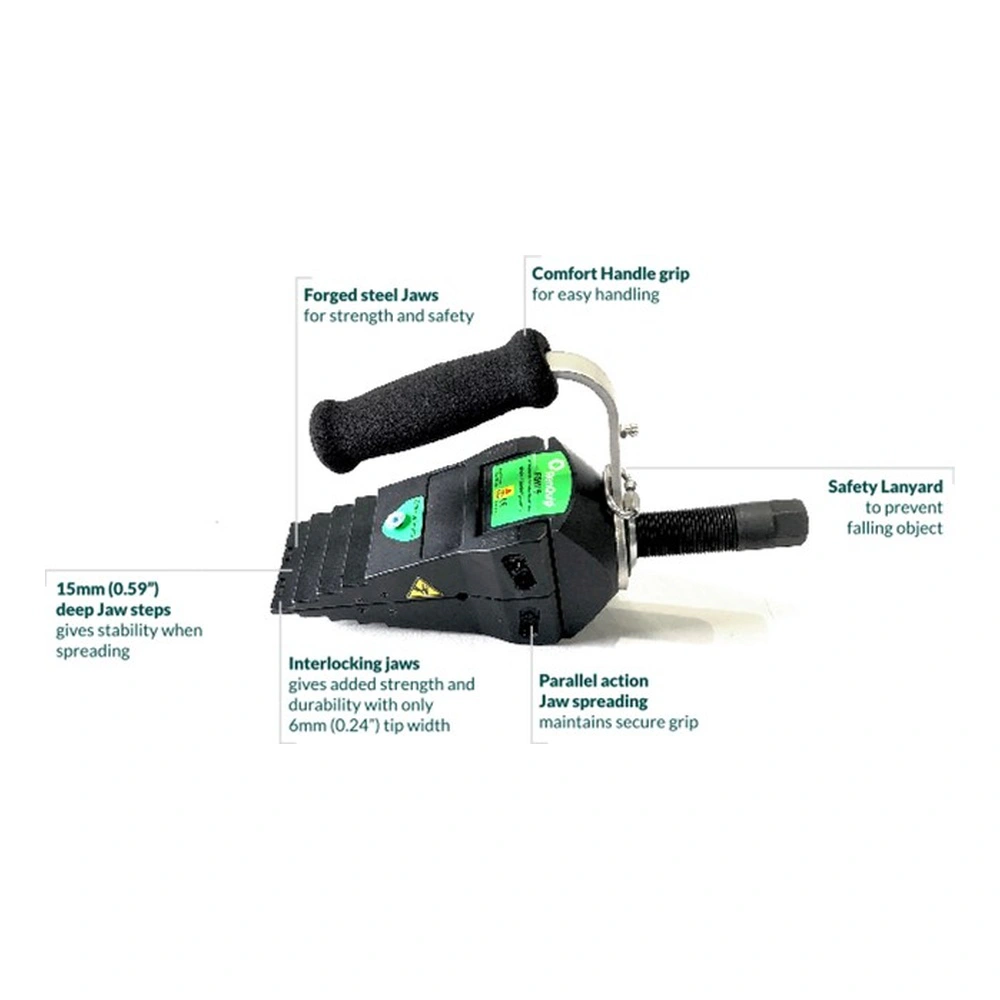

Spreads the flanges with a parallel action ensuring a full 15 mm Jaw step contact is maintained for safe and stable spreading
The FSW9 produces a maximum spreading force of 94kN (21,132 lbf) when the maximum torque of 200 Nm (150 lbf*ft) is applied with the Torque Wrench provided in the kit.
A powerful and portable Mechanical tool, the FSW9 weighs only 5.5 Kg (12.12 lbs) and is the correct tool when a mechanical tool is required for medium and small sized flange joints.
The FSW9 tool is design to enter the gap between flanges and force the flange open removing the requirement for traditional rigging equipment and certified anchor points.

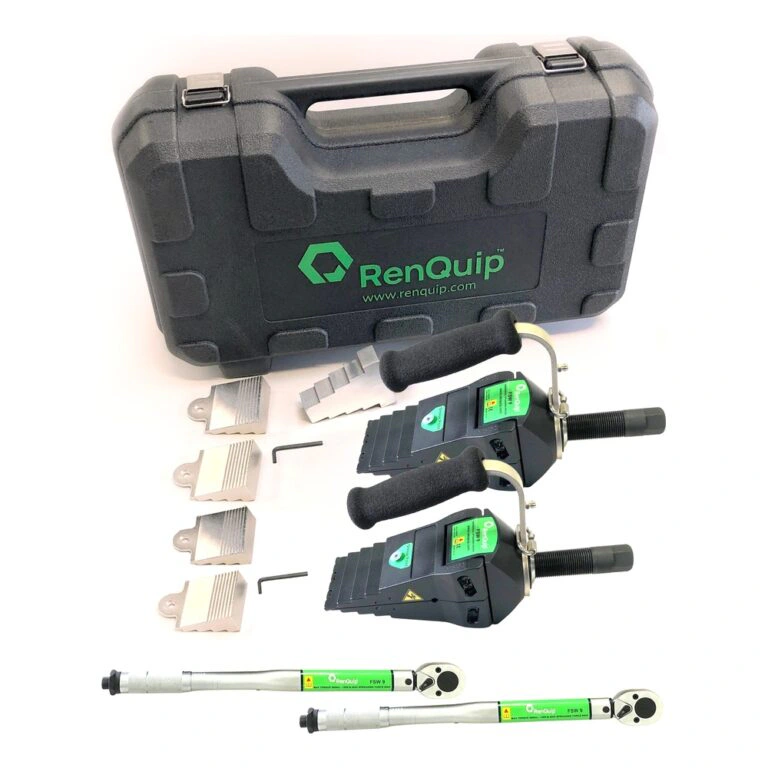

It is highly recommended that a minimum of 2 FSW9 tools are used when spreading flange joints – This allows the operator to control the opening of the flange joint to maintain a parallel gap – this will ensure the tool maintains a secure grip on the flange and prevent pinching the gasket and potential flange face damage.

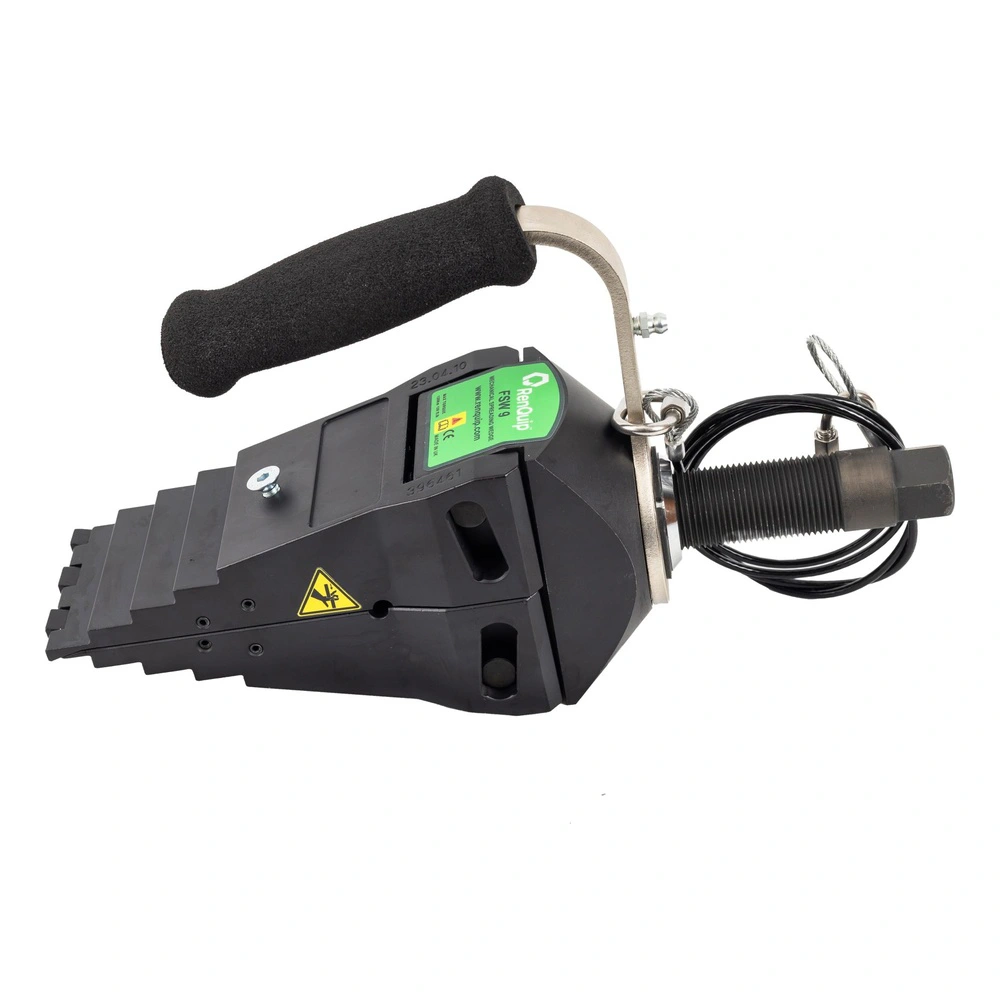

The FSW9 is actuated by a mechanical lead screw that creates a linear force on the internal wedge – the internal wedge then forces the jaws of the tool apart.
As it is a mechanical tool it is unaffected by ambient temperature and can operate in harsh environments.
All RenQuip Spreading wedge tools are designed to be used in conjunction with RenQuip Flange Alignment tools
The Tool is lightweight and portable making it ideal for use in remote locations.
If more force is required, additional tools can be operated together, or RenQuip hydraulic spreading wedges can be selected.
All RenQuip tools are manufactured from the highest quality materials and 100% load tested resulting in highly durable, low maintenance products.
| Maximum Spreading Force | 94kN (21132 lbf) |
| Maximum Applied Torque | 200 Nm (150ft.lb) |
| Maximum Spreading Distance (with stepped blocks) | 81 mm (3.19”) |
| Minimum Flange Gap | 6 mm (0.24”) |
| Jaw Width | 66 mm (2.6”) |
| Maximum Wedge Protrusion | 38 mm (1.50”) |
| Tool Weight | 5.5 Kg (12.12 lbs) |
| Tool Dimensions | 80 mm x 160 mm x 290 mm (3.1” x 6.3” x 11.4”) |
| Kit Weight | 12 Kg (26.5 lbs) |
| Kit Dimensions | 100 mm x 285 mm x 380 mm (3.9” x 11.2” x 15”) |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Mechanical Flange Spreading Wedge – Single Tool Kit RenQuip FSW9K.
The right solution starts with a clear brief
The HADI product development and engineering team can adapt a tool, product or system to your application.
