A bespoke single-sided temporary jig fastener with an ultra-low-profile head that minimizes interference during drilling and inspection.

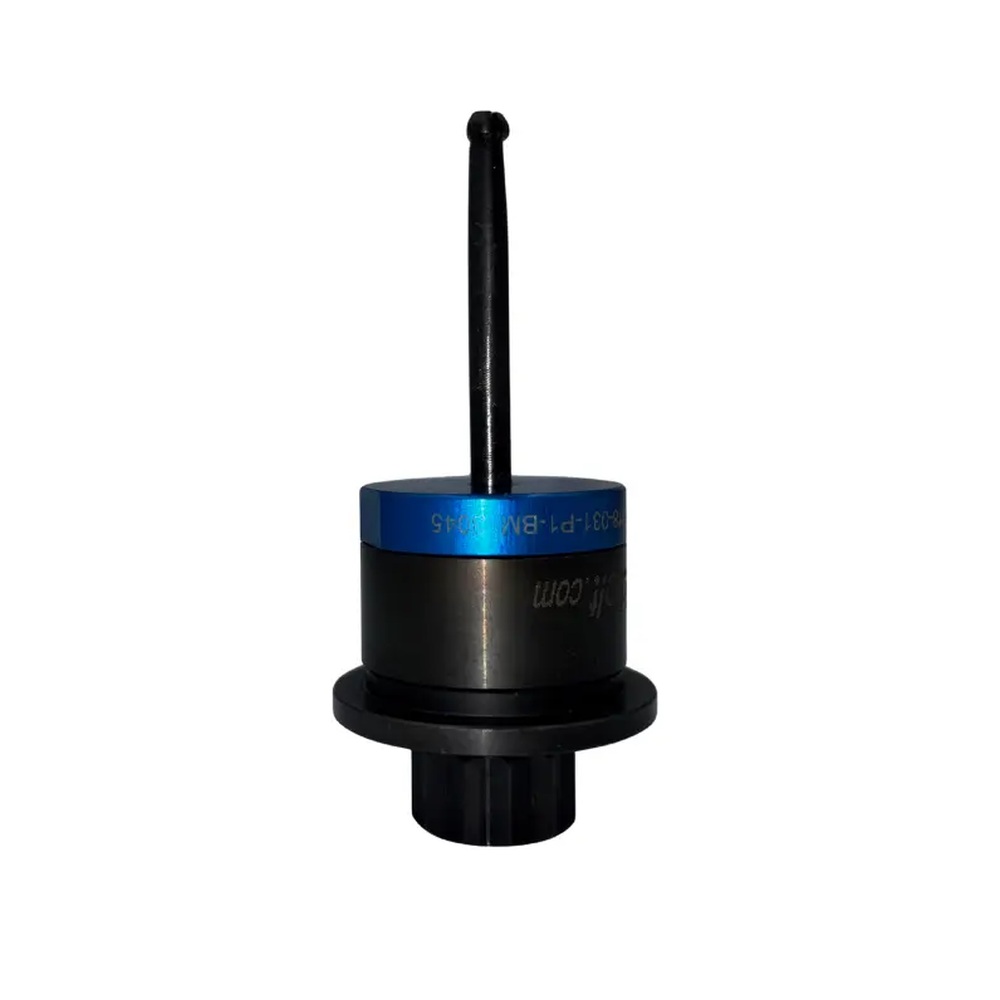

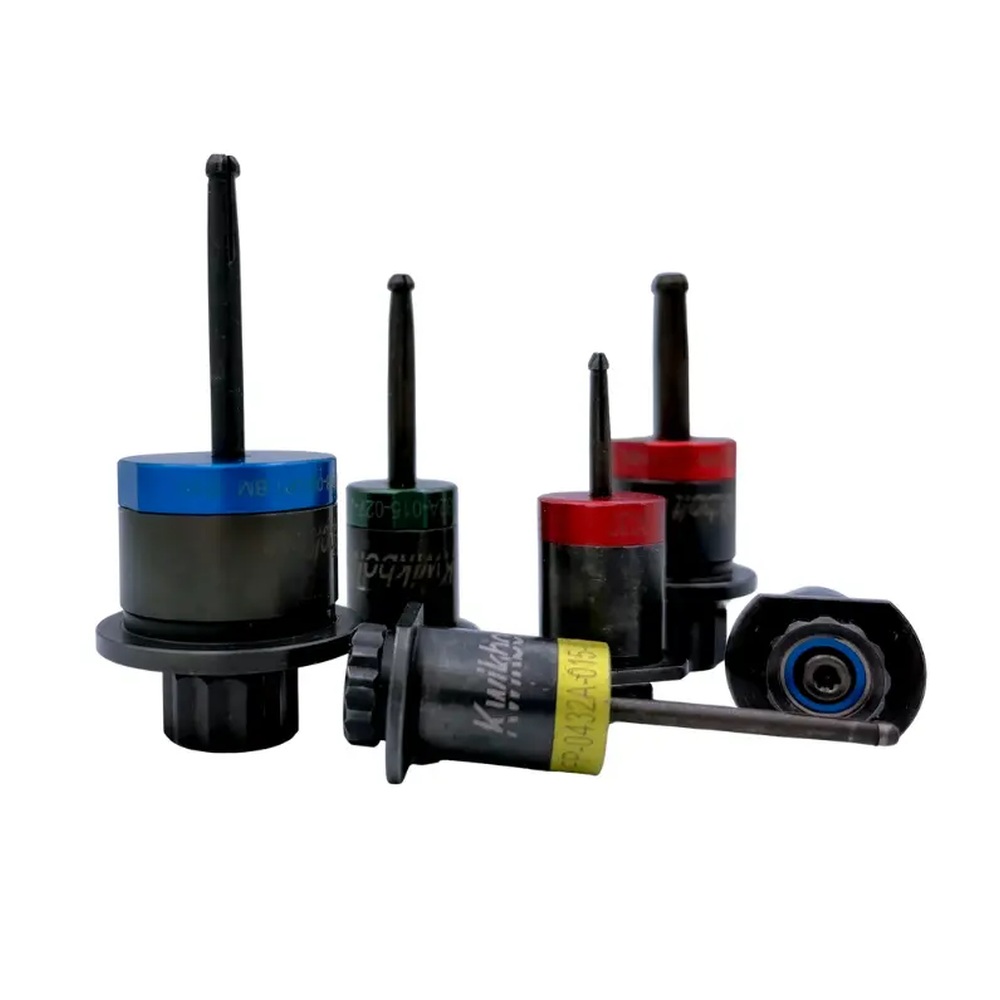

Kwikbolt Phantom Jig secures and aligns a structure through a drill jig while minimizing interference with drilling and inspection. The fastener is based on Thunder technology and integrates an ultra-low-profile head interface within the jig.
The fastener clamps through the drill jig to the structure and maintains precise alignment. Interface diameter and length, structural hole diameter and grip requirements can be defined for the application.
| Parameter | Value |
|---|---|
| Grip range stated on the product page | 3.18-9.53 mm (4/32"-12/32") |
| Clamp load | 220-8,000 N |
| Head configuration | Ultra-low-profile and tailored to the drill jig |
| Operating cycles | Up to 500 |

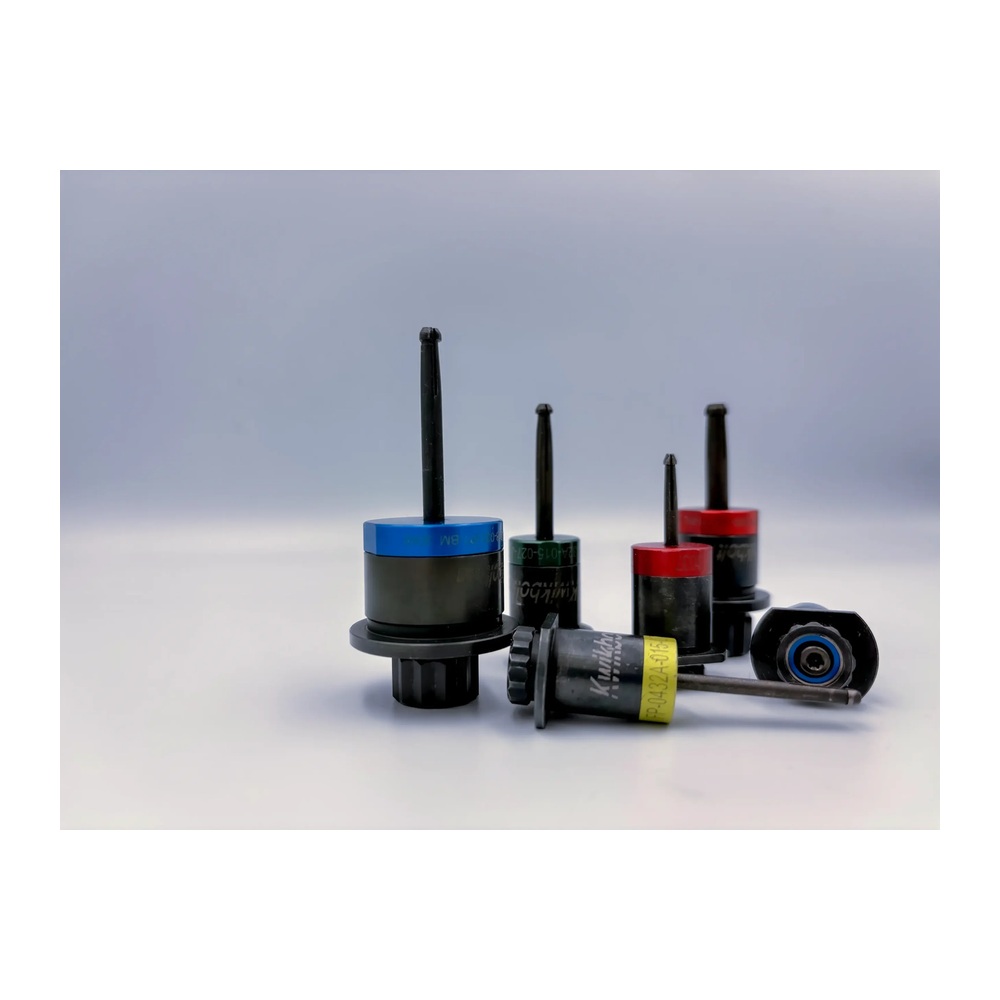

The family is intended for drill jigs, drill bars and drill plates that require minimal top-side obstruction and clear access for drilling and inspection tools.
