The GB50 pneumatic installation tool is designed specifically for the most efficient installation of blind rivets.
The GB50 pneumatic installation tool is designed specifically for the most efficient installation of blind rivets.

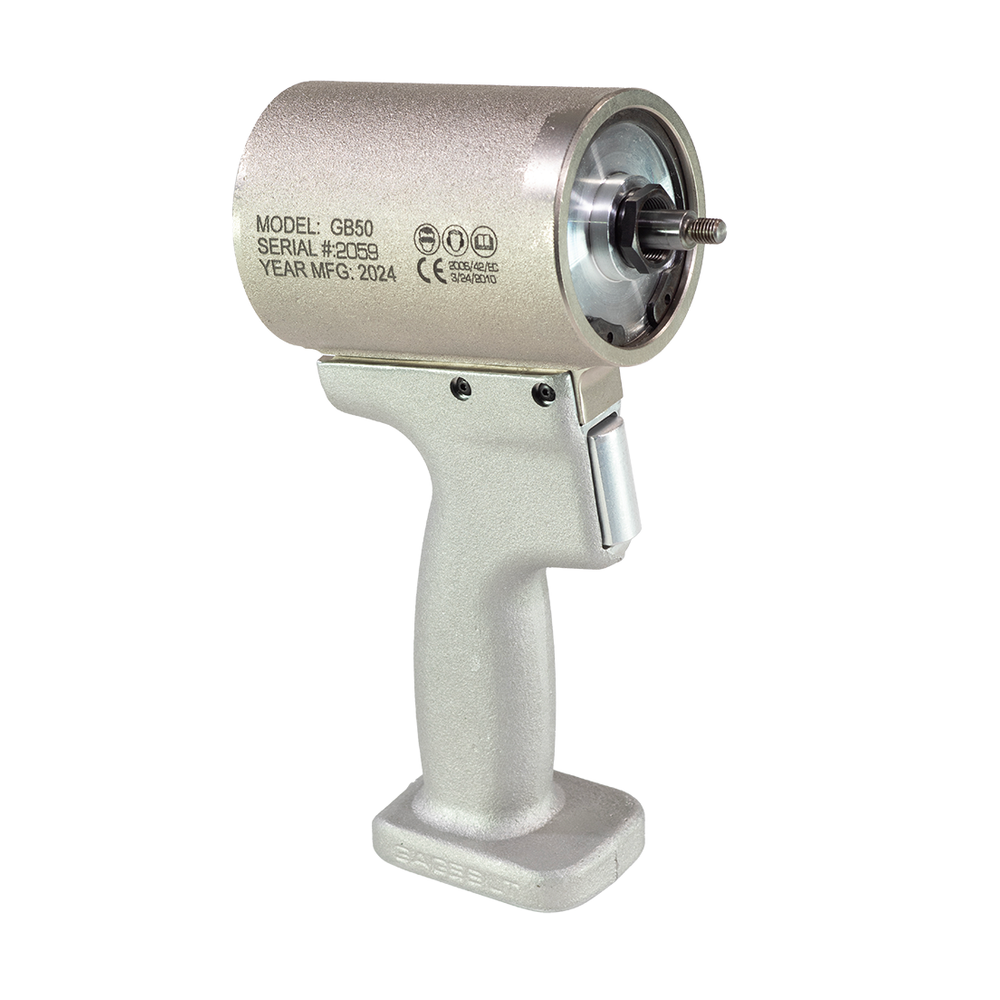

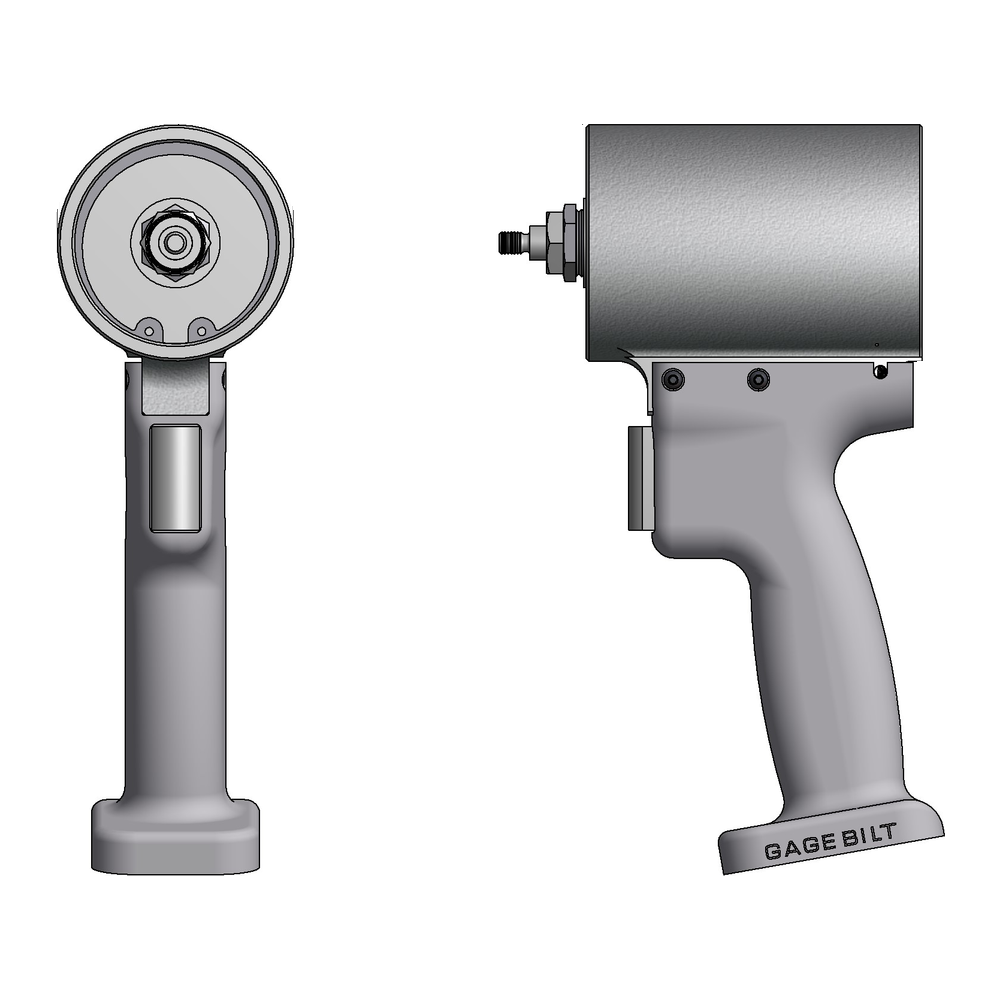

The GB50 pneumatic installation tool is designed specifically for the most efficient installation of blind rivets. It will install aluminum fasteners through 5/32" diameter, and through 1/8" diameter fasteners in any material. It weighs only 1.8 lbs. (0.82 kg) and can be operated in one hand. The GB50 Installation tool is 8.36" (212.4 mm) high, has a 0.740” (18.8 mm) stroke and generates a minimum of 700 lbs. (3.11 kN) pull load at 90 psi (6.2 bar). It operates on 90 psi-100 psi (6.2 bar-6.9 bar) of air pressure, with 90 psi (6.2 bar) providing maximum efficiency. At 90 psi (6.2 bar) of air pressure, the GB50 does not exceed 81.5 dB(A) and consumes 0.29 SCF/cycle (8.21 L/cycle).
| Weight | 1.8 lbs. (0.82 kg) |
|---|---|
| Rated Pull Load | 700 lbs. (3.11 kN) |
| Stroke | 0.740” (18.8 mm) |
| Width | 3.75 (95.3 mm) |
| Height | 8.36" (212.4 mm) |
| Noise Level | 81.5 dB (A) |
| Warranty | 1 year |
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|---|---|---|
| 3/32 | 3C-715B-43 | 3C-715A-54RA | 3C-715A-40OS |
| 1/8 | 4C-715B-43 | 4C-715A-54RA | 4C-715A-40OS |
| 5/32 2 | 5C-715B-43 | 5C-715A-54RA | 5C-715A-40OS |
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|---|---|---|
| 3/32 | 3A-715B-43 | 3A-715A-54RA | 3A-715A-40OS |
| 1/8 | 4A-715B-43 | 4A-715A-54RA | 4A-715A-40OS |
| 5/32 2 | 5A-715B-43 | 5A-715A-54RA | 5A-715A-40OS |
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|---|---|---|
| 1/8 | SMLS04-715B-43 | SMLS04-715A-54RA | SMLS04-715B-40OS |
| 5/32 2 | SMLS05-715B-43 | SMLS05-715A-54RA | SMLS05-715B-40OS |
| DIA. | STRAIGHT |
|---|---|
| 1/8 | MBC04-715C-43 |
| 5/32 | MBC05-715C-43 |
| 3/16 | MBC06-715C-43 |
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|---|---|---|
| 3/32 | 3N-715E-43 | 3N-715A-54RA | 3N-715A-40OS |
| 1/8 3 | 4N-715E-43 | 4N-715-54RA | 4N-715A-40OS |
| 5/32 2 | 5N-715E-43 | 5N-715-54RA | 5N-715A-40OS |
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|---|---|---|
| 3/32 | 3N-715E-43 | 3N-715A-54RA | 3N-715A-40OS |
| 1/8 | 4CEA-715E-43 | 4CEA-715-54RA | 4CEA-715-40OS |
| 5/32 | 5CEA-715E-43 | 5CEA-715-54RA | 5CEA-715-40OS |
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|---|---|---|
| 3/32 | 3N-715E-43 | 3N-715A-54RA | 3N-715A-40OS |
| 1/8 | 4CES-715E-43 | 4CES-715-54RA | 4CES-715-40OS |
| 5/32 | 5CES-715E-43 | 5CES-715-54RA | 5CES-715-40OS |
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|---|---|---|
| 3/32 | 3C-715B-43 | 3C-715A-54RA | 3C-715A-40OS |
| 1/8 | 4C-715B-43 | 4C-715A-54RA | 4C-715A-40OS |
| 5/32 | 5C-715B-43 | 5C-715A-54RA | 5C-715A-40OS |
| DIA. | STRAIGHT | RIGHT ANGLE 1 | OFFSET |
|---|---|---|---|
| 1/8 | 3A-715B-43 | 3A-715A-54RA | 3A-715A-40OS |
| 5/32 | 4A-715B-43 | 4A-715A-54RA | 4A-715A-40OS |
| GB50 installs the listed fasteners | |
|---|---|
| 1) RIGHT ANGLE NOSE ASSEMBLYS MAY REQUIRE MORE THAN ONE PULL. | |
| 2) ALUMINUM ONLY. | |
| 3) ALUMINUM & STEEL ONLY. | |
| *ALL COUNTERSUNK 'C' NOSE ASSEMBLIES MAY BE USED TO INSTALL BOTH UNIVERSAL & COUNTERSUNK HEAD RIVETS | |
| NOTE : THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE EXTENDS FROM THE TOOL I.E. -20 = 2.0 INCHES |
| Image | Model | Compatibility | |
|---|---|---|---|
 | 3A-51-46 | Recommended | |
 | 3A-51-46JFS | Recommended | |
 | 3A-715B-43 | Alternate | |
 | 3C-51-46 | Recommended | |
 | 3C-51-46JFS | Recommended | |

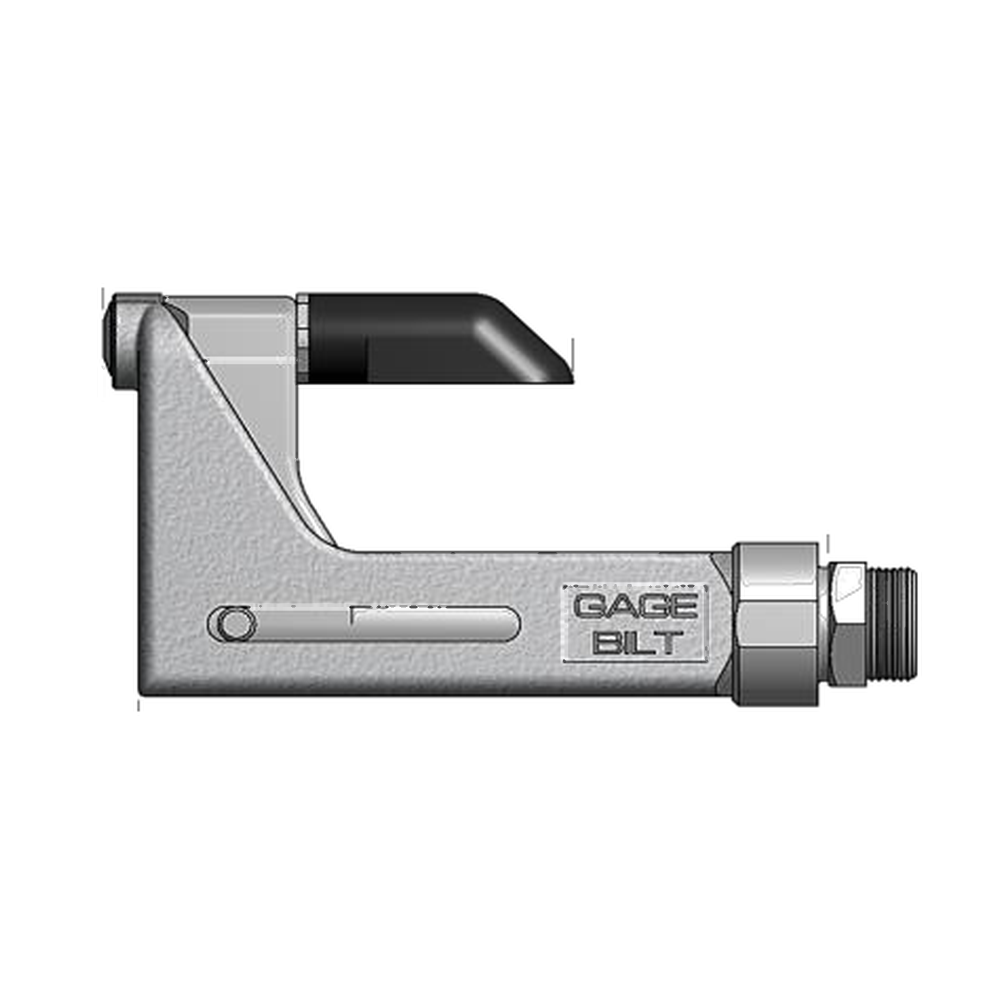

 | 3C-715A-40OS | Alternate | |
 | 3NP-715-40OS | Alternate | |
 | 4A-51-46 | Recommended | |
 | 4A-715B-43 | Alternate | |
 | 4C-51-46 | Recommended | |
 | 4C-51-46AIS | Recommended | |

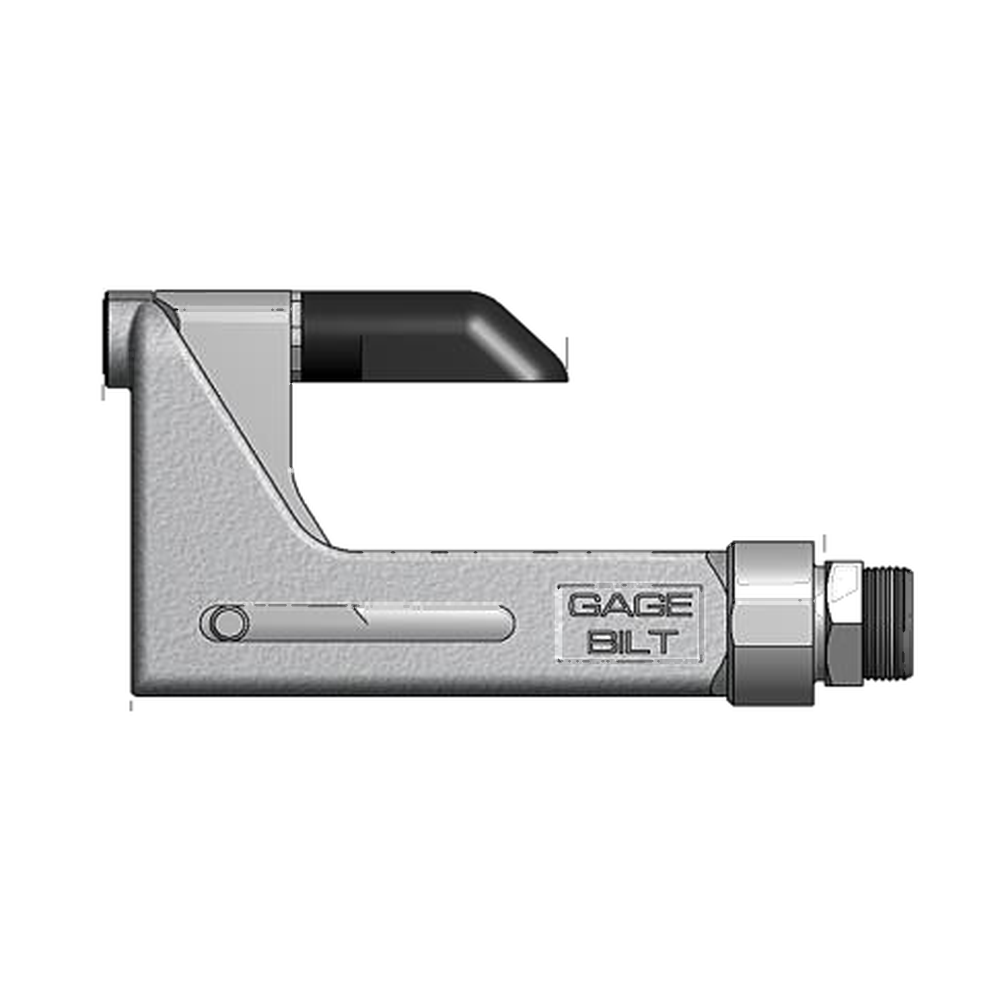

 | 4C-715A-40OS | Alternate | |
 | 5A-51-46 | Recommended | |
 | 5A-715B-43 | Alternate | |
 | 6A-715B-43 | Alternate | |

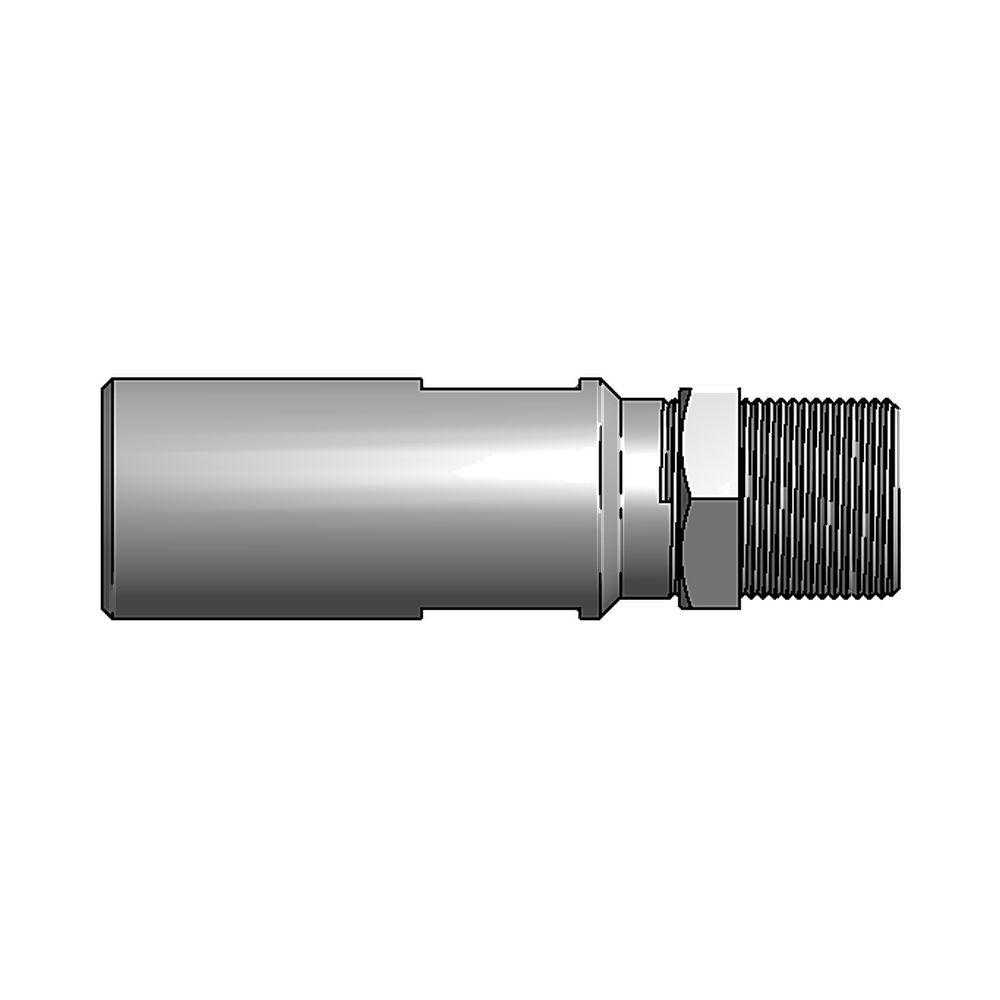

 | 715 Extension | Alternate |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Gage Bilt Pneumatic Rivet Tool GB50.
