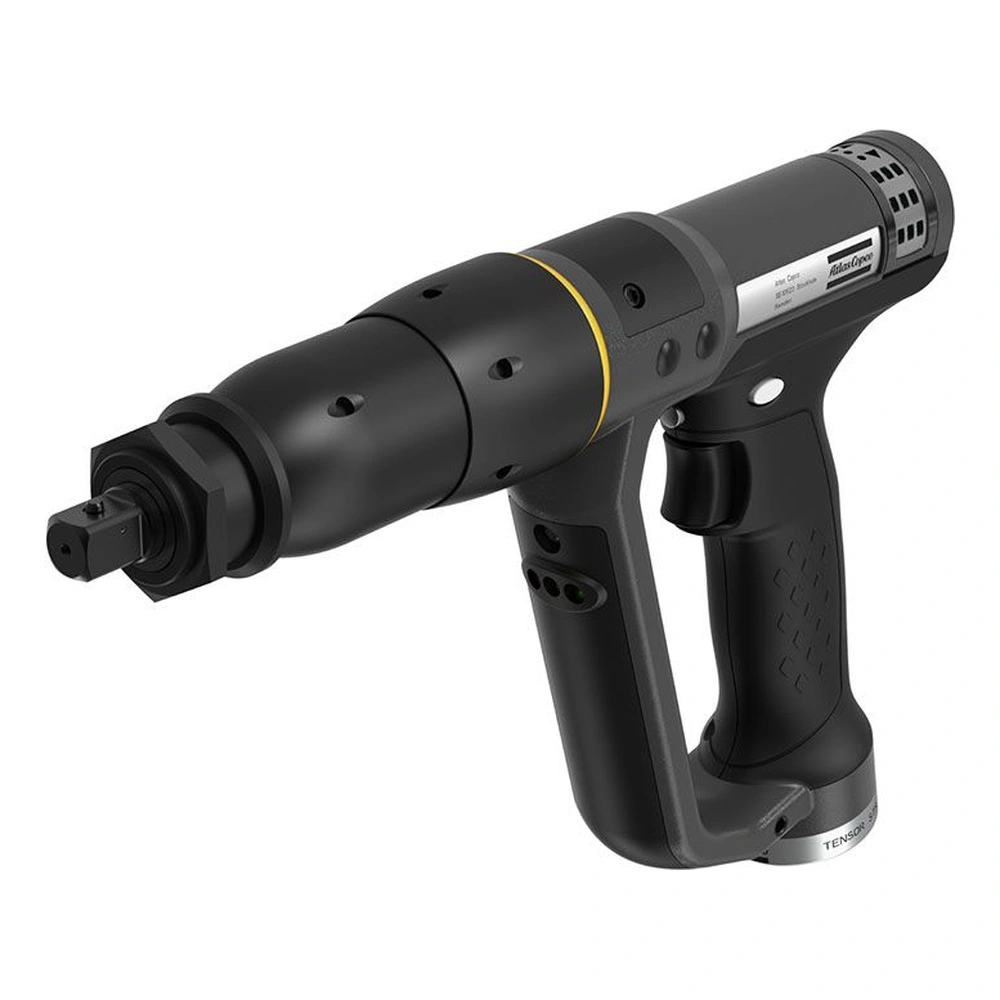

Atlas Copco Tensor ETP STR Pistol-Grip Nutrunner

Atlas Copco Tensor ETP STR – an electric pistol-grip nutrunner with excellent power-to-weight ratio, operator feedback, and a modular design.

Atlas Copco Tensor ETP STR Pistol-Grip Nutrunner

Atlas Copco Tensor ETP STR is an electric pistol-grip nutrunner based on the modular Tensor STR platform.

It offers 5-125 Nm torque, 380-2,100 rpm speed, 3/8″-1/2″ square drive, and Standard and Cable-On-Top (COT) versions.

Key Features

  • Power-to-weight: Outstanding power-to-weight ratio supports efficient operation.
  • D-handle design: The D-handle shape adds robustness and improved safety.
  • Improved cooling: High cycle-rate capability is supported by improved heat dissipation.
  • Operator feedback: Built-in loudspeaker, vibrator, and high-visibility LEDs provide clear feedback.
  • Modular platform: The modular STR design gives parts commonality across models and sizes.
  • Accessory mounting: Additional accessories or an optional support handle can be mounted easily.

Frequently Asked Questions

Is the Atlas Copco Tensor ETP STR suitable for production lines in Israel?
Yes, it is an electric pistol-grip nutrunner with high cycle-rate capability and clear operator feedback.

What working ranges does this model offer?
Torque is 5-125 Nm, speed is 380-2,100 rpm, and the square drive is 3/8″-1/2″.

Is a COT version available?
Yes, it is available in Standard and Cable-On-Top (COT) versions.

Can accessories be added to the tool?
Yes, additional accessories or an optional support handle can be mounted easily.

Atlas Copco Tensor ETP STR Pistol-Grip Nutrunner – Specifications

ModelSquare drive (in)Torque range (Nm)Torque range (ft lb)Speed (r/min)Weight (kg)Weight (lb)Length (mm)CS distance (mm)Ordering No.
ETP STR61
ETP STR61-20-103/85-223.7-16.22,1001.32.87244248436636020
ETP STR61-30-103/86-324.4-23.51,5301.32.87244248436636030
ETP STR61-50-131/210-557.4-40.68201.73.75282248436636050
ETP STR61-70-131/214-8010.3-595602.04.4129826.58436636070
ETP STR61-90-131/220-9514.7-70.44502.04.4129826.58436636090
ETP STR61-120-131/224-12517.7-89.43802.04.4129826.58436636012
ETP STR61 Cable On Top
ETP STR61-20-10 COT3/85-223.7-16.22,1001.73.75296248436636820
ETP STR61-30-10 COT3/86-324.4-23.51,5301.73.75296248436636830
ETP STR61-50-13 COT1/210-557.4-40.68202.14.63334248436636850
ETP STR61-70-13 COT1/214-8010.3-595602.45.2935026.58436636870
ETP STR61-90-13 COT1/220-9514.7-70.44502.45.2935026.58436636890
ETP STR61-120-13 COT1/224-12517.7-89.43802.45.2935026.58436636812

Accessories

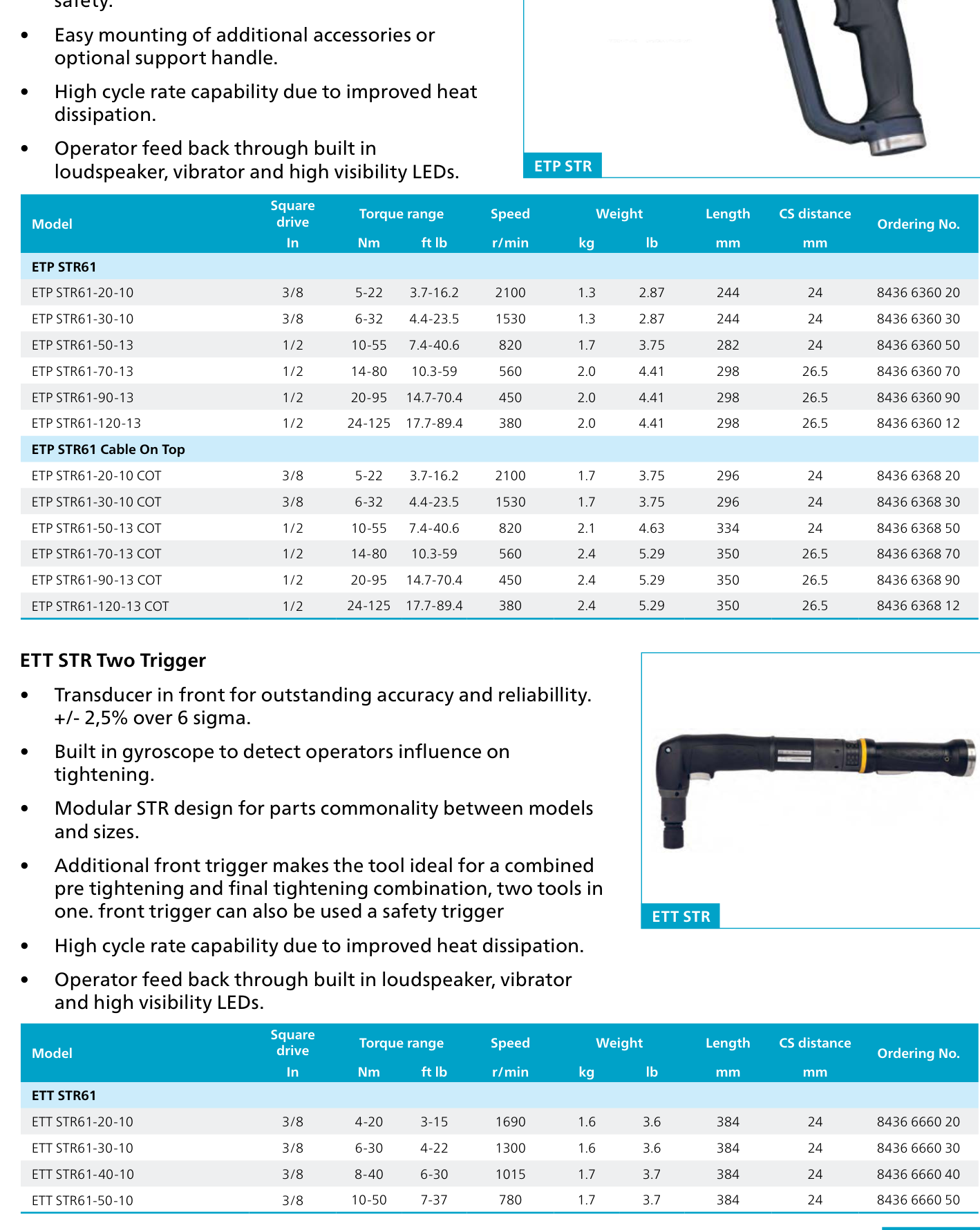

Full accessory tables from the Atlas Copco catalogue. You can also download the attached PDF.

דף קטלוג או מפרט עם טבלה טכנית, טקסט וכמה תמונות קטנות של כלים - Catalog or specification page with a technical table, text, and a few small

Would you like to check whether Atlas Copco Tensor ETP STR Pistol-Grip Nutrunner fits your application?

The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Atlas Copco Tensor ETP STR Pistol-Grip Nutrunner.
