Atlas Copco LBB16 Pneumatic Straight Drills

Atlas Copco LBB16 Pneumatic Straight Drills

Atlas Copco LBB16 are pneumatic straight drills designed primarily for vertical drilling operations and for working in cramped spaces.

They deliver low noise, a very high power-to-weight ratio, exhaust air directed away from the operator, and lubrication-free operation for a cleaner working environment.

Key Features

• Fits tight spaces: The straight form factor is ideal for vertical drilling and jobs where working room is limited.
• Quiet operation: The drills run at a very low noise level, helping improve comfort on the line and in assembly work.
• High power to weight: The family offers a very high power-to-weight ratio for strong performance without unnecessary operator strain.
• Directed exhaust: The exhaust air is directed away from the operator to improve comfort and keep the work area more pleasant.
• Lubrication-free design: LBB16 drills are lubrication-free, supporting a cleaner working environment.
• Wide speed range: The series covers a broad speed range, making it suitable for different drilling tasks.

Frequently Asked Questions

How do I choose the right LBB16 model?
Step 1: Define whether the job is mainly vertical drilling or work in confined spaces.
Step 2: Match the operating speed to the material and application.
Step 3: Select the model that best suits operator comfort and the station layout.

Are LBB16 drills suitable for tight work areas?
Yes.
The straight design is intended for vertical drilling and for jobs where space around the drilling point is limited.

What is the benefit of the directed exhaust?
It sends the air away from the operator.
That improves comfort and helps keep the work area more pleasant.

Do these drills require lubrication during use?
No.
The LBB16 family is lubrication-free, which supports a cleaner and more comfortable working environment.

Suitability for a production line depends on the drilling task, the available space around the part and the operator’s comfort requirements.
The LBB16 family is particularly suitable for vertical drilling and restricted-access applications.

What should I verify before ordering in Israel?
Make sure the air connection, installation method, and required speed suit the station and application.
If needed, choose the model that matches the workcell setup.

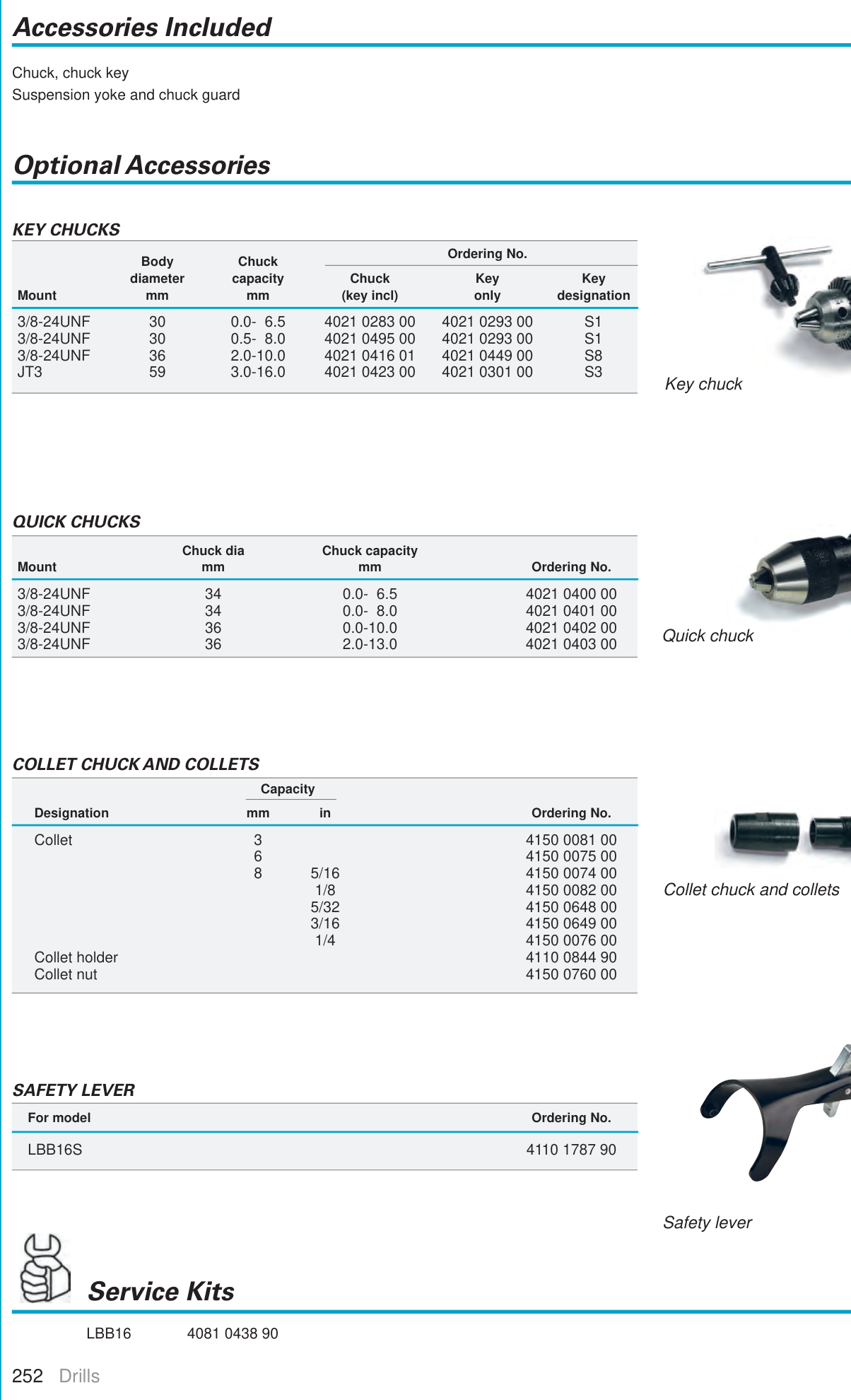

ℹ️ Please note: this specification includes technical diagrams from the Atlas Copco catalog. The complete data and drawings are available in the PDF attached to this page (the “More details – PDF” button).

Atlas Copco LBB16 Straight Drills – Models & Ordering Numbers

Model	Free speed (r/min)	Chuck (mm)	Weight (kg)	Air consumption (l/s)	Power (W)	Ordering No.	Ordering No. (no chuck)
LBB16 S260	26000	6.5	0.55	8.0	350	8421021000	8421021010
LBB16 S064	6400	6.5	0.55	8.0	350	8421021001	8421021011
LBB16 S045	4500	6.5	0.55	8.0	350	8421021002	8421021012
LBB16 S038	3800	6.5	0.55	8.0	350	8421021003	8421021013
LBB16 S029	2900	8	0.60	8.0	350	8421021004	8421021014
LBB16 S022	2200	10	0.70	8.0	350	8421021005	8421021015
LBB16 S012	1200	10	0.70	8.0	350	8421021006	8421021016

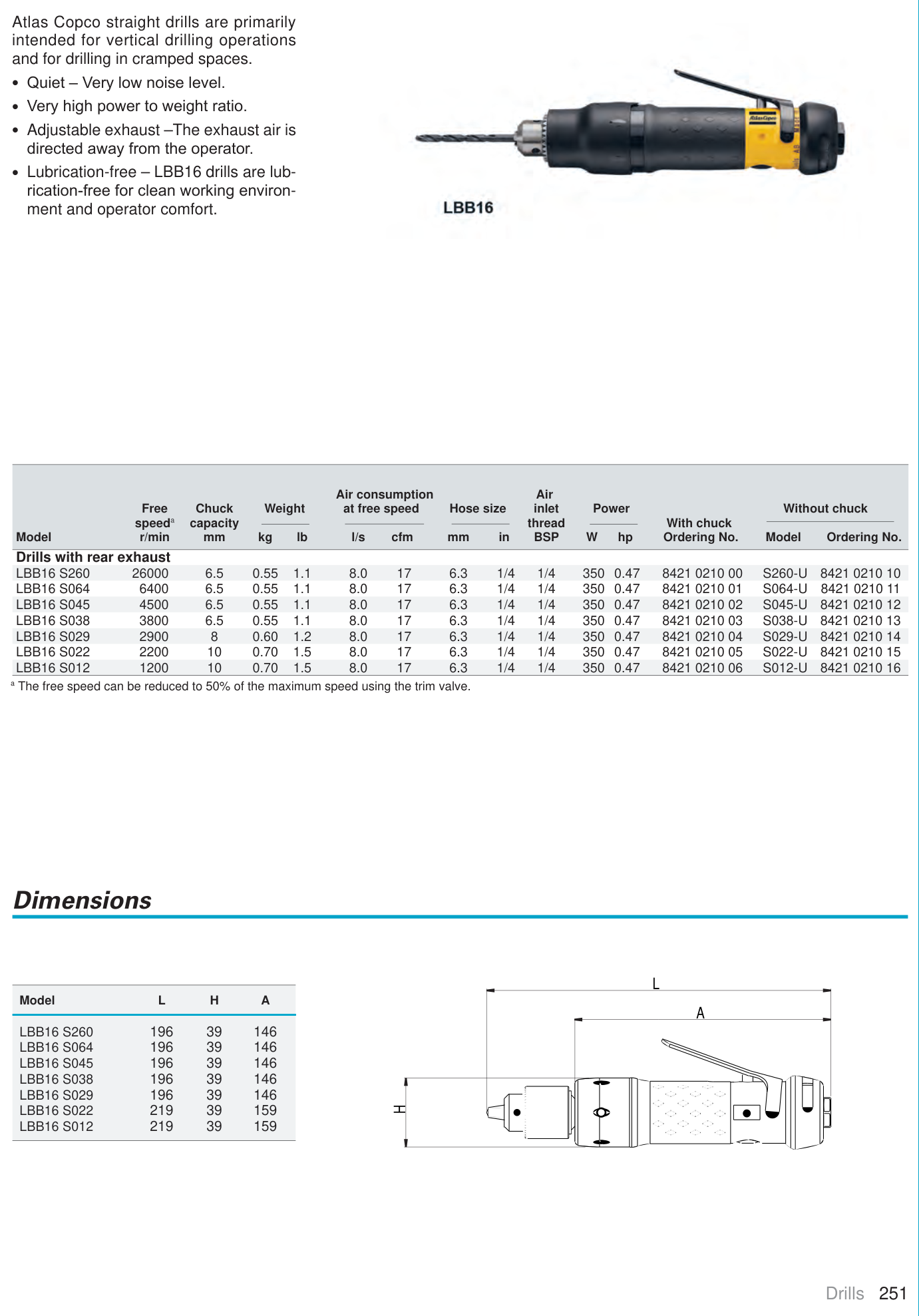

Technical diagram from the Atlas Copco catalog (p. 6)
