The FSW17D-BRONZE is a Spark Resistant Hydraulic flange spreading tool kit used to separate flange joints for maintenance, Installation, testing and decommissioning.

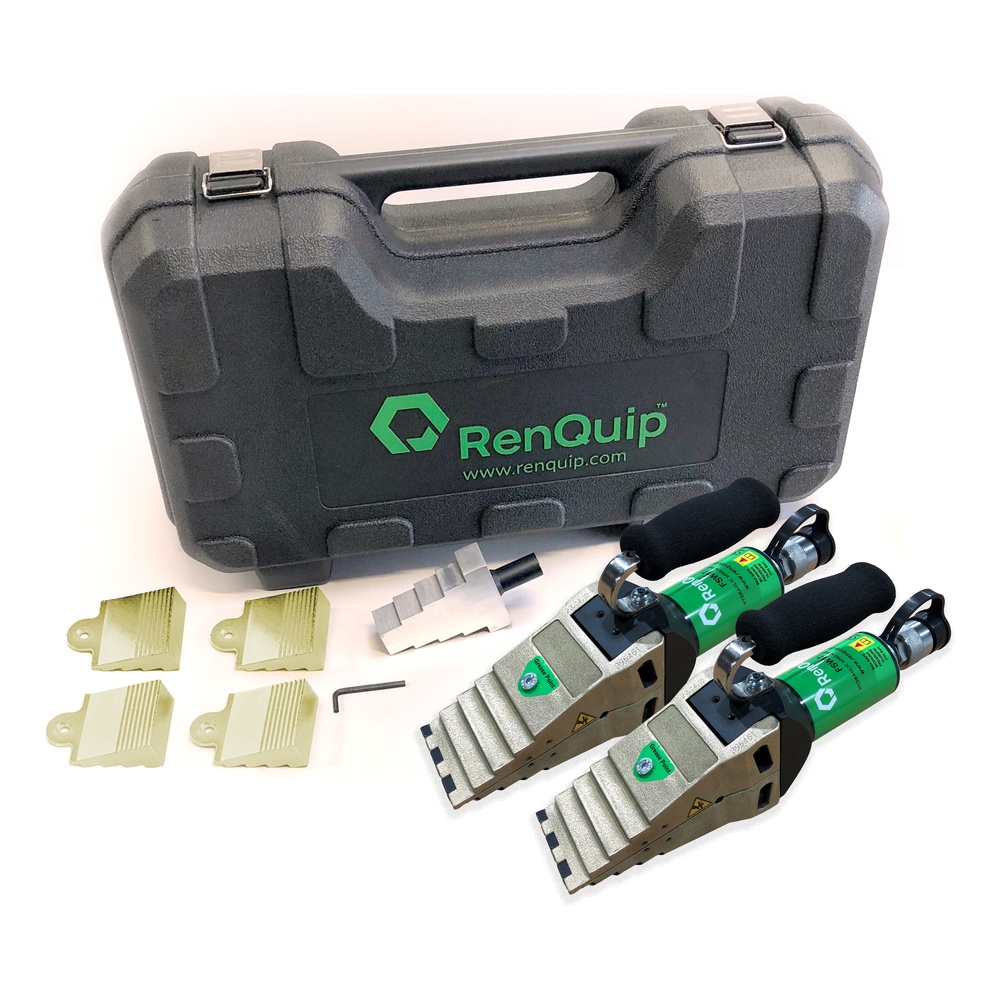

The kit contains two FSW17-BRONZE spreading wedge Tools, Bronze stepped blocks and Non Ferrous safety blocks but a hydraulic pump and hoses will be required to operate the tools, they are packaged in a robust carry case for easy transport and storage.
The FSW17D-BRONZE:
Requires a minimum flange gap of 6 mm (0.24”)

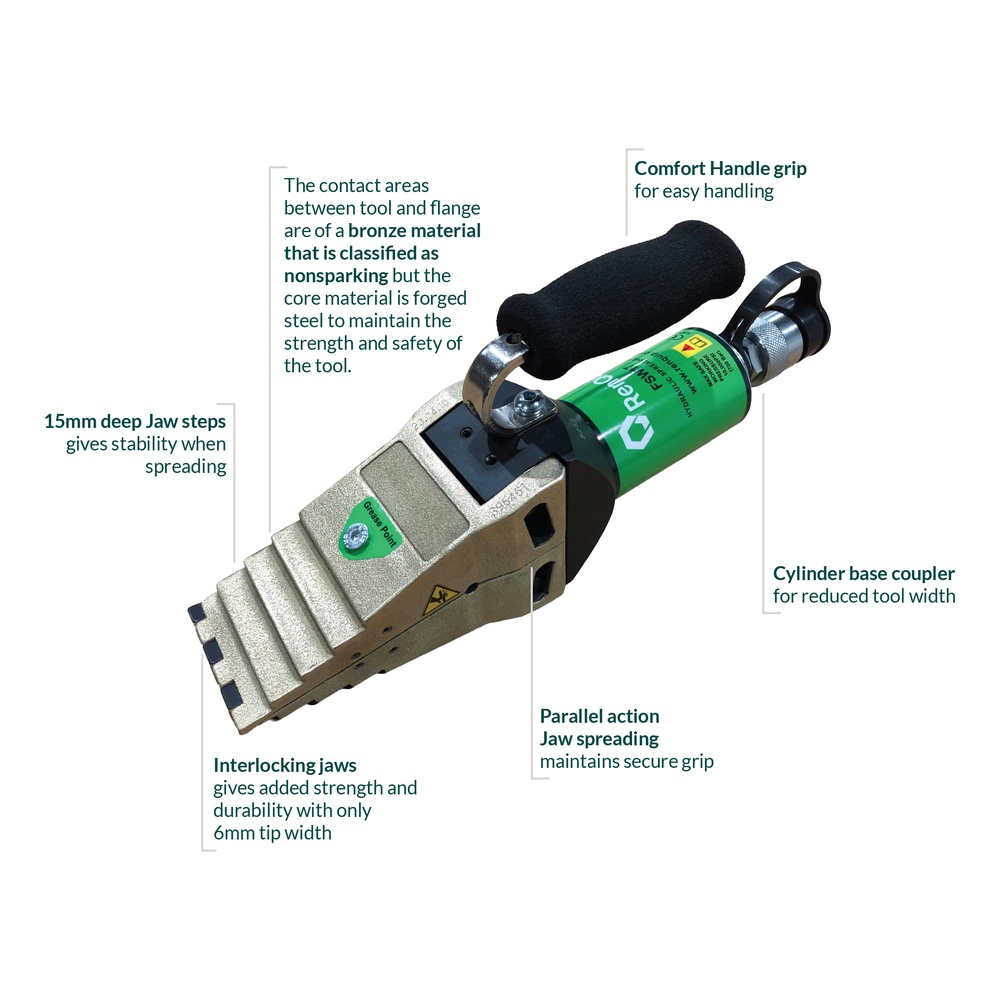

Spreads the flanges with a parallel action ensuring a full 15 mm Jaw step contact is maintained for safe and stable spreading.
The FSW17-BRONZE produces a maximum spreading force of 163kN (36,644 lbf) per tool 326kN (73,288 lbf) when used in pairs and the maximum hydraulic pressure of 700 bar (10,000 PSI) is applied.

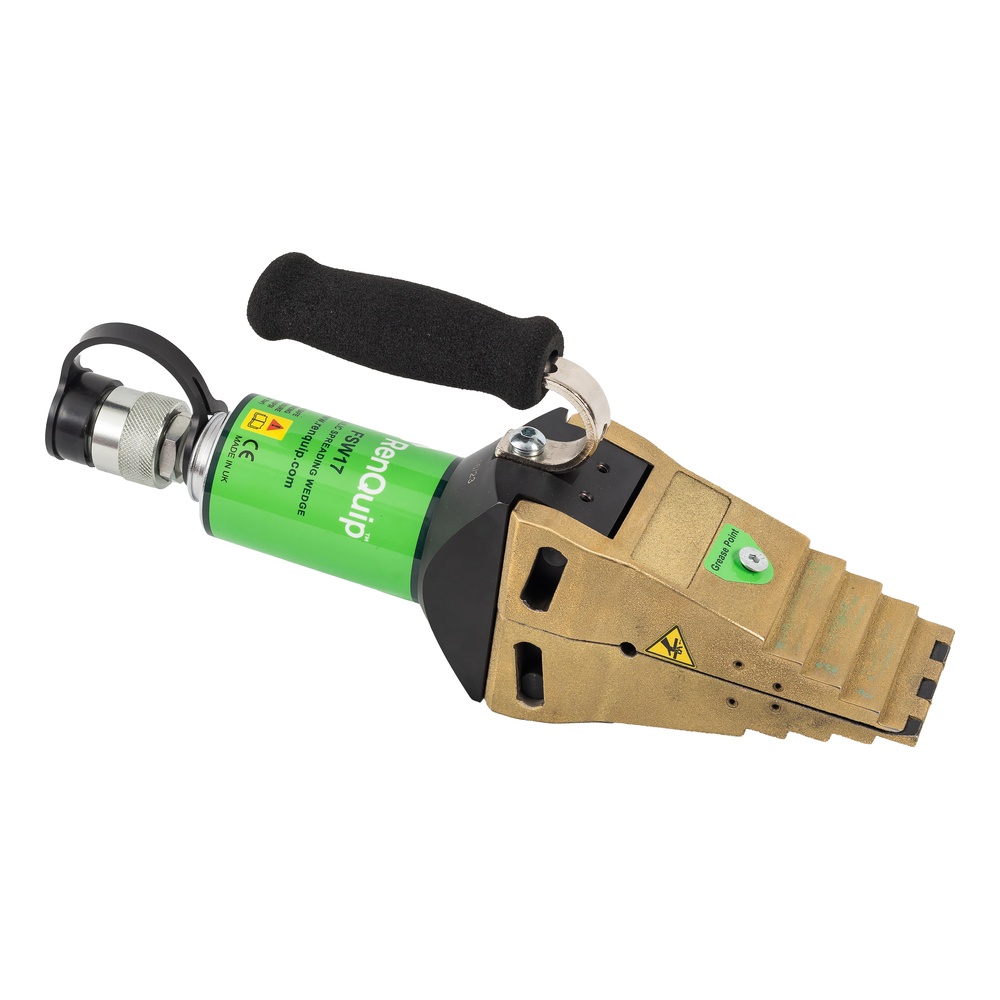

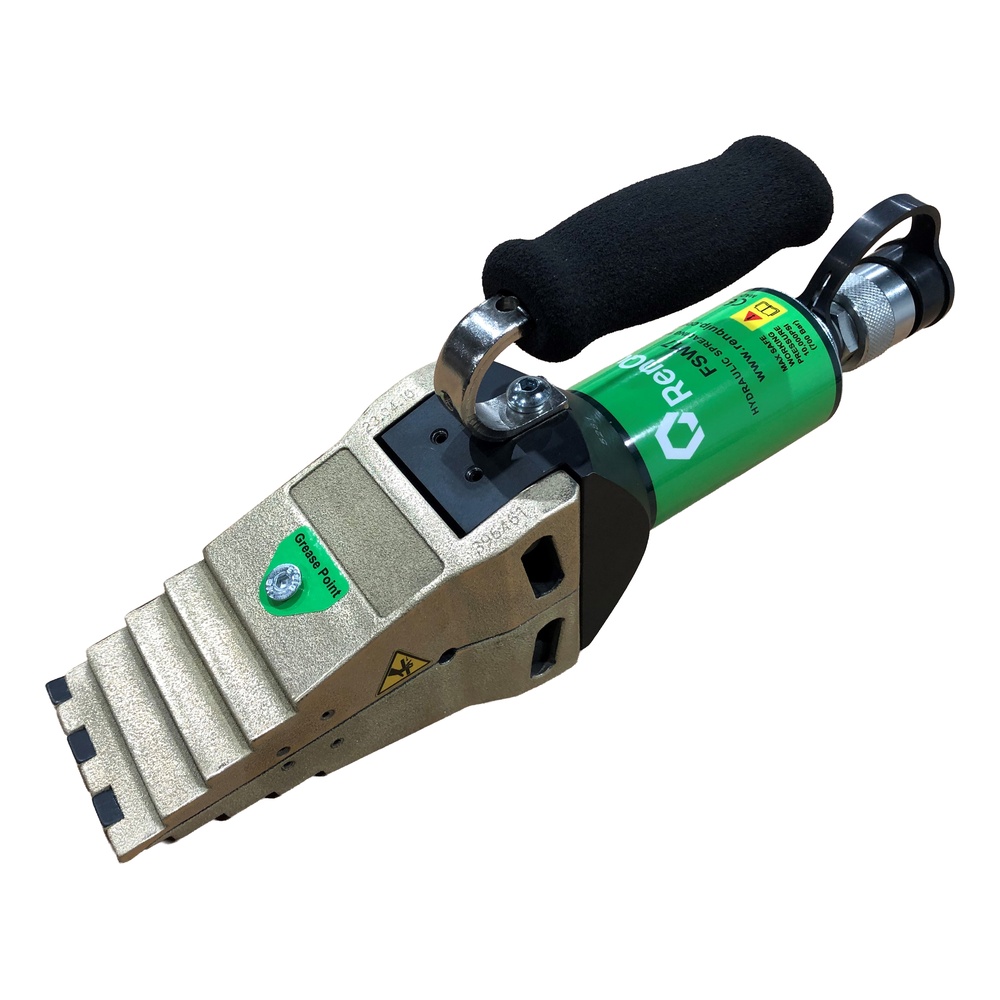

A powerful and portable Hydraulic tool, the FSW17-BRONZE weighs only 7 Kg (15.4 lbs) and is the correct hydraulic tool for medium and small sized flange joints that require spreading.
The FSW17-BRONZE Spark Resistant tool is design to enter the gap between flanges and force the flange open removing the requirement for traditional rigging equipment and certified anchor points.
It is highly recommended that a minimum of two FSW17-BRONZE tools are used when spreading flange joints – This allows the operator to control the opening of the flange joint to maintain a parallel gap – this will ensure the tool maintains a secure grip on the flange and prevent pinching the gasket and potential flange face damage.
The FSW17-BRONZE is actuated by hydraulic pressure that pushes a piston creating a linear force on the internal wedge – the internal wedge then forces the jaws of the tool apart.
Using high pressure hydraulics allows the operator to generate very high spreading forces with a hand pump (please see the RenQuip pump range) – this removes the requirement of an external power source.
All RenQuip Spreading Wedge Tools are designed to be used in conjunction with RenQuip Flange Alignment tools
The Tool is Spark Resistant, lightweight and portable making it ideal for use in remote locations.
If more force is required, multiple tools can be operated together, or the RenQuip VIPER-28 hydraulic spreading wedge can be selected.
All RenQuip tools are manufactured from the highest quality materials and 100% load tested resulting in highly durable, low maintenance products.
| Maximum Spreading Force | 163kN (36644 lbf) |
| Maximum Applied Pressure | 700 Bar 10,000 PSI |
| Maximum Spreading Distance (with stepped blocks) | 81 mm (3.19”) |
| Minimum Flange Gap | 6 mm (0.24”) |
| Jaw Width | 66 mm (2.6”) |
| Maximum Wedge Protrusion | 38 mm (1.50”) |
| Tool Weight | 7 Kg (15.4 lbs) |
| Tool Dimensions | 76 mm x 155 mm x 350 mm (3.0” x 6.1” x 13.8”) |
| Kit Weight | 20 Kg (44.1 lbs) |
| Kit Dimensions | 580 mm x 340 mm x 180 mm (22.8” x 13.4” x 7.1”) |
| Maximum Pump Pressure | 700 Bar (10,000 PSI) |
| Pump Capacity | 300cc |
