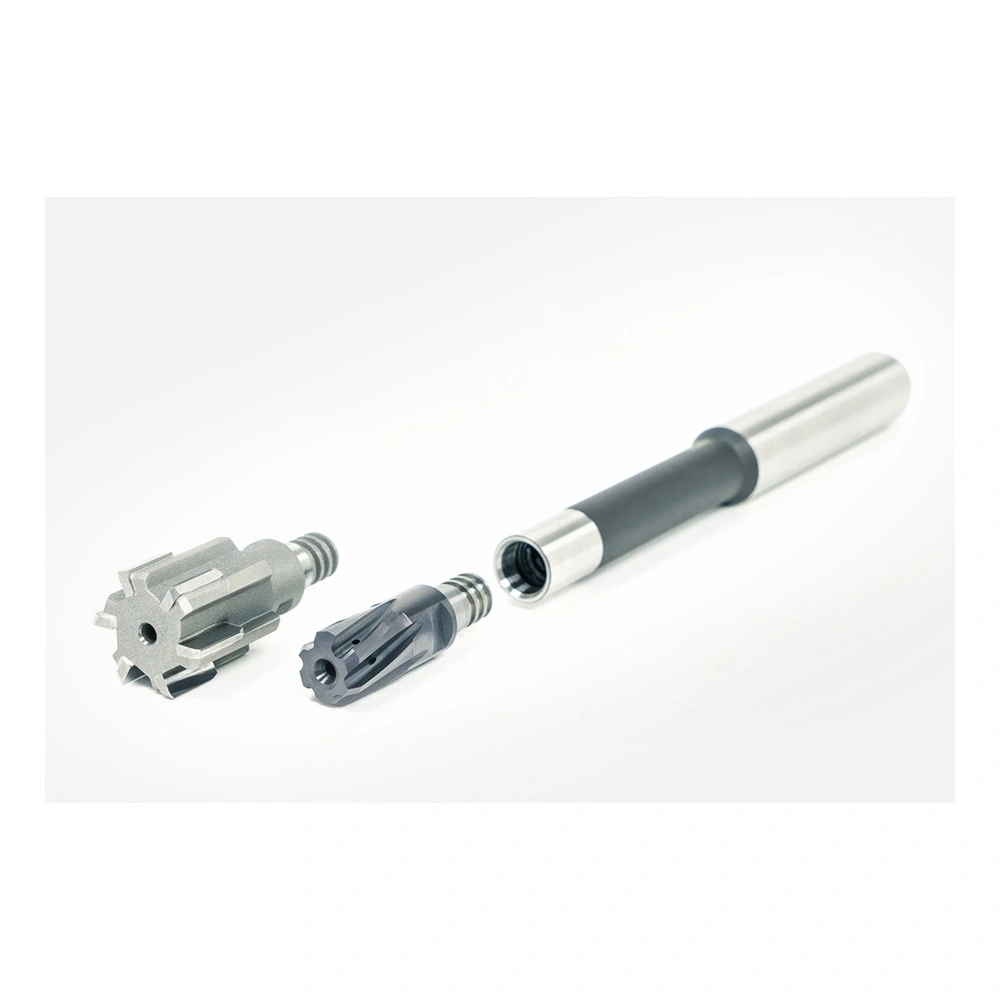

MAPAL CPR Replaceable-Head Reamers

The CFS connection for the Complete Performance Reamers CPR is designed such that the highest possible stability and rigidity is achieved by a taper and a face connection. The special design and manufacture to the μ of the thread and taper-face section guarantee the highly precise radial run-out accuracy of 5 μm.

Key Features

• The CFS connection for the Complete Performance Reamers CPR is designed such that the highest possible stability and rigidity is achieved by a taper and a face connection.
• The special design and manufacture to the μ of the thread and taper-face section guarantee the highly precise radial run-out accuracy of 5 μm.
• Thanks to the simple and safe handling, the reaming heads can be replaced in the machine tool quickly and easily.
• ​​​​​​​ The range of CPR replaceable head reamers includes heads made of solid carbide and heads with brazed cutting edges.
• The replaceable head reamers are available either of solid carbide design (series 500) or can be tipped with different cutting materials such as carbide, cermet, PcBN or PCD (series 600).
• High-performance CVD and PVD coatings increase tool lives and the cost-effectiveness of the reamers.
• The innovative CVD coating HC419 reliably machines the complete range of cast iron materials, with high cutting speeds and maximum productivity.
• ​​​​​​​The reamers can be configured in the diameter range from 8.00 to 40.00 mm in steps of 0.10 mm; the tolerance range can also be configured.
• A broad range of H7 dimensions is available as a preferred series.

Technical and Application Information

The CFS connection for the Complete Performance Reamers CPR is designed such that the highest possible stability and rigidity is achieved by a taper and a face connection. The special design and manufacture to the μ of the thread and taper-face section guarantee the highly precise radial run-out accuracy of 5 μm. Thanks to the simple and safe handling, the reaming heads can be replaced in the machine tool quickly and easily. ​​​​​​​ The range of CPR replaceable head reamers includes heads made of solid carbide and heads with brazed cutting edges. The replaceable head reamers are available either of solid carbide design (series 500) or can be tipped with different cutting materials such as carbide, cermet, PcBN or PCD (series 600). High-performance CVD and PVD coatings increase tool lives and the cost-effectiveness of the reamers. The innovative CVD coating HC419 reliably machines the complete range of cast iron materials, with high cutting speeds and maximum productivity. ​​​​​​​The reamers can be configured in the diameter range from 8.00 to 40.00 mm in steps of 0.10 mm; the tolerance range can also be configured. A broad range of H7 dimensions is available as a preferred series.
