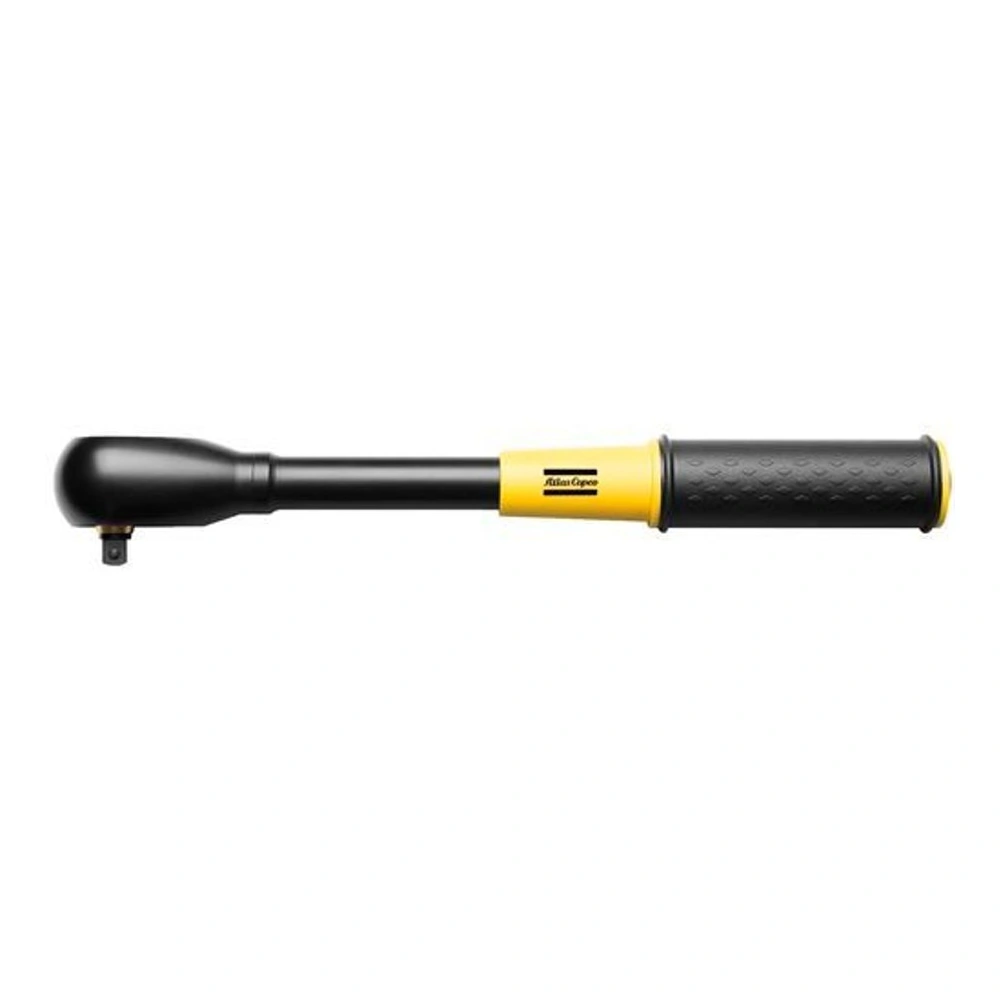

Compact click-type torque wrench (2-300 Nm) with ±4% accuracy and optional microswitch for process control.
CWR Click Wrench delivers precise tightening. It is perfect for limited spaces. The series covers a wide range. It goes from 2 Nm to 300 Nm. Atlas Copco designed it for reliability. It offers high repeatability of ±4%. Adjusting the tool is easy and safe. Operators find it very comfortable to use.
The wrench gives clear feedback. It clicks when torque is reached. You can upgrade it easily. A Microswitch Adaptor makes it smart. This turns it into a signal device. It supports batch counting efficiently. Line control becomes much better. CWR Click Wrench combines mechanical strength with control options. Interchangeable heads add versatility.
The compact size is a key feature. It fits where other tools cannot. Using this wrench prevents errors. Calibration is quick and simple. Standard drives (9×12 or 14×18) fit many heads. Maintenance needs are very low. This saves time and costs. Check out our full Torque Wrenches catalog.
Q: Can I connect this to a controller?
A: Yes, use the Microswitch Adaptor. It sends signals for batch counting and line control.
Q: Is it good for small spaces?
A: Yes, the CWR Click Wrench is very compact. It is ideal for hard-to-reach areas.
Contact us today for expert advice or an on-site demo:
| Model | Drive (mm) | Torque (Nm) | Torque (ft lb) | Length (mm) | Weight (kg) | Part Number |
|---|---|---|---|---|---|---|
| CWR-20 | 9×12 | 3-20 | 2.2-14.8 | 129 | 0.248 | 8439004100 |
| CWR-25 | 9×12 | 2-25 | 1.5-18.4 | 174 | 0.288 | 8439004101 |
| CWR-50 | 9×12 | 5-50 | 3.7-37 | 236 | 0.466 | 8439004102 |
| CWR-85 | 9×12 | 15-85 | 11-62.7 | 305 | 0.576 | 8439004103 |
| CWR-120 | 9×12 | 50-120 | 37-88.5 | 349 | 0.666 | 8439004104 |
| CWR-200 | 14×18 | 50-200 | 37-148 | 419 | 0.916 | 8439004105 |
| CWR-300 | 14×18 | 60-300 | 44.2-221 | 685 | 1.366 | 8439004106 |
| Description | Dimensions/Details | Weight (kg) | Part Number |
|---|---|---|---|
| Microswitch adaptor kit for BWR-240 D | – | – | 4027500993 |
| Microswitch adaptor kit for BWR-440 D | – | – | 4027500994 |
| Microswitch | M18x1.5 (60 mm) | 0.111 | 4027501590 |
| Helix cable | 2-6 m | 0.341 | 8439003000 |
| Hook spanner | 42 mm | 0.752 | 4027501589 |
| Description | Part Number |
|---|---|
| Protection caps | |
| 5 pcs (blue) | 8059098110 |
| 5 pcs (green) | 8059098111 |
| 5 pcs (red) | 8059098112 |
| 5 pcs (Colormix) | – |
| 5 pcs (gold) | – |
| 5 pcs (black) | – |
| Description | Weight (kg) | Part Number |
|---|---|---|
| Extension 14×18 mm, Length = 150 mm | 0.687 | 4027201808 |
| Extension 14×18 mm, Length = 300 mm | 1.41 | 4027010678 |
| Extension 14×18 mm, Length = 150 mm, ALU | 0.217 | 4027015963 |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about CWR Click Wrench 2-300 Nm.
