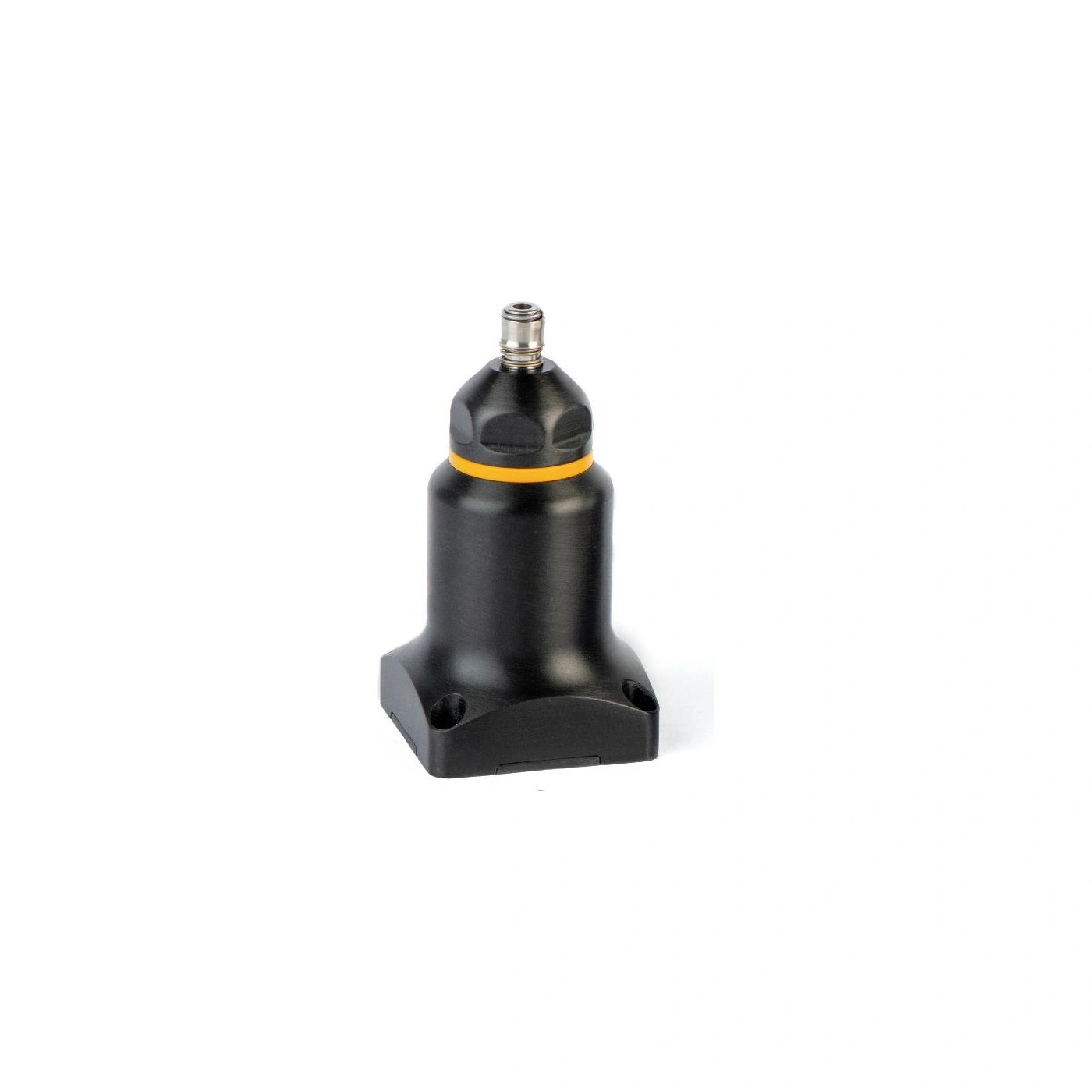

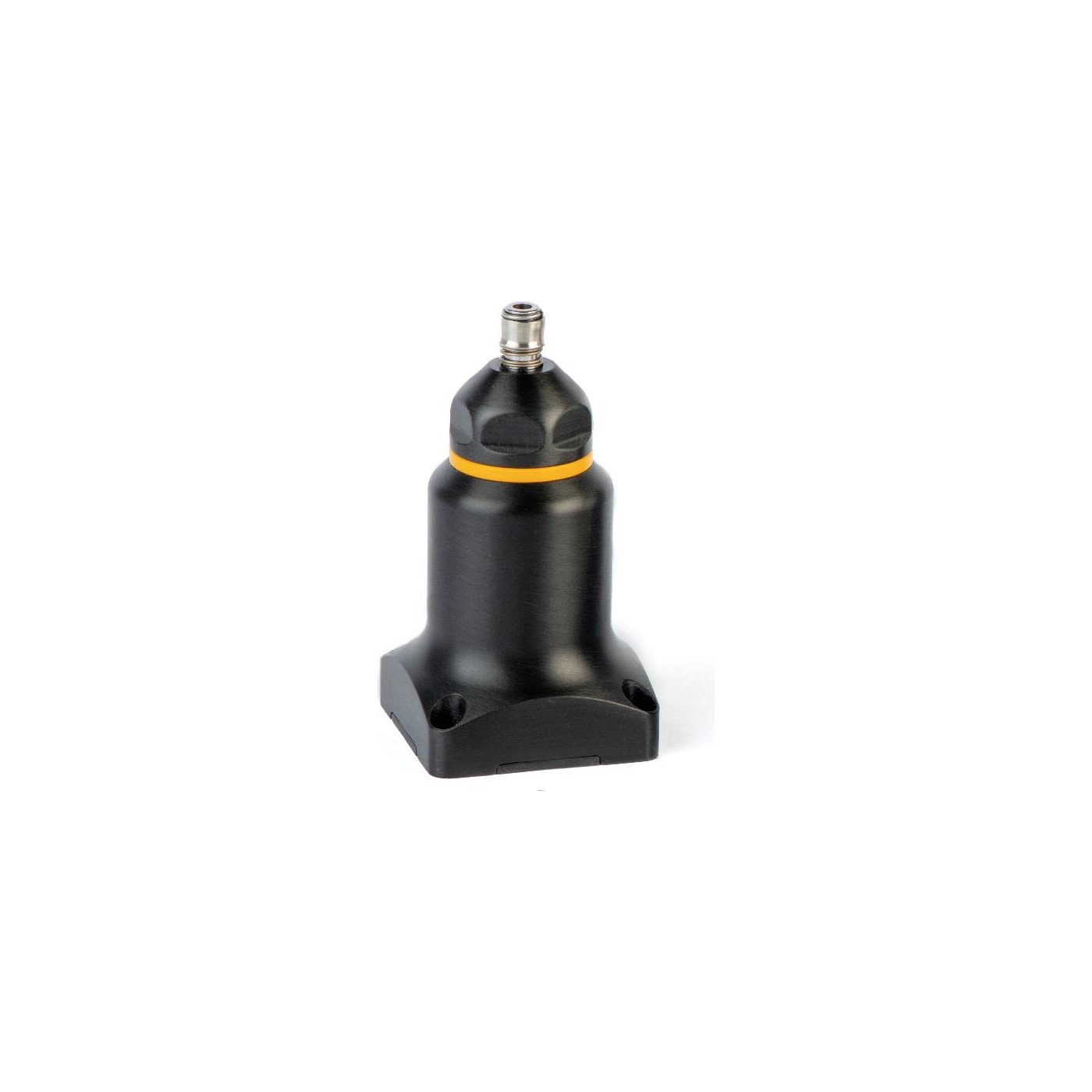

The MT TS range includes static torque transducers from 1 to 500 cNm with 3 mm or 1/4-inch Hex drives. The table lists torque, equivalent in-lb value, drive, overall length and part number for each model.
The MT TS range includes static torque transducers from 1 to 500 cNm with 3 mm or 1/4-inch Hex drives. The table lists torque, equivalent in-lb value, drive, overall length and part number for each model.
| Model | Torque (cNm) | Torque (in lb) | Drive | Overall length (mm) | Part number |
|---|---|---|---|---|---|
| MT TS 1 | 1 | 0.09 | Ø 3 mm | 87 | 8432082220 |
| MT TS 2 | 2 | 0.18 | Ø 3 mm | 87 | 8432082221 |
| MT TS 5 | 5 | 0.44 | Ø 3 mm | 87 | 8432082222 |
| MT TS 10 | 10 | 0.88 | Ø 3 mm | 87 | 8432082223 |
| MT TS 20 | 20 | 1.77 | Ø 3 mm | 87 | 8432082224 |
| MT TS 50 | 50 | 4.42 | 1/4" Hex | 104.5 | 8432082225 |
| MT TS 100 | 100 | 8.85 | 1/4" Hex | 104.5 | 8432082226 |
| MT TS 200 | 200 | 17.70 | 1/4" Hex | 104.5 | 8432082227 |
| MT TS 500 | 500 | 44.25 | 1/4" Hex | 103 | 8432082228 |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Atlas Copco MT TS Static Transducers for MicroTorque.
