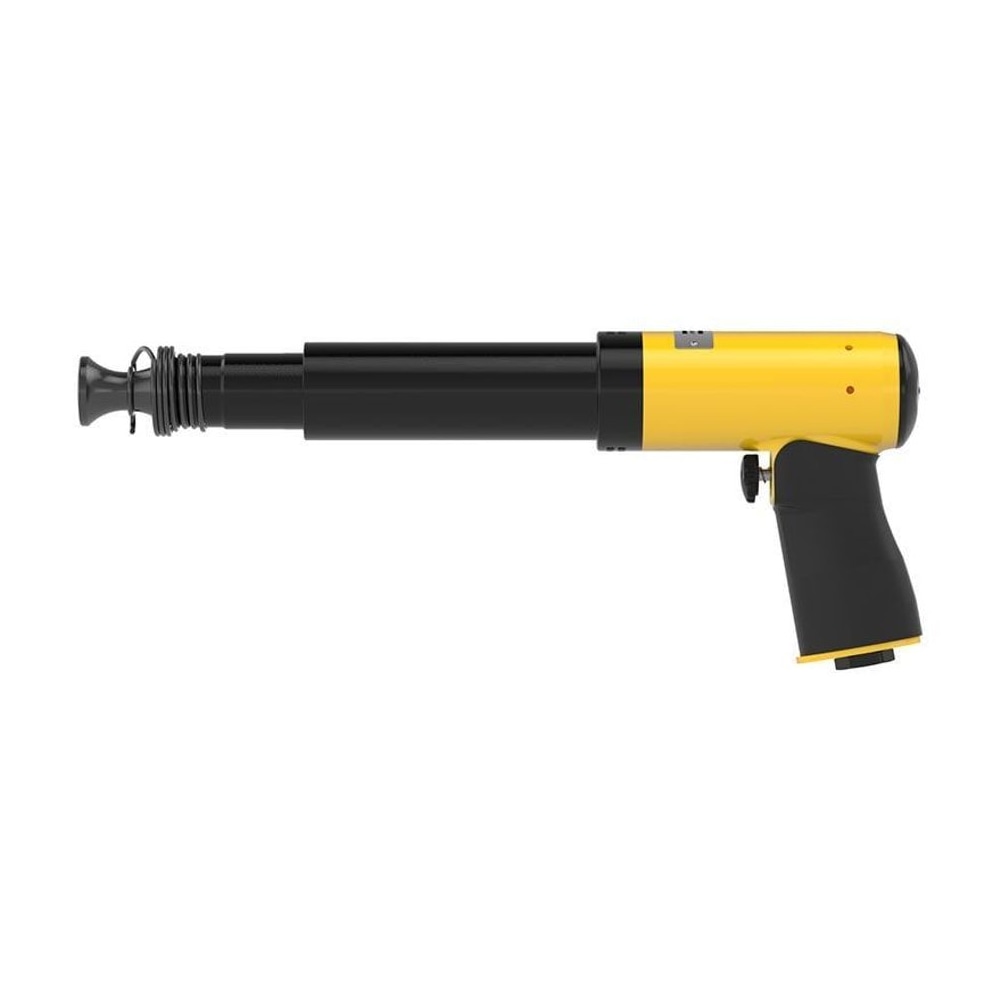

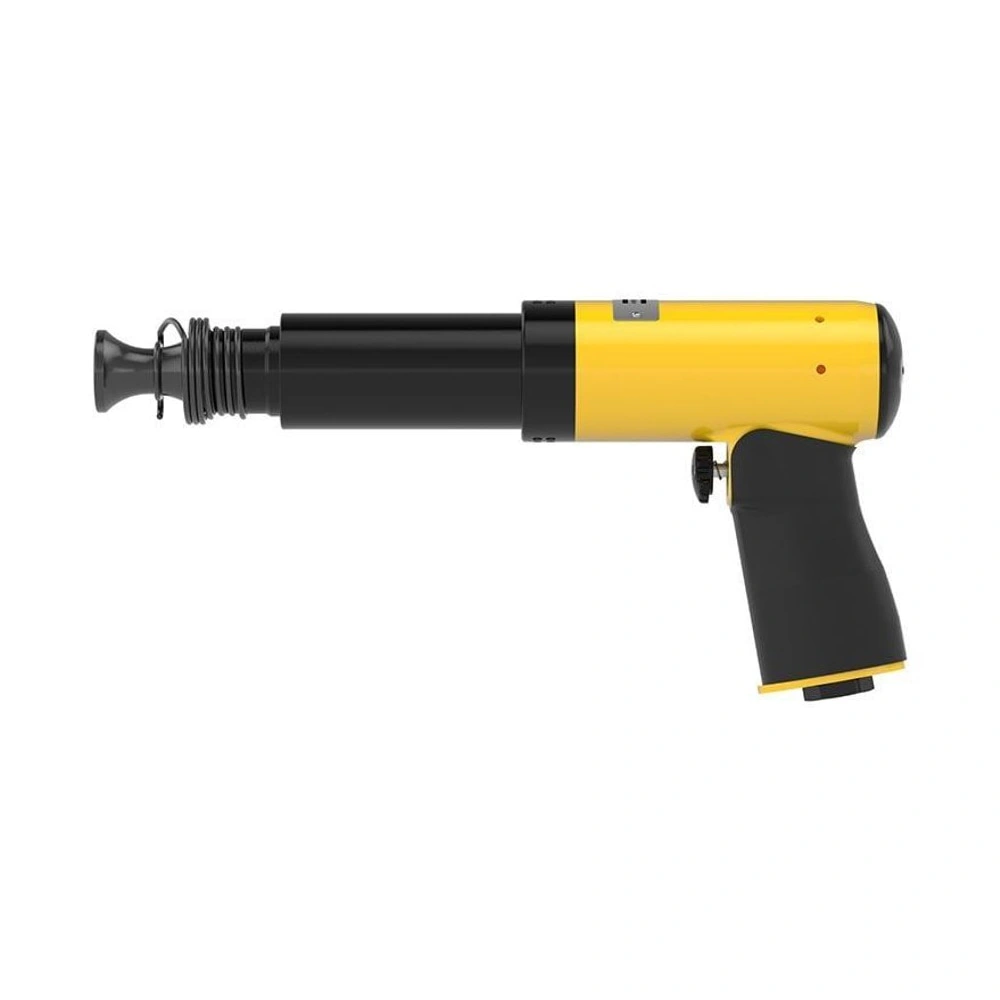

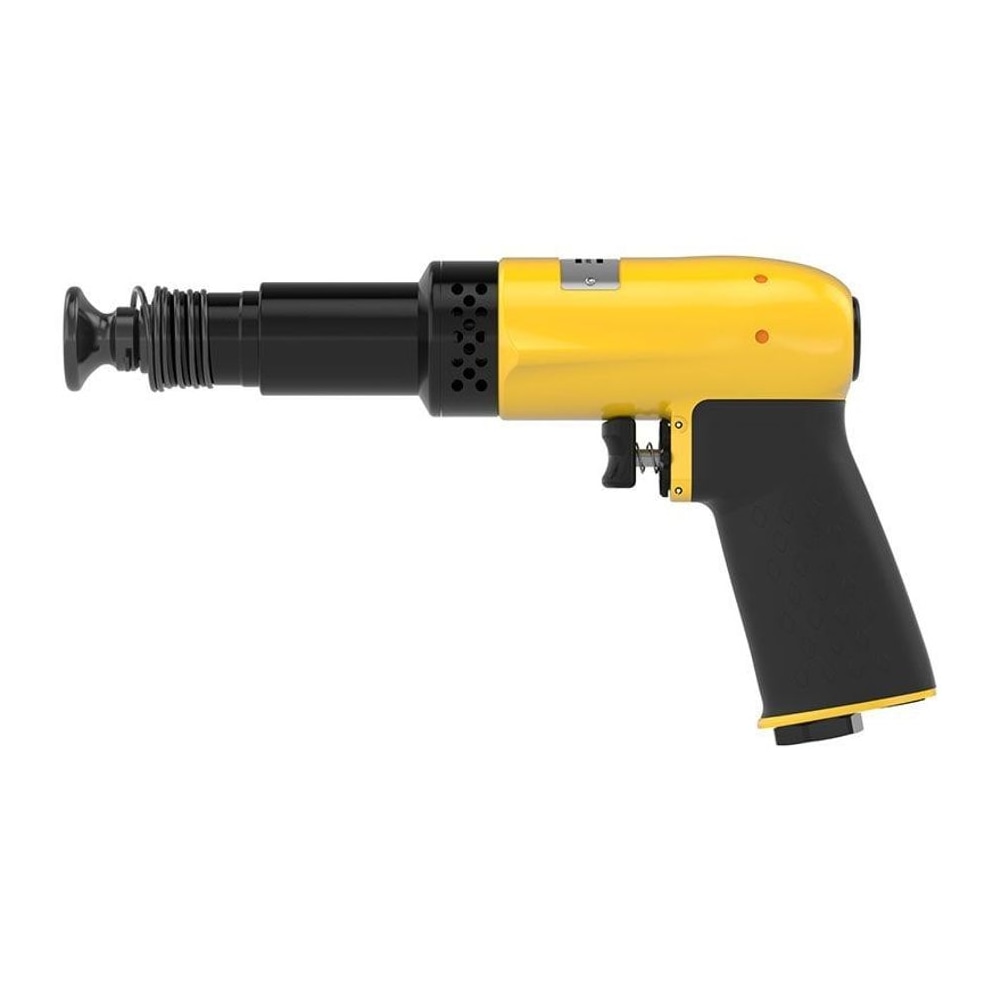

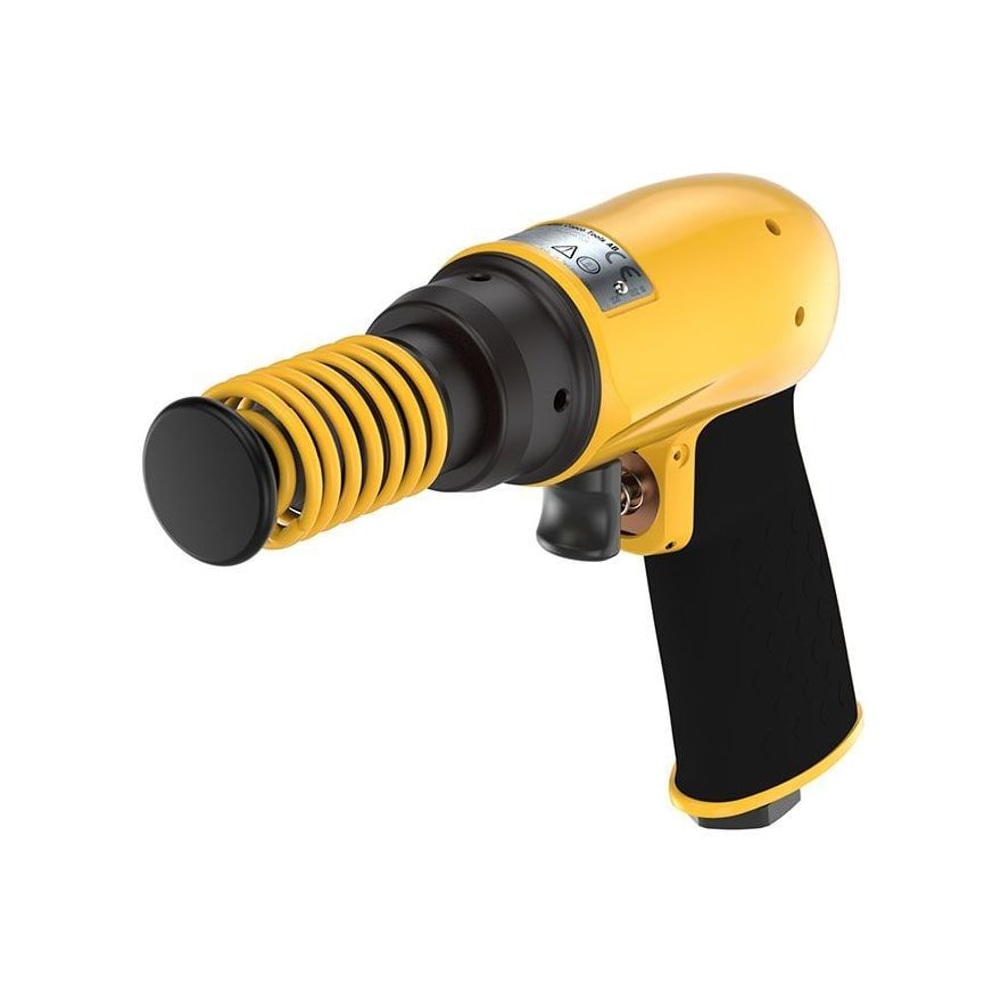

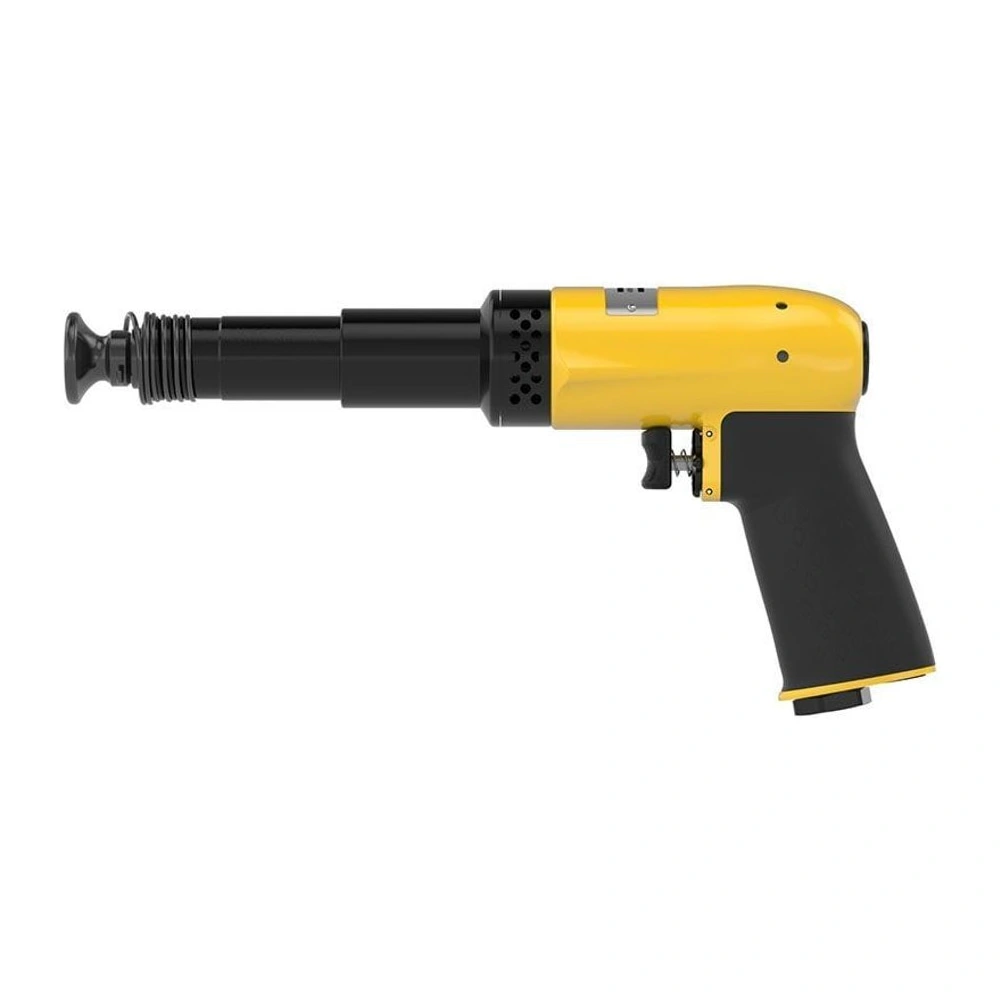

Atlas Copco RRH delivers controlled riveting with vibration damping and ergonomic handling.
RRH is a unique family of pneumatic riveting hammers with vibration-damped design and strong ergonomic advantages.
It is built for industrial riveting tasks, including rivets up to 13 mm diameter.
Paired with the RBB vibration-damped bucking bar, it forms a highly effective riveting system for demanding assembly work.
How do I choose the right RRH model?
Step 1: Define the rivet diameter and the type of riveting task.
Step 2: Select a model that fits the required working range, up to 13 mm.
Step 3: Decide whether you want a trigger-start version with a rubber-coated pistol grip.
Step 4: Check whether you also need an RBB bucking bar to complete the system.
What applications is RRH best suited for?
It is designed for industrial riveting applications where vibration damping, comfort, and reliable control matter.
It is especially relevant for work with larger rivets and repeated production tasks.
Can the power be adjusted?
Yes.
The power is adjustable, so the tool can be matched to the task and the material.
What is the benefit of the adjustable hand guard?
The vibration-damped hand guard is adjustable, helping you adapt the tool to the working position and improve handling comfort.
Are there more ergonomic versions available?
Yes.
The trigger-start models feature a rubber-coated pistol grip, which supports easier handling and better control.
How do I build a more complete riveting setup?
Pair the RRH hammer with the RBB vibration-damped bucking bar.
This creates a more balanced riveting system with vibration damping on both sides of the job.
| Model | Airframe rivet ref | Blows per minute | Rivet set shank (mm) | Rivet set shank (in) | Piston dia (mm) | Piston dia (in) | Stroke (mm) | Stroke (in) | Energy per blow (J) | Energy per blow (ft lb) | Weight (kg) | Weight (lb) | Air consumption (l/s) | Air consumption (cfm) | Hose size (mm) | Hose size (in) | Air inlet (BSP) | Ordering No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| With push start | ||||||||||||||||||
| RRH04P-01 | 2X | 3960 | 10.0 | 0.4 | 15 | 0.6 | 40 | 1.6 | 2.0 | 1.5 | 1.0 | 2.2 | 3.7 | 6 | 6.3 | 1/4 | 1/4 | 8426111107 |
| RRH04P-02 | 2X | 3960 | 10.2 | 0.4 | 15 | 0.6 | 40 | 1.6 | 2.0 | 1.5 | 1.0 | 2.2 | 3.7 | 6 | 6.3 | 1/4 | 1/4 | 8426111115 |
| RRH04P-12 | 2X | 3960 | 10.2 | 0.4 | 15 | 0.6 | 40 | 1.6 | 2.0 | 1.5 | 1.0 | 2.2 | 3.7 | 6 | 6.3 | 1/4 | 1/4 | 8426111125 |
| RRH06P | 3X | 2160 | 10.2 | 0.4 | 15 | 0.6 | 102 | 4.0 | 6.0 | 4.4 | 1.3 | 2.9 | 9.0 | 19 | 10.0 | 3/8 | 1/4 | 8426111104 |
| RRH08P | 4X | 1440 | 10.2 | 0.4 | 15 | 0.6 | 137 | 5.4 | 8.0 | 5.9 | 1.4 | 3.0 | 10.0 | 21 | 10.0 | 3/8 | 1/4 | 8426111109 |
| RRH10P | 5XB | 1500 | 12.7 | 0.5 | 19 | 0.7 | 118 | 4.6 | 13.0 | 9.6 | 2.0 | 4.4 | 12.0 | 24 | 10.0 | 3/8 | 1/4 | 8426111020 |
| RRH12P | 7XB | 1200 | 12.7 | 0.5 | 19 | 0.7 | 153 | 6.0 | 16.0 | 11.8 | 2.1 | 4.6 | 13.0 | 28 | 10.0 | 3/8 | 1/4 | 8426111047 |
| RRH14P | 9XB | 1080 | 12.7 | 0.5 | 19 | 0.7 | 188 | 7.4 | 19.5 | 14.4 | 2.2 | 4.8 | 13.0 | 28 | 10.0 | 3/8 | 1/4 | 8426111080 |
| With trigger start | ||||||||||||||||||
| RRH04P TS-12 | 2X | 3960 | 10.2 | 0.4 | 15 | 0.6 | 40 | 1.6 | 2.0 | 1.5 | 1.0 | 2.2 | 3.7 | 6 | 6.3 | 1/4 | 1/4 | 8426111127 |
| RRH06P TS | 3X | 2160 | 10.2 | 0.4 | 15 | 0.6 | 102 | 4.0 | 6.0 | 4.4 | 1.3 | 2.9 | 9.0 | 19 | 10.0 | 3/8 | 1/4 | 8426111166 |
| RRH08P TS | 4X | 1440 | 10.2 | 0.4 | 15 | 0.6 | 137 | 5.4 | 8.0 | 5.9 | 1.4 | 3.0 | 10.0 | 21 | 10.0 | 3/8 | 1/4 | 8426111168 |
| RRH10P TS | 5XB | 1500 | 12.7 | 0.5 | 19 | 0.7 | 118 | 4.6 | 13.0 | 9.6 | 2.0 | 4.4 | 12.0 | 24 | 10.0 | 3/8 | 1/4 | 8426111070 |
| RRH12P TS | 7XB | 1200 | 12.7 | 0.5 | 19 | 0.7 | 153 | 6.0 | 16.0 | 11.8 | 2.1 | 4.6 | 13.0 | 28 | 10.0 | 3/8 | 1/4 | 8426111072 |
| RRH14P TS | 9XB | 1080 | 12.7 | 0.5 | 19 | 0.7 | 188 | 7.4 | 19.5 | 14.4 | 2.2 | 4.8 | 13.0 | 28 | 10.0 | 3/8 | 1/4 | 8426111081 |
| RRH12P TS-ENG | 7XB | 1200 | 12.7 | 0.5 | 19 | 0.7 | 153 | 6.0 | 16.0 | 11.8 | 2.1 | 4.6 | 13.0 | 28 | 10.0 | 3/8 | 1/4 | 8426111049 |
| RRH14P TS-ENG | 9XB | 1080 | 12.7 | 0.5 | 19 | 0.7 | 188 | 7.4 | 19.5 | 14.4 | 2.2 | 4.8 | 13.0 | 28 | 10.0 | 3/8 | 1/4 | 8426111082 |
-01 = 10 mm short shank rivet set
-02 = 10.2 mm short shank
-12 = 10.2 mm standard shank
| Model | L | H | C |
|---|---|---|---|
| RRH04-01 | 160 | 147 | 23 |
| RRH04-02 | 160 | 147 | 23 |
| RRH04-12 | 175 | 147 | 23 |
| RRH06 | 225 | 147 | 24 |
| RRH08P | 244 | 147 | 24 |
| RRH10P | 264 | 150 | 27 |
| RRH12P | 299 | 150 | 27 |
| RRH14P | 334 | 150 | 27 |

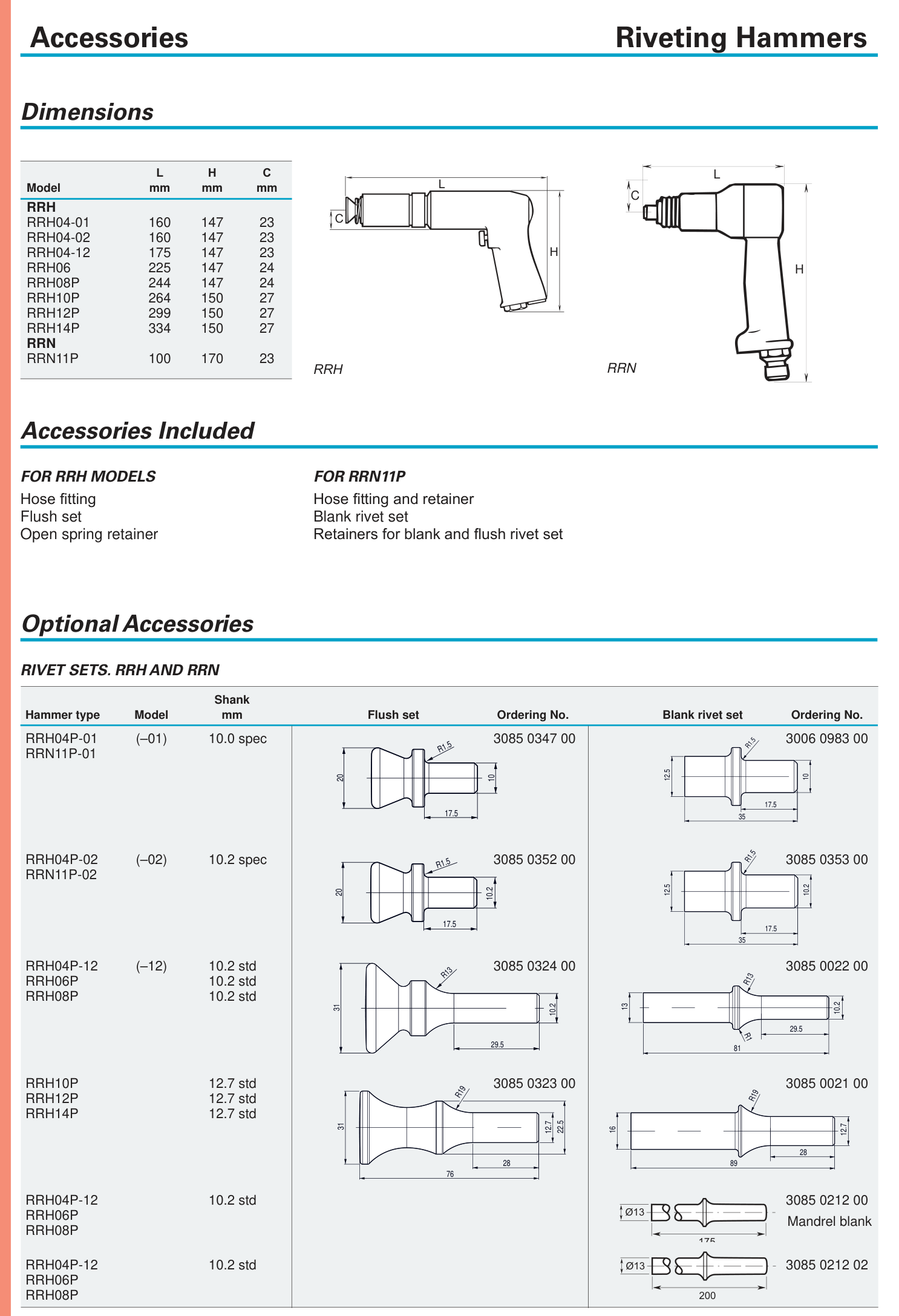

L · H · C dimension sketches from the Atlas Copco catalog (RRH / RRN)
| Model(s) | Shank | Flush set – Ordering No. | Blank rivet set – Ordering No. |
|---|---|---|---|
| RRH04P-01 | 10.0 spec | 3085034700 | 3006098300 |
| RRH04P-02 | 10.2 spec | 3085035200 | 3085035300 |
| RRH04P-12 / RRH06P / RRH08P | 10.2 std | 3085032400 | 3085002200 |
| RRH10P / RRH12P / RRH14P | 12.7 std | 3085032300 | 3085002100 |
| Model(s) | Shank | Ordering No. |
|---|---|---|
| RRH04P-12 / RRH06P / RRH08P | 10.2 std | 3085021200 |
| RRH04P-12 / RRH06P / RRH08P | 10.2 std | 3085021202 |

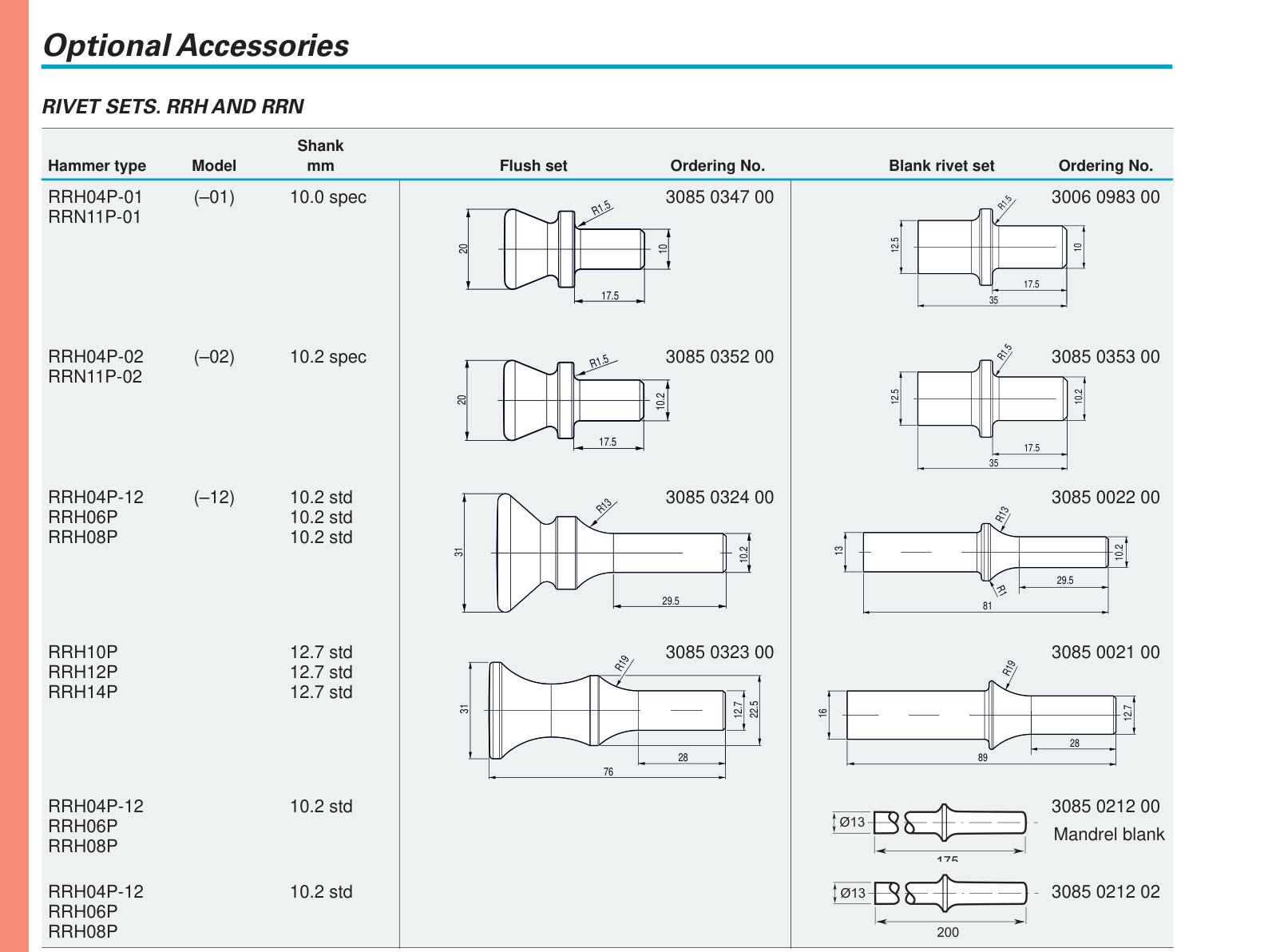

Rivet sets with the full technical drawings – from the Atlas Copco catalog
Also available for RRH models: hose fitting, open spring retainer and mandrel blank – full details on the accessories page of the attached catalog PDF.
The complete accessories tables, exactly as they appear in the Atlas Copco catalog – every ordering number, dimension and drawing. The PDF attached to this page is also available for download.
