A pneumatic chipping solution with accessory options and a wide chisel range for precise, continuous work.

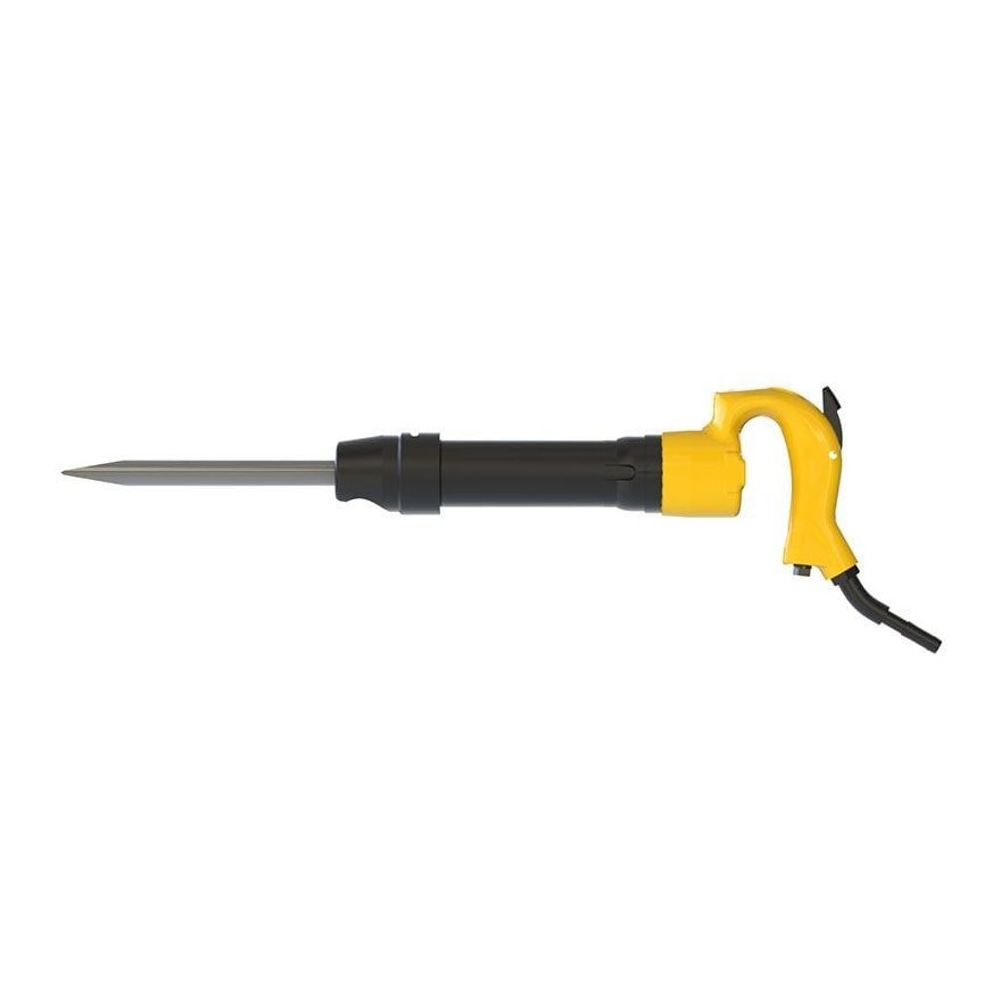

Atlas Copco RRC75B is a pneumatic chipping hammer designed for chipping, breaking, and removing material with control.
The family includes dedicated holding and connection accessories, plus a selection of optional chisels in different lengths, so you can match the tool to the task and the work setup.
How do I choose the right chisel for the RRC75B?
Step 1: Define the job, such as general chipping or a flatter cutting action.
Step 2: Choose between a blank chisel and a flat chisel based on the material removal style you need.
Step 3: Select the chisel length that best fits the depth of work and handling preference.
Which accessories are available for this family?
The family includes Chisel retainer and Swivel accessories, plus Nipple and Chisel retainer versions for specific setups.
Optional chisels are also available in several lengths.
Why does chisel selection matter?
The right chisel affects handling, control, and how precisely the hammer works on the material.
It also helps match the tool to different jobs on the same site.
Can I order the tool with different connection accessories?
Yes.
The family offers different holding and connection accessories, so you can build the working setup that fits your maintenance or production needs.
What should I check before placing an order in Israel?
Check the exact model, the chisel type you need, the chisel length you want, and the connection accessories that should be ordered with the tool.
What is the difference between a blank chisel and a flat chisel?
A blank chisel is suited to more general chipping work, while a flat chisel is better for flatter, more focused material removal.
The right choice depends on the job and the finish you want.
| Model | Length (mm) | Weight (kg) | Blow (Hz) | Stroke (mm) | Energy per blow (J) | Bushing (mm) | Air con- sumption at free speed (l/s) | Rec hose size (mm) | Air inlet thread (in) BSP (in) | Bushing type (Hex) | (Round) | Integrated hose barb | Vibration damped | Ordering No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RRC75B-01 | 390 | 6.5 | 30 | 75 | 16 | 17.3 | 14 | 12.5 | Special | • | – | • | – | 8425022558 |

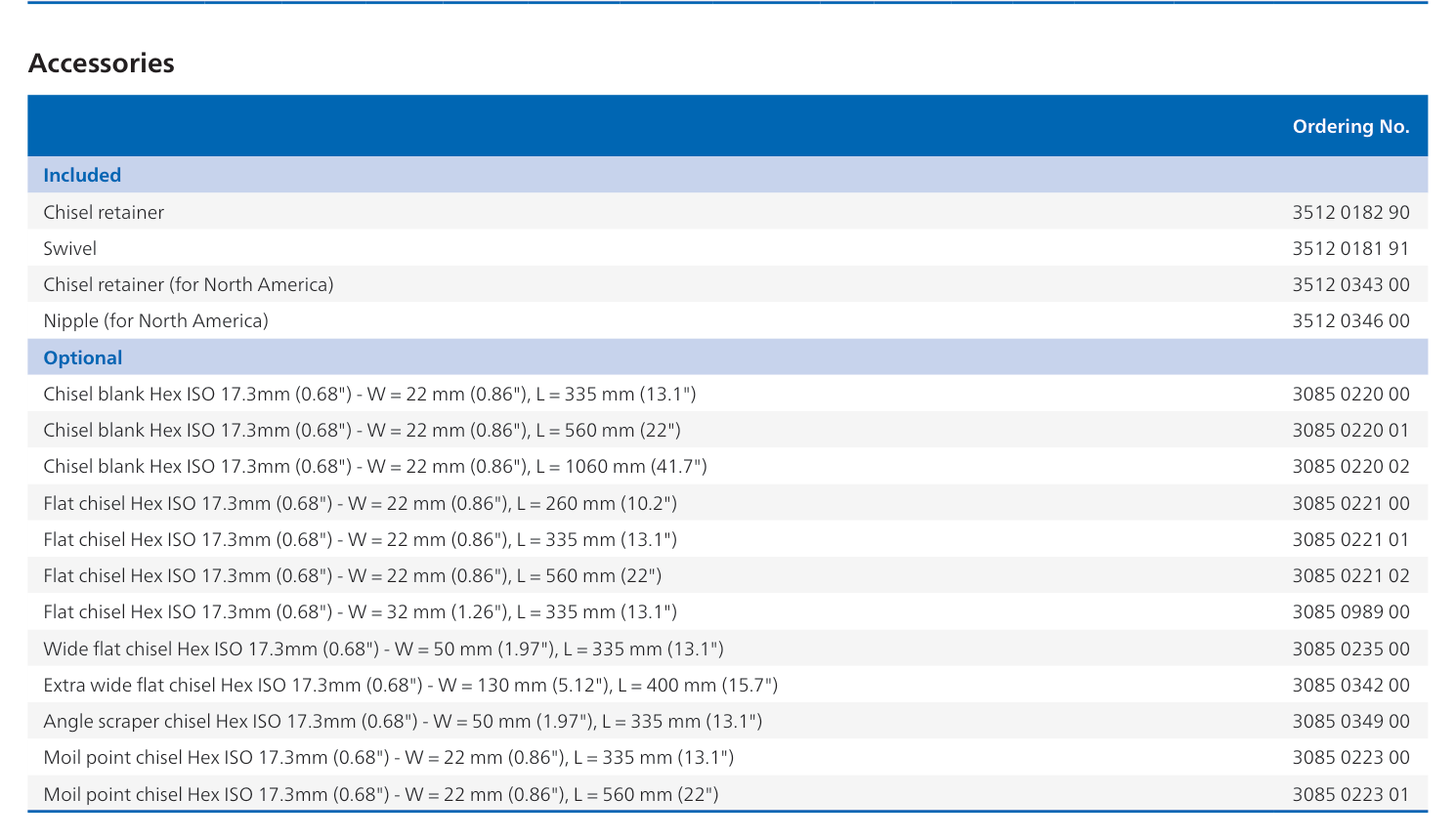

The complete accessories tables, exactly as they appear in the Atlas Copco catalog – every ordering number, dimension and drawing. The PDF attached to this page is also available for download.
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Atlas Copco RRC75B Pneumatic Chipping Hammer.
