A pneumatic chipping hammer from the RRC65B family for demolition, removal, and surface cleaning.

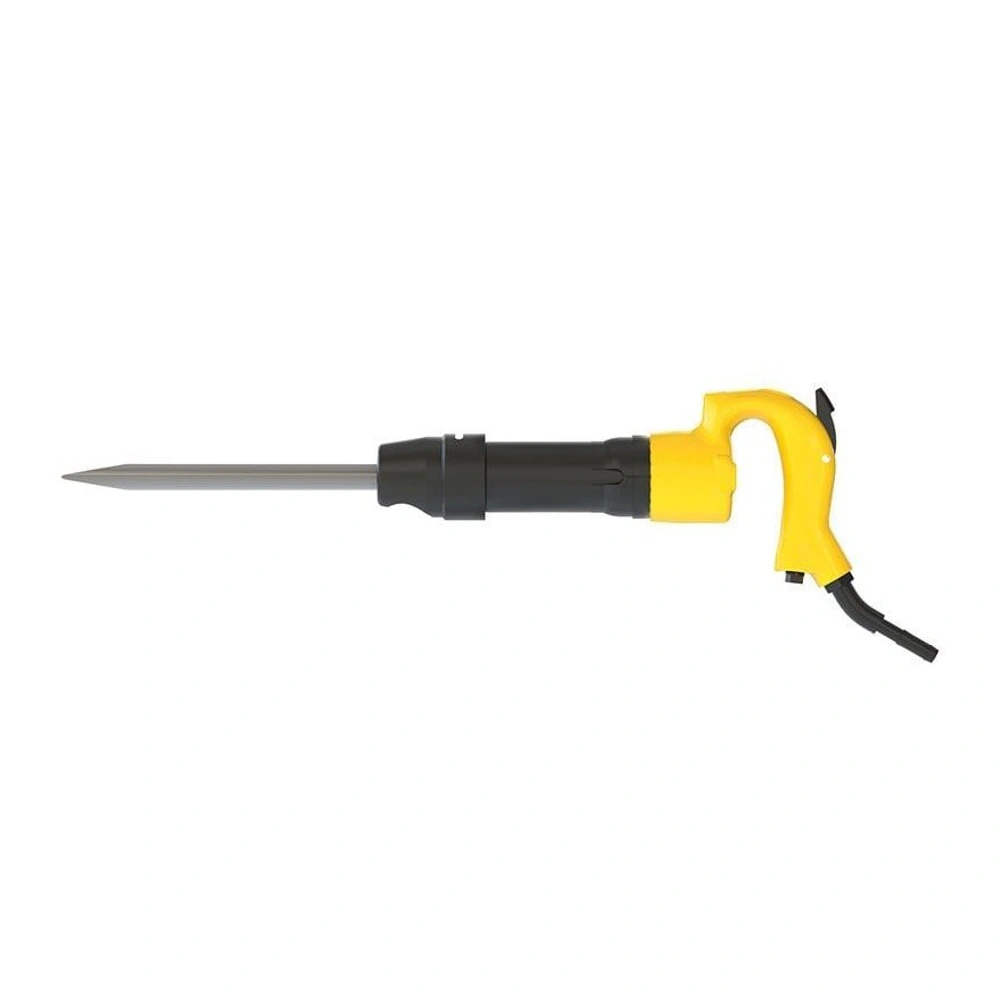

Atlas Copco RRC65B is a pneumatic chipping hammer for use with the right chisels in a wide range of chipping, cleaning, and material-removal tasks.
The family includes related accessories and multiple chisel options, making it easier to match the tool to the job, the work area, and the application setup.
How do I choose the right chisel for the RRC65B?
Step 1: Define the job – general chipping or surface cleaning/leveling.
Step 2: Choose between Chisel blank and Flat chisel based on the task.
Step 3: Match the chisel length to access needs and working distance.
What comes standard with the tool?
The tool includes a chisel retainer and a swivel.
What chisel types are available for this family?
The family offers Chisel blank options and Flat chisel options in different lengths.
How do I decide which chisel length to order?
Step 1: Check whether the work area is narrow or open.
Step 2: Choose a shorter length for easier maneuvering, or a longer one for better reach.
Step 3: Match the length to the material and the working distance from the surface.
Is this tool suitable for routine maintenance work?
Yes.
It is a pneumatic chipping hammer suited to maintenance tasks, spot removal, and material stripping.
What should I verify before placing an order?
Confirm the working model RRC65B-01 and ordering number 8425022533, then select the accessories and chisel that fit the job.
| Model | Length (mm) | Weight (kg) | Blow (Hz) | Stroke (mm) | Energy per blow (J) | Bushing (mm) | Air con- sumption at free speed (l/s) | Rec hose size (mm) | Air inlet thread (in) BSP (in) | Bushing type (Hex) | (Round) | Integrated hose barb | Vibration damped | Ordering No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RRC65B-01 | 335 | 5.9 | 40 | 50 | 10 | 17.3 | 10.8 | 12.5 | Special | • | – | • | – | 8425022533 |

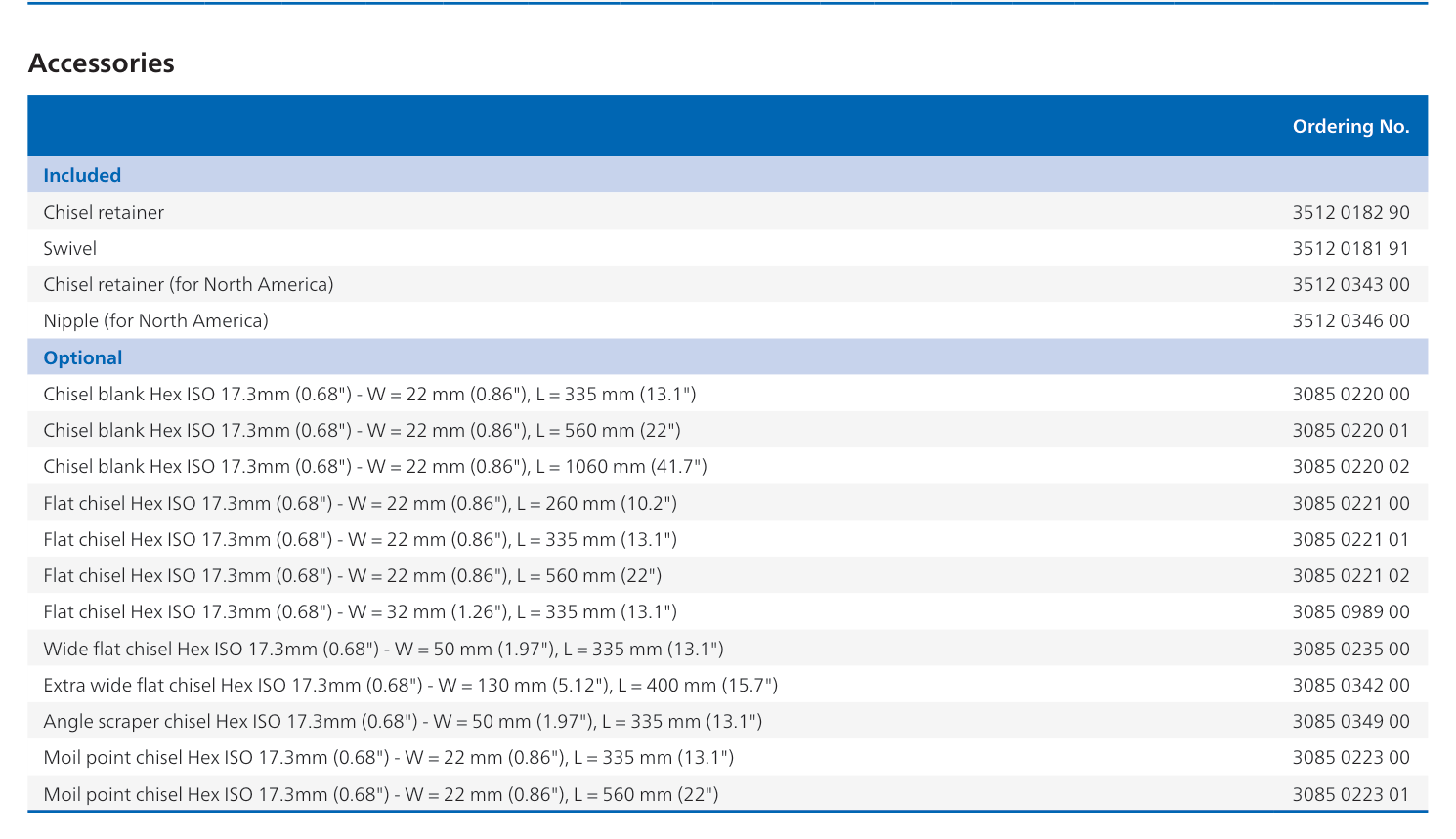

The complete accessories tables, exactly as they appear in the Atlas Copco catalog – every ordering number, dimension and drawing. The PDF attached to this page is also available for download.
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Atlas Copco RRC65B Pneumatic Chipping Hammer.
