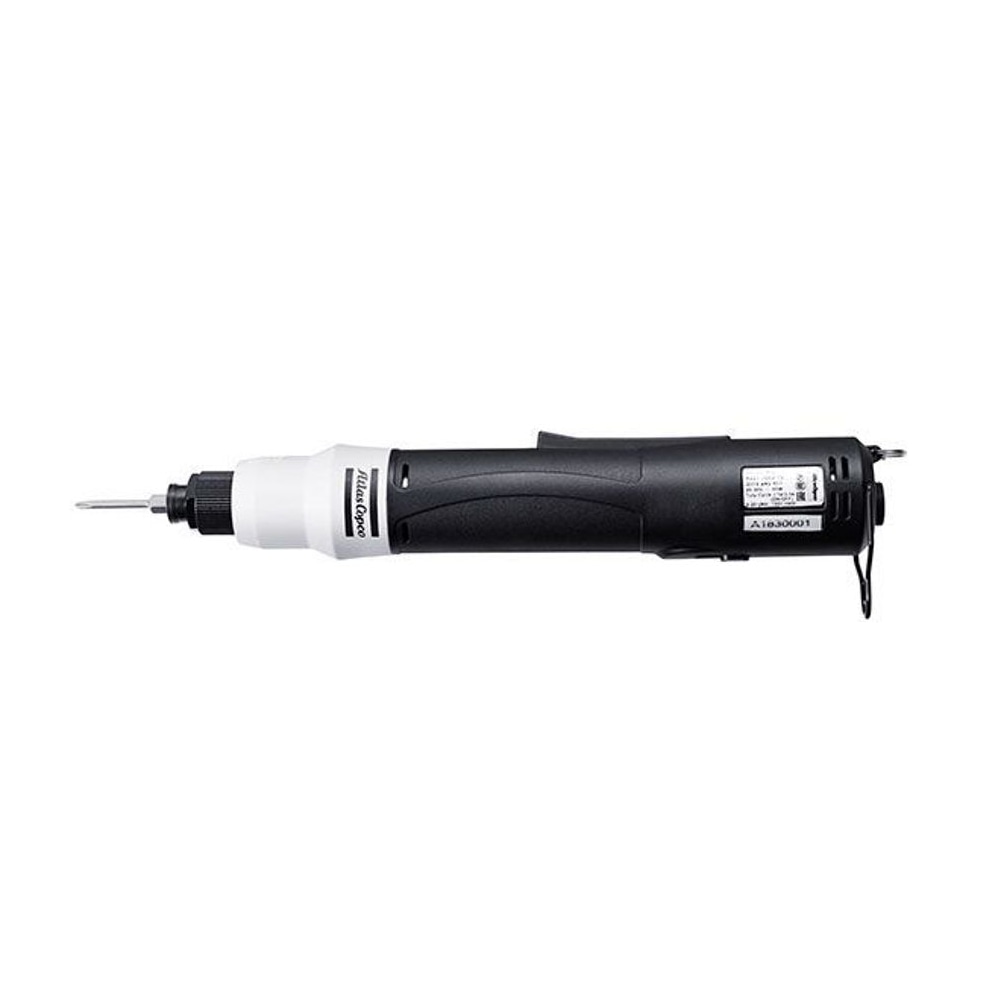

PRO S8 series electric clutch screwdrivers for precise low-torque fastening, featuring a brushless motor and ergonomic design.
The PRO S8 Electric Clutch Screwdriver series by Atlas Copco represents “Power with Precision” for low-torque assembly applications. This series offers a wide variety of screwdrivers that combine high speed with exceptional precision, providing a perfect plug & play solution for your assembly needs.

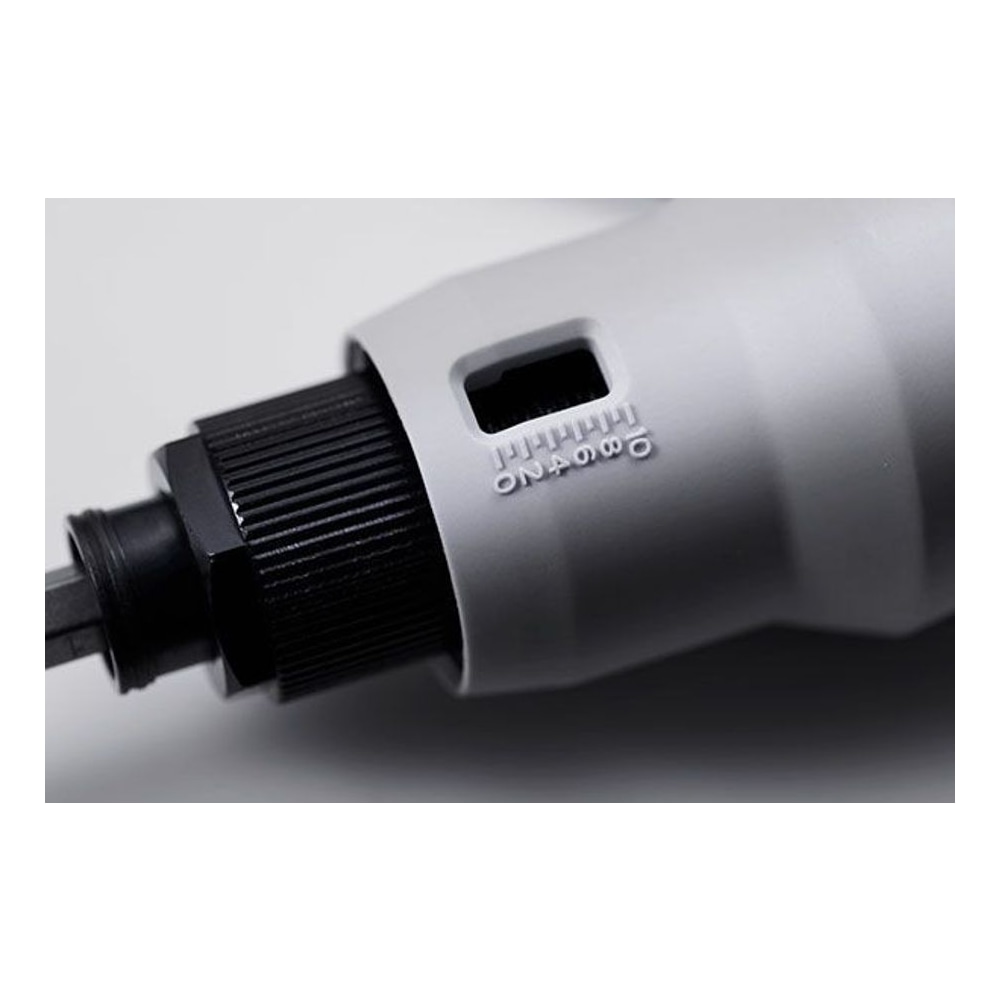

Engineered to meet rigorous industrial standards, the S8 series features a brushless motor that ensures high durability and an exceptionally long service life. The tool includes a high-quality mechanical clutch adjusted by spring tension, allowing for precise control over a torque range from 3 cNm to 250 cNm (0.03-2.5 Nm). Thanks to its advanced ergonomic design, operators enjoy maximum handling comfort, which reduces fatigue and increases efficiency on the production line. The nutrunners come with a user-friendly trigger and support various bit drives (1/4″ Hex or Wing shank), making them a versatile tool for any task.
Q: What is the torque range of the S8 series?
A: The series offers a broad range of torque values, from 3 cNm in S8020 models up to 250 cNm in the S8250 model.
Q: Does the screwdriver require an external power supply?

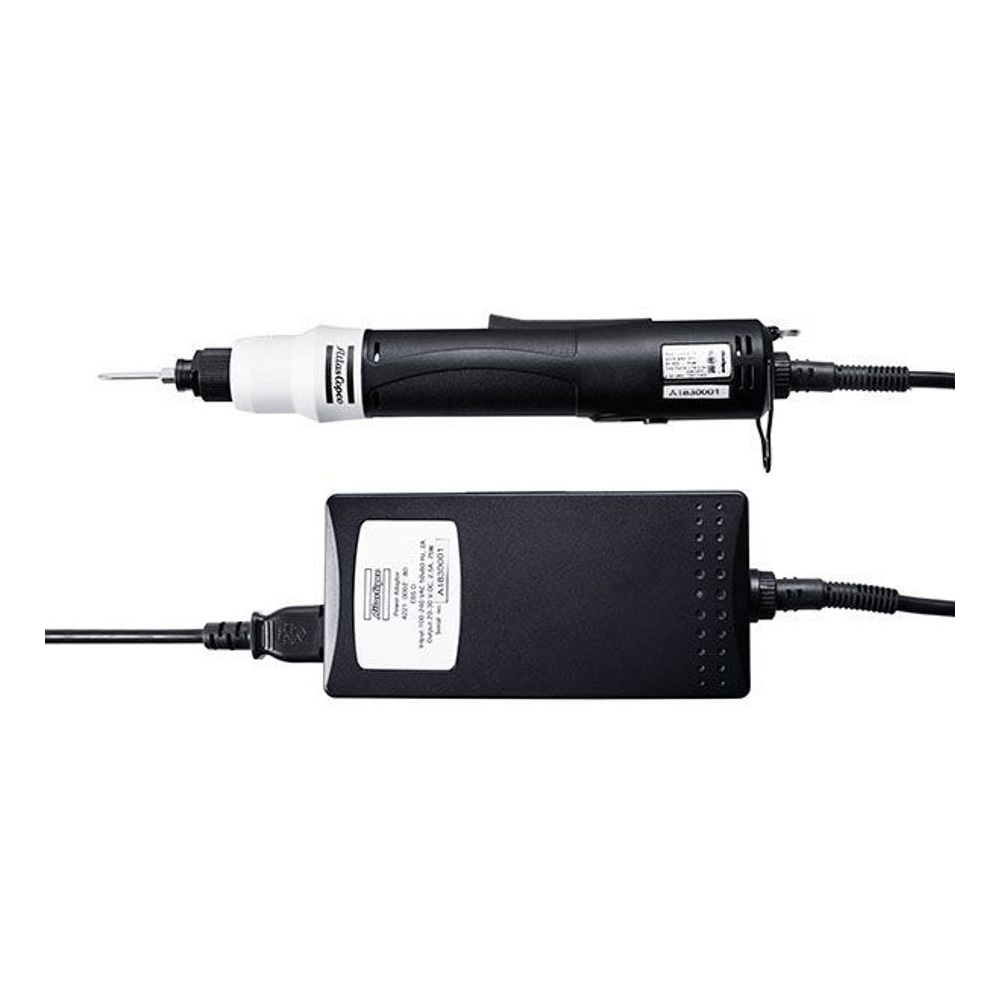

A: Yes, the tools operate using the EBS D power supply, which must be ordered separately.
Our experts will match the exact PRO S8 model to your production needs:
| Model | DRIVE | Torque Range | Speed (r/min) | Weight (kg) | Length (mm) | Ordering No. | |
|---|---|---|---|---|---|---|---|
| Nm | in lb | ||||||
| S8020 | 1/4″ HEX | 0.03-0.20 | 0.3-1.7 | 1000 | 0.412 | 227 | 4221000273 |
| S8020-WS | 1/4″ HEX | 0.03-0.20 | 0.3-1.7 | 1000 | 0.412 | 227 | 4221000272 |
| S8050 | 1/4″ HEX | 0.05-0.49 | 0.4-4.3 | 1000 | 0.412 | 227 | 4221000274 |
| S8120 | 1/4″ HEX | 0.15-1.18 | 1.3-10.4 | 1000 | 0.412 | 227 | 4221000275 |
| S8120-2000 | 1/4″ HEX | 0.15-1.18 | 1.3-10.4 | 2000 | 0.412 | 227 | 4221000276 |
| S8160 | 1/4″ HEX | 0.20-1.57 | 1.7-13.9 | 1000 | 0.412 | 227 | 4221000277 |
| S8200 | 1/4″ HEX | 0.39-1.96 | 3.5-17.4 | 1000 | 0.412 | 227 | 4221000278 |
| S8250 | 1/4″ HEX | 0.49-2.45 | 4.3-21.7 | 750 | 0.412 | 227 | 4221000279 |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about PRO S8 Electric Clutch Screwdriver 0.03-2.5 Nm.
