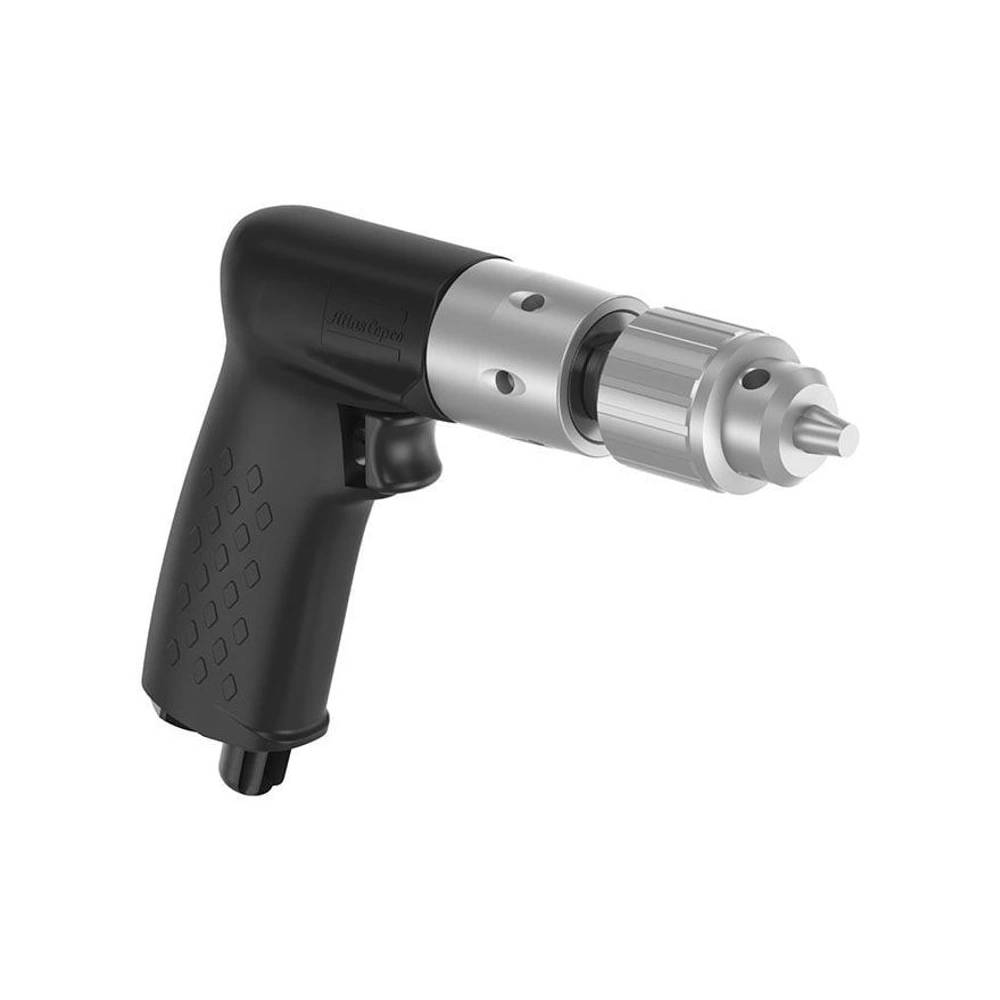

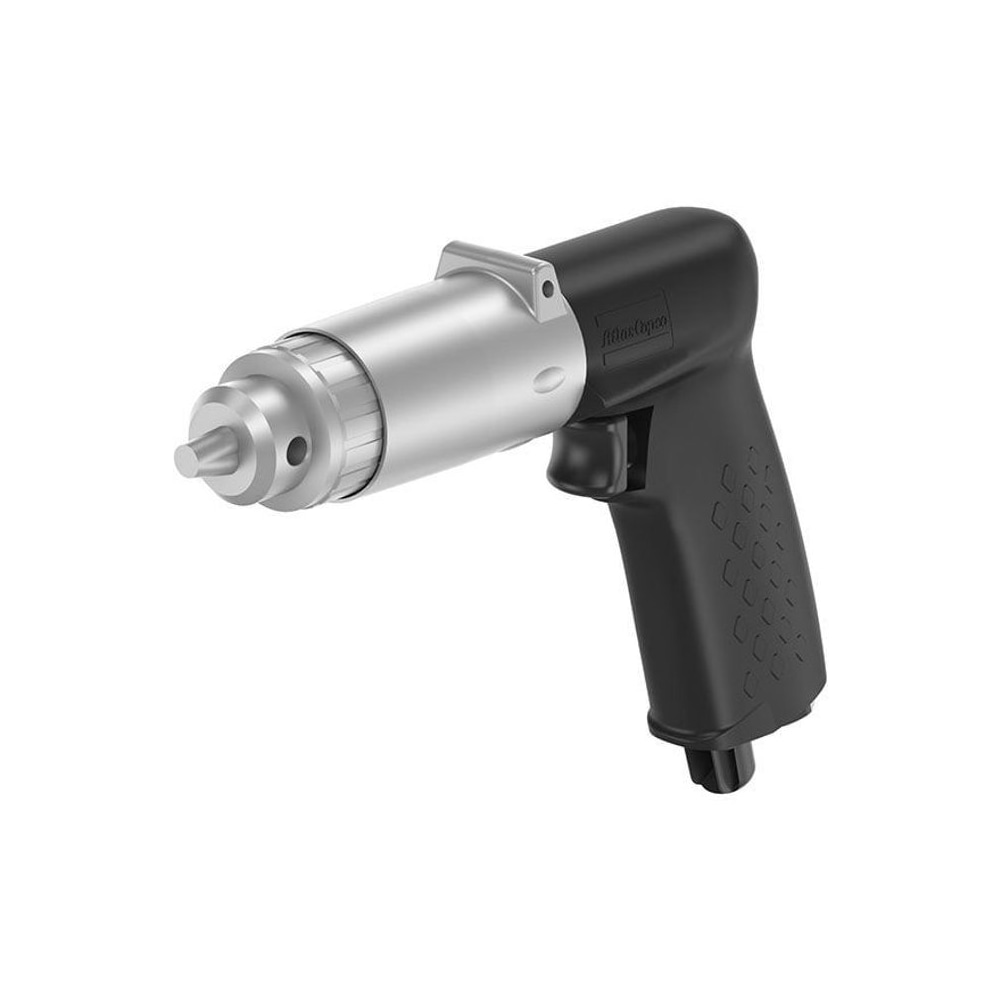

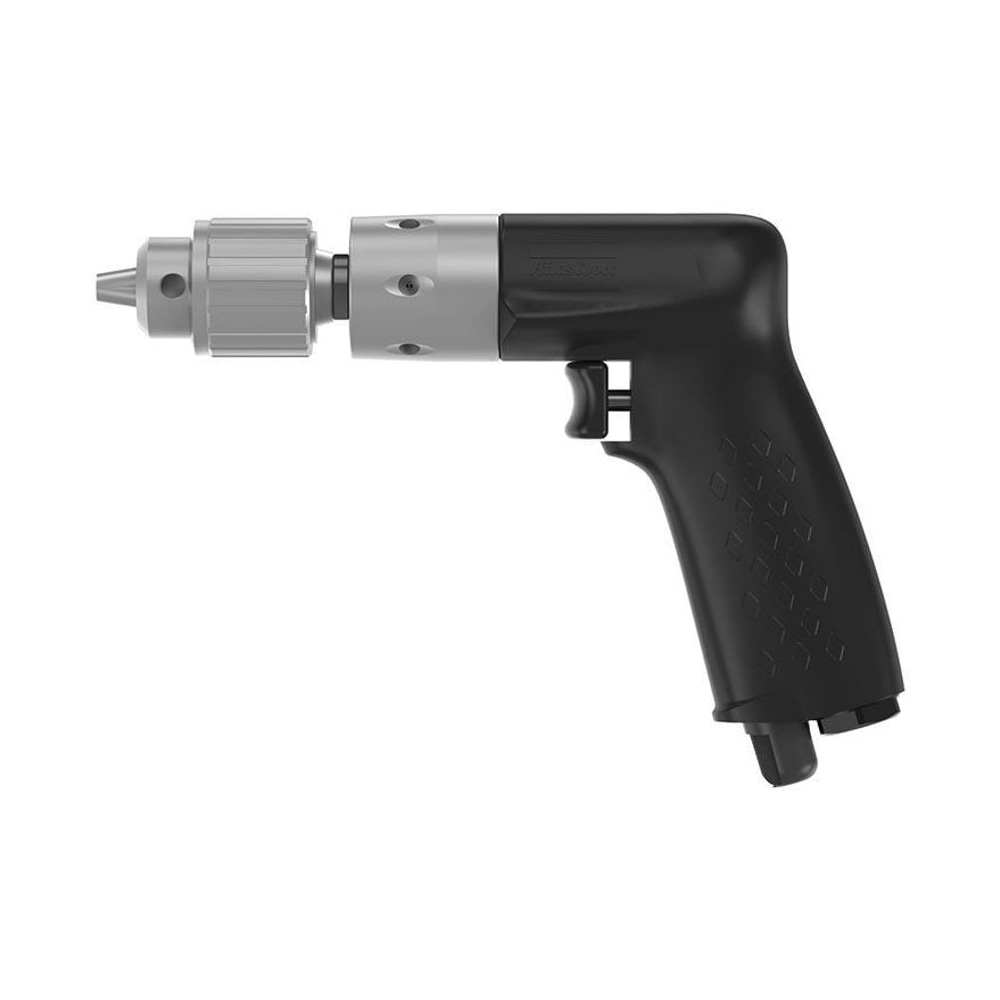

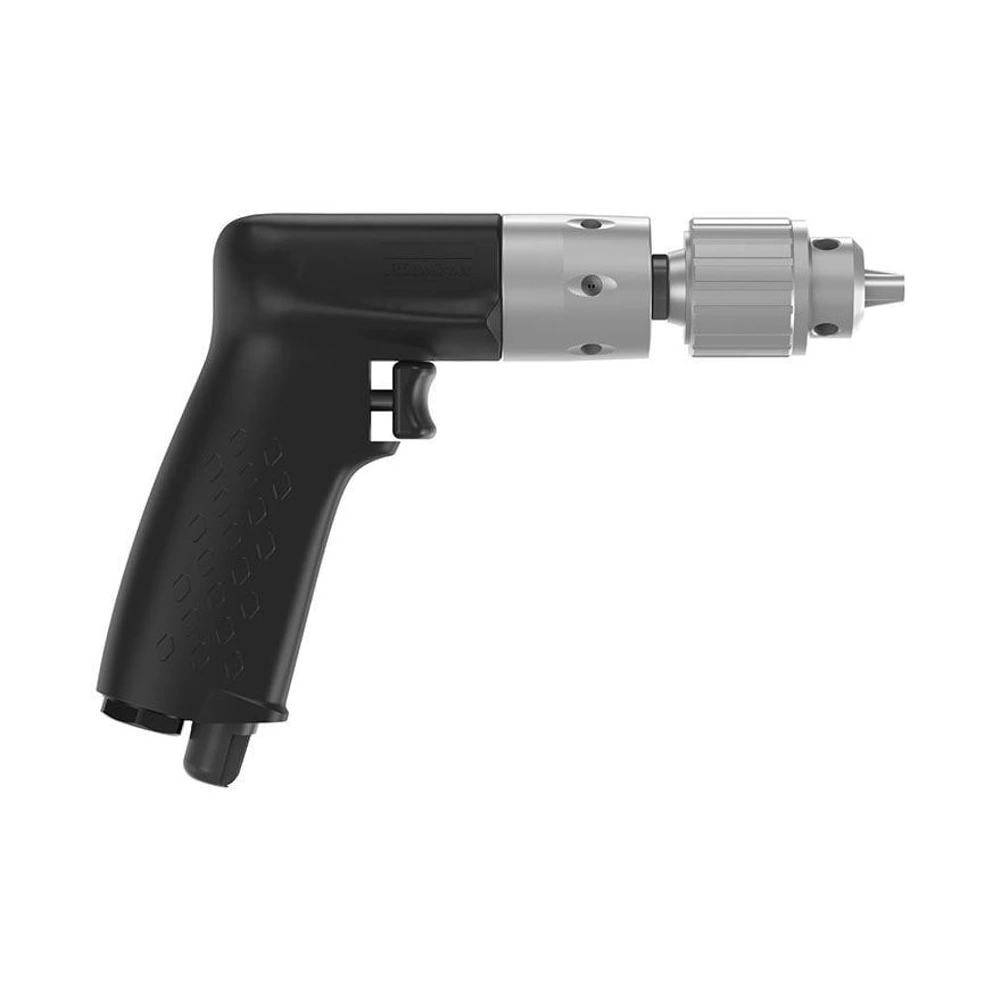

Industrial pneumatic drill with aluminum housing, ergonomic design, and high power-to-weight ratio for professional assembly.
Pneumatic Drill Atlas Copco delivers industrial-grade precision for high-stakes manufacturing and assembly environments. The LBB16 AL series features a non-painted silver aluminum housing, providing superior durability and resistance to wear and tear. This tool empowers operators to create high-quality, burr-free holes thanks to a sensitive trigger that offers exceptional throttling capability for perfect speed control from the start.
Engineered for maximum productivity, this drill features a high power-to-weight ratio that ensures rapid material removal. The anatomical grip and optimized angle keep the wrist and arm straight, significantly reducing the risk of long-term strain injuries like “trigger finger” syndrome. Its adjustable 360-degree air exhaust prevents cold air from blowing onto the operator, enhancing comfort during long shifts. Check out our full range of Pneumatic Drills for more options.
Q: What applications is the Pneumatic Drill Atlas Copco best for?
A: It excels in aerospace, automotive assembly, and general metalworking where high RPMs (up to 6,000) and lightweight handling are essential for efficiency.
Q: Does the AL model require special maintenance?
A: The LBB16 AL features a lubrication-free design, which means lower maintenance requirements and a cleaner workspace for the operator.
Contact us today for expert advice or an on-site demo:

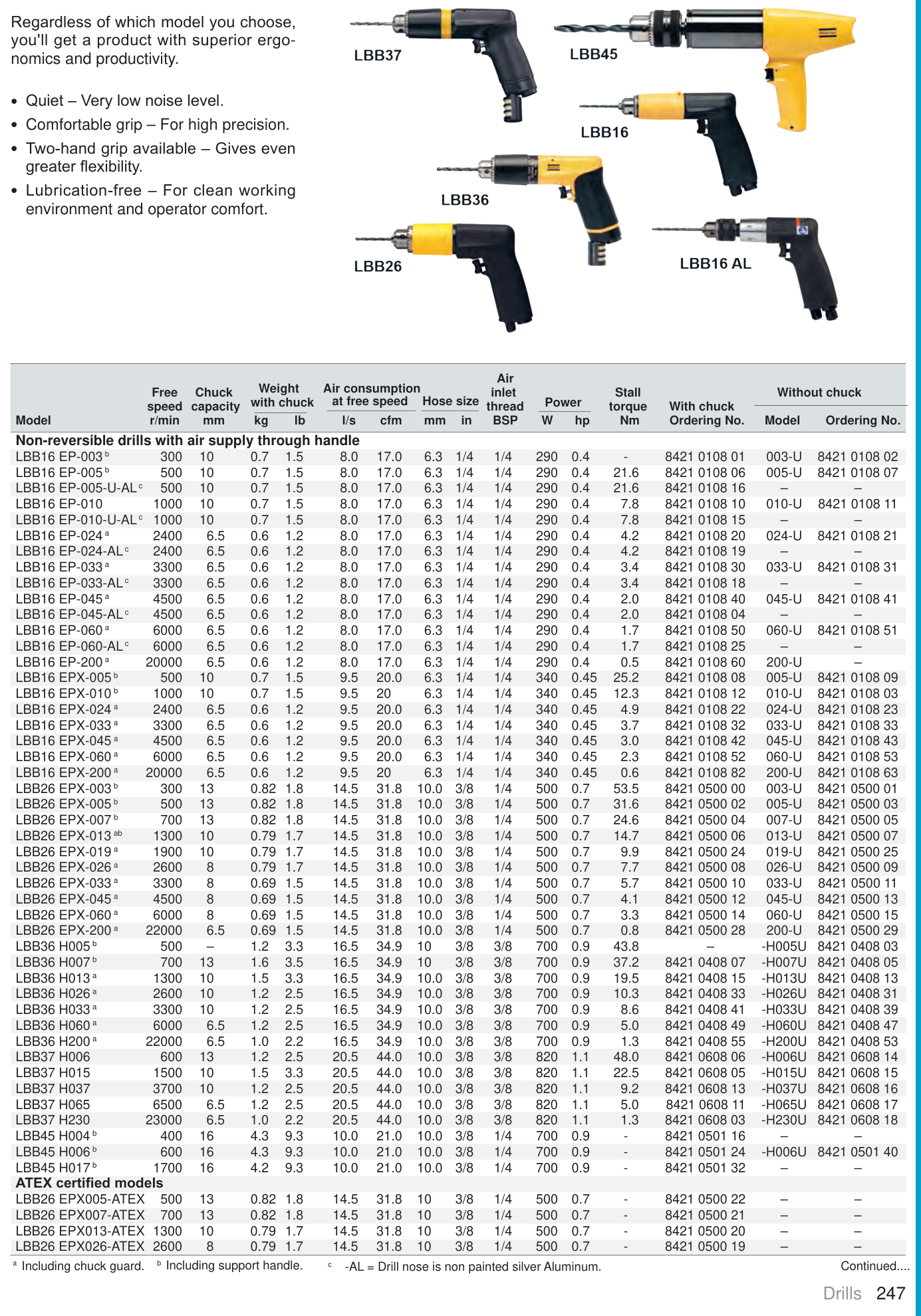

| Model | Free speed (r/min) | Chuck capacity (mm) | Weight (kg) | Air consumption (l/s) | Stall torque (Nm) | Ordering No. (with chuck) |
|---|---|---|---|---|---|---|
| LBB16-AL Models (Aluminum finish) | ||||||
| EP-005-U-AL | 500 | 10 | 0.7 | 8.0 | 21.6 | 8421010816 |
| EP-010-U-AL | 1,000 | 10 | 0.7 | 8.0 | 7.8 | 8421010815 |
| EP-024-AL | 2,400 | 6.5 | 0.6 | 8.0 | 4.2 | 8421010819 |
| EP-033-AL | 3,300 | 6.5 | 0.6 | 8.0 | 3.4 | 8421010818 |
| EP-045-AL | 4,500 | 6.5 | 0.6 | 8.0 | 2.0 | 8421010804 |
| EP-060-AL | 6,000 | 6.5 | 0.6 | 8.0 | 1.7 | 8421010825 |
| Mount | Body diameter (mm) | Chuck capacity (mm) | Chuck Ordering No. (key incl) | Key Only Ordering No. | Key designation |
|---|---|---|---|---|---|
| 3/8-24UNF | 30 | 0.0-6.5 | 4021028300 | 4021029300 | S1 |
| 3/8-24UNF | 30 | 0.5-8.0 | 4021049500 | 4021029300 | S1 |
| 3/8-24UNF | 36 | 2.0-10.0 | 4021041601 | 4021044900 | S8 |

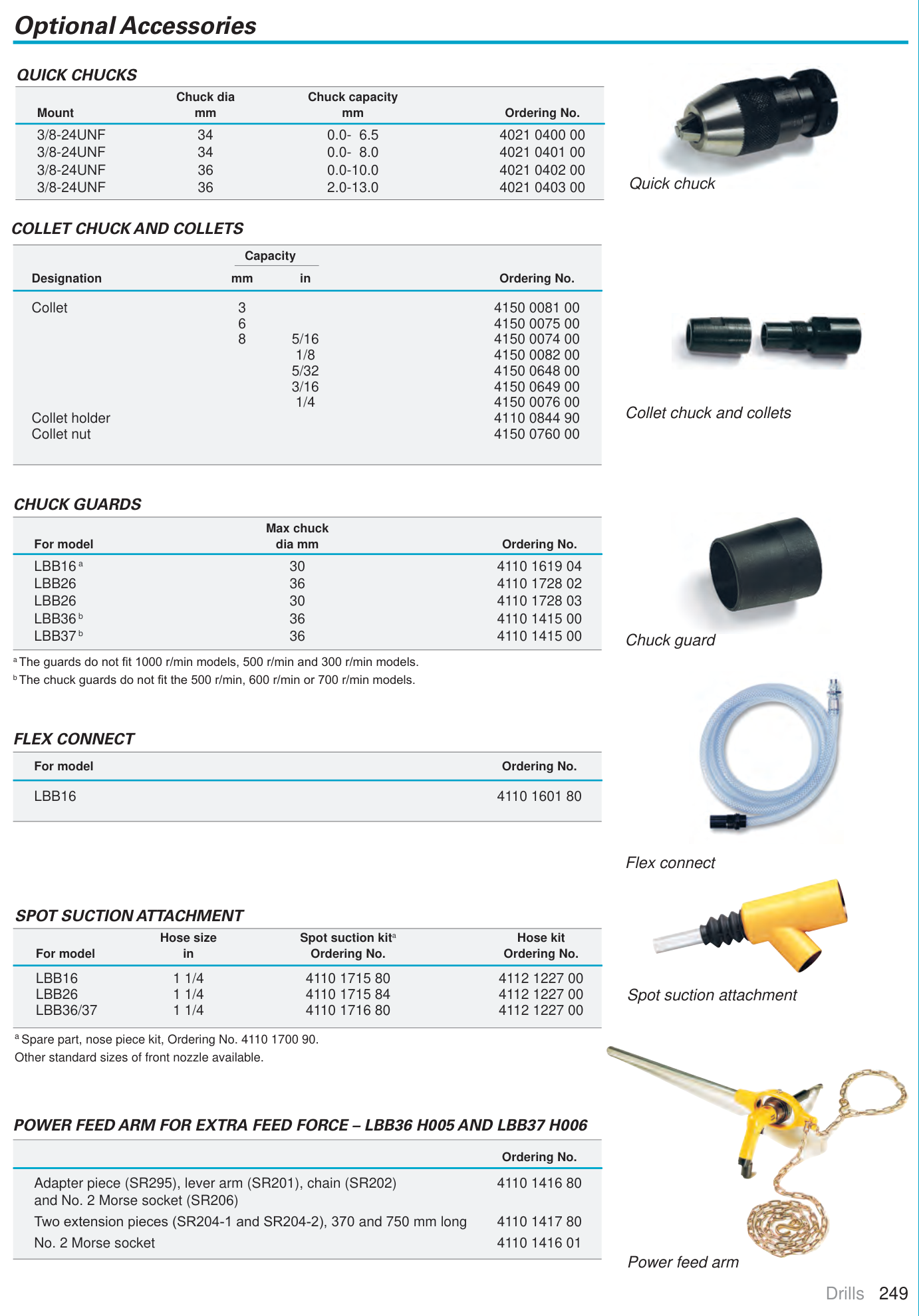

| Mount | Chuck dia (mm) | Chuck capacity (mm) | Ordering No. |
|---|---|---|---|
| 3/8-24UNF | 34 | 0.0-6.5 | 4021040000 |
| 3/8-24UNF | 34 | 0.0-8.0 | 4021040100 |
| 3/8-24UNF | 36 | 0.0-10.0 | 4021040200 |
| 3/8-24UNF | 36 | 2.0-13.0 | 4021040300 |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Pneumatic Drill LBB16 AL 500-6,000 RPM.
