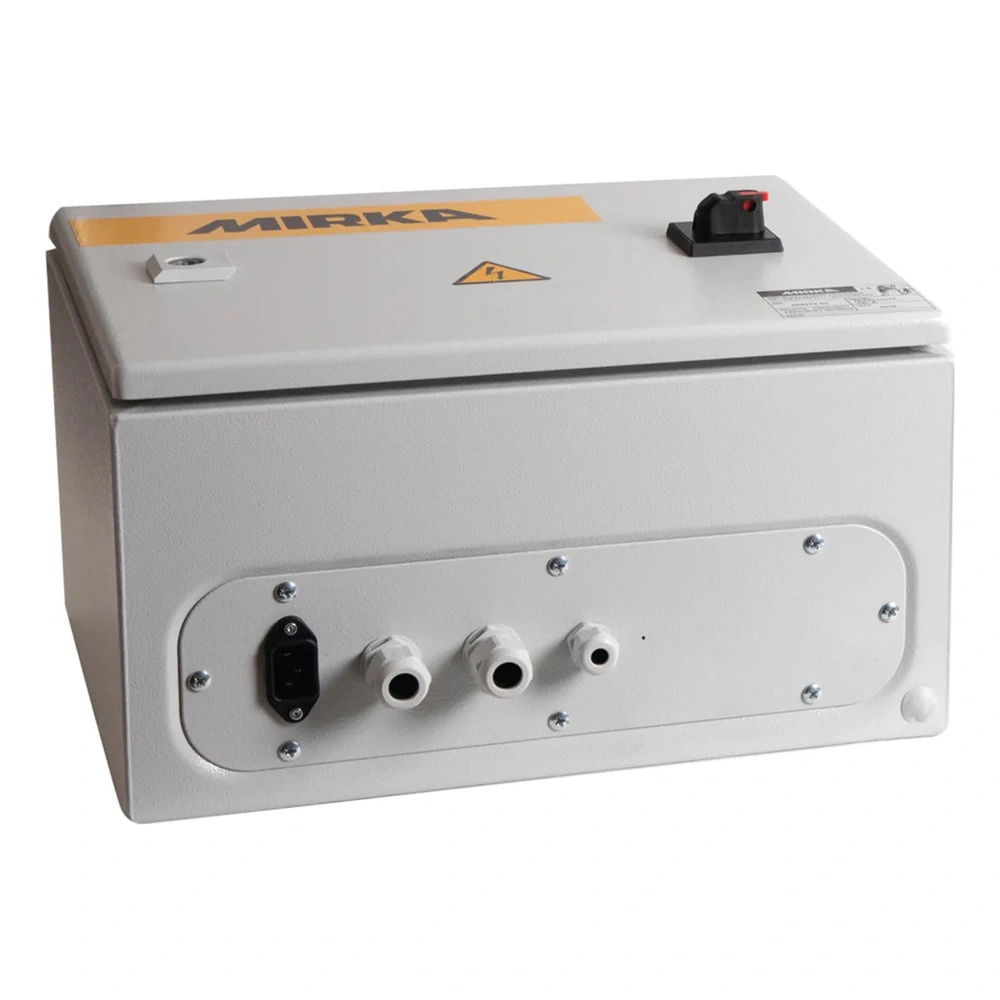

Motor drive cabinet for combining Mirka robotic tools with PROFINET communication interface.
Motor drive cabinet for integrating compatible Mirka robotic tools through a PROFINET communication interface.
| Nominal input voltage | 48 VDC |
|---|---|
| Input voltage range | 100-240 VDC |
| Maximum input current | 10 A |
| Rated power | 480 W |
| Speed range | 1,000-10,000 rpm |
| Overload protection | Yes |
| Overheat protection | Yes |
| Ambient temperature | 0-40 °C |
| Humidity | Maximum 95% RH non-corrosive no dripping water |
| Storage temperature | -20 to 80 °C |
| IP Class | IP40 |
| Mirka part number | EAN |
|---|---|
| MIA6514212 | 6416868750362 |
HADI Engineering & Automation
HADI’s engineering and automation team helps integrate the product into a workstation, robotic cell or production line—from specification and mechanical design to integration, commissioning and implementation.
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Mirka® motor drive cabinet for PROFINET.
The right solution starts with a clear brief
The HADI product development and engineering team can adapt a tool, product or system to your application.
