The Mirka® Pneumatic Belt Sander is your optimal tool for weld marks and seams, rust removal, paint removal as well as for general grinding.
The Mirka pneumatic belt sander is designed for weld marks and seams, rust and paint removal, general grinding, and panel-beating work. Speed and arm-angle adjustments and belt replacement are quick and tool-free. A regulator provides smooth speed control, while the tension-arm mechanism simplifies belt changes. The hex key used to adjust the arm is integrated into the handle for convenient access. The rubber-coated handle provides a comfortable, thermally insulated grip, while low vibration and noise levels support more comfortable operation for the user and nearby workers.
| Item code | 8995134571 |
| Packaging options | Cardboard Box |
| Air Consumption | 800 l/min |
| Belt Length | 457 mm |
| Belt Width | 13 mm |
| Max Speed (rpm) | 20,000 rpm |
| Noise Level, LpA (dB) | 85.7 dB |
| Power Input (W) | 522 W |
| Sound power level (LWA) | 96.7 dB(A) |
| Vibration emission uncertainty K * | 0.59 m/s² |
| Vibration Level (m/s²) | 1.04 m/s² |
| Weight | 0.92 kg |
| Work Pressure (bar) | 6.2 bar |
| Image | Part | Code |
|---|---|---|
 | Vanes kit MPP8014 for PBS 13 | 8995141051 |

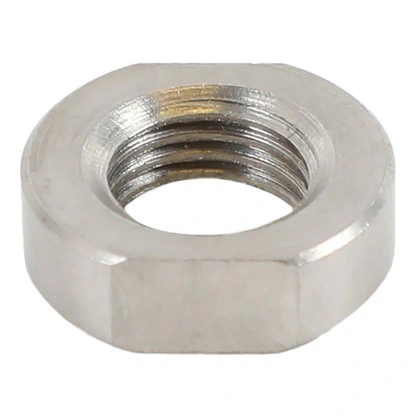

 | Lock Nut MPP2110 for PBS 13 | 8995131101 |
 | O-Ring MPP2315 for PBS 13 | 8995133151 |
 | Lever kit MPP8010 for PBS Tools | 8995122201 |

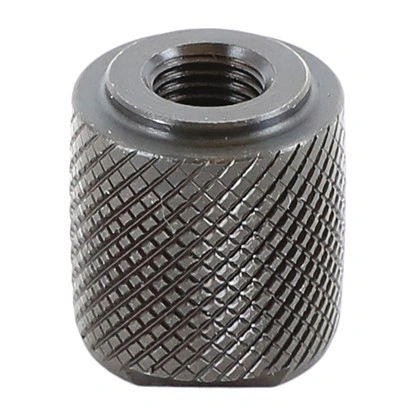

 | Drive Pulley MPP2111 for PBS 13 | 8995131111 |

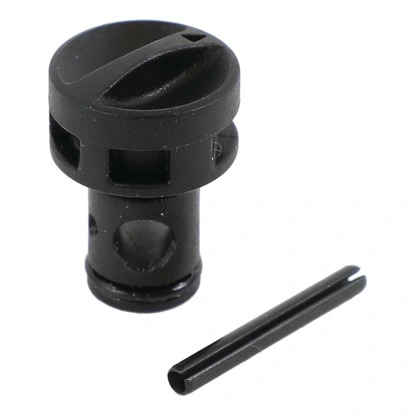

 | Speed Valve kit MPP8016 for PBS 13 | 8995143021 |

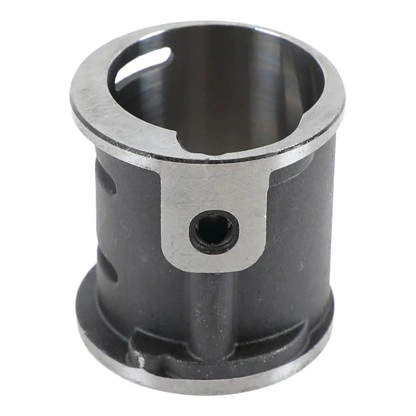

 | Cylinder MPP2106 for PBS 13 | 8995131061 |
 | Muffler kit MPP8011 for PBS Tools | 8995122310 |
 | Air Inlet kit MPP8012 for PBS Tools | 8995122306 |
 | Rotor MPP2104 for PBS 13 | 8995131041 |
 | Hex Wrench 2 & 3 mm | 8995121314 |
 | Spring MPP2309 for PBS 13 | 8995133091 |
 | End Plate Bearing kit MPP8000 for PBS tools | 8995122101 |
 | Front Bearing Plate kit MPP8015 for PBS 13 | 8995141021 |
 | Wear Pad for FBS-B 13 & PBS 13 2 pcs/pack | 8995134111 |

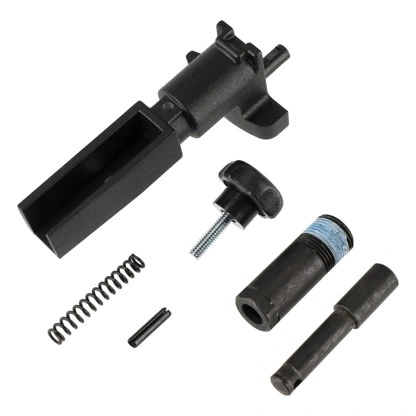

 | Tension Arm kit MPP8017 for PBS 13 | 8995144061 |
 | Housing MPP2301 for PBS 13 | 8995133011 |
 | Guard Unit MPP2401 for PBS 13 | 8995134011 |
 | Handle Grip MPP1305 for PBS Tools | 8995121305 |
 | Bearing to Idle Pulley for PBS 10 & 13 2 pcs/pack | 8995121409 |
 | Belt Cover & Lock kit MPP8019 for PBS 13 | 8995144201 |

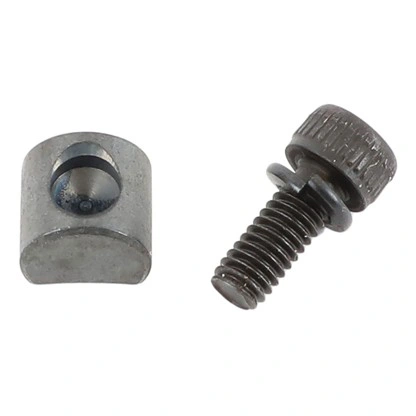

 | Angle Locking kit MPP8020 for PBS 13 | 8995144181 |
 | Adjusting Arm kit for FBS-B 13 & PBS 13 | 8995144101 |
 | Front Exhaust Cover MPP2316 for PBS 13 | 8995133161 |
 | Rear End Plate kit MPP8013 for PBS 13 | 8995141071 |
