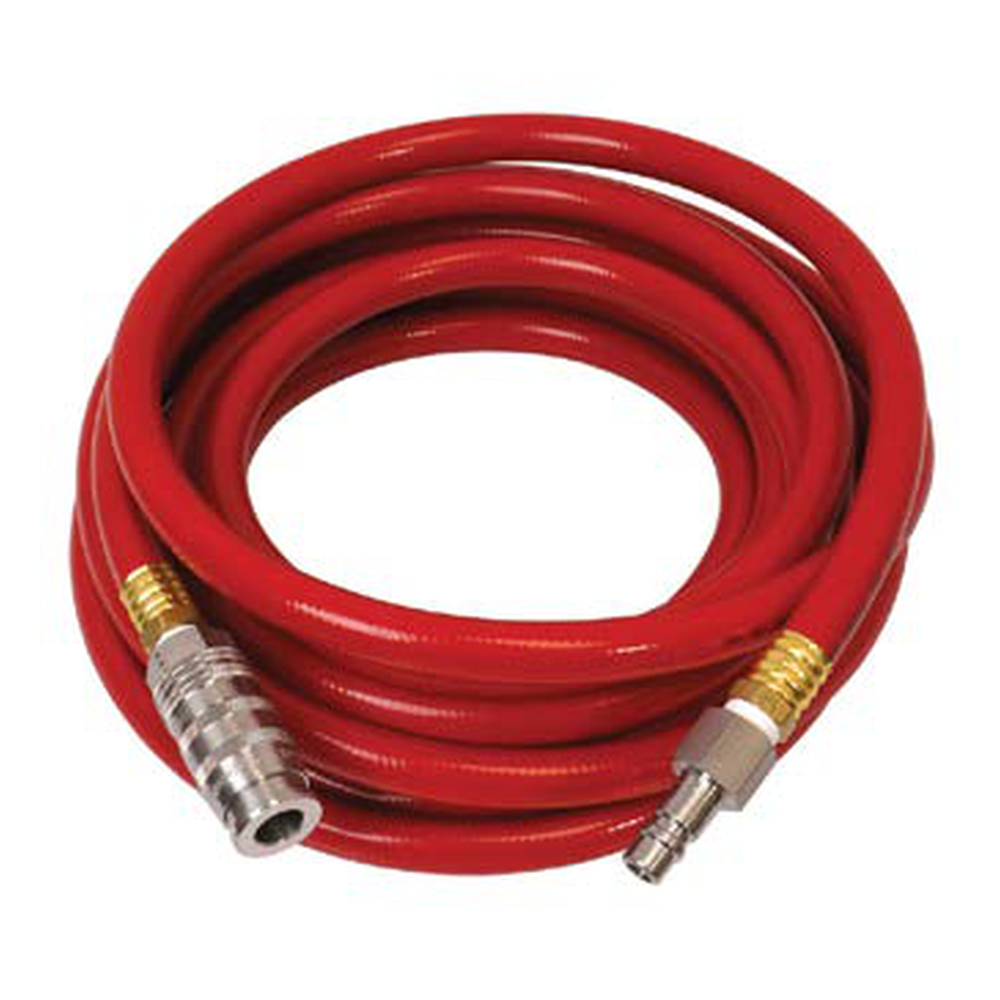

Clayton’s 1/2″ conductive (anti-static) compressed air line is built for use in explosive dust and gas atmospheres. It combines conductive hose with non-sparking brass and stainless-steel fittings to prevent static discharge and ignition.
Clayton’s 1/2″ conductive (anti-static) compressed air line is built for use in explosive dust and gas atmospheres. It combines conductive hose with non-sparking brass and stainless-steel fittings to prevent static discharge and ignition.
The hose terminates in 1/2″ male threaded brass fittings on both ends and ships with a 1/2″ all-stainless-steel coupler and plug. Unlike the standard 1/2″ line (200 psi), the conductive version is rated to 300 psi. Offered in five pre-cut lengths: 10, 20, 30, 40 and 50 ft.
| SKU | Select |
| Length | Select |
| Diameter | 1/2″ |
| Type | Conductive (for explosive dust and gas atmospheres) |
| Fittings | 1/2″ male threaded brass fittings on both ends, non-sparking |
| Included connector | 1/2″ all-stainless-steel coupler and plug |
| Max pressure | 300 psi |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Clayton 1/2" Conductive Compressed Air Line.
The right solution starts with a clear brief
The HADI product development and engineering team can adapt a tool, product or system to your application.
