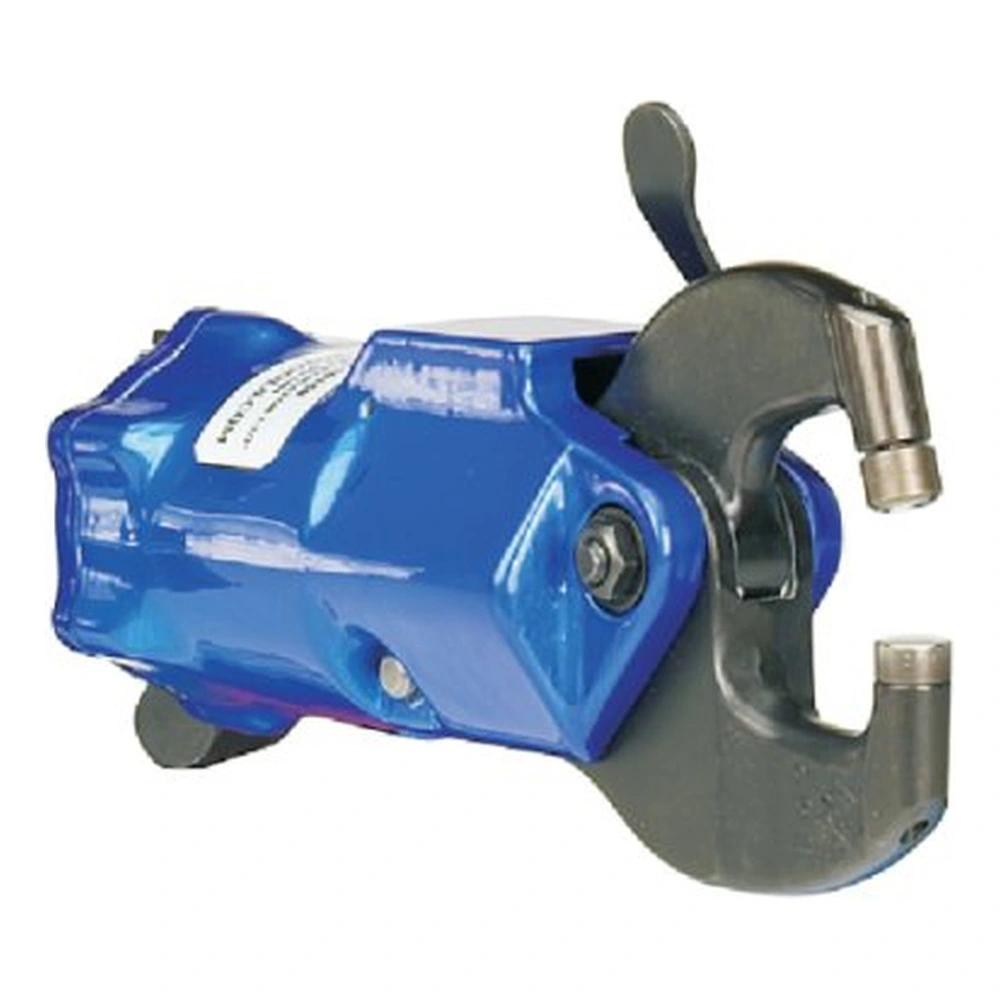

AVRO SINGLE CYLINDER ALLIGATOR SQUEEZERS are pneumatic squeezers for demanding rivet applications.
AVRO offers a diverse selection of rivet squeezers for today’s demanding applications. Special jaws or yokes are available upon request.
A micrometer-style adjustable set holder is available on all rivet squeezers to help eliminate the use of shims. Additional options are also available upon request.
| Model | Number | Capacity | Force | Reach | Max Travel | Length | Weight |
|---|---|---|---|---|---|---|---|
| 10158 | 1/8” / 3/32” | 3000 | 1.5”/ 38.1 | 7/8” | 5/8” / 15.8 | 9-1/4” / 235 | 4 / 1.8 |
| 10159 | 3/32” /3/32” | 2400 | 2.25”/50.8 | 7/8” | 7/8” / 22.2 | 10” / 254 | 4.5 / 2.04 |
| 10160 | 3/32”/ 1/16” | 1800 | 3”/ 76.2 | 7/8” | 1-1/4” / 21.75 | 10-3/4” / 273 | 5 / 2.25 |
| 10158HD | 5/32” / 1/8” | 3900 | 1.5”/ 38.1 | 7/8” | 5/8” / 15.8 | 9-1/4” / 235 | 4 / 1.8 |
| 10159HD | 1/8” /3/32” | 3000 | 2.25”/50.8 | 7/8” | 7/8” / 22.2 | 10” / 254 | 4.5 / 2.04 |
| 10160HD | 3/32”/1/16” | 2400 | 3”/ 76.2 | 7/8” | 1-1/4” / 21.75 | 10-3/4” / 273 | 5 / 2.25 |
Can special configurations be ordered?
Yes, special jaws or yokes are available upon request, and other size plus custom yokes are also available upon request.
How do we specify the adjustable set holder?
Please specify ADJ. Example: 10158 ADJ.
What are the air connection and pressure details?
All specifications are rated at 90 PSI (6.21 BAR) air pressure. Air inlet is 1/4 NPT standard, and use 5/16 (8 mm) ID hose.
