A precision angle grinder family for controlled finishing with matching collet options and connection accessories.

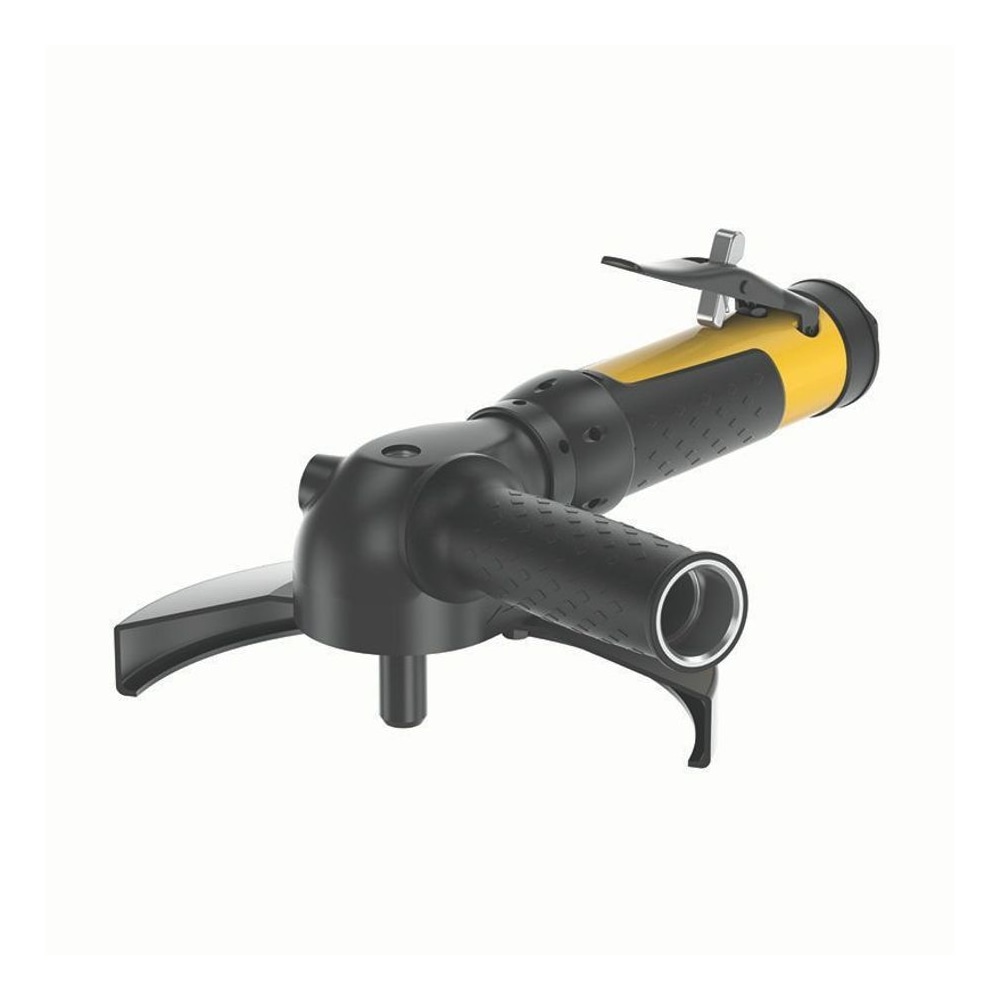

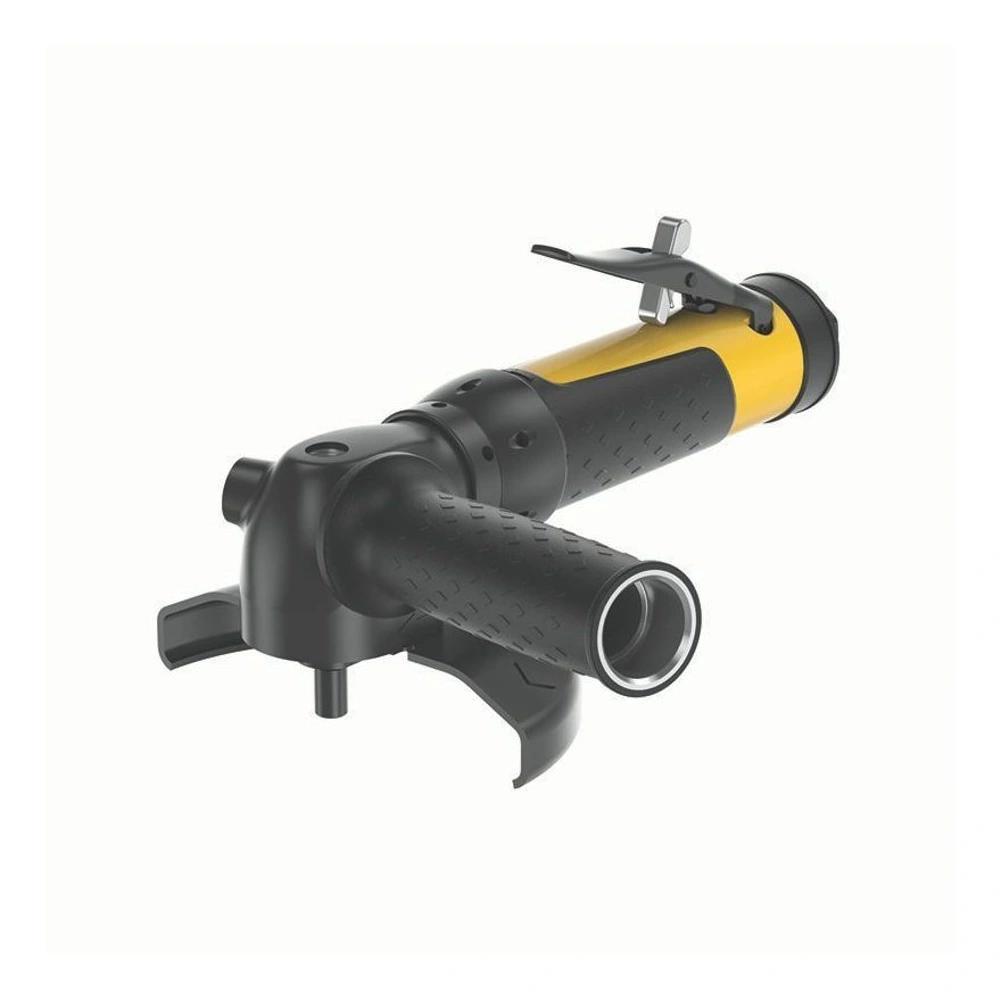

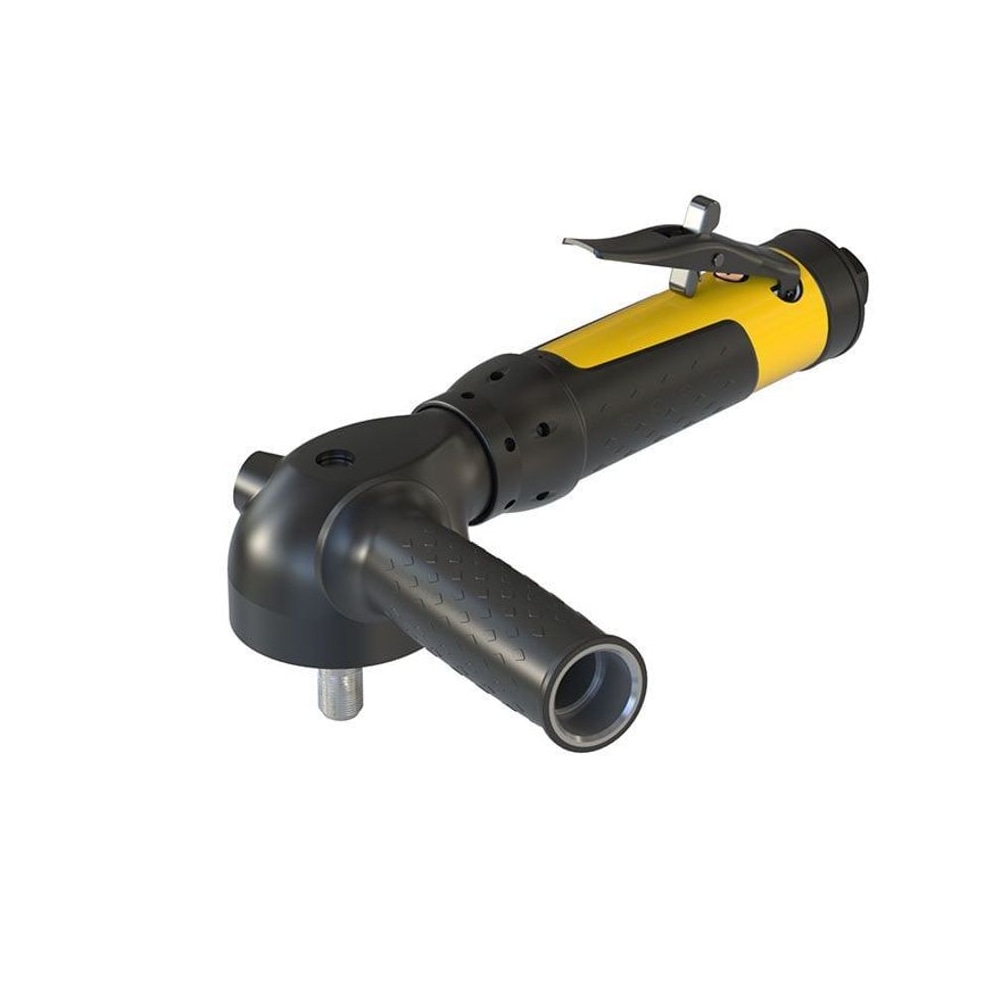

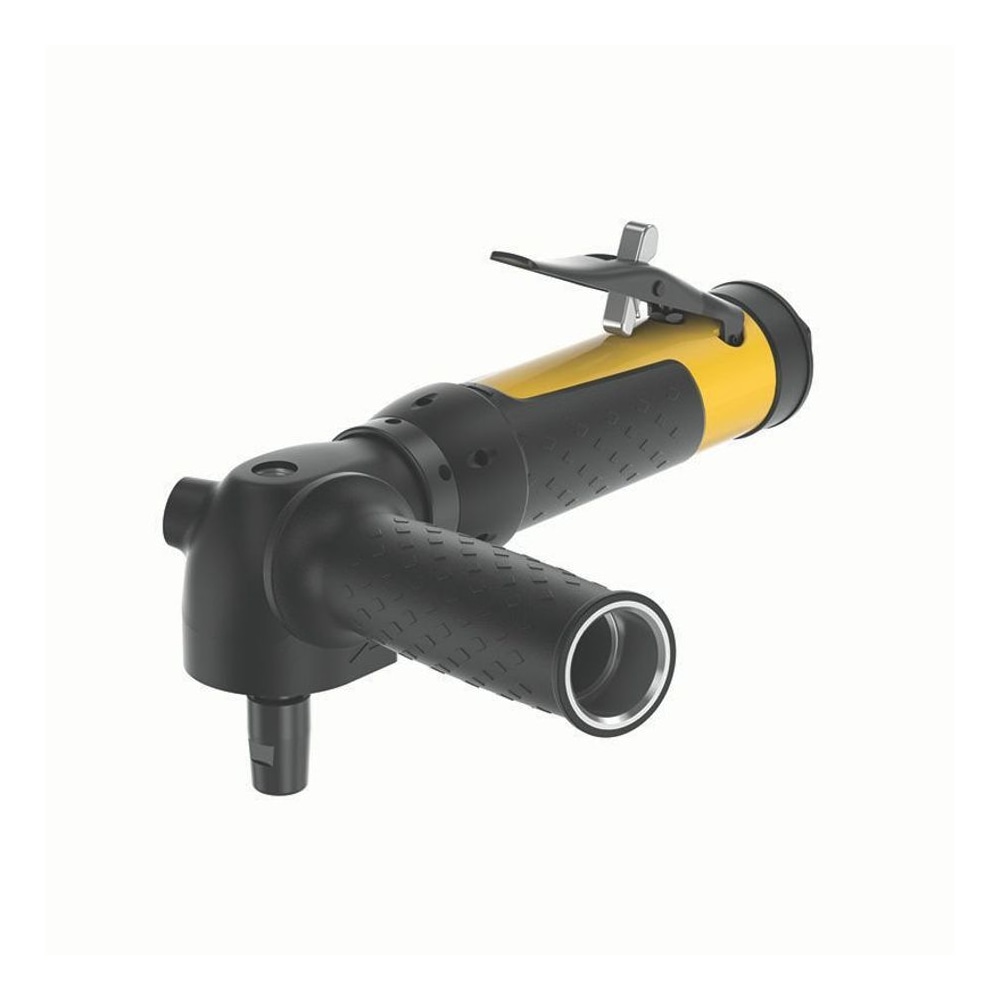

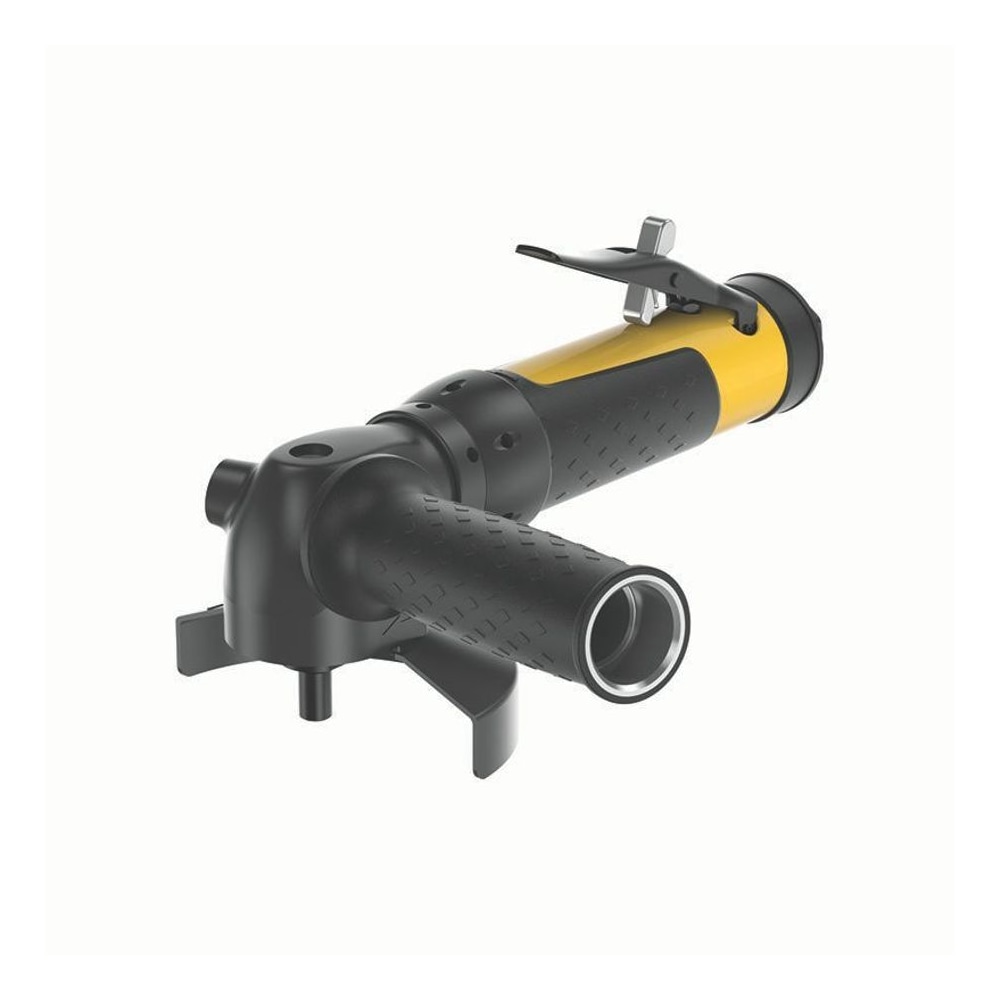

LSV29 is a family of pneumatic angle die grinders for precise grinding work in production, maintenance, and assembly environments.
The series offers collet accessories and multiple connection options, helping you match the tool to the job and keep grinding tasks efficient and practical.
How do I choose the right LSV29 setup for my application?
Step 1: Identify the grinding task and confirm that an angle tool is the right format.
Step 2: Match the collet size to the accessory you plan to use.
Step 3: Select the hose and connection accessories that fit your workstation setup.
Which collet sizes are available for this family?
The family includes collet options in 3 mm, 5 mm, 6 mm, 8 mm, 3/16″, 1/8″, and 5/32″ sizes.
What comes with the tool family?
The family includes an open-end spanner, a soft hose, and a 6 mm collet.
Other listed accessories include a collet holder and collet nut, a cone wheel adapter, and a hose kit.
Can I use different grinding accessories with LSV29?
Yes.
The collet options and the cone wheel adapter support different compatible grinding accessories.
What applications is this grinder best suited for?
It is suited for precision grinding work, especially where angled access and controlled finishing are important.
How do I keep the tool in good operating condition?
Use compatible accessories, keep hose connections in good condition, and follow the appropriate lubrication and maintenance routine for the tool and its related accessories.
| Model | Max free speed (r/min) | Max output (kW) | Collet size (mm) | Length (mm) | Weight (kg) | Air con- sumption at max output (l/s) | Air con- sumption at free speed (l/s) | Rec hose size (mm) | Air inlet thread (in) BSP (in) | Scatter damped | Ordering No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LSV29 S150 | 15000 | 0.7 | 6 | 250 | 1.2 | 21 | 8 | 13 | 3/8 | No | 8423012740 |

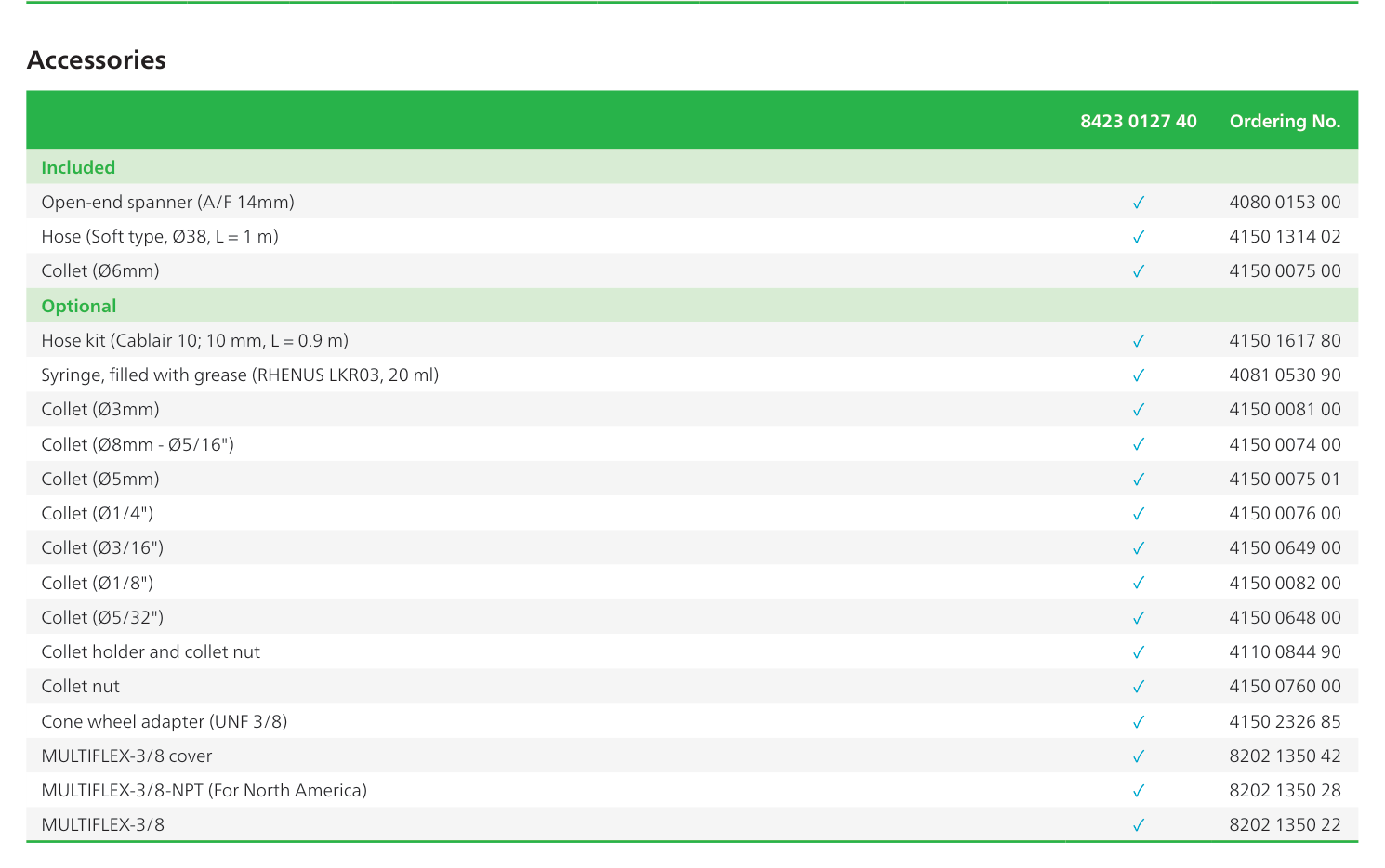

The complete accessories tables, exactly as they appear in the Atlas Copco catalog – every ordering number, dimension and drawing. The PDF attached to this page is also available for download.
