Atlas Copco LMP61 / LTP61 / LTV69 Pneumatic Torque Wrenches

Atlas Copco LMP61 / LTP61 / LTV69 Pneumatic Torque Wrenches

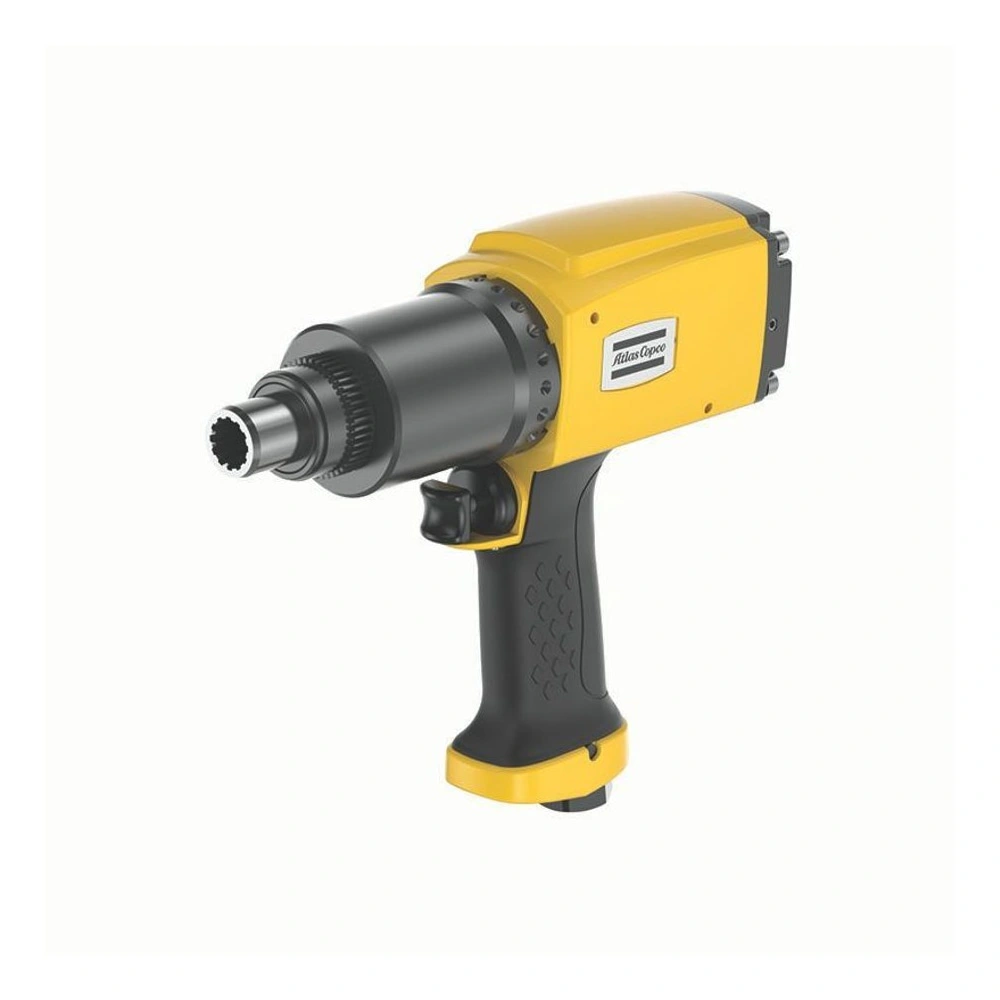

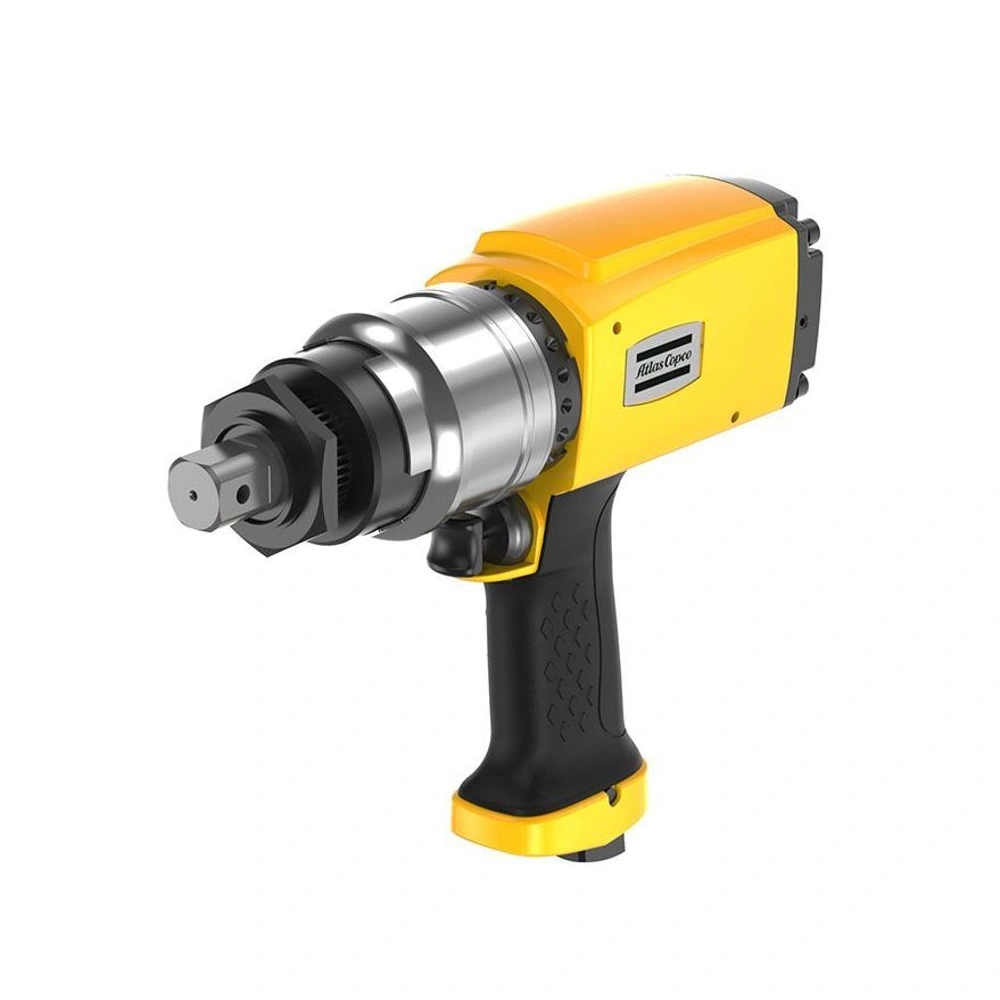

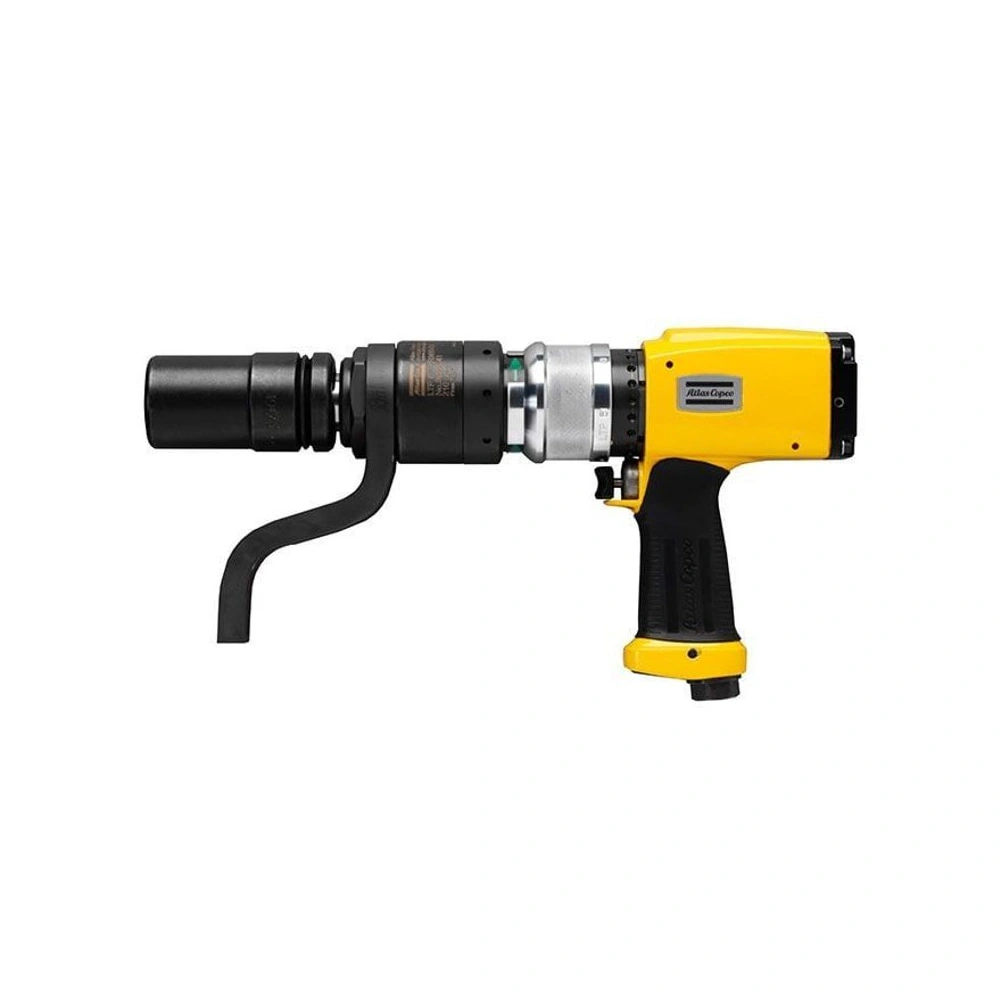

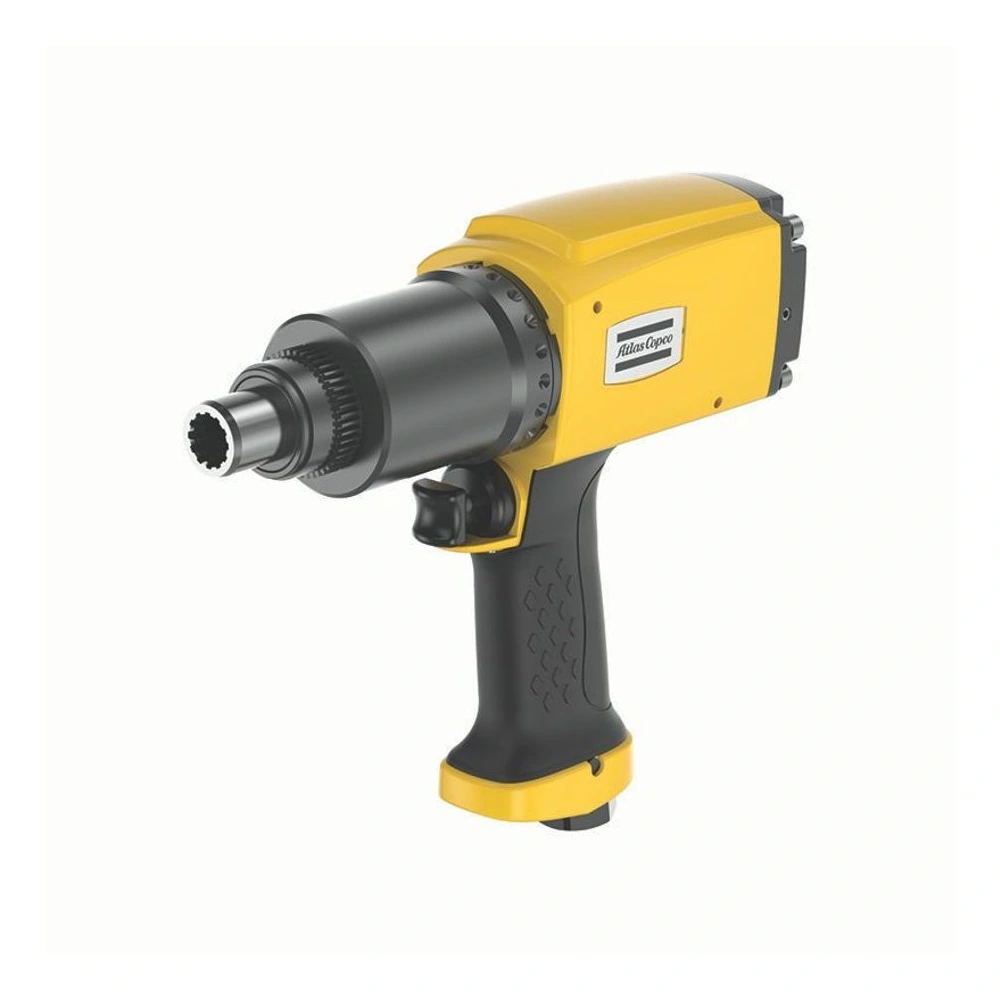

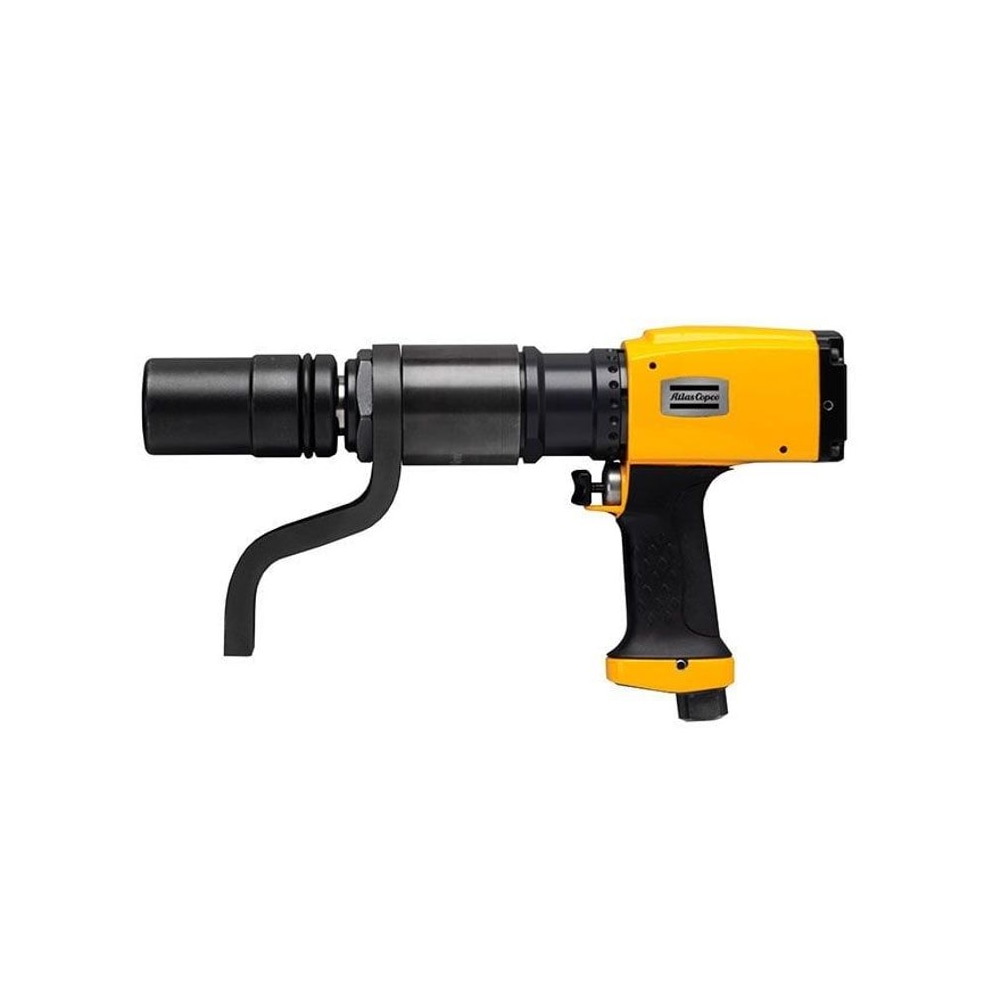

The Atlas Copco LMP61 / LTP61 / LTV69 family is designed for controlled tightening in industrial assembly applications.

It includes Stalling and Shut-off versions, making it easier to match the tightening method to the process and the level of control needed on the line.

Key Features

• Two tightening methods: The family includes both Stalling and Shut-off models, so you can choose between continuous operation and automatic stop at the end of tightening.
• Wide torque coverage: The range covers multiple tightening levels, helping you match the wrench to the bolt size and application needs.
• Free-speed options: Different free-speed values are available across the family, supporting a balance between productivity and control.
• Compact industrial design: The tools are built for daily use in industrial environments, with dimensions and weight suited to production work.
• Standard air connection: The family uses a 3/8 air inlet thread, which helps integration into existing air systems.
• Flexible model selection: The range includes reversible and non-reversible models, so you can choose the direction setup that fits the station.

Frequently Asked Questions

How do I choose the right model in this family?
Step 1: Define the bolt size and the tightening level required.
Step 2: Choose between a Stalling model and a Shut-off model based on the process.
Step 3: Compare the torque and free-speed options that fit the application.
Step 4: Check whether a reversible or non-reversible version is needed.

When should I choose Stalling versus Shut-off?
Choose Stalling when you want continuous operation and control through the way the tool is run.
Choose Shut-off when automatic stop at the end of tightening is important.

Are reversible models available?
Yes.
The family includes both reversible and non-reversible versions, so you can match the direction setup to the task.

What kind of assembly applications fit this range?
These wrenches suit industrial tightening tasks on assembly lines where speed, consistency, and process control are needed.

What should I check in terms of air supply and installation?
Make sure the air system has a compatible connection and that the line setup can support pneumatic torque wrench operation.

What should I verify before ordering a specific model?
Check the exact model designation, the fit for the bolt size, and the ordering number for that model to avoid confusion between close variants.

ℹ️ Please note: this specification includes technical diagrams from the Atlas Copco catalog. The complete data and drawings are available in the PDF attached to this page (the “More details – PDF” button).

LMP61 Stalling Nutrunners – Specifications

Model	Bolt size (mm)	square drive (in)	Max torque at 6.3 bar (Nm)	Max torque at 6.3 bar (ft lb)	Max torque at 3 bar (Nm)	Max torque at 3 bar (ft lb)	Free speed (rpm)	Weight (kg)	Weight (lb)	Length (mm)	CS distance (mm)	Air consumption (l/s)	Air inlet thread (in)	Ordering No.
Non-reversible
LMP61 H500-20	M20	3/4	500	370	300	220	450	3.9	8.6	260	31	20	3/8	8431080333
LMP61 H900-25	M24	1	900	665	500	365	260	4.5	9.9	282	34	20	3/8	8431080347
Reversible
LMP61 HR170-13	M14	1/2	170	125	100	75	1400	3.0	6.6	238	30	20	3/8	8431080411
LMP61 HR230-19	M16	3/4	230	170	130	95	1000	3.0	6.6	275	34	20	3/8	8431080418
LMP61 HR350-20	M18	3/4	350	260	200	145	650	3.9	8.6	275	34	20	3/8	8431080425
LMP61 HR500-20	M20	3/4	500	370	300	220	450	3.9	8.6	320	35	21	3/8	8431080432
LMP61 HR700-25	M22	1	700	520	400	295	350	4.5	9.9	305	34	20	3/8	8431080439
LMP61 HR900-25	M24	1	900	665	500	365	260	4.5	9.9	305	34	20	3/8	8431080446
LMP61 HR1500-25	M30	1	1600	1180	900	660	140	6.8	14.9	345	42	20	3/8	8431080453

Technical diagram from the Atlas Copco catalog (p. 29)

N = non-reversible (Non-reversible)
R = reversible (Reversible)
H / HR = standard direction
PH / PHR = prevailing torque (Prevailing torque)
HAD = Hold & Drive (holding and driving)
The torque depends on the air pressure – values according to 6.3 bar and 3 bar as indicated in the headings

LTP61 Shut-Off Nutrunners – Specifications

Model	Bolt size (mm)	square drive (in)	Max torque at 6.3 bar (Nm)	Max torque at 6.3 bar (ft lb)	Max torque at 3 bar (Nm)	Max torque at 3 bar (ft lb)	Free speed (rpm)	Weight (kg)	Weight (lb)	Length (mm)	CS distance (mm)	Air consumption (l/s)	Air inlet thread (in)	Ordering No.
Non-reversible
LTP61 H100-13	M12	1/2	55-100	40-75	45	35	1800	3.0	6.6	223	29	20	3/8	8431080007
LTP61 H170-13	M14	1/2	95-170	70-125	70	50	1100	3.0	6.6	223	29	20	3/8	8431080014
LTP61 H230-19	M16	3/4	125-230	90-170	85	60	820	3.0	6.6	223	29	20	3/8	8431080021
LTP61 H350-20	M18	3/4	190-350	140-255	145	105	520	3.9	8.6	260	31	20	3/8	8431080028
LTP61 H500-20	M20	3/4	275-500	200-370	220	160	360	3.9	8.6	260	31	20	3/8	8431080035
LTP61 H700-25	M22	1	360-650	265-480	280	207	280	4.5	9.9	305	34	20	3/8	8431080042
LTP61 H900-25	M24	1	480-870	350-640	300	220	210	4.5	9.9	282	32	20	3/8	8431080049
LTP61 H1500-25	M30	1	850-1500	625-1100	700	516	115	6.8	14.5	323	42	20	3/8	8431080056
Non-reversible Hold and Drive
LTP61 H170-HAD	M14	–	95-170	70-125	70	50	1200	3.0	6.6	226	29	20	3/8	8431081117
LTP61 H230-HAD	M16	–	125-230	90-170	85	60	900	3.0	6.6	226	29	20	3/8	8431081123
Reversible
LTP61 HR100-13	M12	1/2	55-100	40-75	45	35	1800	3.0	6.6	235	30	20	3/8	8431080108
LTP61 HR170-13	M14	1/2	95-170	70-125	70	50	1100	3.0	6.6	238	30	20	3/8	8431080115
LTP61 HR230-19	M16	3/4	125-230	90-170	85	60	820	3.0	6.6	275	34	20	3/8	8431080122
LTP61 HR350-20	M18	3/4	190-350	140-255	145	105	520	3.9	8.6	275	34	20	3/8	8431080129
LTP61 HR500-20	M20	3/4	275-500	200-370	220	160	360	3.9	8.6	320	35	21	3/8	8431080136
LTP61 HR700-25	M22	1	360-650	265-480	280	207	280	4.5	9.9	305	34	20	3/8	8431080143
LTP61 HR900-25	M24	1	480-870	350-640	300	220	210	4.5	9.9	305	34	20	3/8	8431080150
LTP61 HR1500-25	M30	1	850-1500	625-1100	700	516	115	6.8	14.5	345	42	20	3/8	8431080157
LTP61 HR1900-38	M30	1 1/2	1050-1900	770-1400	800	590	90	14.1	31.0	380	68	20	3/8	8431080164

LTP61 PH Shut-Off Nutrunners for Prevailing Torque – Specifications

Model	Bolt size (mm)	square drive (in)	Torque range at 6.3 bar (Nm)	Torque range at 6.3 bar (ft lb)	Min torque at 3 bar (Nm)	Min torque at 3 bar (ft lb)	Free speed (rpm)	Weight (kg)	Weight (lb)	Length (mm)	CS distance (mm)	Air consumption (l/s)	Air inlet thread (in)	Ordering No.
Non-reversible
LTP61 PH100-13	M12	1/2	60-110	45-80	45	33	700	3.0	6.6	223	29	20	3/8	8431090805
LTP61 PH170-13	M14	1/2	100-180	75-135	70	52	440	3.0	6.6	223	29	20	3/8	8431090813
LTP61 PH230-19	M16	3/4	130-240	95-180	90	66	320	3.0	6.6	223	29	20	3/8	8431090818
LTP61 PH350-20	M18	3/4	210-370	155-275	150	110	200	3.9	8.6	260	31	20	3/8	8431090825
LTP61 PH500-20	M20	3/4	300-520	220-380	200	150	140	3.9	8.6	260	31	20	3/8	8431090832
LTP61 PH700-25	M22	1	400-680	295-500	280	205	100	4.5	9.9	305	34	20	3/8	8431090839
LTP61 PH900-25	M24	1	500-900	370-665	350	260	80	4.5	9.9	282	32	20	3/8	8431090842
LTP61 PH1500-25	M30	1	900-1600	665-1180	650	480	45	6.8	14.9	323	42	20	3/8	8431090853
Non-reversible Hold and Drive
LTP61 PH170-HAD	M14	–	100-180	75-135	70	52	440	3.0	6.6	226	29	20	3/8	8431081017
LTP61 PH230-HAD	M16	–	130-240	95-180	90	66	320	3.0	6.6	226	29	20	3/8	8431081023
Reversible
LTP61 PHR700-25	M12	1/2	55-100	40-75	45	35	1800	3.0	6.6	235	30	20	3/8	8431090858
LTP61 PHR900-25	M14	1/2	95-170	70-125	70	50	1100	3.0	6.6	238	30	20	3/8	8431090862
LTP61 PHR1500-25	M16	3/4	125-230	90-170	85	60	820	3.0	6.6	275	34	20	3/8	8431090869

LTV69 Angle Shut-Off Nutrunners – Specifications

Model	Bolt size (mm)	square drive (in)	Torque range at 6.3 bar (Nm)	Torque range at 6.3 bar (ft lb)	Min torque at 3 bar (Nm)	Min torque at 3 bar (ft lb)	Free speed (rpm)	Weight (kg)	Weight (lb)	Length (mm)	Angle head height (mm)	Angle head CS distance (mm)	Air consumption (l/s)	Air inlet thread (in)	Ordering No.
Non-reversible
LTV69 N180-13	M16	1/2	100-170	74-125	70	52	840	4.6	10.1	577	50	25.3	20	1/2	8431083035
LTV69 N370-20	M18	3/4	190-370	140-273	140	103	480	7.1	15.6	619	62	32.9	20	1/2	8431083046
LTV69 N600-25	M22	1	400-600	295-443	230	170	280	9.7	21.3	661	77	54.0	20	1/2	8431083052
Reversible
LTV69 R180-13	M16	1/2	100-170	74-125	70	52	840	5.1	11.1	592	50	30	20	1/2	8431083004
LTV69 R370-20	M18	3/4	190-370	140-273	140	103	480	7.6	16.6	634	62	30	20	1/2	8431083015
LTV69 R600-25	M22	1	400-600	295-443	230	170	280	10.2	22.6	676	77	34	20	1/2	8431083021
Hold and Drive – Non-reversible and Reversible
LTV69 N230-HAD-LR	M16	–	140-230	103-170	80	60	320	4.0	8.8	535	–	29.5	20	1/2	8431083037
LTV69 R370-HAD	M18	–	190-370	140-273	140	103	480	7.6	16.6	634	104	33	20	1/2	8431083165
LTV69 R600-HAD	M22	–	400-600	295-443	230	170	280	10.4	22.9	675	105	54	20	1/2	8431083166
